Description

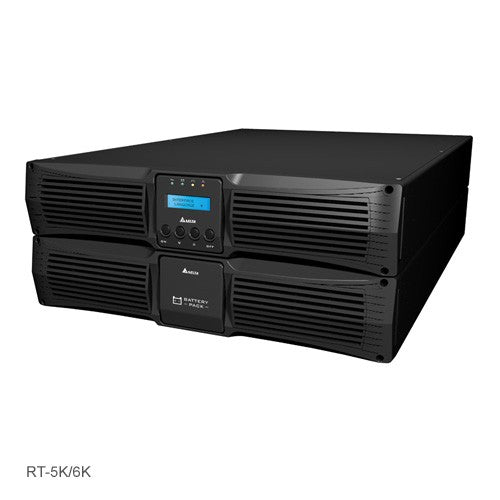

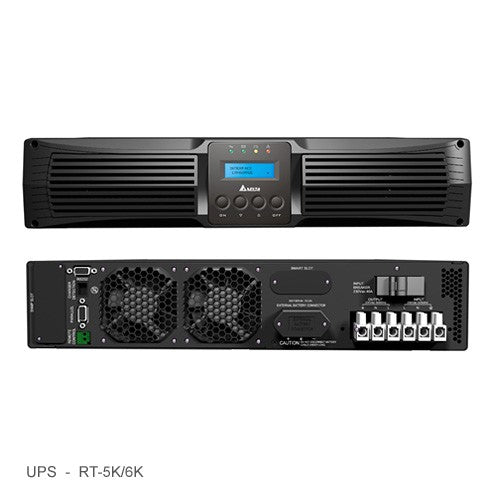

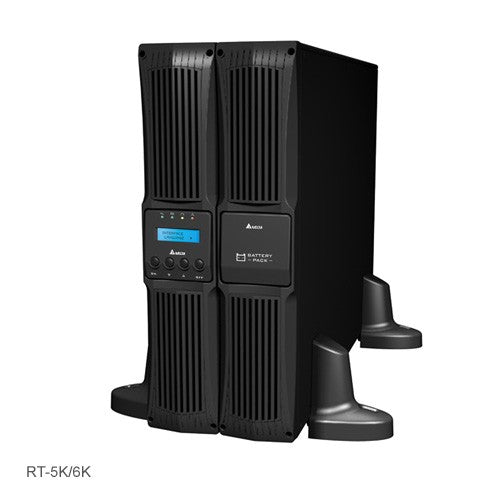

DELTA ELECTRONICS UPS RT-6K Standard
Specifications
| Description | A total solution for reliable power with high availability and performance The Amplon RT Series 5-20kVA is an online double-conversion UPS that provides best-in-class designs in compact 2U size, high power density, system efficiency, and versatile configurations to fulfill customers' requirements. Unity output power factor maximizes capacity for more critical loads, while outstanding energy savings can be achieved based on the AC-AC efficiency of up to 96.5% and 99% in ECO mode. In addition, RT Series 5-20kVA UPS is the first in the market that offers standard Li-ion external battery cabinets, which deliver better power density and sustainability. Along with the parallel capacity of up to four units, the new series is the ideal small power UPS for mission-critical applications, such as servers, data centers, telecommunications, and manufacturing. |
|---|---|
| Apparent power | 6 kVA |
| Active power | 6000 |
| UPS Architecture | on-line double conversion |
| Number of phases input | 1 (230V) |
| No. of batteries | 16 |
| Battery capacity | 7 |
| Chassis type | Tower |
| Chassis type | Rack |
| Filters / protection | Suppression |
| Filters / protection | Voltage drop |
| Output power ports | 3 x IEC-C19 |
| Output power ports | Terminal |
| Output power ports | 6 x IEC-C13 |
| I/O connectors | 1 x LPT (Parallel) |
| I/O connectors | 1 x RS-232 (COM) |
| I/O connectors | 1 x USB 2.0 |
| I/O connectors | 1 x RS-485 |
| Environment requirements | Operating Temperature0 ~ 40°C Relative Humidity 0 ~ 95 % RH (non-condensing) Noise Level[1.1K] : |
| Color | Black |

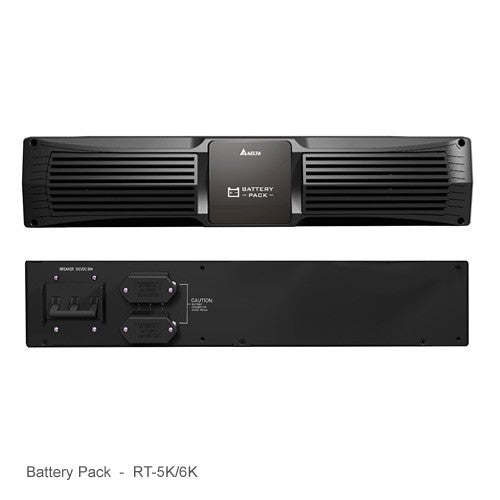

| Dimensions | UPS: 440 x 671 x 89 mm Battery module: 440 x 638 x 89 mm |
| Weight | 51.5 |
