Description

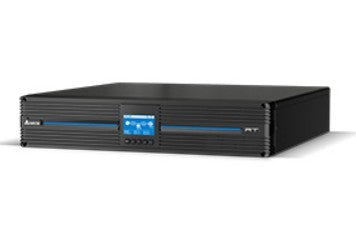

DELTA ELECTRONICS Amplon RT-2K PRO UPS UPS202R2RT1B035
Specifications
| Description | The Delta RT Pro series UPS are premium online double-conversion uninterruptible power supplies (UPS) offering industry-leading AC-AC efficiency, unity power factor, and exceptional flexibility-all in a compact 2U form factor. Designed to provide the highest level of protection for critical loads against all types of power disturbances, the RT Pro series UPS deliver a reliable power foundation that supports business continuity, growth, and success. High Power from a Compact Device Unity Power Factor (kVA = kW) - Maximizes available output power. Best-in-Class Efficiency - Up to 94.3% in double-conversion mode (AC-AC) and up to 99% in ECO mode, significantly reducing electricity costs. Extended Battery Life - Wide input voltage range (120280 V) and three-stage battery charging mechanism increase battery longevity. Exceptional Flexibility Two Programmable Output Groups - Enable selective load shedding to extend backup time for critical equipment. Scalable Runtime - Optional external battery modules can be connected for extended power availability. REPO & ROO Functions - Remote Emergency Power Off (REPO) and Remote Output Off (ROO) allow safe shutdown and restart of connected devices. Configurable Dry Contacts - Built-in for advanced monitoring and control. Rack or Tower Deployment - Rotatable LCD display allows flexible installation options. Easy Management Global Certifications - CE and UL certified, allowing the same model to be used worldwide for multi-site deployments. User-Friendly Interface - LCD screen with intuitive menus for monitoring and configuration. Smart Management Software - Connect via RS232, USB, or mini port to enable remote monitoring and configuration of the UPS. |
|---|---|
| Apparent power | 2000 VA |
| Active power | 2 |
| UPS Architecture | on-line double conversion |
| No. of batteries | 4 |
| Voltage | 48 |
| Backup time (100% load) | 2.5 |
| Chassis type | Compact |
| Filters / protection | No |
| Input power ports | IEC-C20 |
| Output power ports | 6 x IEC-C13 |
| Output power ports | 1 x IEC-C19 |
| I/O connectors | 1 x RS-232 (COM) |
| I/O connectors | 1 x REPO |
| I/O connectors | 1 x USB 2.0 |
| I/O connectors | 3 x output dry contact |
| I/O connectors | 1 x inpot dry contact |
| Environment requirements | Operating Temperature: 0 to +55°C Humidity: 5 - 95% (non-condensing) Noise Level: Operating Altitude: 0 - 3000m (rated power decreases by 1% for every 100m above 1000m) Ingress Protection (IP) Rating: IP20 |
| Color | Black |
| Dimensions | 440 x 430 x 88 mm |
| Weight | 21 |
