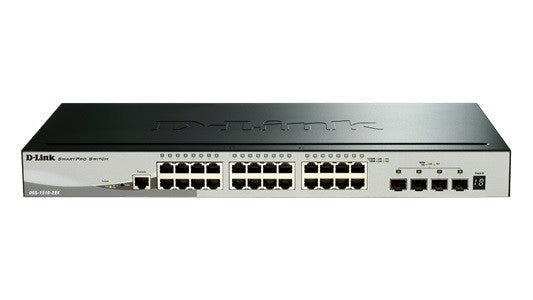

D-Link Switch DGS-1510-28X 24GE 4SFP+
Specifications
| Description | DGS-1510 Series Gigabit Stackable Managed Smart Switches L2 management and security with L3 features CLI command line, console port and Web GUI 10G SFP+ physical stackable Static and MSTP routes Lifetime-Limited warranty upon registration Command line CLI Supports a standard and commonly used command line interface for system management. Physical racking Physically stackable up to 6 units in a stack with a total of 288 ports. 10G uplink ports With SFP+ ports, you can connect to other areas of the network with 10G throughput. Static routing Segregation of L3 traffic between switches, regardless of VLAN segemntation. Multiple images and confusion files Firmware updates and configuration testing without any risk of losing settings. Limited Lifetime Warranty Register your product to benefit from the Lifetime Limited Warranty. The DGS1510 series is the latest generation of managed Smart switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high throughput, industry-standard CLI console compliance, makes the DGS1510 series switches ideal for SMBs as well as enterprise environments. Full feature set with L3 traffic management The DGS1510 switch series features advanced network management tools via an industry-standard CLI console, console serial port and the GUI browser-based user interface. This provides your business with VLAN, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routes, multiple firmware images and multiple configuration files. With powerful security features in the form of IGMP snooping, access control lists, port security tools and the D-Link Safeguard Engine, which protects the network from malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 switch family is a versatile tool for networked enterprise environments. Fibre optic Uplink ports Network expansion to suit the needs of any business is possible with fibre uplink ports with advanced management and security features. D-View 7: free network design and management system D-Link's free Network Assistant (DNA) system provides information on all connected devices and speeds up initial configuration. The free D-View 7 network management system comes with a licence for 25 nodes and 2 probes and full access to management tools. An optional licence upgrade allows for expanded network and analysis capabilities. Energy saving D-Link's DGS-1510 family of switches with D-Link Green technology enables energy savings without affecting operational performance or functionality. |
|---|---|
| Switch class | SMART |
| Application | Medium and large companies |
| Switch layer | L3 |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | 24 |
| 10/100/1000/2500 Mbps ports | None |
| Number of 10Gb ports | 4 |
| Number of PoE+ ports | None |
| Number of COMBO ports | None |
| Number of SFP+ ports | 4 |
| Number of QSFP+ ports | None |
| Console port | Yes |
| Forwarding mode | Store-and-forward |
| Throughput | 128 |
| Forwarding rate | 95.24 |
| Memory buffer | 1.5 |
| MAC address table size | 16384 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 9.216 |
| Stackability | Yes |
| Maximum number of units per stack | 6 |
| Number of VLAN groups | 4000 |
| VLAN | 802.1Q Tagged VLAN 4K VLAN Groups Configurable VID: 0~4094 GVRP VLAN Wizard Asymmetric VLAN Auto Voice VLAN Auto Surveillance VLAN 2.1 MAC-based VLAN Protocol-based VLAN |
| Supported protocols and standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet 802.3ae 10 GbE IEEE 802.3x Flow Control for Full-Duplex Mode |
| QoS | 802.1p Quality of Service Queue Handling Strict Priority Queue (SPQ) Weighted Round Robin (WRR) Deficit Round Robin (DRR) SPQ + WRR 8 queues per port Bandwidth Control Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s) CoS based on: 802.1p priority VLAN MAC address Ether type IP address DSCP Protocol type TCP/UDP port number DSCP of IPv6 Traffic Class IPv6 flow label |
| Security | Port Security Supports up to 128 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Dynamic ARP Inspection D-Link Safeguard Engine DHCP Server Screening ARP Spoofing Prevention Max. 64 entries SSH Supports v2 Supports IPv4/IPv6 BPDU Attack Protection DoS Attack Prevention SSL Supports v1/v2/v3 Supports IPv4/IPv6 Traffic Segmentation IP-MAC-Port Binding DHCP snooping IP Source Guard Dynamic ARP Inspection IPv6 DHCP Guard IPv6 RA Guard IPv6 Snooping IPv6 Source Guard IPv6 ND Inspection |
| Management, monitoring, configuration | Command Line Interface (CLI) Telnet Server TFTP Client IPv6 Neighbor Discovery Configurable MDI/MDIX SNMP Supports v1, v2c, v3 SNMP Trap System Log Max. 10,000 log entries Debug command Multiple images DHCP Server DHCP Client Surveillance mode DHCP Client D-Link Network Assistant support SNTP ICMPv6 IPv4/v6 Dual Stack DHCP Auto Configuration RMON v1 LLDP, LLDP-MED DHCP relay Web-based GUI NTP Telnet client (supports CLI only) |
| L2 features | MAC Address Table: Up to 16,384 Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frame up to 9,216 Bytes IGMP Snooping IGMP v1/v2 Snooping IGMP v3 awareness Supports 512 IGMP groups Supports 128 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier Host-based IGMP Snooping Fast Leave MLD Snooping Supports MLD v1/v2 Supports 512 groups Supports 128 Static Multicast Addresses Per VLAN MLD Snooping Host-based MLD Fast Leave MLD Snooping Querier Spanning Tree Protocol 802.1D STP 802.1w RSTP 802.1s MSTP Loopback Detection v4.07 802.3ad Link Aggregation Max. 32 groups per device/8 ports per group Port Mirroring Support 4 mirroring groups One-to-One, Many-to-One Supports Mirroring for Tx/Rx/Both Multicast Filtering Forwards all unregistered groups Filters all unregistered groups Ethernet Ring Protection Switching (ERPS) |
| L3 features | ARP 256 Static ARP Supports Gratuitous ARP IPv6 Neighbour Discovery (ND) 16 IP interfaces Default Routing Static Routing 64 IPv4 Static Route Entries 32 IPv6 Static Route Entries UDP helper |
| Other functions | Virtual Stacking Support: D-Link Single IP Management Up to 32 devices per virtual stack Up to 20G stacking bandwidth Physical Stacking: Supports Duplex Chain/Ring topology Up to 40G stacking bandwidth full duplex Up to 6 units per stack |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 22.3 |
| Mean time between failures (MTBF) | 516593 |
| Power supply | 100 - 240 VAC 50/60 Hz |
| Dimensions | 440 x 210 x 44 mm |
| Weight | 2 |
| Environment requirements | Operating temperature: -5 to 50 C (23 to 122 F) Storage temperature: -20 to 70C (-4 to 158F) Operating humidity: 0% to 95% non-condensing Storage humidity: 0% to 95% non-condensing |
| Certificates | CE FCC C-Tick VCCI BSMI CCC IPv6 Ready Logo Phase 2 cUL CB |
