Description

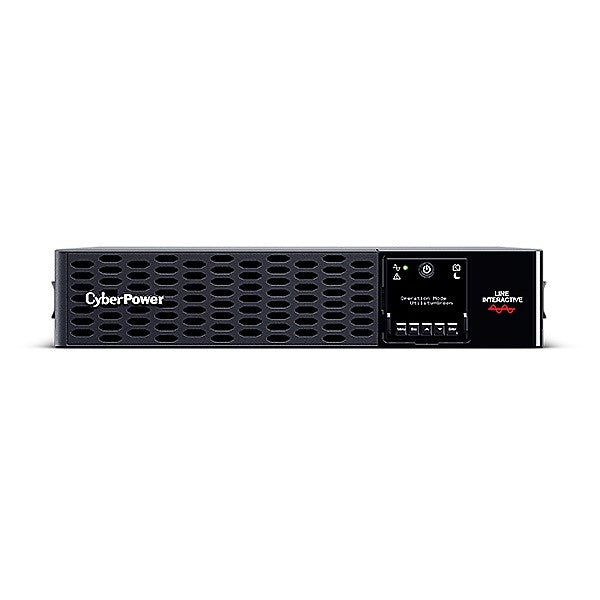

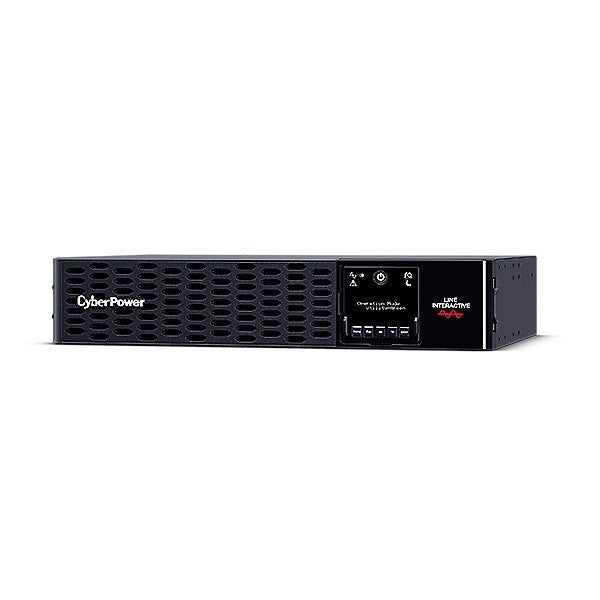

CyberPower UPS PR2200ERT2U
Specifications
| Description | UPS PR2200ERT2U uninterruptible power supply CyberPower PR2200ERT2U with rack-mount design guarantees power protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/storage devices, telecommunications devices, network devices and surveillance systems. The UPS uses a line-interactive topology with an automatic voltage regulator (AVR) and offers a stabilized pure sinusoidal voltage at the output to ensure high power quality. The output power factor of the UPS is 1, which means it can connect to larger loads than a conventional UPS. It also features Battery Management Technology, which helps batteries achieve optimal durability by balancing battery string voltage. Two-phase battery charging enables fast and safe battery charging. Hot-swappable battery packs allow for easy maintenance without interrupting power. The multi-function matrix LCD display supports intuitive operation and quick configuration. The LCD panel can be rotated to suit the installation method. UPS Line-interactive topology Active PFC compatible Tool-free battery replacement High output power factor Overload protection Fast charging technology Protection against interference and surges LCD status display Serial communications port PowerPanel management software Adaptation to the rack/tower mounting system Energy Saving Technology Pure sine wave output Battery management technology Automatic voltage regulation (AVR) Key/non-key workloads Hot-swap batteries EMI and RFI filtering USB connectivity port Emergency Power Off (EPO) Port SNMP/HTTP remote management (optional) |
|---|---|
| Apparent power | 2200 VA |
| Active power | 2200 |
| UPS Architecture | line-interactive |
| The shape of the output voltage | Full sine wave |
| Number of phases input | 1 (230V) |
| Transfer time (max) | 4 |
| Charging time | 3 |

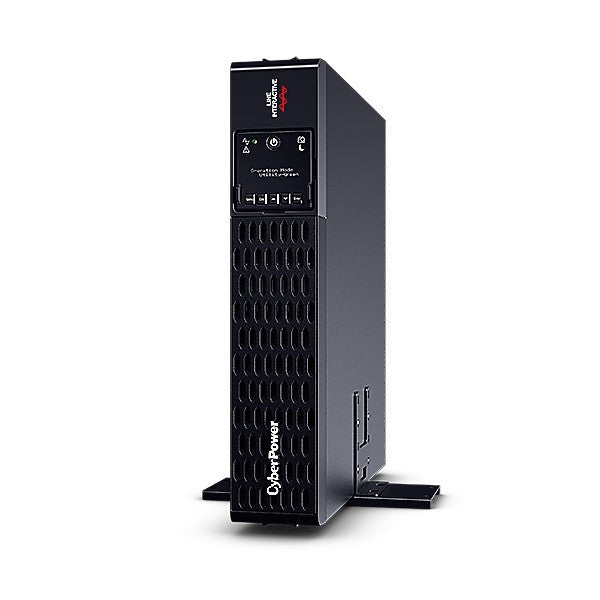

| Chassis type | Tower |
| Chassis type | Rack |
| Filters / protection | Overload |
| Filters / protection | Surge |
| Filters / protection | Suppression |
| Software | PowerPanel Business |

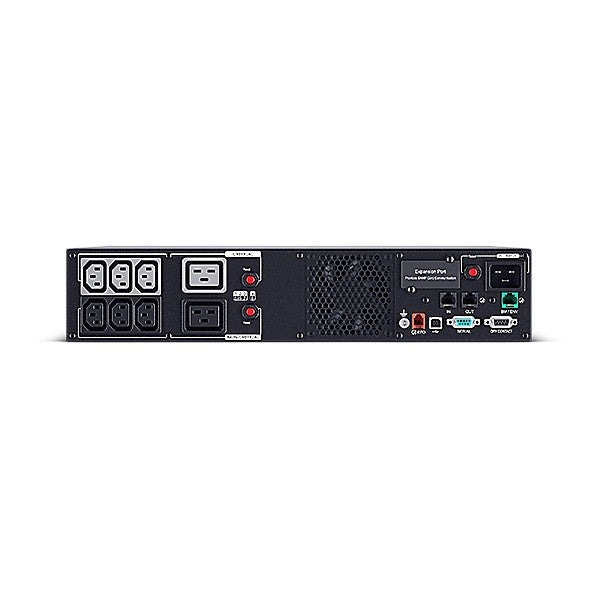

| Input power ports | IEC-C20 |
| Output power ports | 6 x IEC-C13 |
| Output power ports | 2 x IEC-C19 |
| I/O connectors | 1 x USB (Type B) |
| I/O connectors | 2 x RS-232 (COM) |
| I/O connectors | 2 x RJ-11/RJ-45 |
| I/O connectors | 1 x EPO |
| Environment requirements | Operating Temperature: 32 ~ 104 (°F) Operating temperature: 0 ~ 40 (°C) Relative operating humidity (non-condensing): 0 ~ 95 (%) Operating altitude: 0-10,000 feet (0-3000 meters) (feet/meters) Storage Temperature: 5 ~ 113 (°F) Storage temperature: -15 ~ 45 (°C) Relative storage humidity (non-condensing): 0 ~ 95 (%) Storage altitude (feet/meters): 0-50,000 feet (0-15,000 meters) Online heat dissipation: 116 (BTU/hr) Audible noise from 1.0 M from the device surface: 52.5 (dbA) |
| Accessories included | PR2200ERT2U UPS Rack rails Rack holders USB cable Serial cable EPO cable User manual |
| Color | Black |
| Dimensions | 433 x 86,5 x 412 mm |
| Weight | 25.7 |
