SmallRig DMW-BLK22 USB-C Battery 4979
The SmallRig DMW-BLK22 is a lithium-ion camera battery with a capacity of 2520 mAh, a nominal voltage of 7.2 V, and an energy rating of 18.15 Wh, equipped with a convenient USB-C port. With 5 V / 2 A charging support, it can be fully charged in about 2.5 hours, and the battery can be connected to a power bank, wall charger, or car charger, among other devices. The model is fully decoded, ensuring it works with compatible cameras without error messages, and its distinctive orange casing makes it easy to find quickly in a camera bag.
Charging Without a Separate Battery Charger
The built-in USB-C port means you don’t always have to carry a separate charger designed for camera batteries when traveling. The ability to use various power sources gives you greater freedom when working outdoors, on a photo shoot, or while traveling. High-current USB-C charging up to 5 V / 2 A reduces the time needed to prepare the battery for the next session.
Stable power supply and compatibility with the camera
The battery uses high-quality cells and a protection circuit that ensures stable voltage and current during operation. The maximum output current is 5 A, and the built-in safety features enhance safety and reduce the risk of battery malfunction. The housing, made of PC and ABS materials, is durable and resistant to high temperatures, while its dimensions of 56.6 × 39.2 × 20.8 mm match those of the original battery, ensuring a proper fit in the camera compartment.
Wide compatibility with Panasonic Lumix cameras
The SmallRig DMW-BLK22 is designed for cameras that use the DMW-BLK22 battery and is compatible with, among others, the Panasonic Lumix GH7, GH6, GH5 II, S9, G9 II, S5 IIX, S5 II, S5, and L10 models. Full decoding allows you to use the battery without annoying pop-up messages, which enhances convenience while shooting photos and videos. The product is certified by FCC, CE, RoHS, RCM, KC, and ISED.
Included in the set

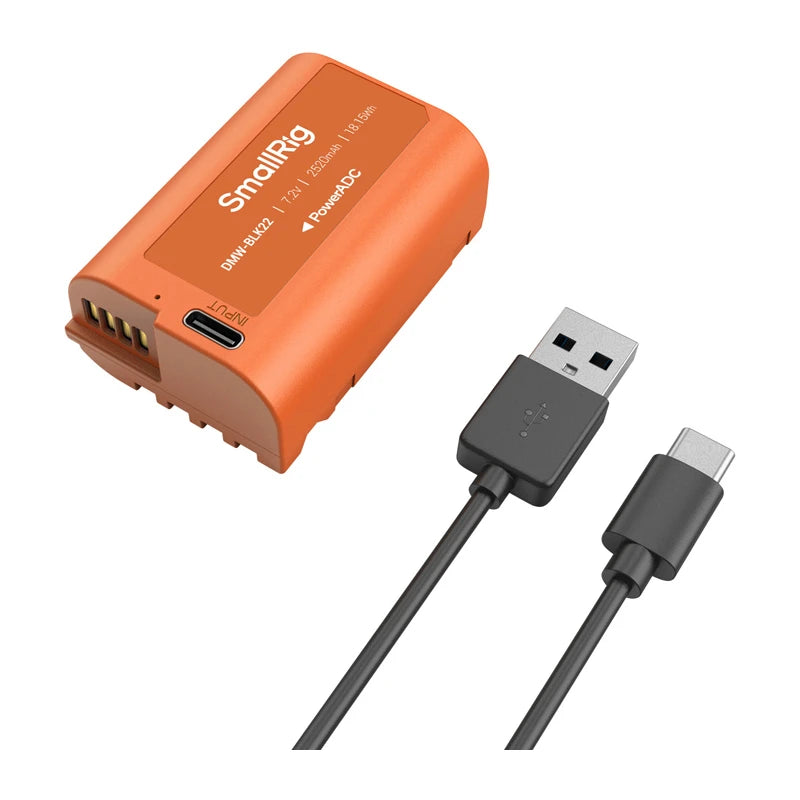

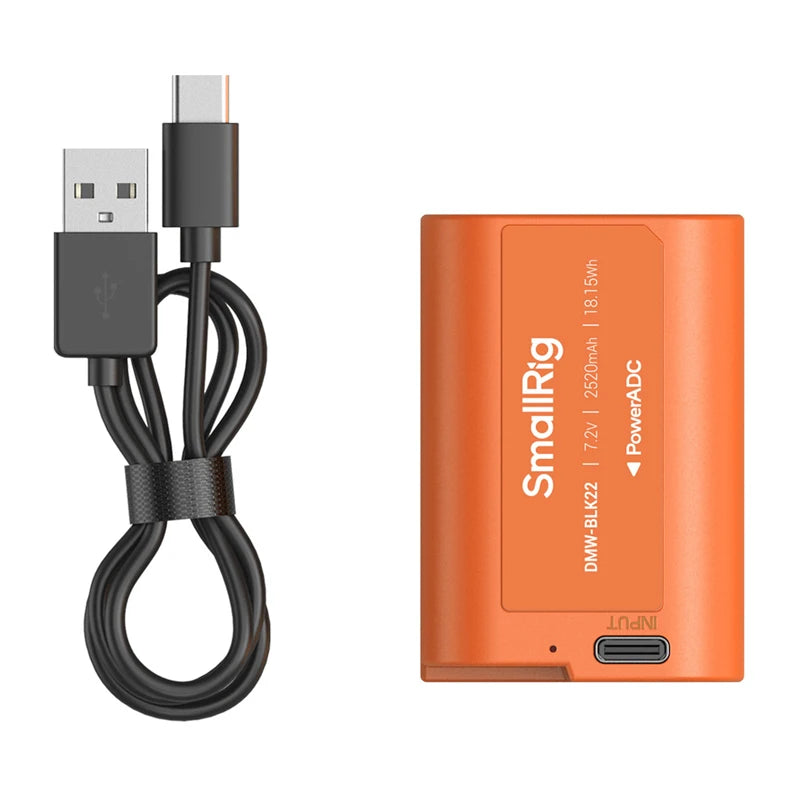

- SmallRig DMW-BLK22 USB-C battery
- 0.6 m USB-A to USB-C cable
- User manual
- User guide
| Manufacturer | SmallRig |
|---|---|
| Model | DMW-BLK22 |
| Type | Lithium-ion battery |
| Nominal capacity | 2,520 mAh |
| Nominal voltage | 7.2 V |
| Energy | 18.15 Wh |
| Input voltage | 8.4 V |
| USB-C charging | 5 V / 2 A max. |
| Full Charge Time | approximately 2.5 hours |
| Trickle Charge Current | 0.2C / 480 mA |
| Fast Charge Current | 0.7C / 1680 mA |
| Maximum input current | 0.7C |
| Maximum output current | 5 A |
| Deep discharge protection | 4.5–7.5 A |
| Cut-off voltage | 5.0 V |
| Operating temperature range | 0–45°C |
| Dimensions | 56.6 × 39.2 × 20.8 mm |
| Battery weight | 81 ± 5 g |
| Product weight with cable | 100.4 ± 5 g |
| Material | PC + ABS |
| Color | orange |
| Compatibility | Includes Panasonic Lumix GH7, GH6, GH5 II, S9, G9 II, S5 IIX, S5 II, S5, L10, and other models using the DMW-BLK22 battery |
Producer: Shenzhen Leqi Innovation Co, Ltd (CN)
Address: Fenghe Industrial Park, Nos. 1301-50, Guanguang Road,, Building 5,, 518000, Shenzen
Email: reseller@smallrig.com
EU Responsible Person: GAVIMOSA CONSULTORIA,SOCIEDADLIMITADA
Address: Castellana, 9144, 28046, Madryt
Email: compliance.gavimosa@outlook.com
