Avatto ZWSM16-DC-1 intelligent 1-channel ZigBee switch module with voltage-free DC contact

Avatto ZWSM16-DC-1 smart 1-channel ZigBee switch module with voltage-free DC contact

Avatto ZWSM16-DC-1 ZigBee switch module is a modern solution that allows you to control lighting and electrical devices from anywhere - both via a mobile app and with a traditional switch. Thanks to ZigBee 3.0 communication, the device provides a stable connection, low power consumption and full integration with popular ZigBee gateways. You can create automations, scenes and voice control with assistants such as Alexa or Google Home (via a compatible ZigBee gateway).

Reliability and security

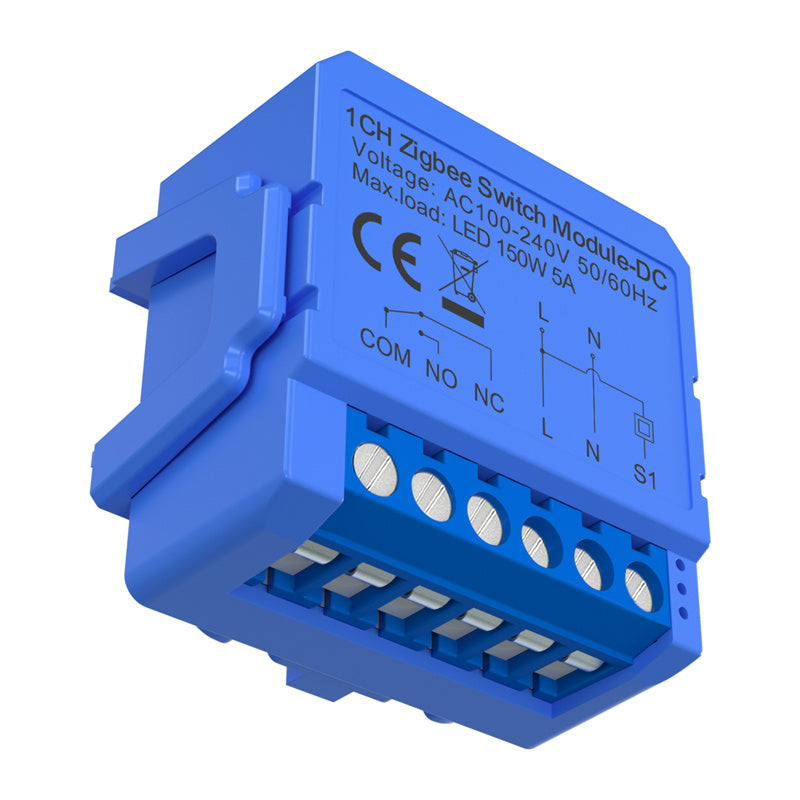

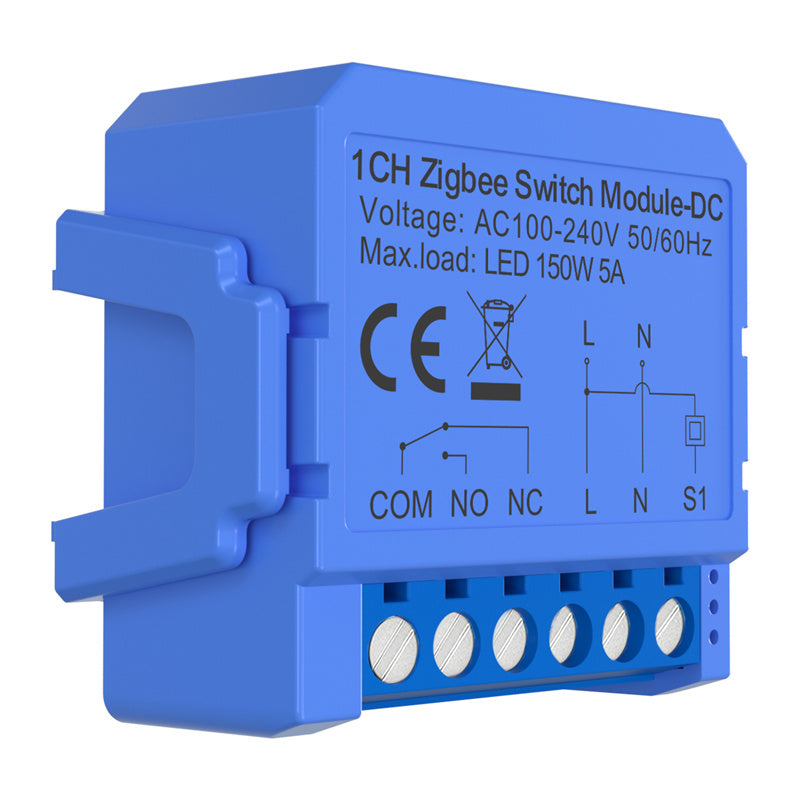

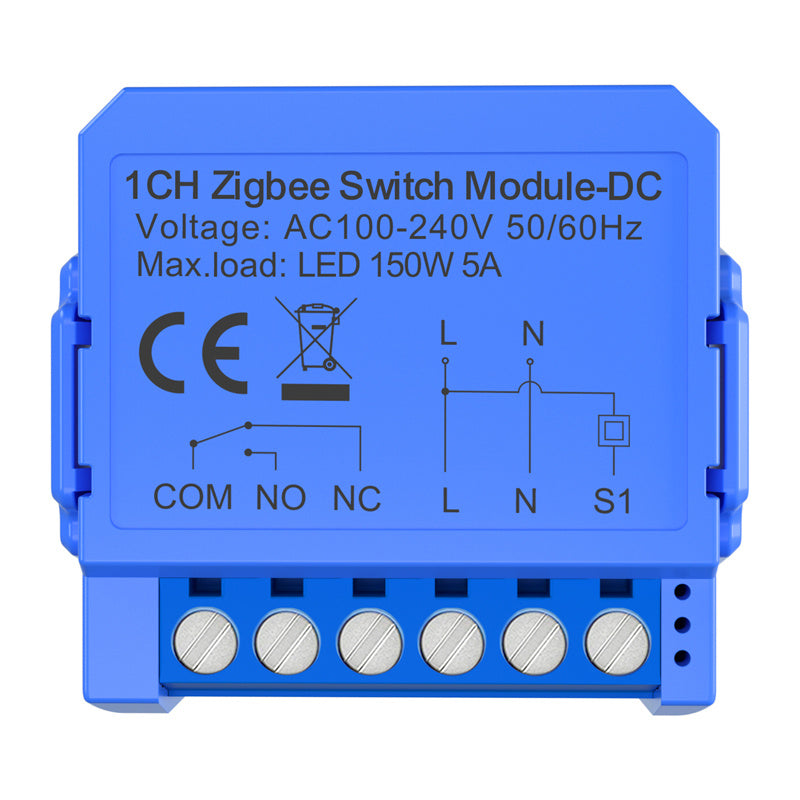

The Avatto ZWSM16-DC-1 module operates over a wide voltage range of AC100-240V / 50-60Hz and supports a maximum load of 150 W for LED or 5 A. Made of high-quality materials, it is CE and RoHS certified to confirm its safe use. The IP20 degree of protection makes the device suitable for indoor installation in junction boxes or switchboards where precision and reliable operation are required.

Full control from the app

With the AVATTO Smart Life app (available for Android and iOS), the user gains full control over lighting and devices - from anywhere in the world. In the app, you can plan schedules, create automatic scenes, and share control with other household members. The module retains the last state when the power is turned back on, which increases convenience and protects against accidental shutdown of devices.

Easy installation and configuration

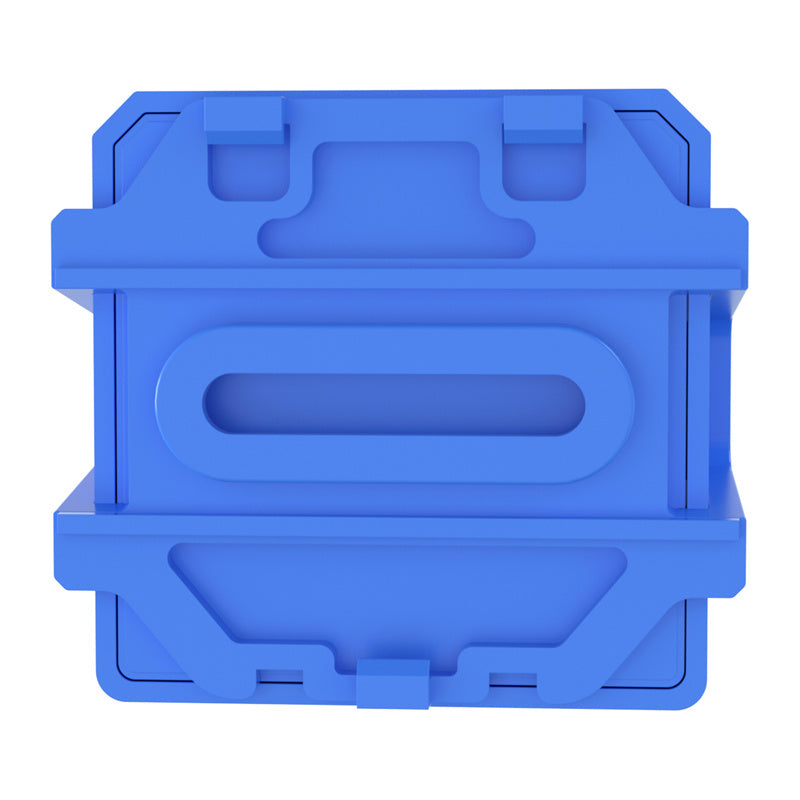

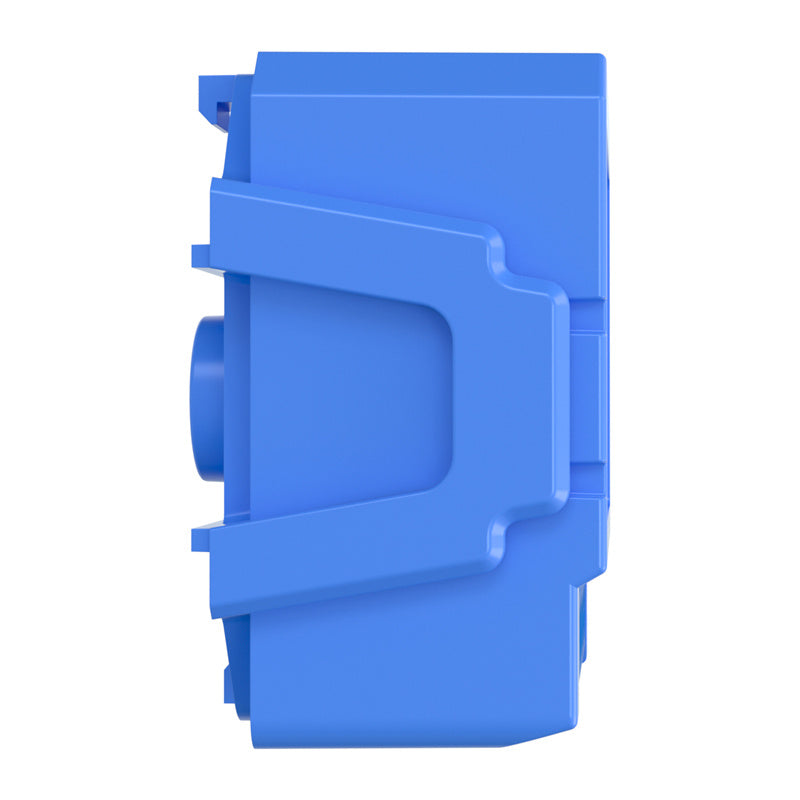

The compact housing of the Avatto ZWSM16-DC-1 module (39 × 39 × 19.4 mm) allows for easy installation in standard flush-mounted boxes. The device can be paired with a classic wall switch, allowing both manual and remote control. The pairing process is simple - just use the reset button or flick the switch five times to start the configuration with the ZigBee gateway. The entire process takes less than two minutes.

Compatibility and applications

The Avatto ZWSM16-DC-1 ZigBee module works with a wide range of home appliances - from lighting to home appliances to building automation systems. With support for the ZigBee 3.0 protocol, you can easily integrate it with other smart home components to create a cohesive and energy-efficient ecosystem. This is ideal for those upgrading an existing installation without having to replace the entire lighting system.

Included

• Avatto ZWSM16-DC-1 ZigBee switch module
• Mounting bracket with clip
• User manual

Producer: Jing Wei Di Chuang (Shenzhen) Smart Co.,Ltd (CN)
Address: Xixiang Street, Building No. 36, 508102, Shenzhen
Email: sales@miuctech.com

EU Responsible Person: APEX CE SPECIALISTS LIMITED
Address: New Mallow Road, 3D, Nrt Point House, T23 AT2P, Cork
Email: info@apex-ce.com
