Description

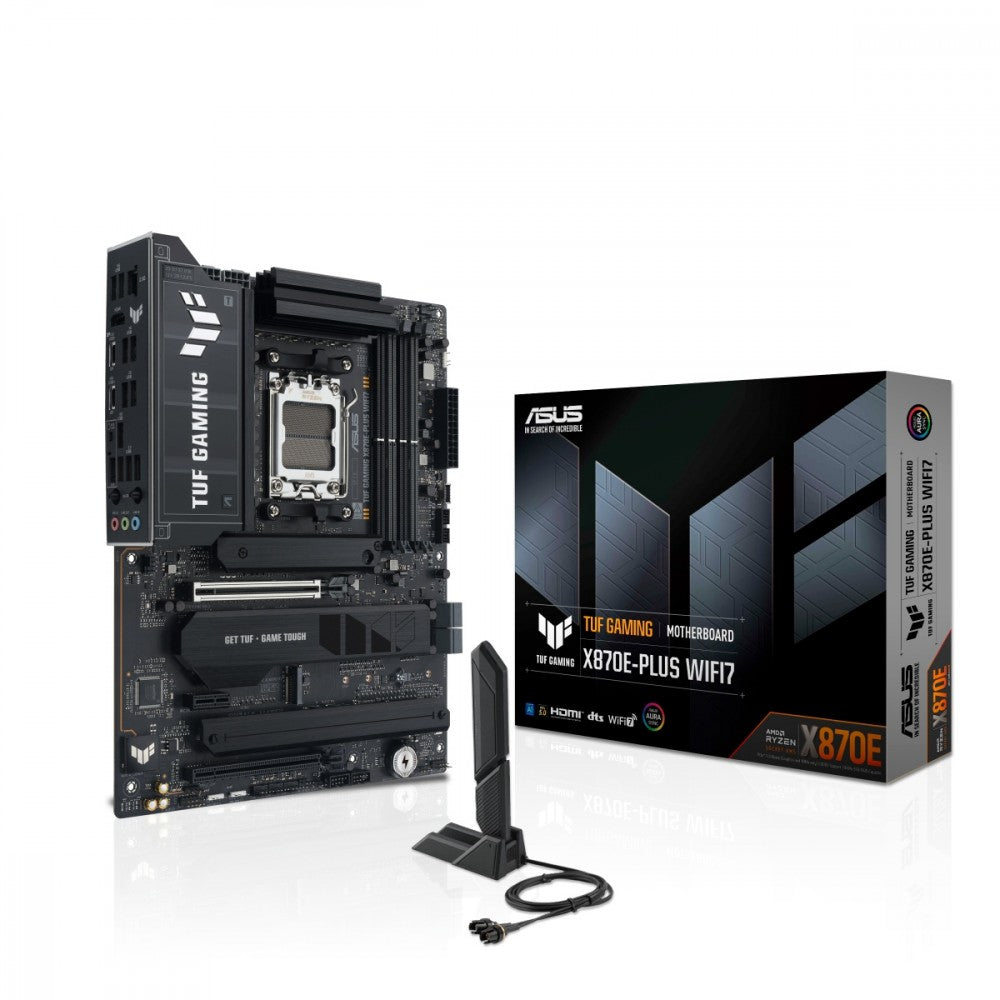

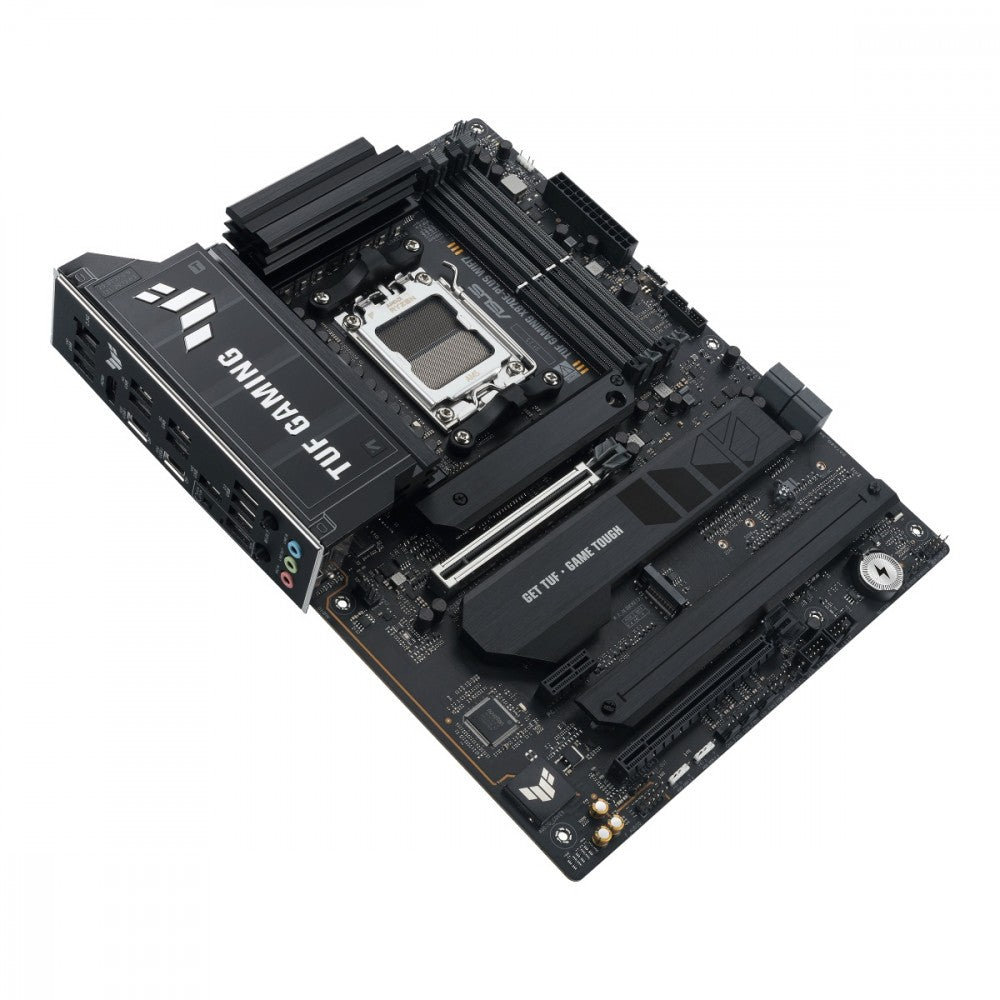

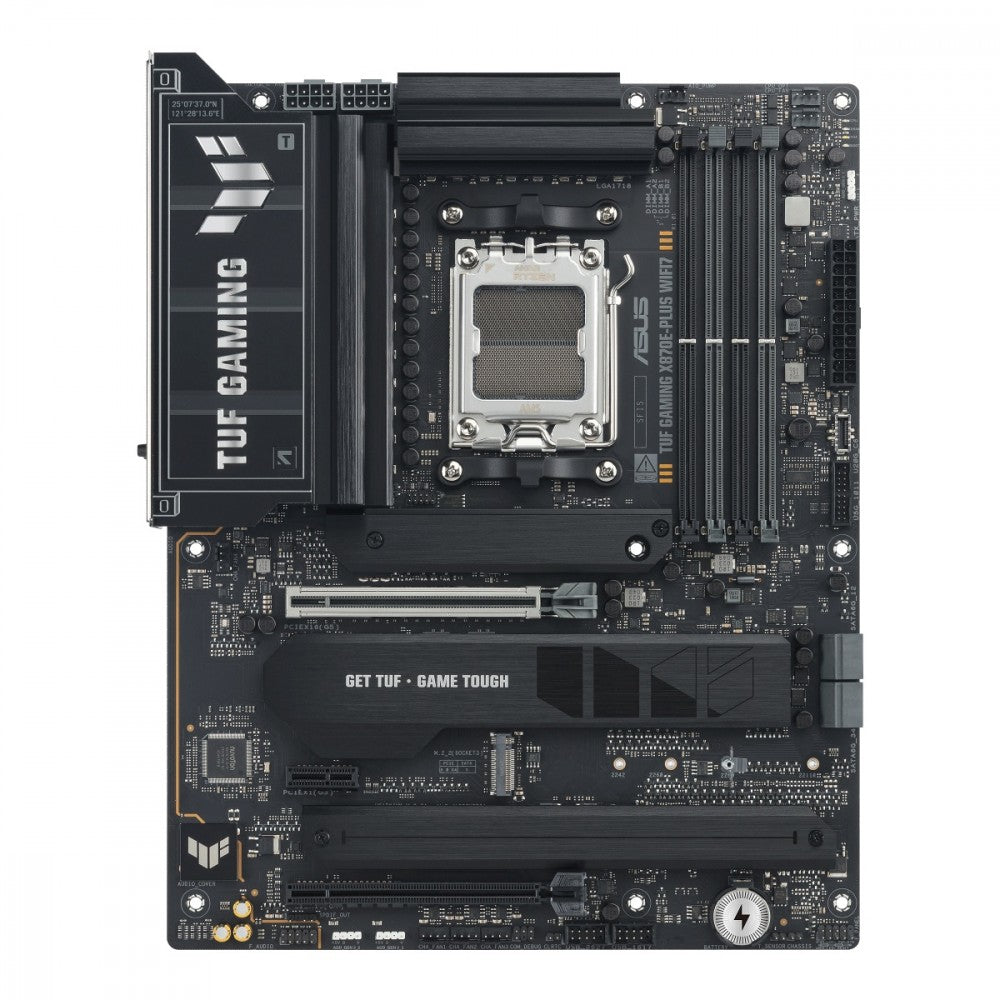

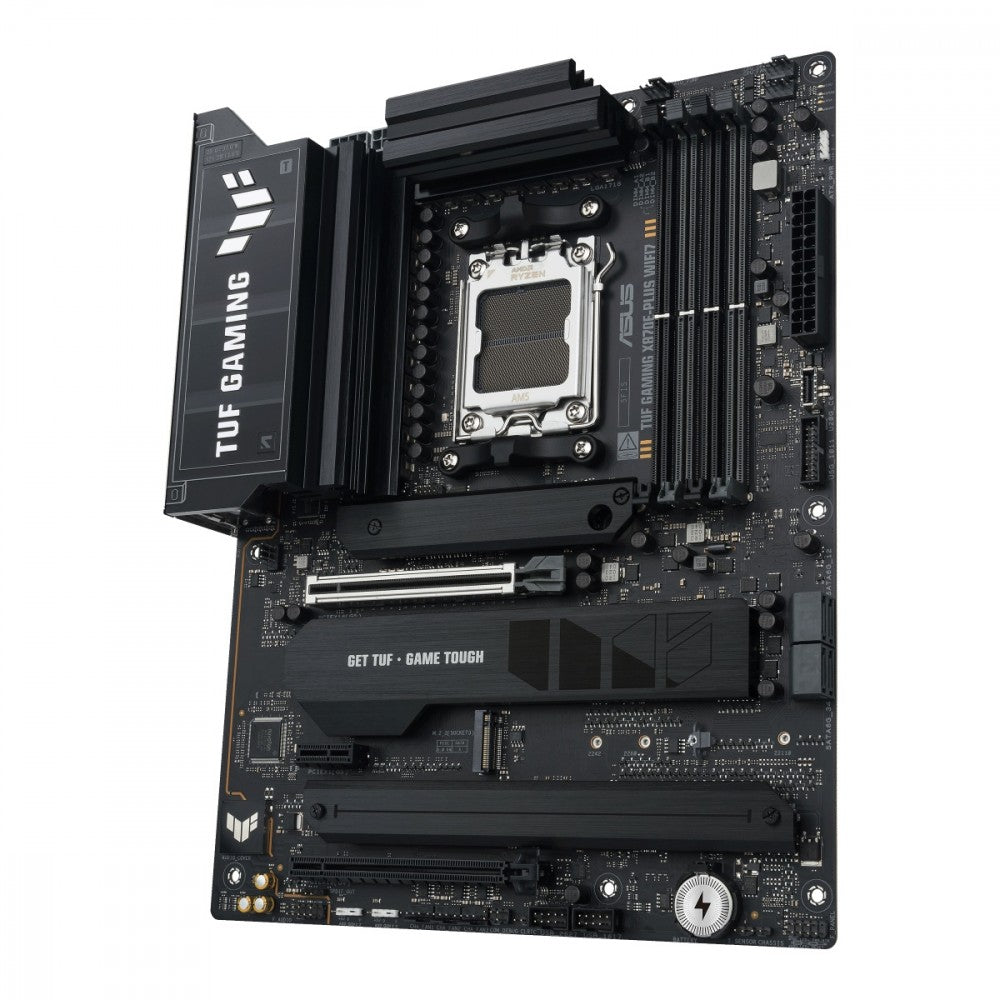

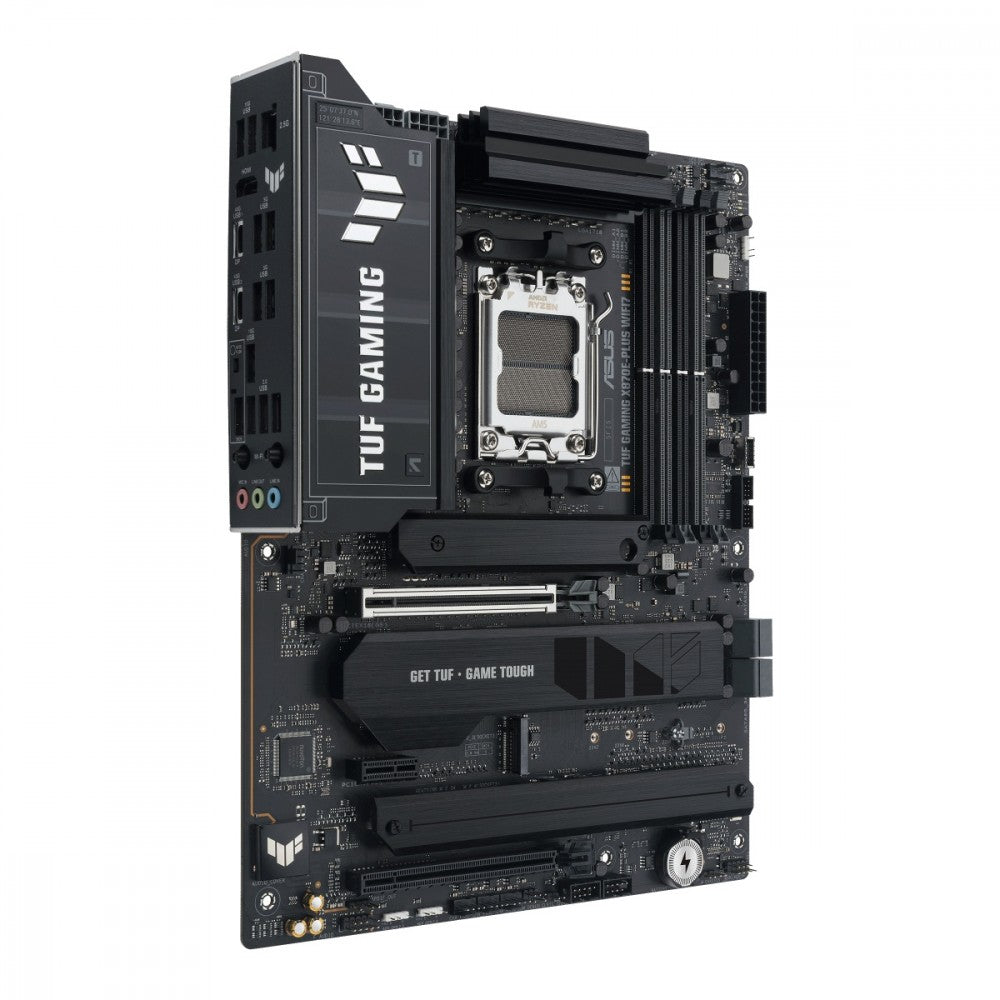

Asus Motherboard TUF GAMING X870E-PLUS W IFI AM5 4DDR5 HDMI/USB-C
Specifications
| Description | The ASUS TUF GAMING X870E-PLUS WIFI7 combines all the essential elements of the latest AMD Ryzen processors, offering game-ready features and proven durability. Designed with military-grade components, an enhanced power delivery, and a comprehensive cooling system, this motherboard exceeds expectations, delivering solid and stable performance for marathon gaming sessions. TUF GAMING motherboards also undergo rigorous durability testing to ensure they can withstand conditions where other processors might fail. This platform delivers the power and connectivity that advanced AI computing applications demand. |
|---|---|
| Model | TUF GAMING X870E-PLUS WIFI7 |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen 7 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E Chipset |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 8000 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe 3.0 x 1 |
| Expansion slots | 4 x M.2 |
| Expansion slots | 2 x PCIe 4.0 x 16 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | AMD RAIDXpert2 technology Ryzen 9000 series processors: RAID 0/1/5/10 Ryzen 8000 series processors: RAID 0/1 Ryzen 7000 series processors: RAID 0/1/10 |
| Graphics | 1 x HDMI port** 2 x USB4 (40 Gbps) ports support USB Type-C output*** * Graphics specifications may vary depending on processor type. Please refer to AMD processor specifications. ** Supports 4K@60Hz resolution as per the HDMI 2.1 specification. *** Supports up to 4K@60Hz resolution as per the DisplayPort 1.4a specification. *** VGA resolution support depends on the resolution of the processor or graphics card. |
| Sound card | Realtek ALC1220P 7.1 Surround Sound High Definition Audio Codec Impedance sensing for front and rear headphone outputs Internal audio amplifier ensures the highest sound quality for headphones and speakers Supports: jack detection, multi-stream streaming, and front panel jack remapping High-quality stereo output with 120 dB SNR and recording input with 113 dB SNR (line-in) Supports playback up to 32-bit/192 kHz* Audio Features Audio Shielding High-quality audio capacitors Dedicated audio PCB layers Audio Shield Unique de-pop circuit *Due to HDA bandwidth limitations, 32-bit/192 kHz is not supported in 7.1 surround sound. |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless and Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands** Supports Wi-Fi 7 160 MHz band, transfer speeds up to 2.9 Gbps Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system. In Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality; Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. **Wi-Fi 6 GHz frequency band and throughput may vary by country. ***Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB ports at back panel | 13 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 5 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 6 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

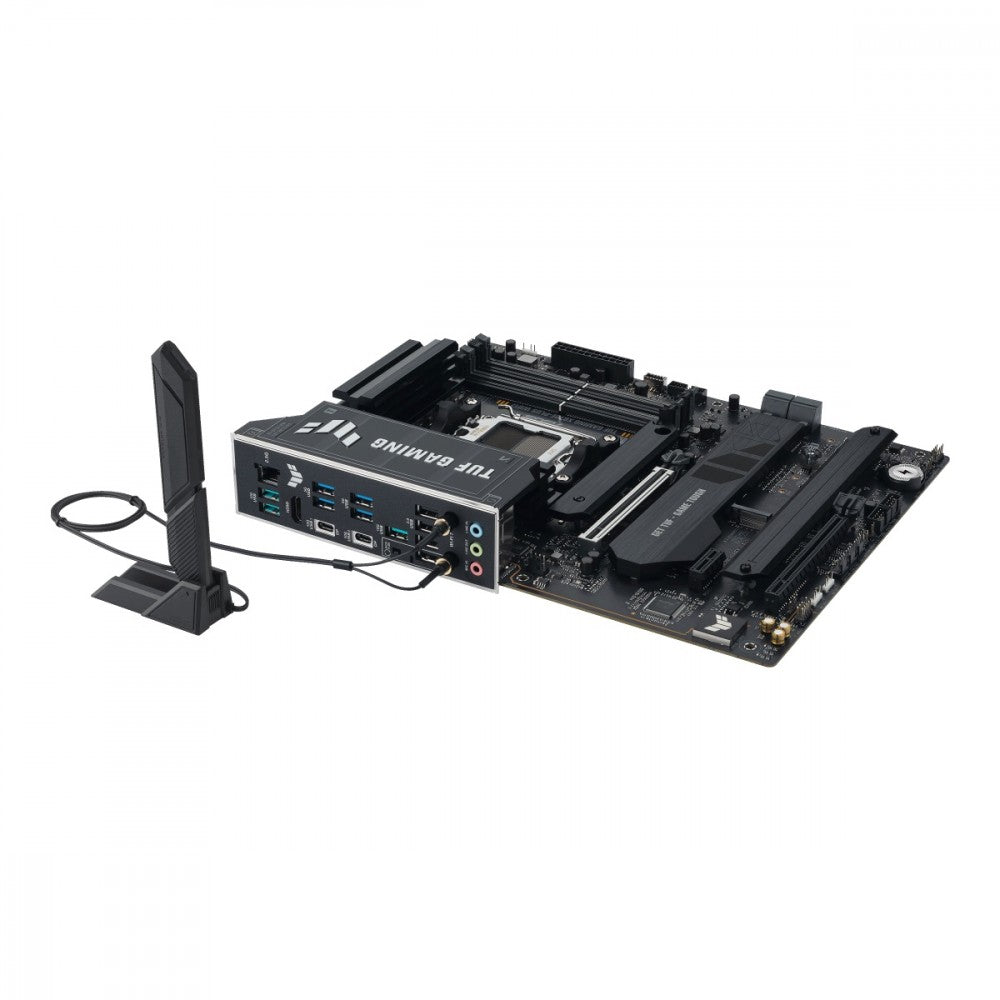

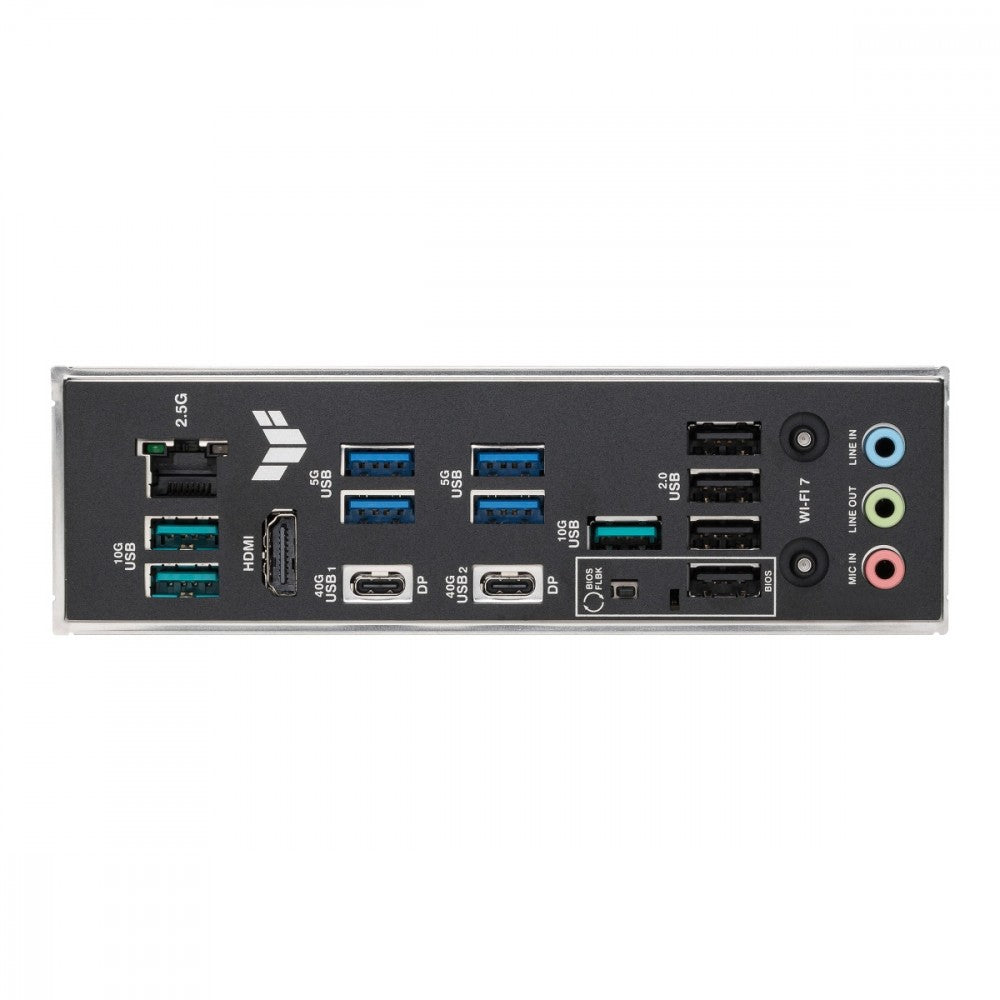

| External connectors | 1 x RJ-45 |
| External connectors | 1 x USB BIOS Flashback button |
| External connectors | 1 x MIC |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 4 x USB 2.0 |
| External connectors | 4 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x Wi-Fi Module |
| External connectors | 2 x USB4 Type-C |
| External connectors | 1 x HDMI |
| External connectors | 3 x USB 3.2 Gen 2 Type-A |
| Onboard connectors | 4 x 4pin Chassis fan |
| Onboard connectors | 6 x SATA III 6Gb/s |
| Onboard connectors | 2 x USB 3.2 Gen 2 Type-C |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x 4pin wentylator OPT CPU |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x Thermal sensor connector |
| Onboard connectors | 4 x M.2 |
| Special functions | ASUS TUF PROTECTION DIGI+ VRM (Digital Power Design with SPS) ESD Guards TUF LANGuard Surge Protection SafeSlot Stainless Steel Back I/O ASUS Q-Design Q-Latch M.2 Latch Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Dashboard Q-DIMM Module Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green]) Q-Socket ASUS Thermal Solution M.2 Heatsinks VRM Heatsink Design ASUS EZ DIY BIOS FlashBack Button BIOS FlashBack LED ProCool Pre-installed I/O Shield SafeDIMM Aura Sync Addressable Slots Gen 2 Front panel USB 20 Gbps with PD fast charging support Supports: Fast charging up to 30W and USB Wattage Watcher Output: 5V/9V max 3A, 12V max 2.5A, 15V max 2A Compatible with PD 3.0 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |

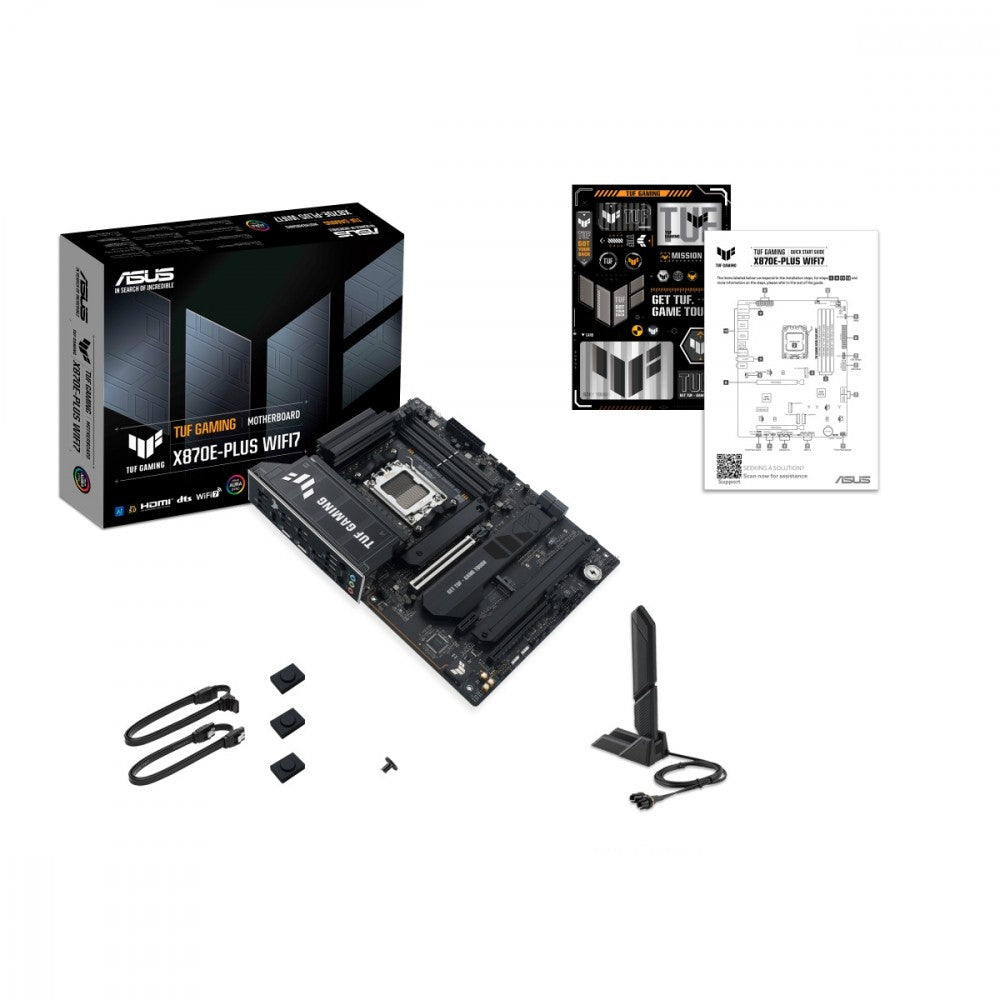

| Accessories included | 2 x SATA 6 Gb/s Cable ASUS WiFi Q Antenna 2 x M.2 Rubber Boots M.2 SSD Screw Set TUF GAMING Sticker Quick Start Guide |
| Supported operating systems | Windows 11 |
| Software | ASUS Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey |
