Description

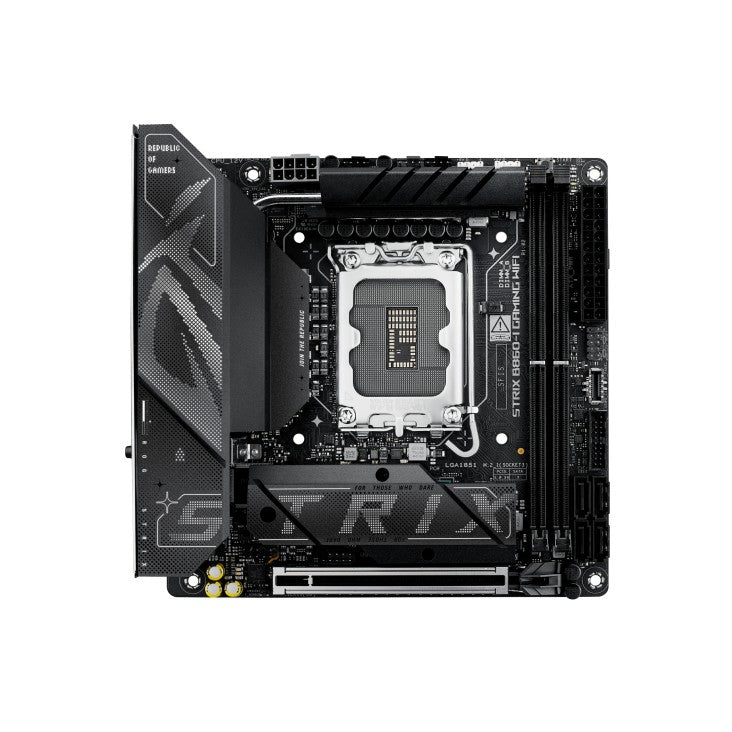

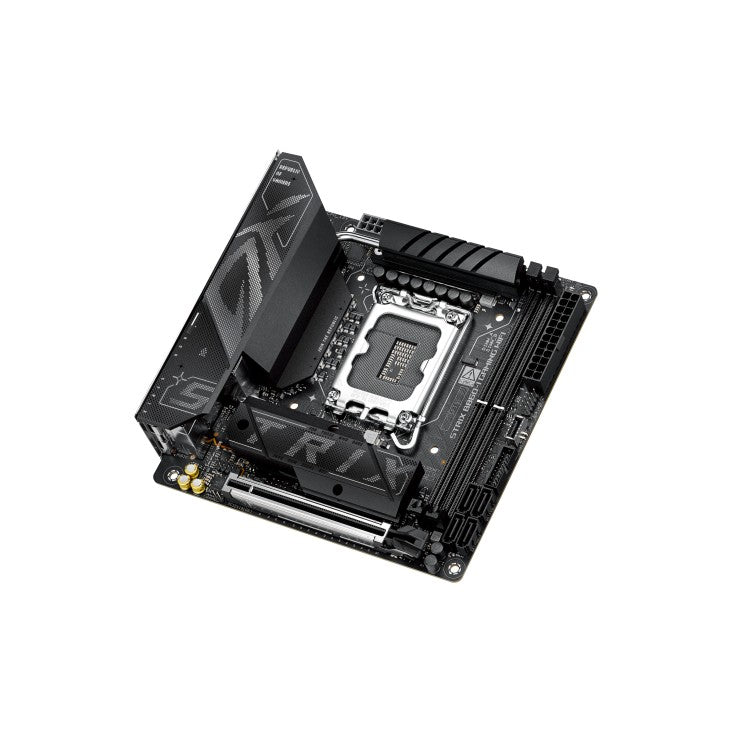

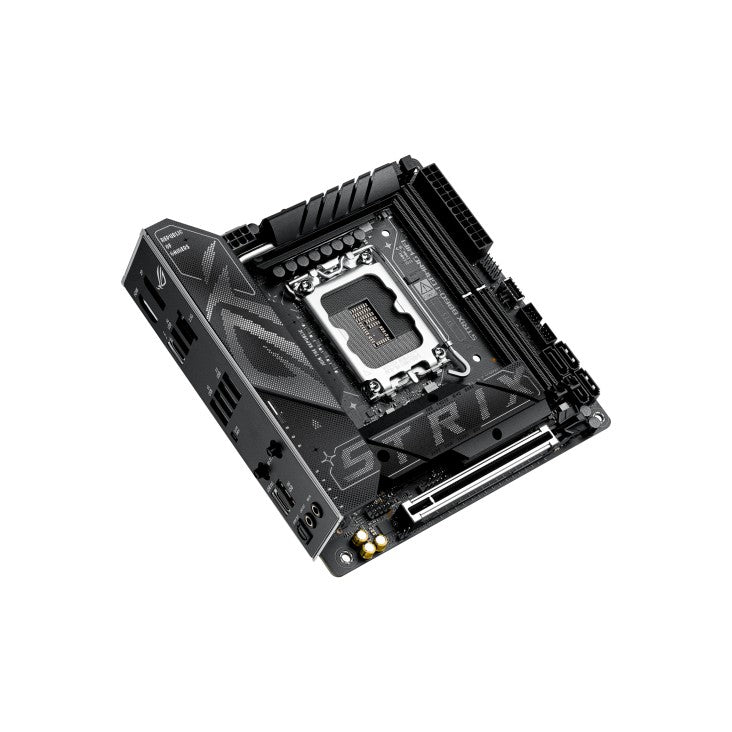

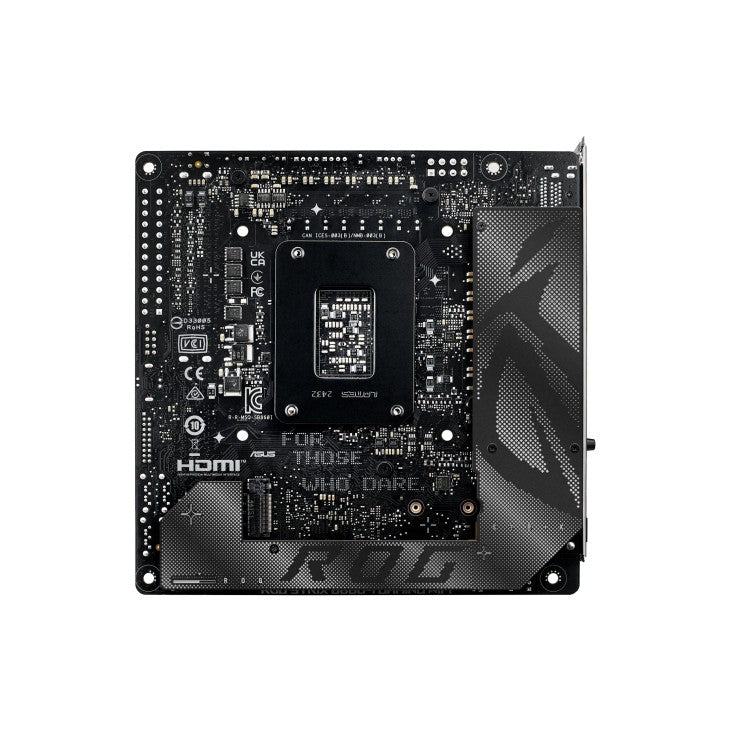

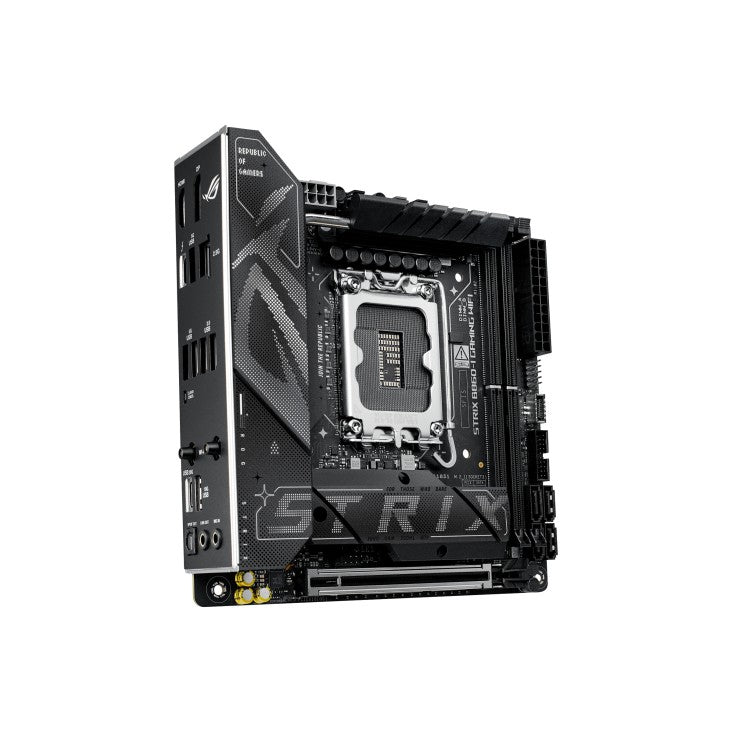

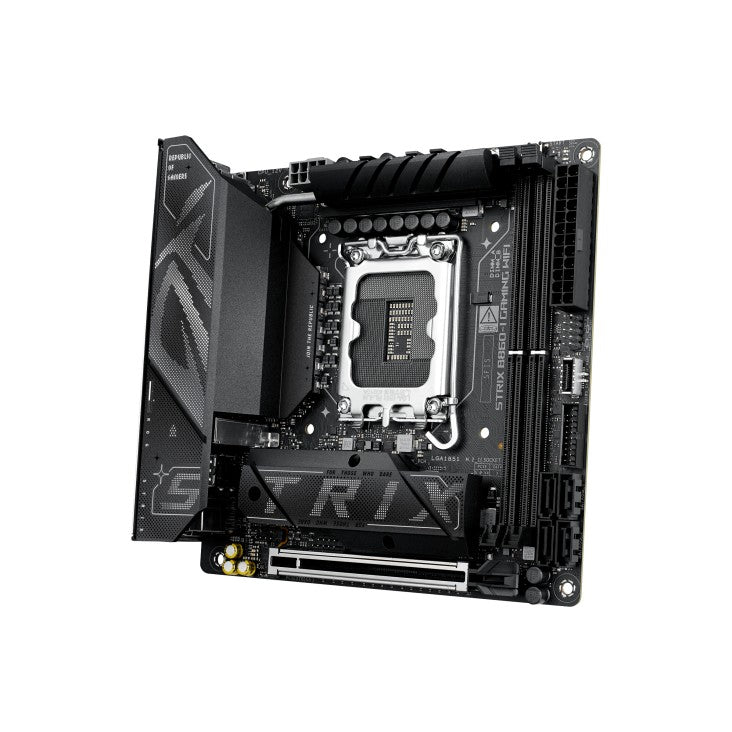

Asus Motherboard ROG STRIX B860-I GAMING WIFI s1851 4DDR5 TB ITX
Specifications
| Description | ROG STRIX B860-I gaming WiFi The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel Core Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications. ASUS AI ADVISOR Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way. AI NETWORKING II AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7. NPU BOOST The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%. Asynchronous Clock For next-level frequency flexibility, the ROG Strix B860-I features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains. Separate CPU BCLK from other domains for unfettered overclocking. DDR5 DOMINATION Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-I. AEMP III ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. DIMM FIT DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. UNDENIABLY ROG STRIX The ROG Strix B860-I features a sleek, minimalist design that blends effortlessly with various system components. Its deep black PCB and metallic heatsinks give it a bold, intense look, while the L-shaped backplate adds both style and practical protection against sharp edges. |
|---|---|
| Model | ROG STRIX B860-I GAMING WIFI |
| CPU socket | LGA1851 |
| Processor family | Intel Core Ultra |
| Integrated CPU | No |
| Chipset manufacturer | Intel |
| Chipset type | Intel B860 Chipset |
| Memory type | DDR5 |
| Number of DDR5 slots | 2 |
| Memory bus frequency | 9066 MHz |
| Max memory size | 128 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Graphics | 1 x DisplayPort 1 x HDMI 1 x Intel Thunderbolt 4 |
| Sound card | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback* Audio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |

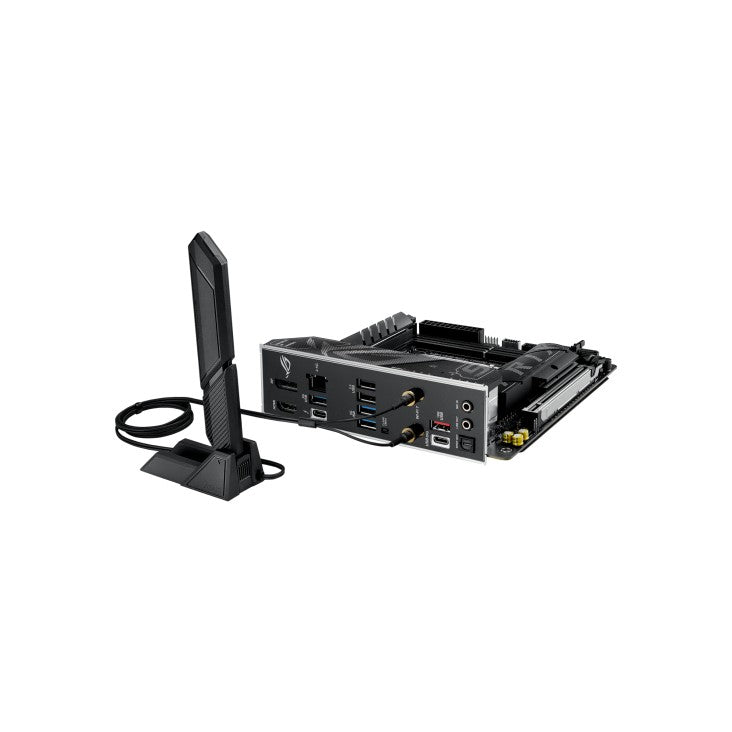

| Network interface | Ethernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth: 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |
| USB ports at back panel | 8 |
| USB ports on motherboard | 5 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 5 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 2 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

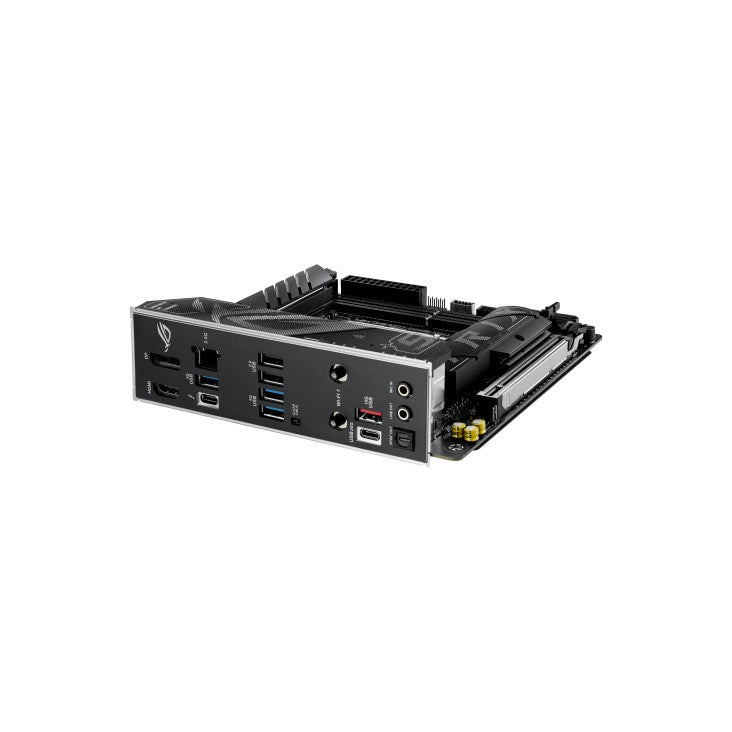

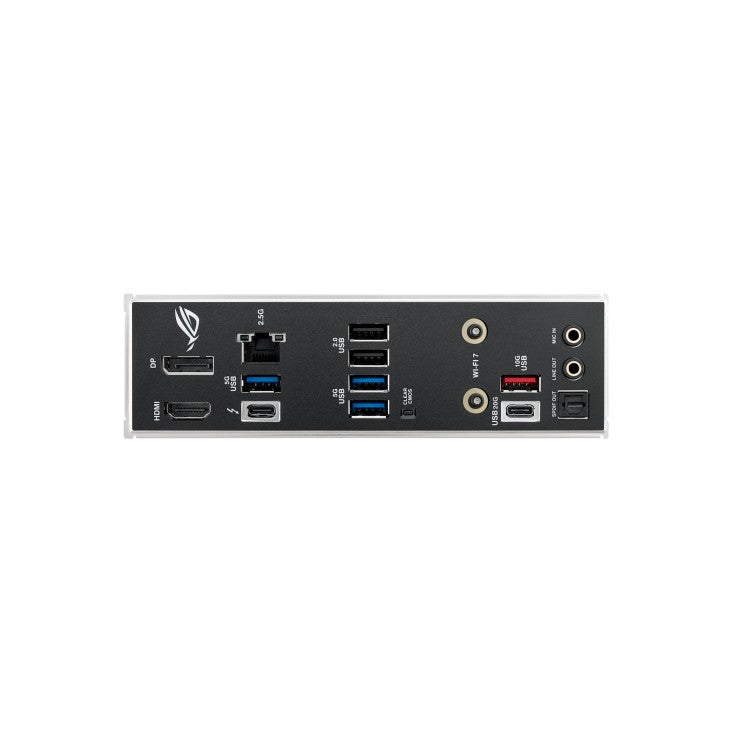

| External connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x HDMI |
| External connectors | 1 x MIC |
| External connectors | 1 x Line Out |
| External connectors | 1 x DisplayPort |
| External connectors | 2 x USB 2.0 |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 1 x S/PDIF |
| External connectors | 1 x Wi-Fi Module |
| External connectors | 1 x Thunderbolt 4 |
| External connectors | 1 x USB 3.2 Gen 2 Type-A |
| External connectors | 3 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x 4pin Chassis fan |
| Onboard connectors | 2 x M.2 |
| Onboard connectors | 2 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x Thermal sensor connector |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 1 x USB 3.2 Gen 2 Type-C |
| Onboard connectors | 2 x Addressable LED |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Special functions | Extreme Engine Digi+ 5K Black metallic capacitors ASUS Q-Design PCIe Slot Q-Release Slim (with PCIe SafeSlot) M.2 Q-Latch Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink VRM heatsink design ASUS EZ DIY Clear CMOS button CPU Socket lever protector ProCool Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen2 headers |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Form factor | mini ITX |
| Dimensions | 17 x 17 cm |

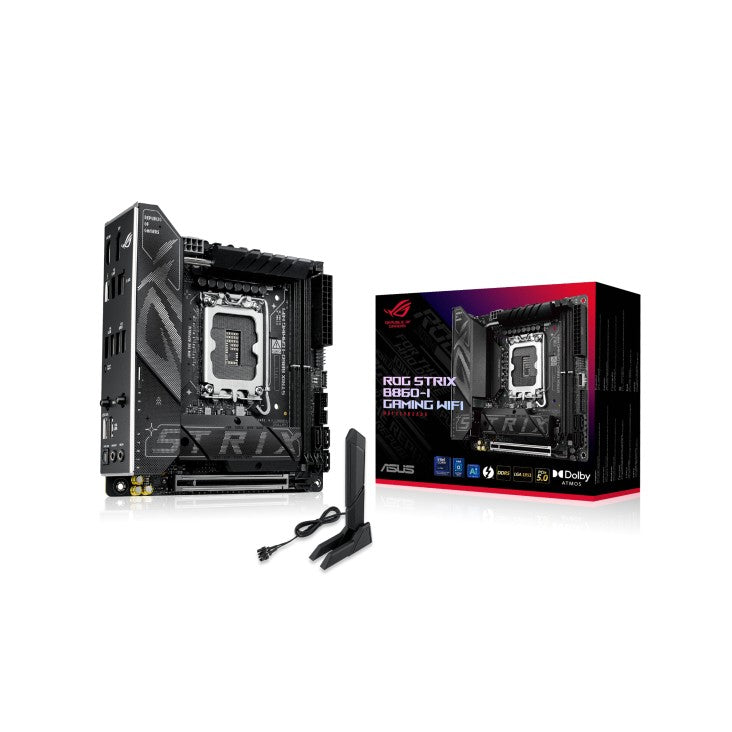

| Accessories included | 2 x SATA 6Gb/s cables ROG USB2.0 splitter cable Panel cable ASUS WiFi Q-Antenna Cable ties package M.2 Q-Latch package Screw package for M.2 SSD M.2 Bracket ROG key chain ROG Strix stickers Quick start guide |
| Supported operating systems | Windows 11 |
| Software | WOL by PME, UEFI PXE |
