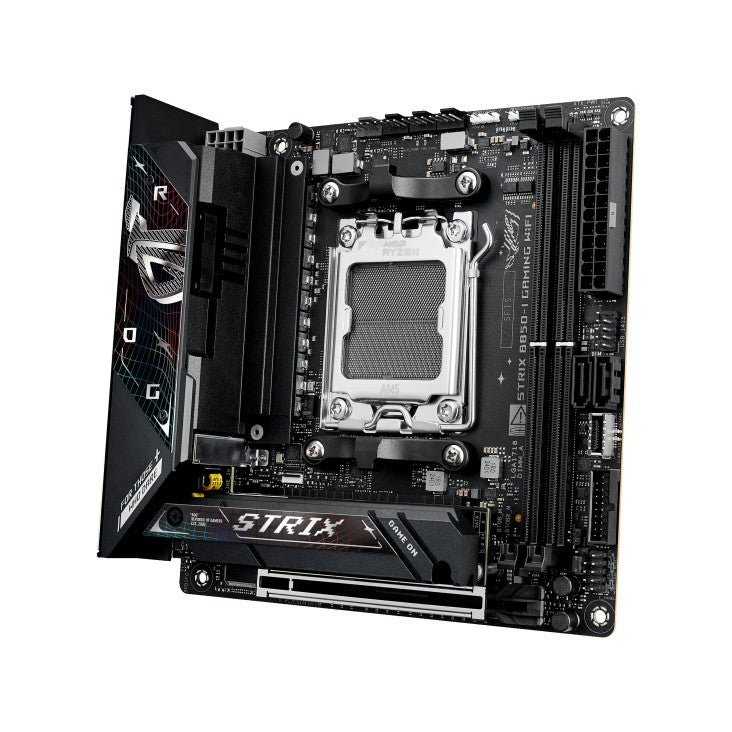

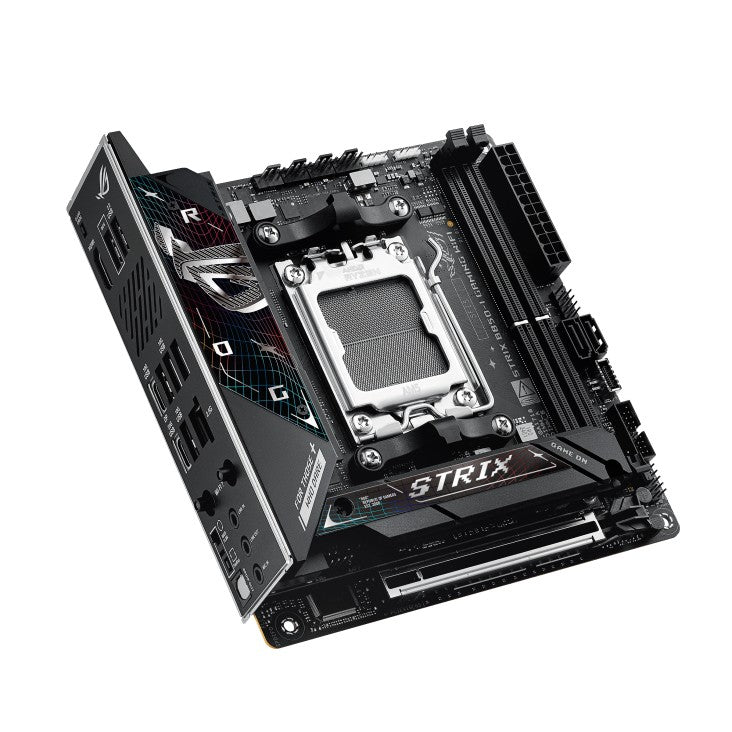

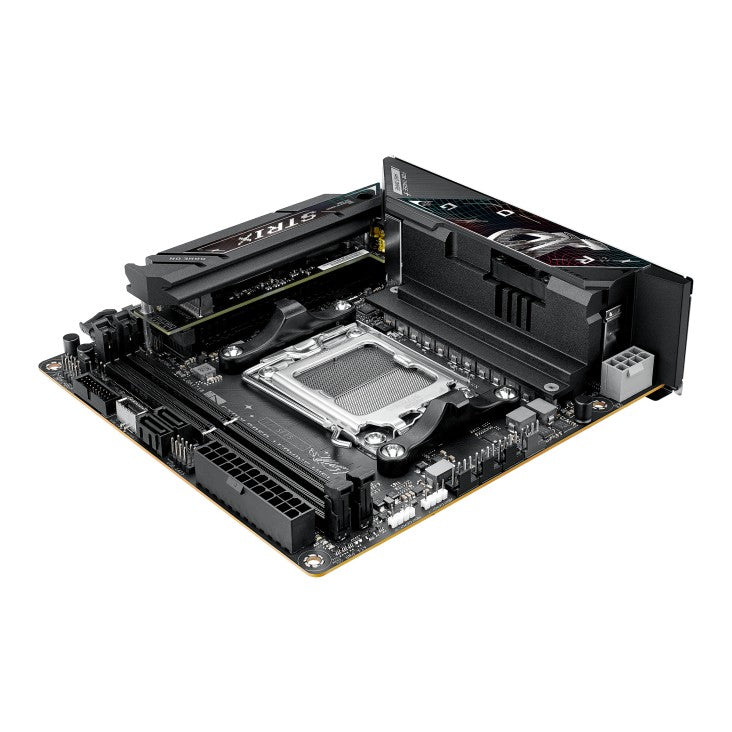

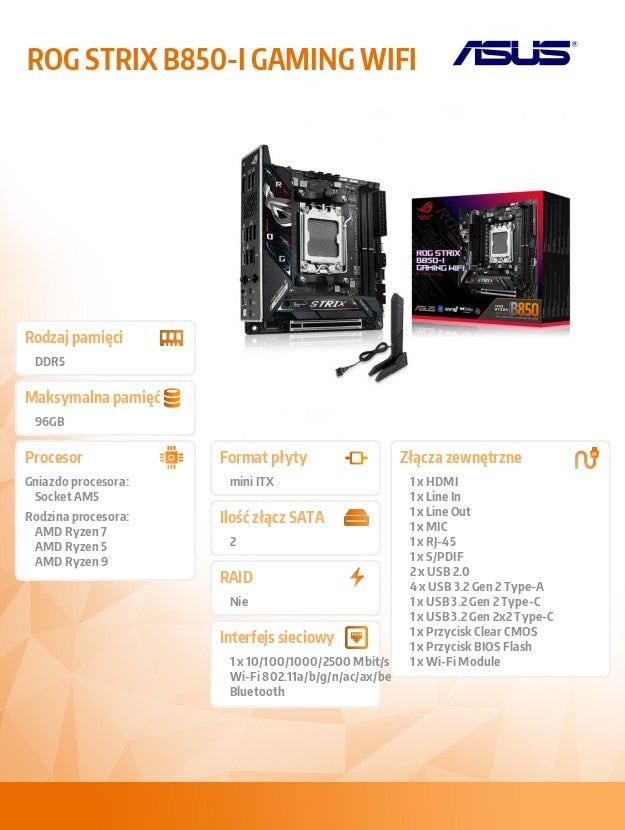

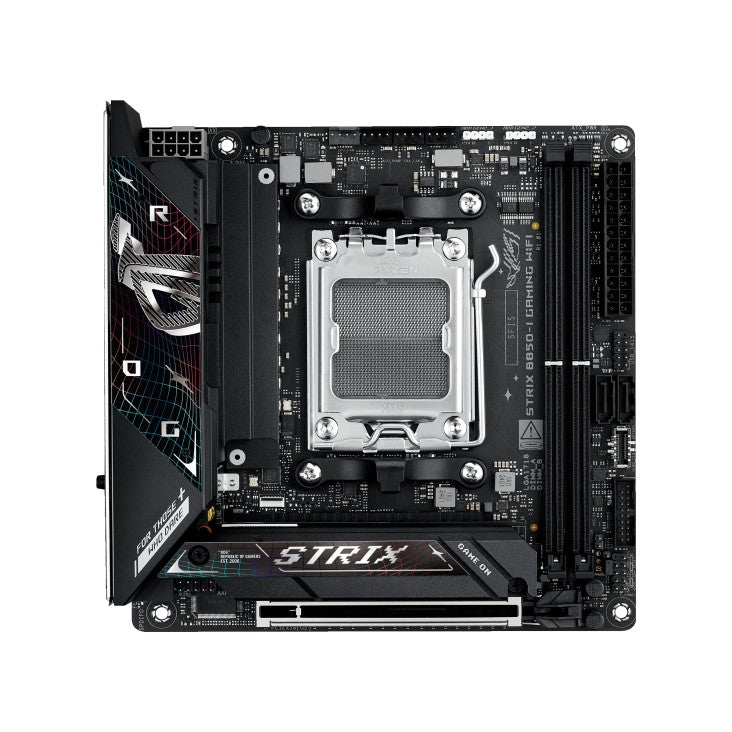

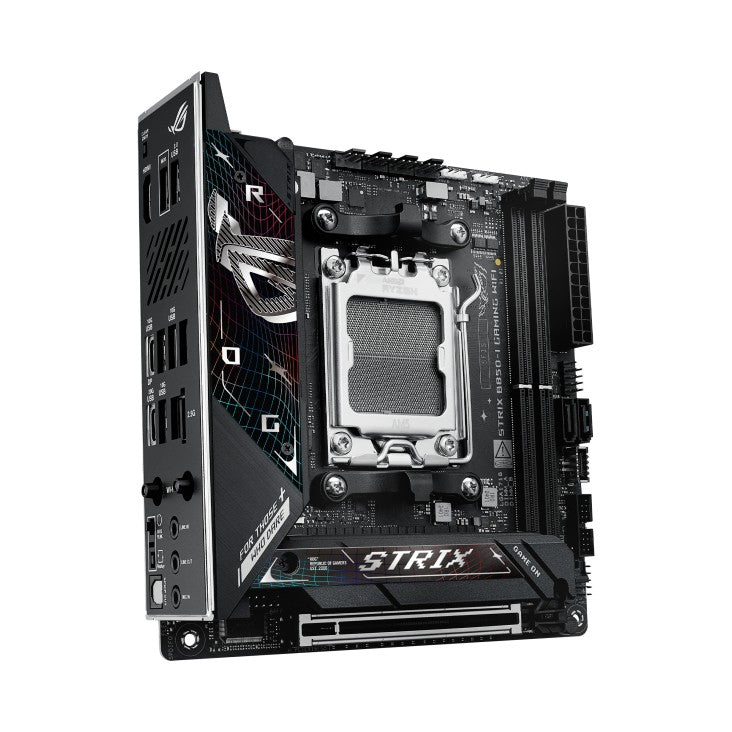

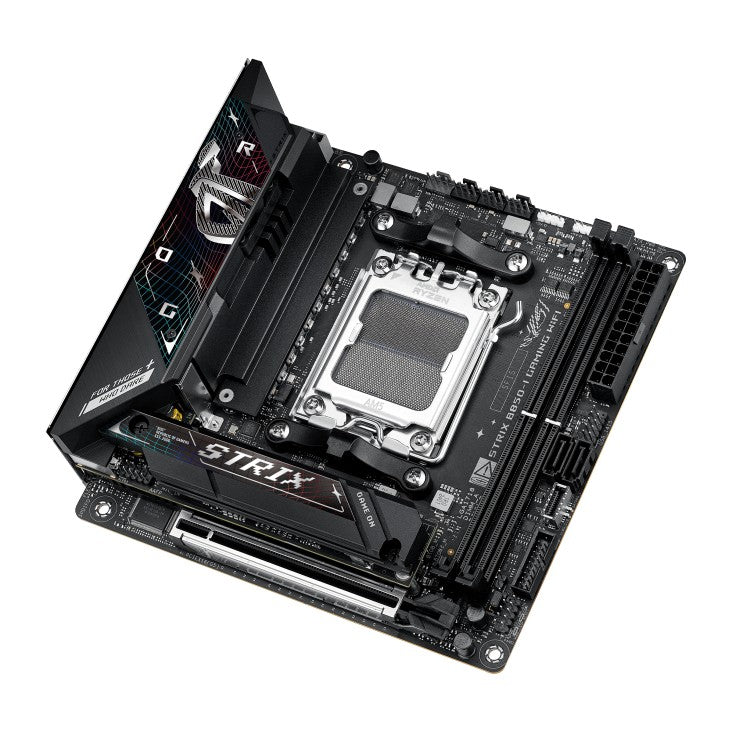

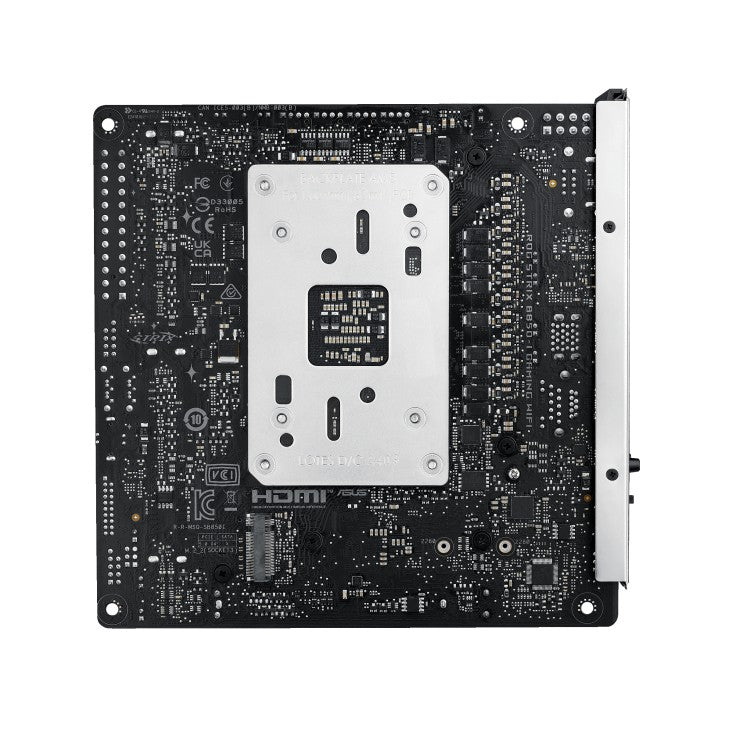

Asus Motherboard ROG STRIX B850-I GAMING WIFI
Specifications
| Description | ROG STRIX B850-I Gaming WiFi The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots, and a robust power supply for high-end gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand. |
|---|---|
| Model | ROG STRIX B850-I GAMING WIFI |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen 7 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD B850 Chipset |
| Memory type | DDR5 |
| Number of DDR5 slots | 2 |
| Memory bus frequency | 8400 MHz |
| Max memory size | 96 |
| Expansion slots | 2 x M.2 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 1 x PCIe 4.0 x 16 |
| Max. number of SATA devices | 2 |
| RAID | No |
| Detailed data on disk/drive interfaces | AMD Ryzen 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Graphics | 1 x HDMI port*** 1 x 10 Gbps USB port supports USB Type-C display output**** *** Supports 4K@60Hz as per HDMI 2.1 specification. **** Supports up to 4K@60Hz as per DisplayPort 1.4a specification. ***** VGA resolution support depends on the resolution of the processor or graphics card. |
| Sound card | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, and front-panel microphone jack remapping High-quality stereo playback output with a 120 dB SNR and recording input with a 110 dB SNR Supports playback up to 32-bit/384 kHz on the front panel Audio Features SupremeFX Shielding Technology Savitech SV3H712 Amplifier Rear Optical S/PDIF Output Premium Audio Capacitors Audio Shield *A chassis with a front-panel HD audio module is required for 7.1 Surround Sound audio output. **The rear-panel LINE OUT port does not support surround sound. To enjoy surround sound, connect your audio output device to the front-panel audio jack or use a USB audio device. |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | Bluetooth |
| Network interface | Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |
| USB ports at back panel | 8 |
| USB ports on motherboard | 5 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 1 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 7 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

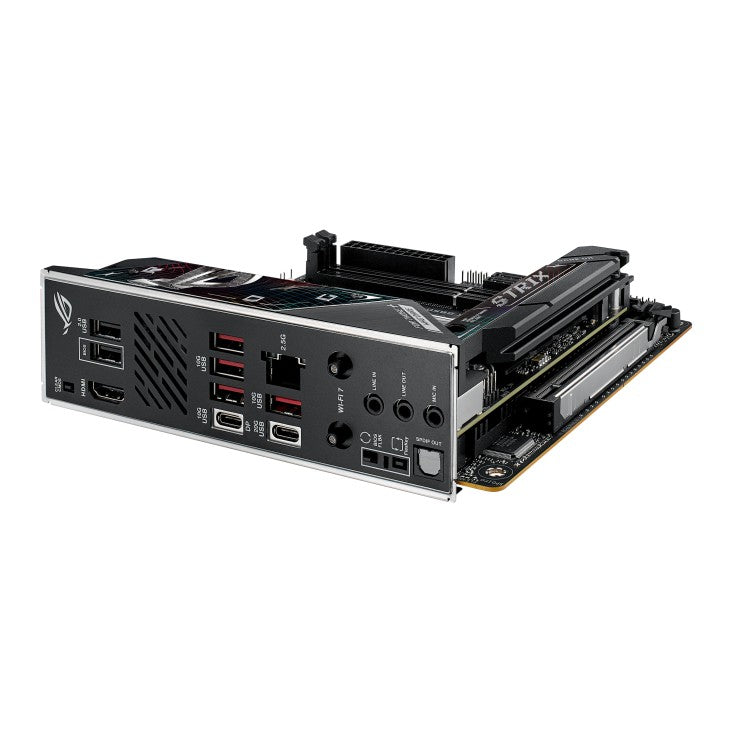

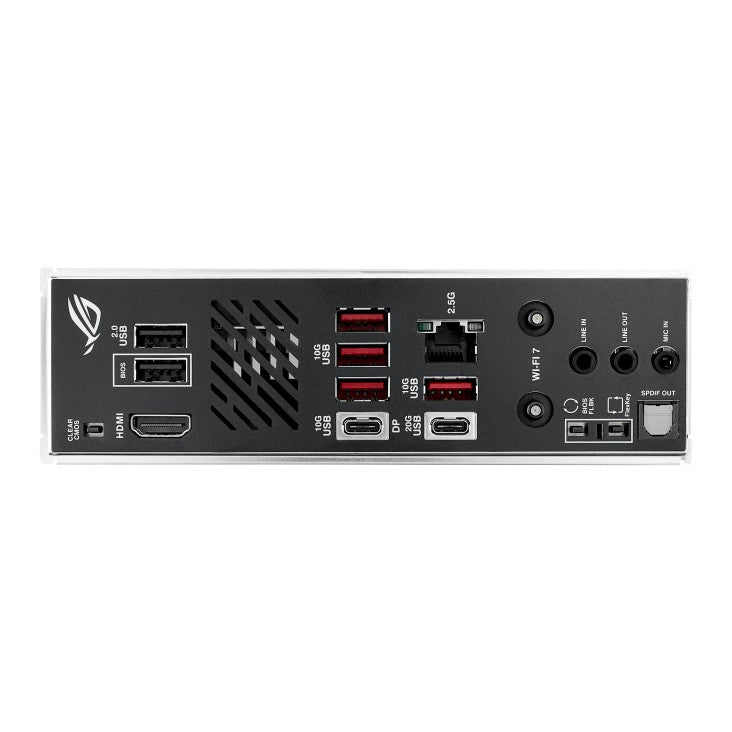

| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 1 x S/PDIF |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x HDMI |
| External connectors | 1 x Line Out |
| External connectors | 1 x Line In |
| External connectors | 2 x USB 2.0 |
| External connectors | 1 x USB 3.2 Gen 2 Type-C |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 4 x USB 3.2 Gen 2 Type-A |
| External connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| External connectors | 1 x Wi-Fi Module |
| Onboard connectors | 1x CPU/DRAM overvoltage jumper |
| Onboard connectors | 1 x 4-pin Extra Flow Fan header |
| Onboard connectors | 1 x 4pin Chassis fan |
| Onboard connectors | 2 x SATA III 6Gb/s |
| Onboard connectors | 1 x USB 2.0/1.1 header |
| Onboard connectors | 1 x Thermal sensor connector |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 2 x M.2 |
| Onboard connectors | 1 x USB 3.2 Gen 2 Type-C |
| Onboard connectors | 2 x Addressable LED |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Special functions | Extreme Engine Digi+ 5K Black metallic concentrates ASUS Q-Design M.2 Q-Latch M.2 Q-Slide PCIe Slot Q-Release Slim (z PCIe SafeSlot) Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green]) Q-Slot ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED Clear CMOS button ProCool Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen 2 headers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | mini ITX |
| Dimensions | 17 cm x 17 cm |

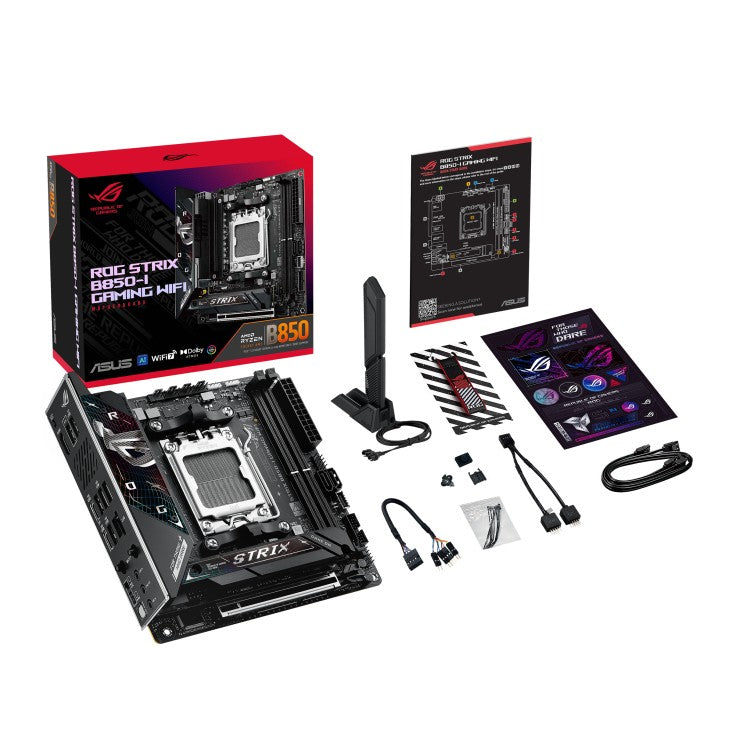

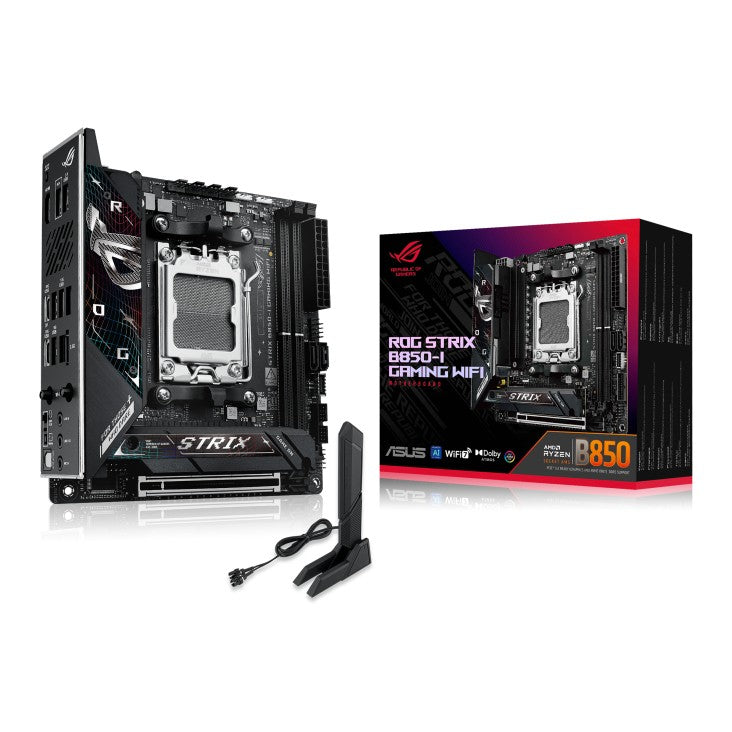

| Accessories included | 2 SATA 6Gb/s Cables ASUS WiFi Q-Antenna Cable Tie Pack Q-Latch M.2 Backplate Pack Q-Slide M.2 Backplate Pack ROG Keychain ROG Strix Stickers M.2 Rubber Backplate Pack Quick Start Guide |
| Supported operating systems | Windows 11 |
| Software | ROG-exclusive software ROG CPU-Z Dolby Atmos ASUS-exclusive software Armoury Crate - AIDA64 Extreme (60-day free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (free trial) Norton 360 for Gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Other information | WOL management via PME, PXE |
