Description

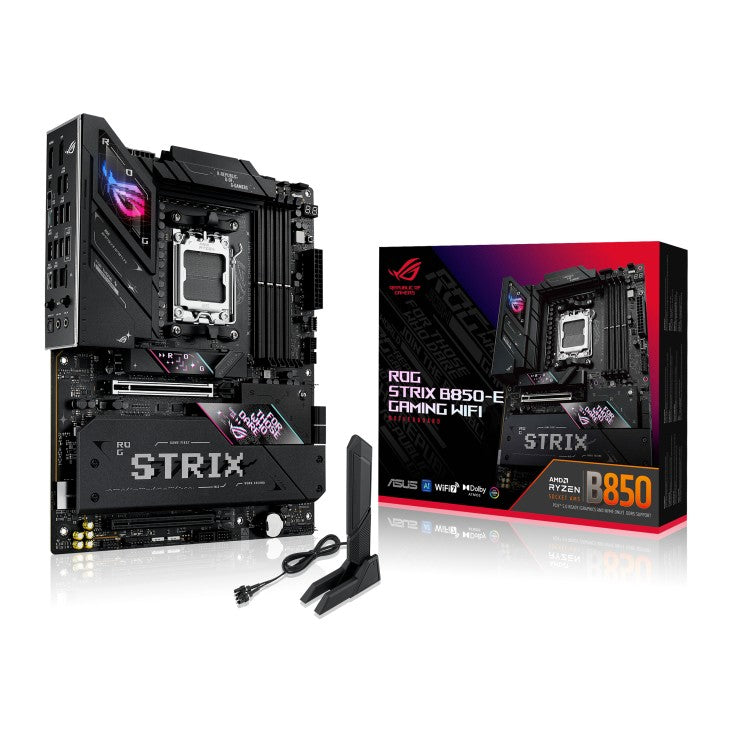

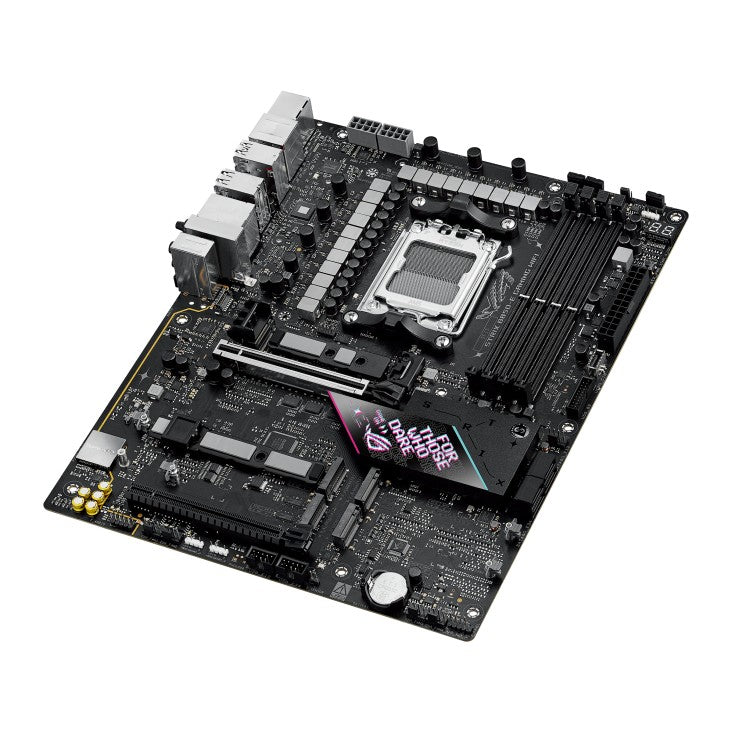

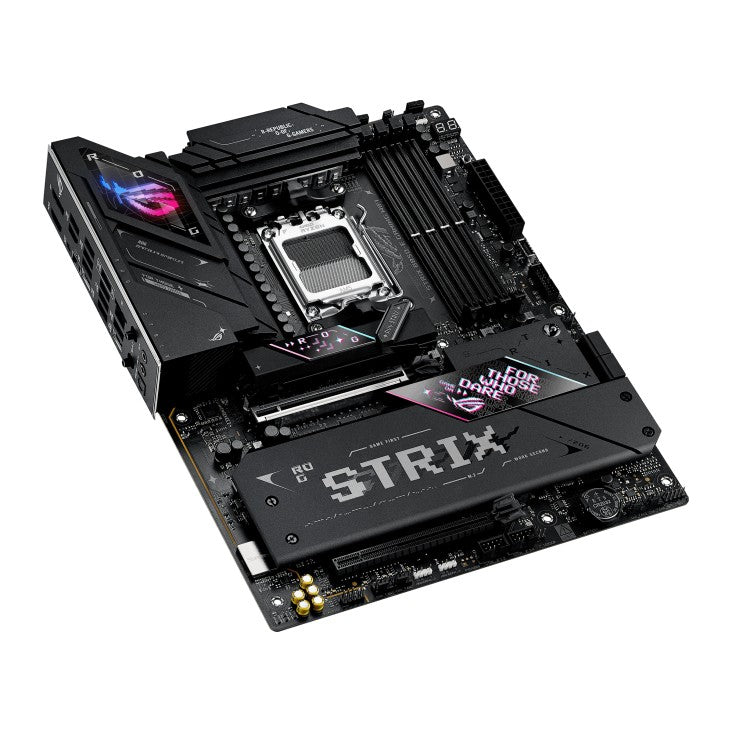

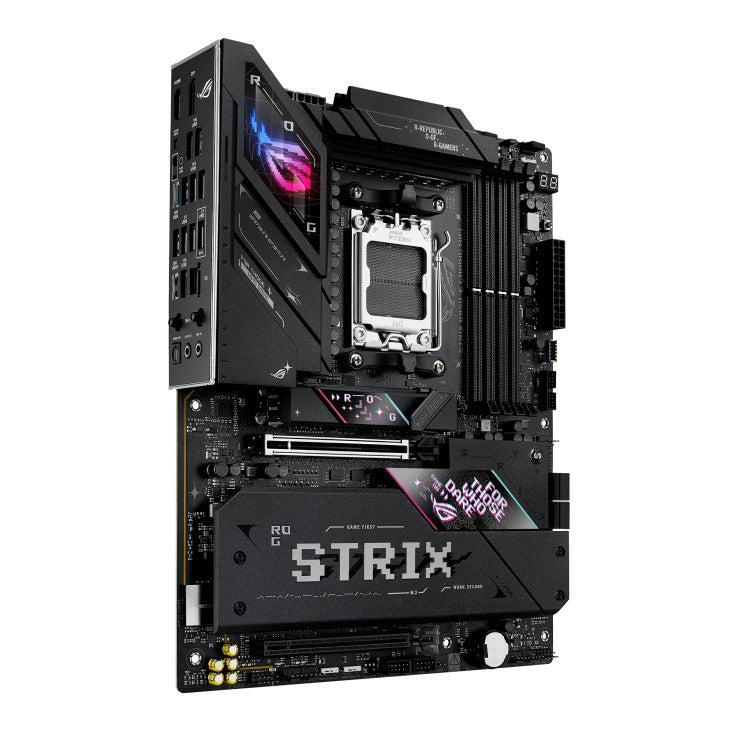

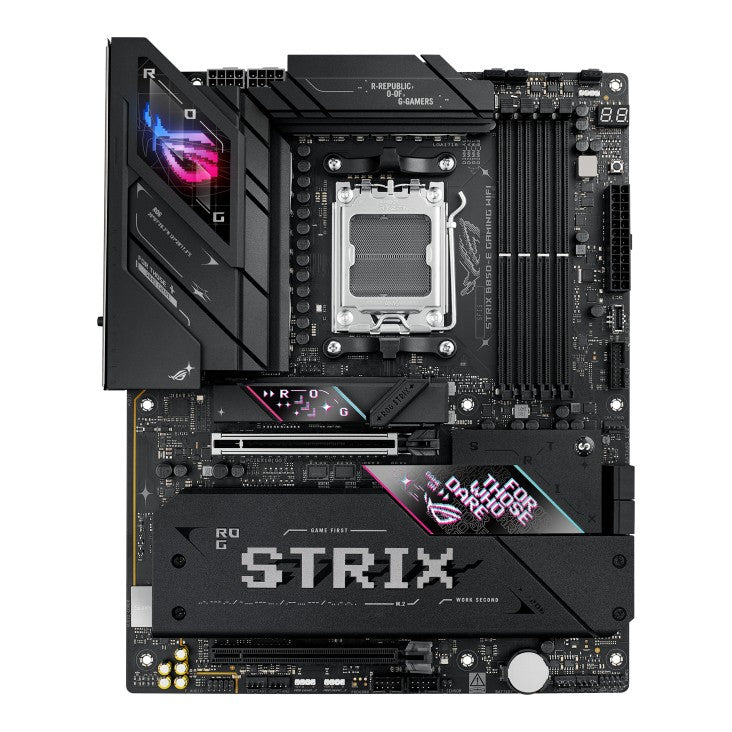

Asus Motherboard ROG STRIX B850-E GAMING WIFI
Specifications
| Description | ROG STRIX B850-E Gaming WiFi The ROG Strix B850-E Gaming WiFi is designed to unleash the full potential of AMD Ryzen 9000 series processors. Support for PCIe 5.0, AI Overclocking, AI Networking II, and AEMP simplifies setup and maximizes performance. A single USB 4 Type-C port and WiFi 7 with Realtek 5Gb Ethernet provide top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy load. This motherboard not only meets the demands of gaming and professional applications, but also delivers the power and connectivity necessary for advanced AI PC applications. |
|---|---|
| Model | ROG STRIX B850-E GAMING WIFI |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen 7 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD B850 Chipset |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 8000 MHz |
| Max memory size | 192 |
| Expansion slots | 5 x M.2 |
| Expansion slots | 2 x PCIe 5.0 x16 |
| Expansion slots | 1 x PCIe 4.0 x 16 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)* M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)** M.2_3 slot (Key M), type 2280 (Not supports)*** AMD B850 Chipset M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| Graphics | 1 x DisplayPort* 1 x HDMI port** 1 x USB4 (40 Gbps) port supports USB Type-C display output*** * Supports up to 8K@30Hz as per DisplayPort 1.4 specification ** Supports 4K@60Hz as per HDMI 2.1 specification *** Supports up to 4K@60Hz as per DisplayPort 1.4a specification ***** VGA resolution support depends on processor or graphics card resolution. |
| Sound card | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, and front-panel microphone jack remapping High-quality stereo playback output with a SNR of 120 dB and recording input with a SNR of 110 dB Supports playback up to 32-bit/384 kHz on the front panel Audio Features SupremeFX Shielding Technology Savitech SV3H712 Amplifier Gold-plated audio jacks Rear optical S/PDIF output Premium audio capacitors Audio Shield |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard Wireless and Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands** Supports Wi-Fi 7 320 MHz band, up to 6.5 Gbps transfer speeds. Bluetooth v5.4 |
| USB ports at back panel | 12 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 1 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 9 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

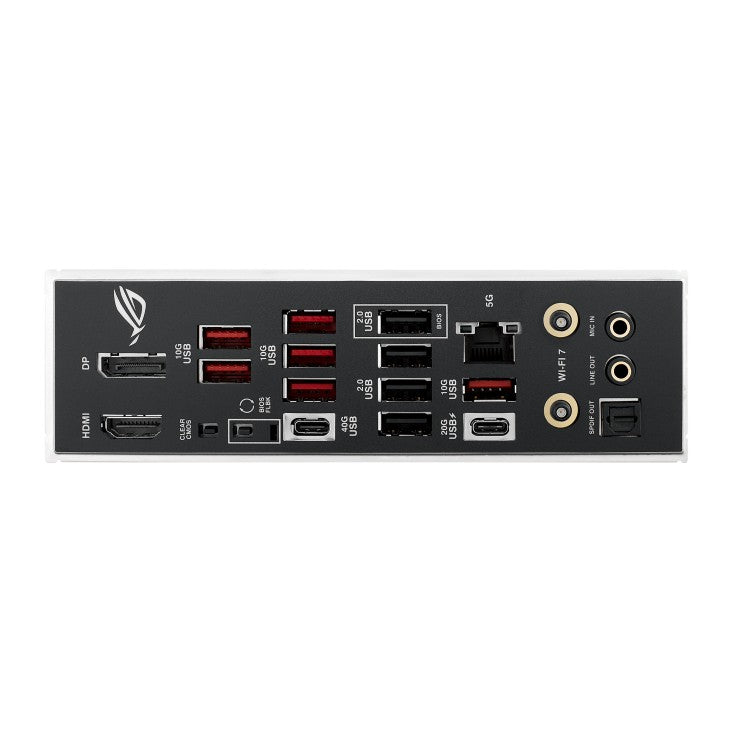

| External connectors | 6 x USB 3.2 Gen 2 Type-A |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x HDMI |
| External connectors | 1 x Line Out |
| External connectors | 1 x MIC |
| External connectors | 1 x DisplayPort |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 4 x USB 2.0 |
| External connectors | 1 x S/PDIF |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 1 x Wi-Fi Module |
| External connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| External connectors | 1 x USB4 Type-C |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 1x CPU/DRAM overvoltage jumper |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 5 x M.2 |
| Onboard connectors | 5 x 4pin Chassis fan |
| Onboard connectors | 1 x USB 3.2 Gen 2 Type-C |
| Onboard connectors | 1 x Thermal sensor connector |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x 4pin wentylator OPT CPU |
| Onboard connectors | 1 x Power button |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Special functions | Extreme Engine Digi+ 5K Black Metallic Capacitors ASUS Q-Design M.2 Q-Latch M.2 Q-Release M.2 Q-Slide PCIe Slot Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Code Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow/green]) Q-Slot ASUS Thermal Solution M.2 Heatsink Backplate M.2 Heatsink ASUS EZ DIY BIOS FlashBack Button BIOS FlashBack LED Clear CMOS Button ProCool Pre-installed I/O Shield SafeSlot SafeDIMM Aura Sync Addressable Gen 2 Header(s) Rear USB 20 Gb/s with PD Fast Charging Support Supports: Up to 30W Fast Charging and USB Wattage Watcher Output: 5V/9V max 3A, 12V max 2.5A, 15V max 2.0A PD3.0 compliant |
| Form factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |

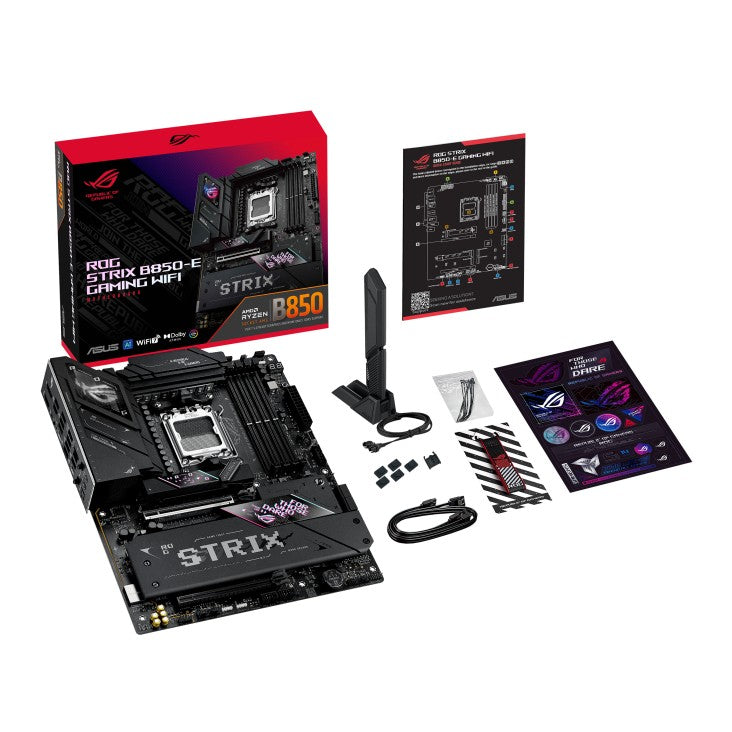

| Accessories included | 2 x SATA 6Gb/s Cable M.2 22110 Thermal Pad ASUS WiFi Q-Antenna Cable Tie Pack M.2 Q-Slide Pack ROG Keychain ROG Strix Stickers 5 x M.2 Rubber Bands Quick Start Guide |
| Supported operating systems | Windows 11 |
| Software | ROG-exclusive software - ROG CPU-Z - Dolby Atmos ASUS-exclusive software Armoury Crate - AIDA64 Extreme (60-day free trial) - Aura Creator - Aura Sync - GameFirst - Fan Xpert 4 - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (free trial) Norton 360 for Gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey Dynamic OC Switcher Core Flex |
| Other information | WOL management via PME, PXE |
