Description

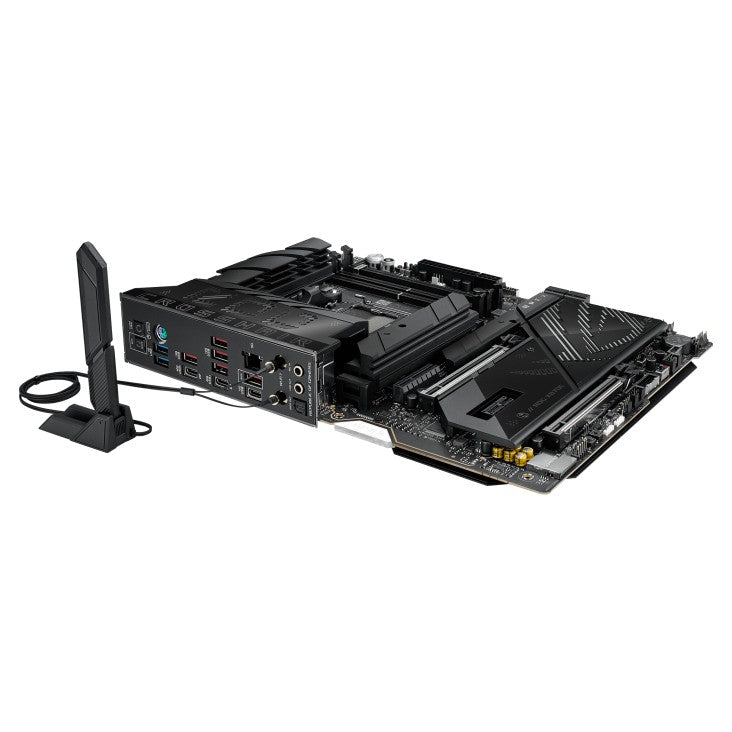

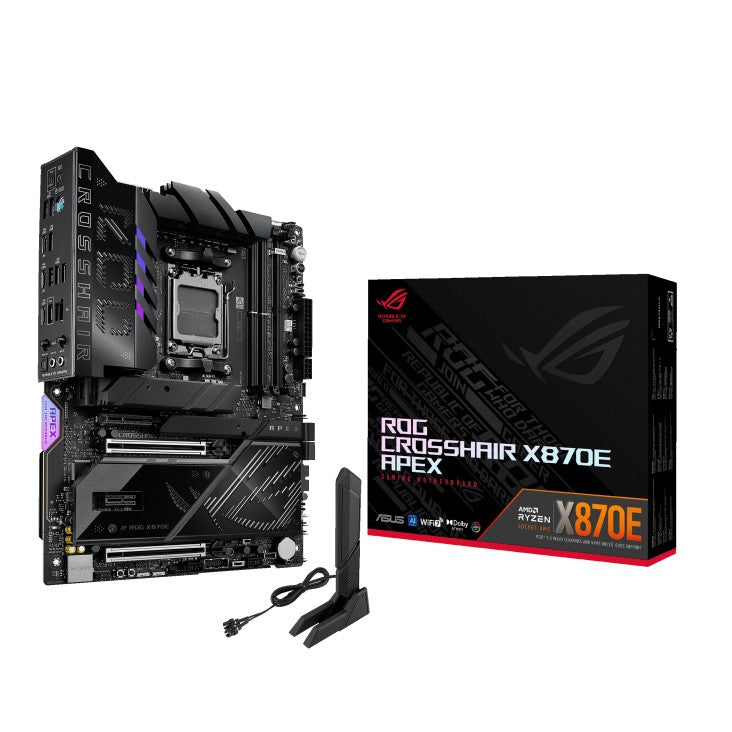

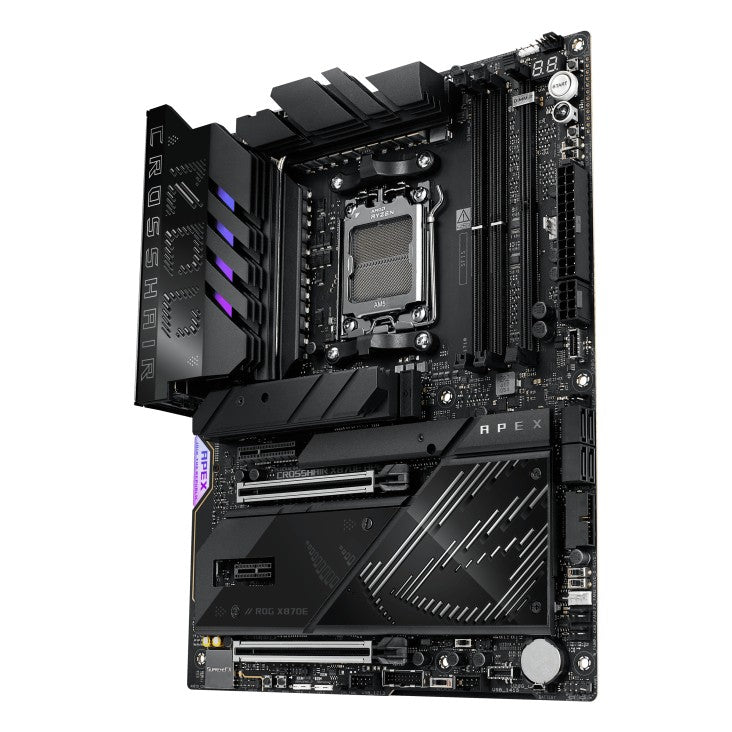

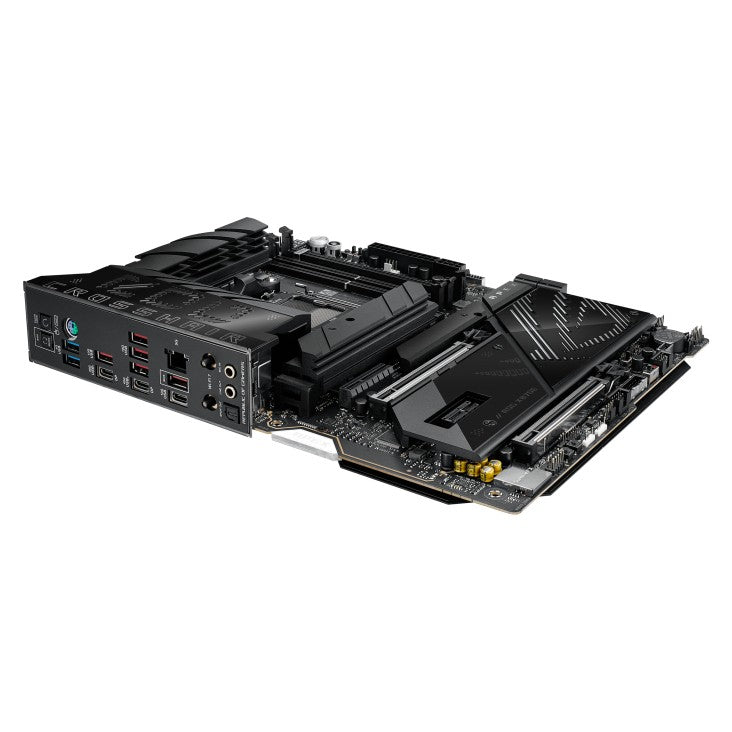

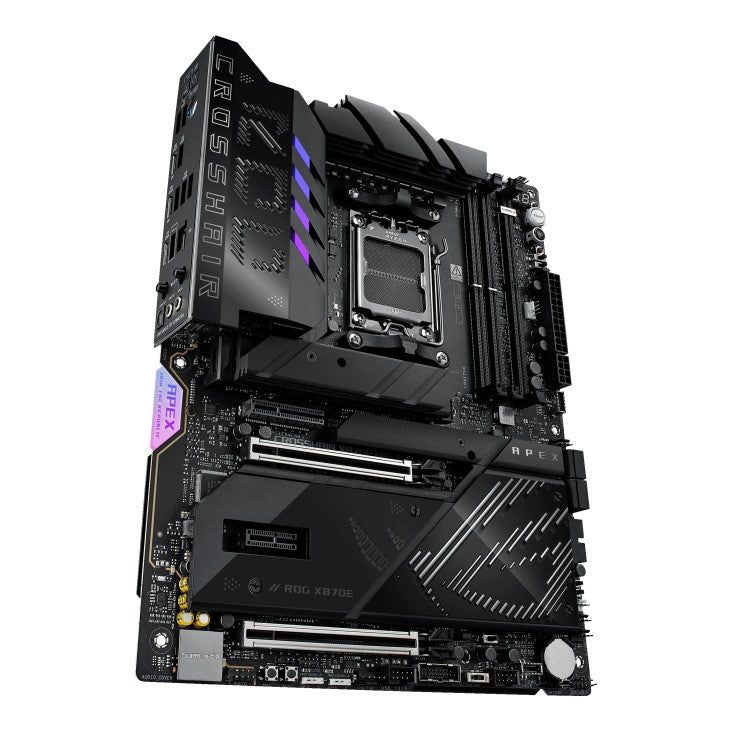

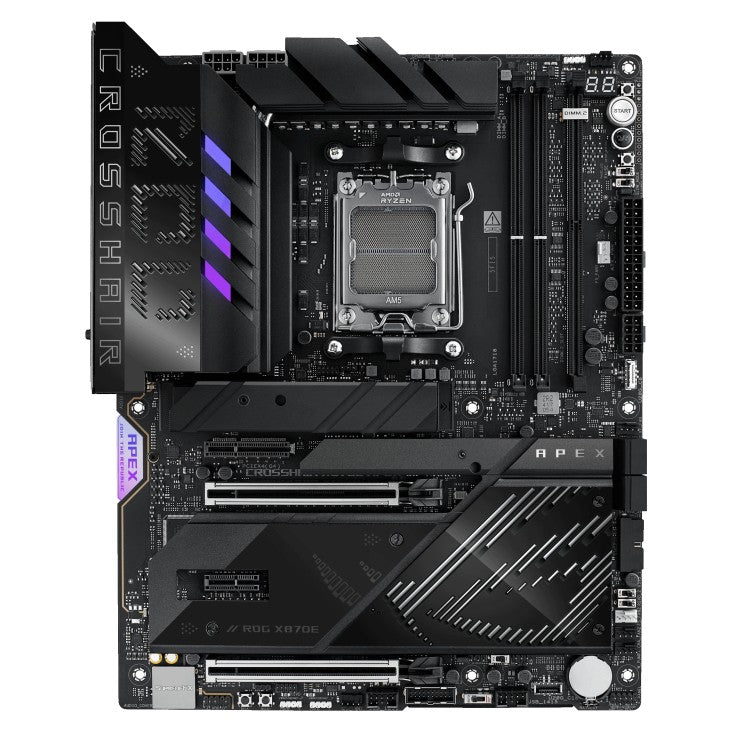

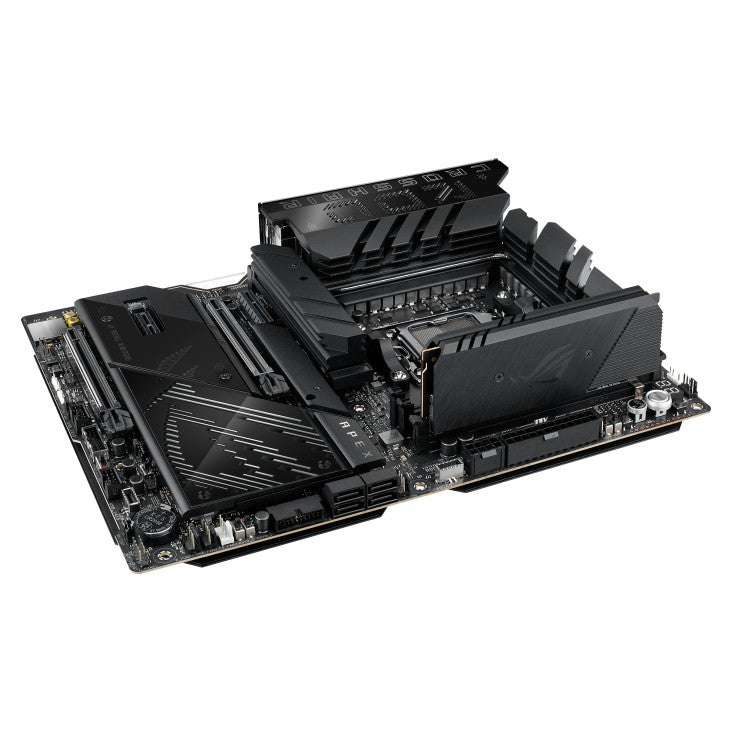

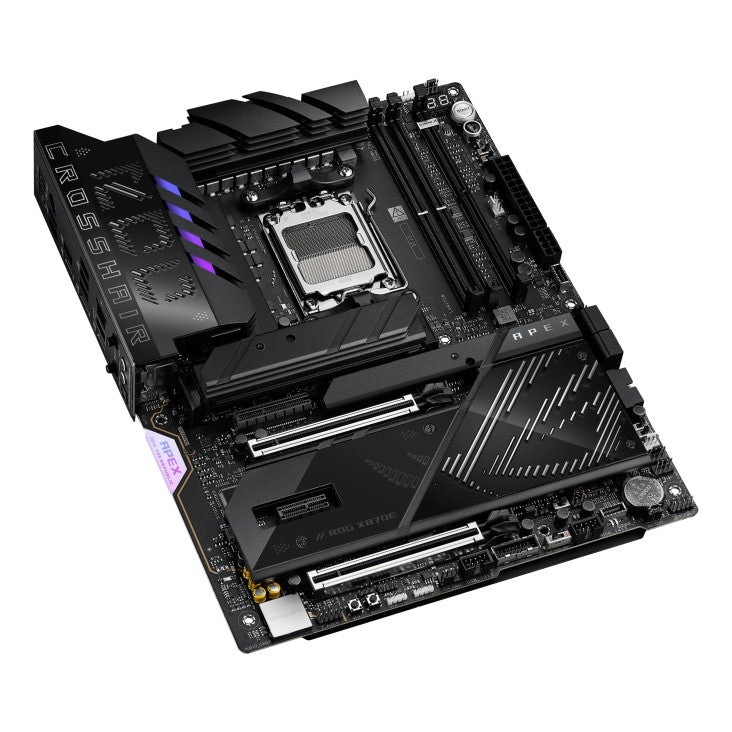

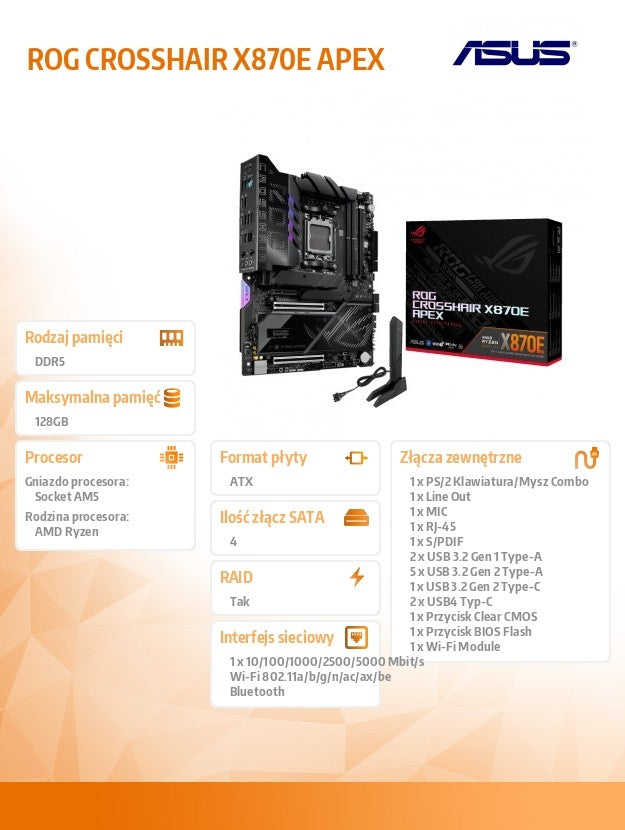

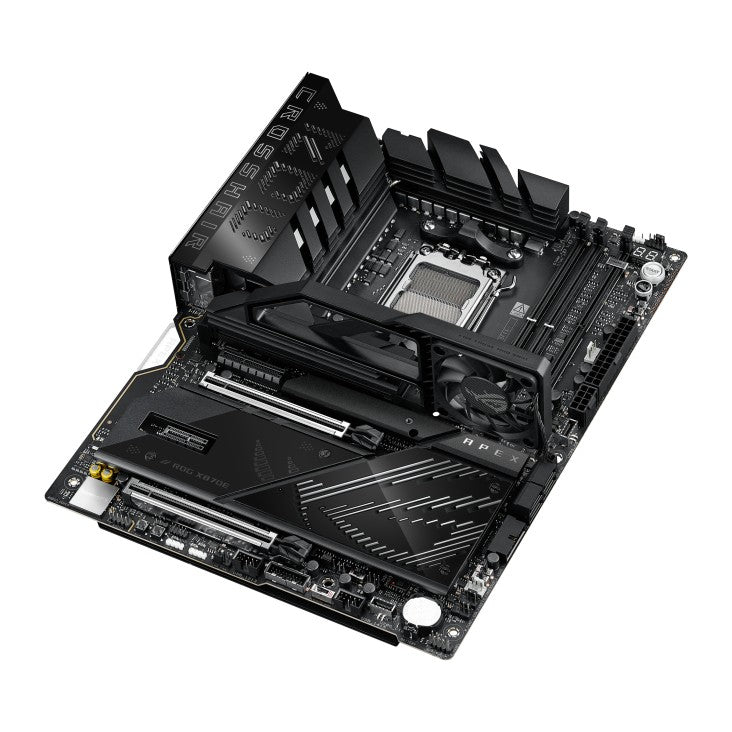

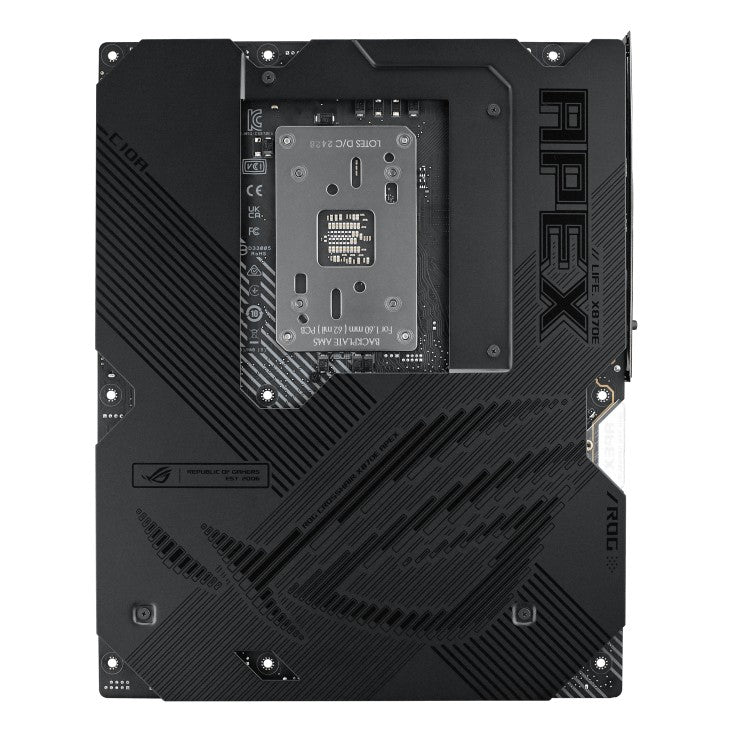

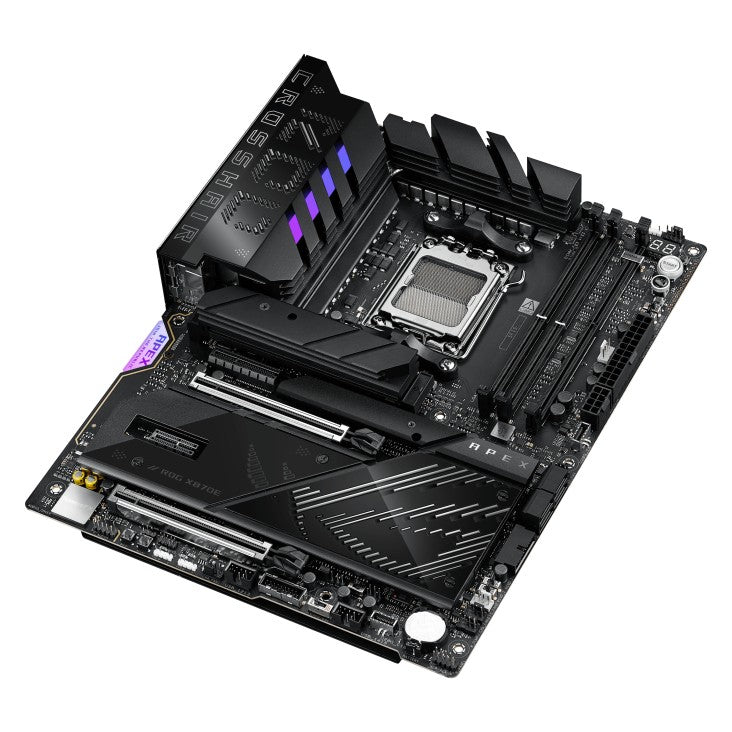

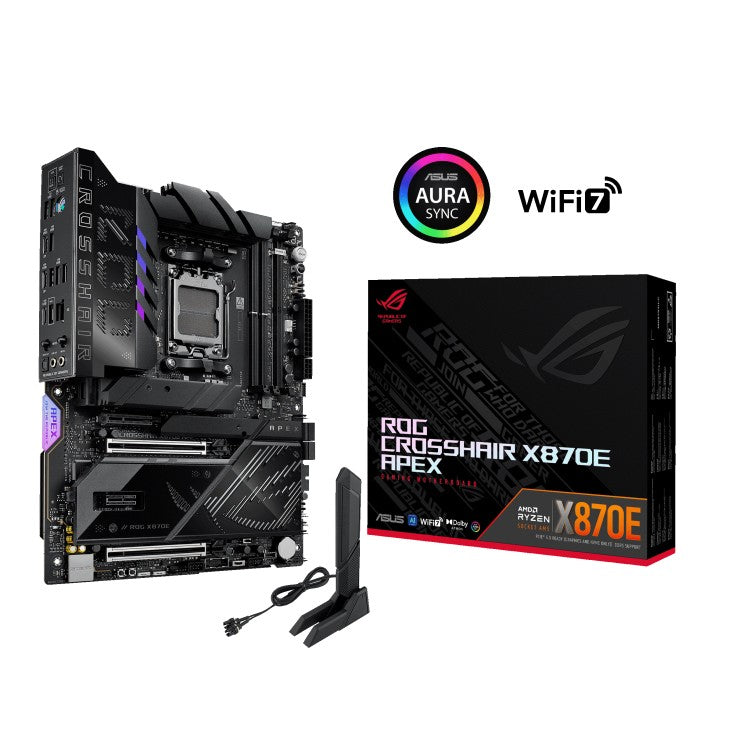

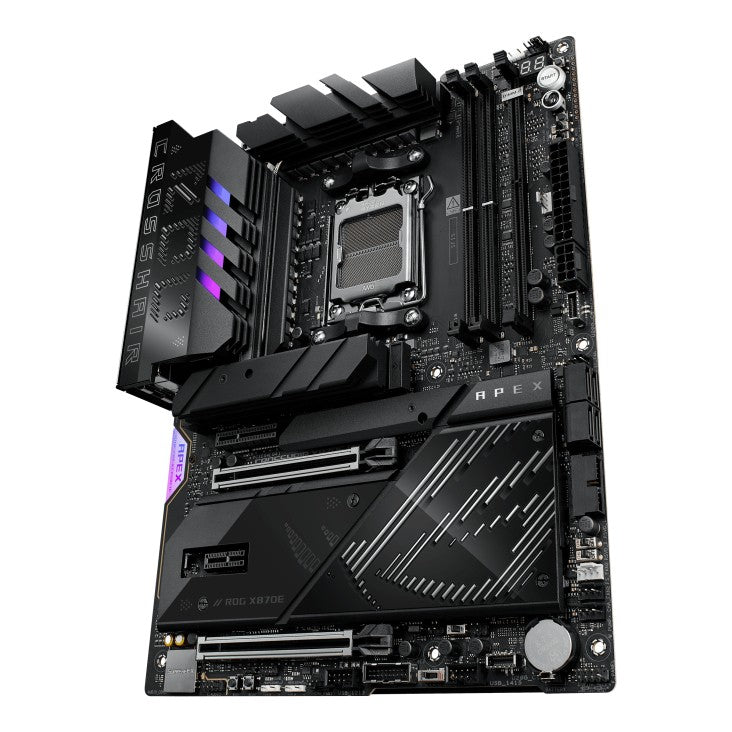

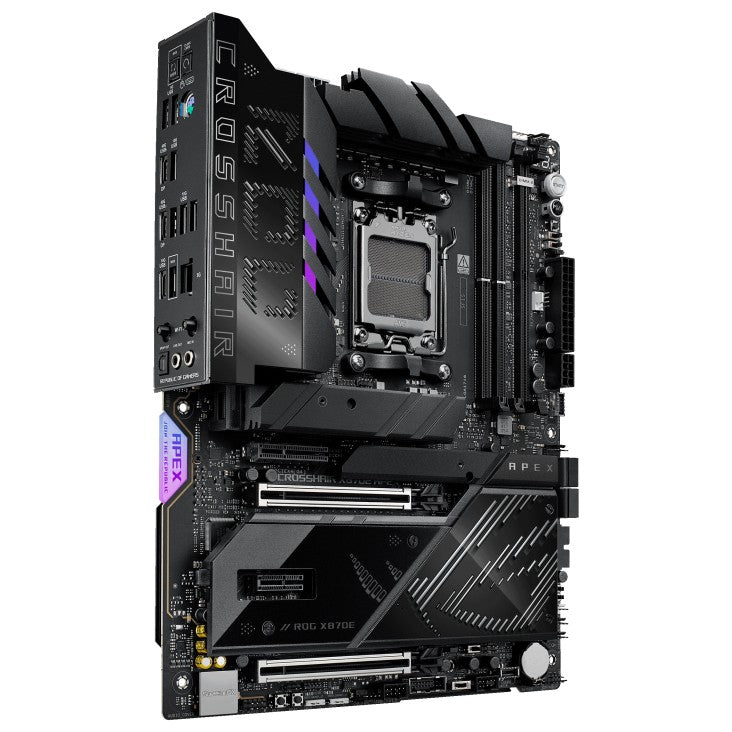

Asus Motherboard ROG CROSSHAIR X870E APEX
Specifications
| Description | ROG CROSSHAIR X870E APEX The AI PC-ready ROG Crosshair X870E Apex is built for world-record overclocking, courtesy of extensive BIOS features and the exotic cooling of the ROG-exclusive Memory Fan Kit. Beyond its overclocking prowess, it delivers comprehensive support for cutting-edge graphics cards and storage, making it the ultimate platform for AM5 AMD Ryzen performance enthusiasts. ASUS AI CACHE BOOST Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks. ASUS AI ADVISOR Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way. AI OVERCLOCKING Tuning is now faster and smarter than ever before. AI COOLING II Balance the thermals and acoustics of any build with a single click. AI NETWORKING II AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7. Dynamic OC Switcher Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking. Core Flex Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. Asynchronous Clock For next-level frequency flexibility, the ROG Crosshair X870E Apex features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. PBO ENHANCEMENT AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. DIMM Fit / DIMM Fit Pro DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization. DDR5 DOMINATION Thanks to improved signal routing, now enthusiast-grade kits can be driven beyond the 9 GT/s mark on the ROG Crosshair X870E Apex. AEMP ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. UEFI BIOS The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. BIOS Q-DASHBOARD Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup. ASUS DriverHub ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently. Dolby Atmos Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener. ASUS GlidEx ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS. HWiNFO HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies. AIDA64 Extreme The ROG Crosshair X870E Apex includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers. Armoury Crate Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate's Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers. PERSONALIZATION Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look. Dare to Be Green We at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home. Every step counts, and as part of ROGs commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC) in the packaging of motherboard. BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING When only the fastest will do, ROG X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ROG X870E/X870 motherboard and AMD Ryzen 9000, 8000, and 7000 Series processors. |
|---|---|
| Model | ROG CROSSHAIR X870E APEX |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E |
| Memory type | DDR5 |
| Number of DDR5 slots | 2 |
| Memory bus frequency | 9600 MHz |
| Max memory size | 128 |
| Expansion slots | 2 x PCIe 5.0 x16 |
| Expansion slots | 1 x PCIe 3.0 x 1 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Expansion slots | 2 x PCIe 4.0 x 16 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Graphics | 2 x USB4 (40Gbps) ports support USB Type-C display outputs |
| Sound card | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel" Audio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Gold-plated audio jacks Rear optical S/PDIF out port Premium audio capacitors Audio cover |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Bluetooth |
| Network interface | LAN: Realtek 5Gb Ethernet ASUS LANGuard Wireless: Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927) 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth Bluetooth v5.4 |
| USB ports at back panel | 10 |
| USB ports on motherboard | 10 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 6 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 1 x Wi-Fi Module |
| External connectors | 2 x USB4 Type-C |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x USB 3.2 Gen 2 Type-C |
| External connectors | 1 x PS/2 Keyboard/MouseCombo |
| External connectors | 1 x Line Out |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x S/PDIF |
| External connectors | 2 x USB 3.2 Gen 1 Type-A |
| External connectors | 5 x USB 3.2 Gen 2 Type-A |
| Onboard connectors | 1 x Thermal sensor connector |
| Onboard connectors | 4 x SATA II 3Gb/s |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 4 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 2 x USB 3.2 Gen 2x2 Type-C |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 3 x M.2 |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 1 x 4pin wentylator OPT CPU |
| Onboard connectors | 2 x 4pin Chassis fan |
| Onboard connectors | 1 x 4-pin Extra Flow Fan header |
| Onboard connectors | 2 x 4-pin Full Speed Fan headers |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 1 x 8-pin PCIe |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Special functions | Extreme OC Kit FlexKey button LN2 Mode ProbeIt ReTry button Safe boot button Start button Slow Mode Extreme Engine Digi+ SMD Capacitor MicroFine alloy choke ASUS Q-Design M.2 Q-Latch M.2 Q-Release M.2 Q-Slide Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Code Q-Connector Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink VRM heatsink design Metal backplate ASUS EZ DIY Backplate BIOS FlashBack button Clear CMOS button CPU Socket lever protector ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen2 header(s) Front Panel USB 20Gbps with Quick Charge 4+ Support Support: up to 60W fast charging and USB Wattage Watcher* Output: 5/9/15/20V max. 3A, PPS:3.321V max. 3A Compatible with PD3.0 and PPS |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | ATX |
| Dimensions | 30.5 x 24.4 cm |

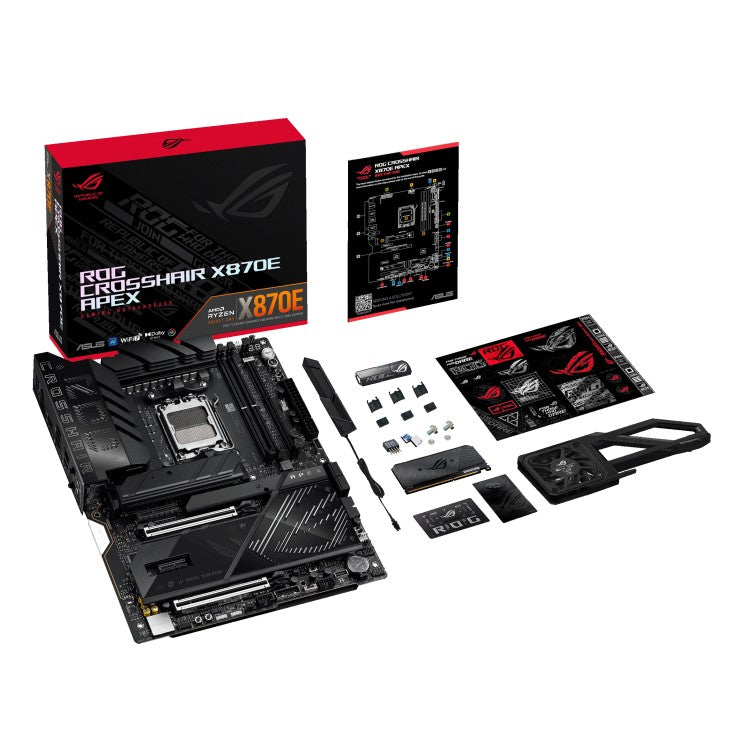

| Accessories included | ROG DIMM.2 with Heatsink ROG DIMM.2 with heatsink M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit ROG Memory Fan Kit Miscellaneous ASUS WiFi Q-Antenna Q-connector 3 x M.2 Q-Slide package 3 x M.2 rubber package ROG stickers ROG thank you card ROG Bottle Opener Installation |
