Description

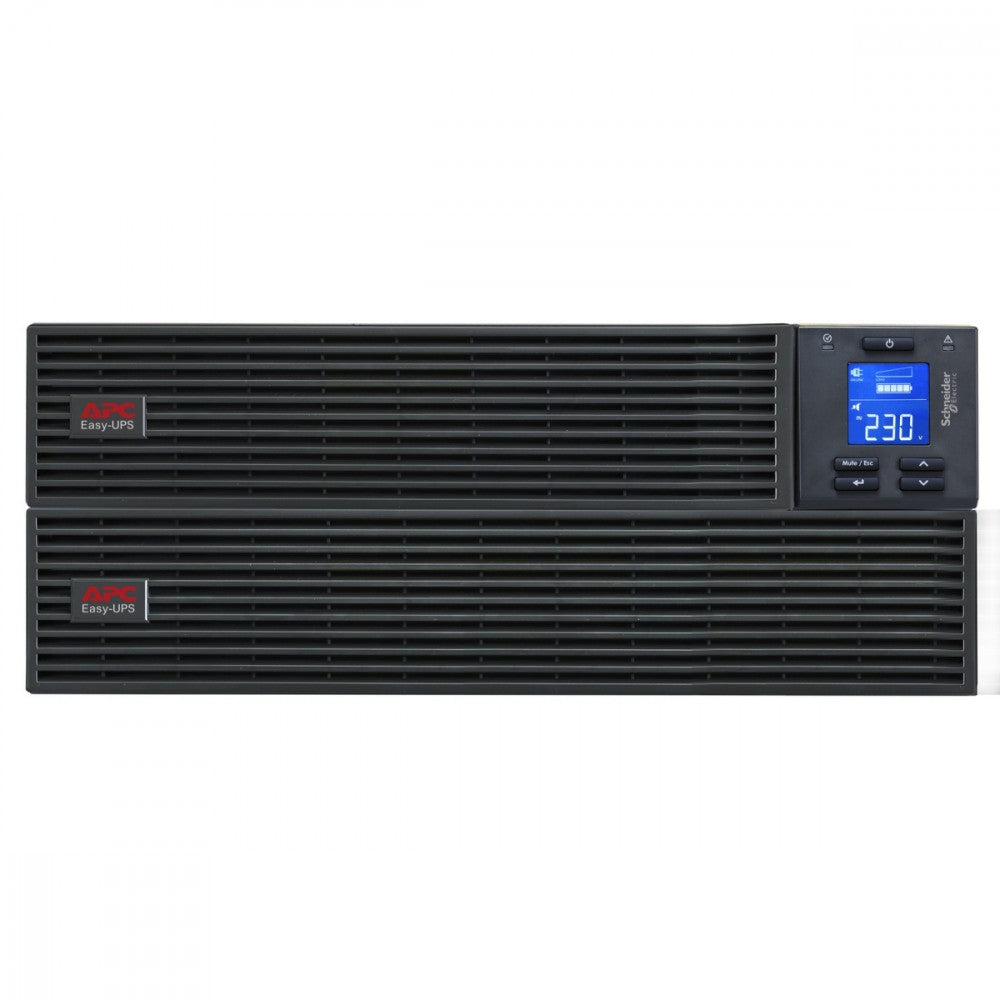

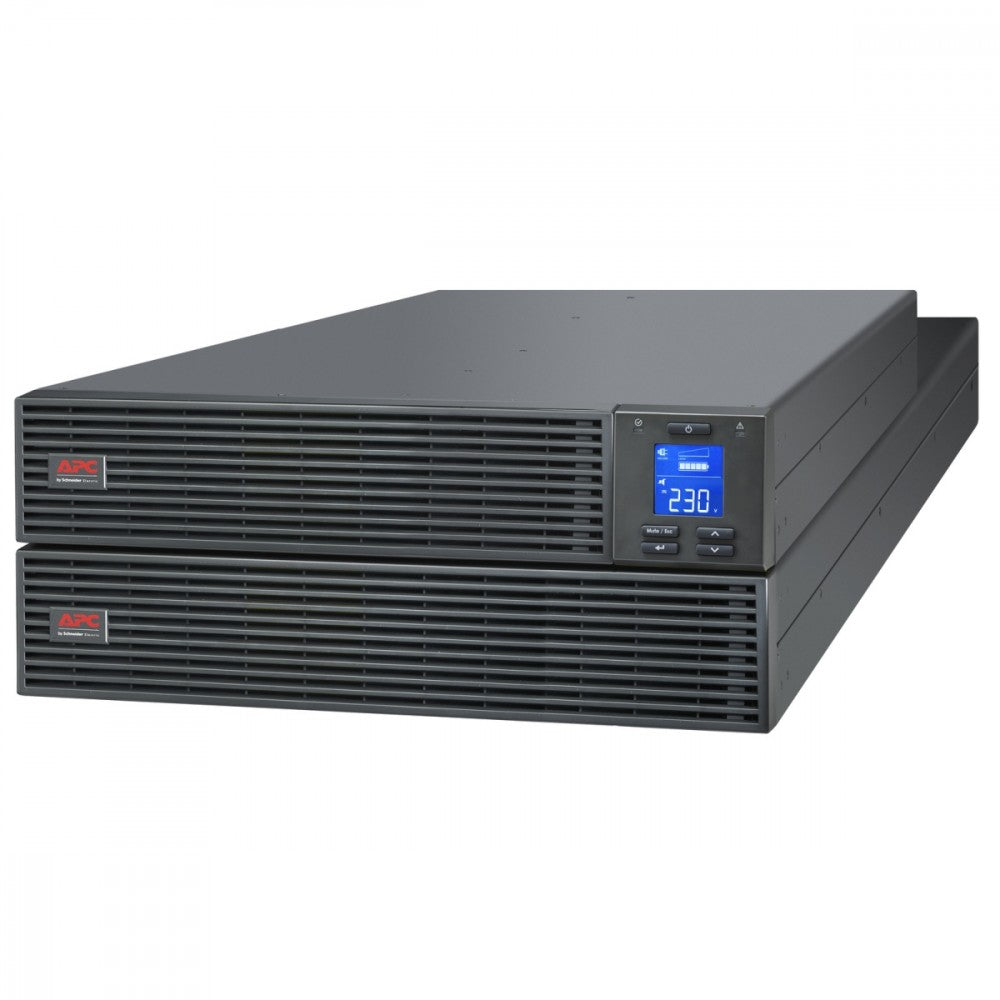

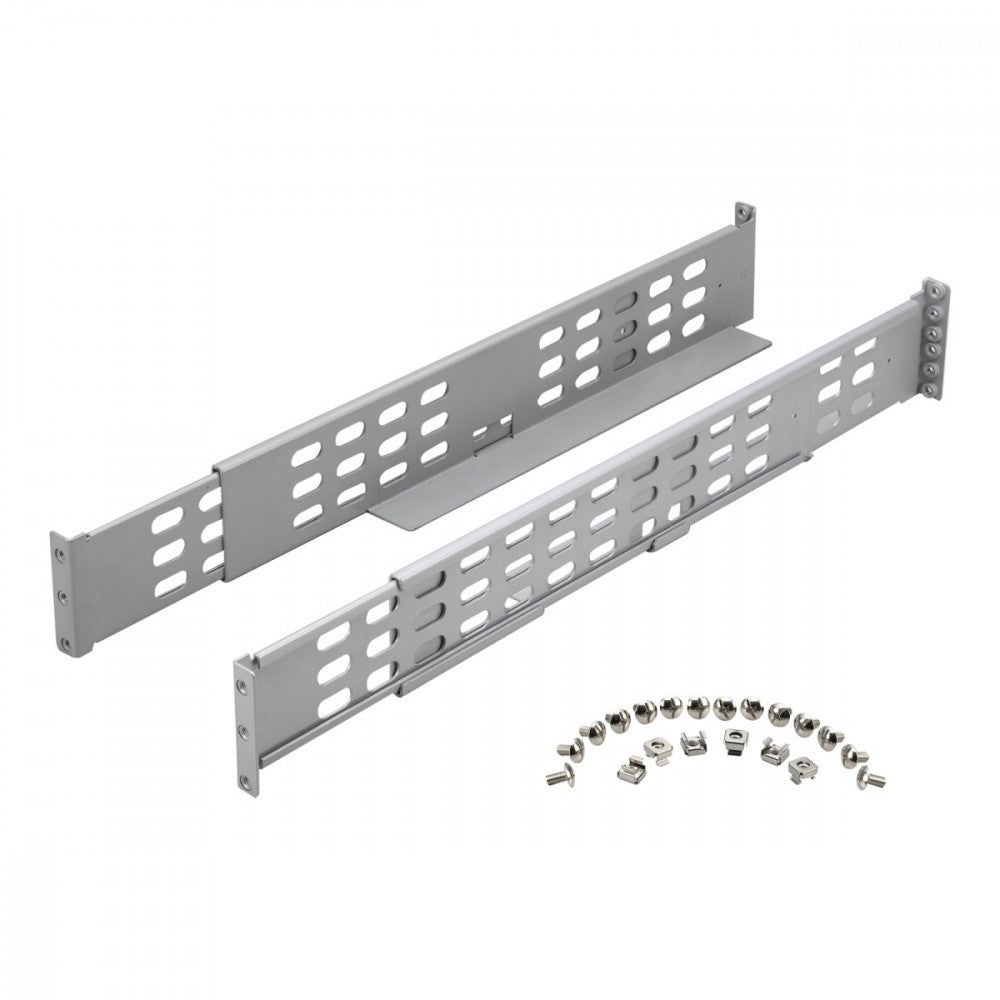

APC UPS SRV5KRIRK Easy UPS On-Line SRV 5000VA RM 230V with Rail Kit
Specifications
| Description | APC Easy UPS On-Line, 5 kVA/5 kW, 4U Rackmount, 230 V, Hardwired 3-Wire (1P+N+E) Input, SmartSlot, LCD, with Rail Kit The APC Easy UPS On-Line is a single-phase, easy-to-use UPS designed for IT professionals and network administrators to ensure business continuity and uninterrupted operation. This 5 kVA/5 kW double-conversion online UPS, designed for 4U rack installation, delivers pure sine wave power to support critical electronic equipment during power outages. The SRV model features a hardwired 3-wire (1P+N+E) input and a hardwired 3-wire (1P+N+E) output. The UPS includes a SmartSlot for an optional Network Management Card (AP9544, SRVSMB001, VGL9601I), enabling remote UPS monitoring and management. It can connect to EcoStruxure IT or third-party centralized management platforms. The built-in automatic and manual bypass ensures uninterrupted power to connected loads even if an internal UPS fault or error is detected. The Easy UPS and its built-in sealed lead-acid battery are backed by a 2-year warranty. It is an ideal solution for small data centers, manufacturing facilities, computer rooms, network-attached storage (NAS), telecommunications, and healthcare IT environments. Key Features: 5 kVA / 5 kW double-conversion online UPS with pure sine wave output, 4U rackmount design High operating efficiency in ECO mode for reduced energy consumption Extended battery life through intelligent temperature-compensated charging Easy-to-read LCD interface providing detailed and accurate UPS status information |
|---|---|
| Apparent power | 5 kVA |
| Active power | 5 |
| UPS Architecture | on-line double conversion |
| The shape of the output voltage | Full sine wave |
| Number of phases input | 1 (230V) |
| No. of batteries | 1 |
| Voltage | 192 |
| Battery capacity | 1124 |
| Charging time | 4 |
| Chassis type | Rack |
| Input power ports | Input terminal |
| Output power ports | Output terminals |
| I/O connectors | 1 x RS-232 (COM) |
| I/O connectors | 1 x USB (Type B) |
| Environment requirements | Operating temperature: 0-40°C Storage temperature: -15-60°C Storage altitude: 0-15,000 m above sea level Relative humidity: 0-95% Storage relative humidity: 0-95% non-condensing IP protection rating: IP20 |
| Color | Black |
| Dimensions | 173 x 438 x 710 mm |
| Weight | 61 |
