Description

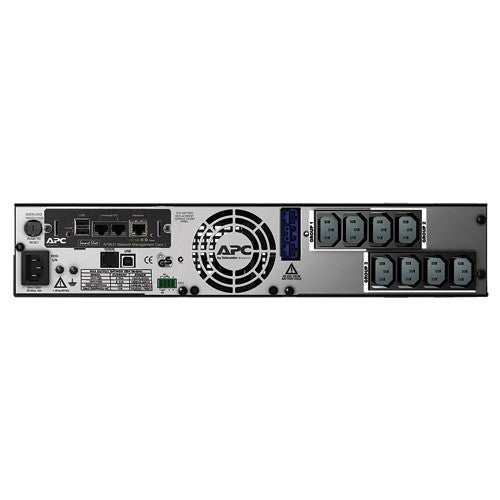

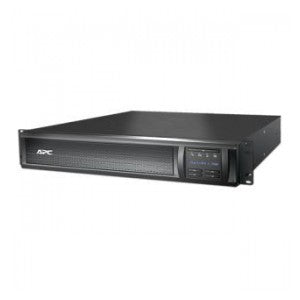

APC SMX1500RMI2UNC X 1500VA USB/AP9641/RS/LCD/RT 2U
Specifications
| Description | APC Smart-UPS X 1500VA Rack/Tower LCD 230V with Network Card APC Smart-UPS,1200 Watts /1500 VA ,Input 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 2 U |
|---|---|
| Apparent power | 1500 VA |
| Active power | 1200 |
| UPS Architecture | line-interactive |
| Number of phases input | 1 (230V) |
| No. of batteries | 1 |
| Voltage | 48 |
| Backup time (100% load) | 5.8 |
| Charging time | 3 |
| Chassis type | Rack |
| Chassis type | Tower |
| Special functions | Remote UPS management EPO High online efficiency Green mode High frequency design Energy meter Predictive replace battery date Intuitive LCD interface Auto recognition of external batteries Multiple switched outlet groups Pure sine wave output on battery Preinstalled network management card Scalable runtime Cold-start capable Plug-and-Play external batteries -Rack/Tower convertible SmartSlot Temperature-compensated battery charging Boost and Trim Automatic Voltage Regulation (AVR) Intelligent battery management Power conditioning Temperature-compensated battery charging Automatic restart of loads after UPS shutdown Automatic self-test Disconnected battery notification Network manageable Audible alarms LED status indicators Serial connectivity USB connectivity Disconnected battery notification User-replaceable batteries Hot-swappable batteries Predictive failure notification Resettable circuit breakers Battery failure notification Adjustable voltage-transfer points Adjustable voltage sensitivity Safety-agency approved |
| Input power ports | IEC-C14 |
| Output power ports | 8 x IEC-C13 |
| Connectors | SmartSlot |
| Connectors | 1 x USB (Typ B) |
| Environment requirements | Operating Environment: 0 - 45 ° C Relative Humidity: 0 - 95% The height above sea level Operating: 0-3000 m Temperature (storage): -15 - 45 ° C Relative humidity (storage) 0 - 95% The height above sea level (storage): 0-15000 m The noise level at 1 meter from surface of unit 40.00 dBA Dissipation: 133.00 BTU / hr. |
| Accessories included | CD with software Documentation CD Installation guide Rack Mounting support rails Removable support feet Smart UPS signalling RS-232 cable USB cable |
| Color | Black |
| Dimensions | Height: 89 mm Width: 432 mm Depth: 490 mm Rack Height 2U |
| Weight | 24.82 |
| Other features | Output Power: 1200W Output voltage: 230V Waveform Type: Sine wave 2 x IEC Jumpers Input voltage: 230V, 160-286V Load Breaker: 10A Pre-installed cards SmartSlot: AP9631 Emergency power supply Surge energy rating: 645 joules |
