Description

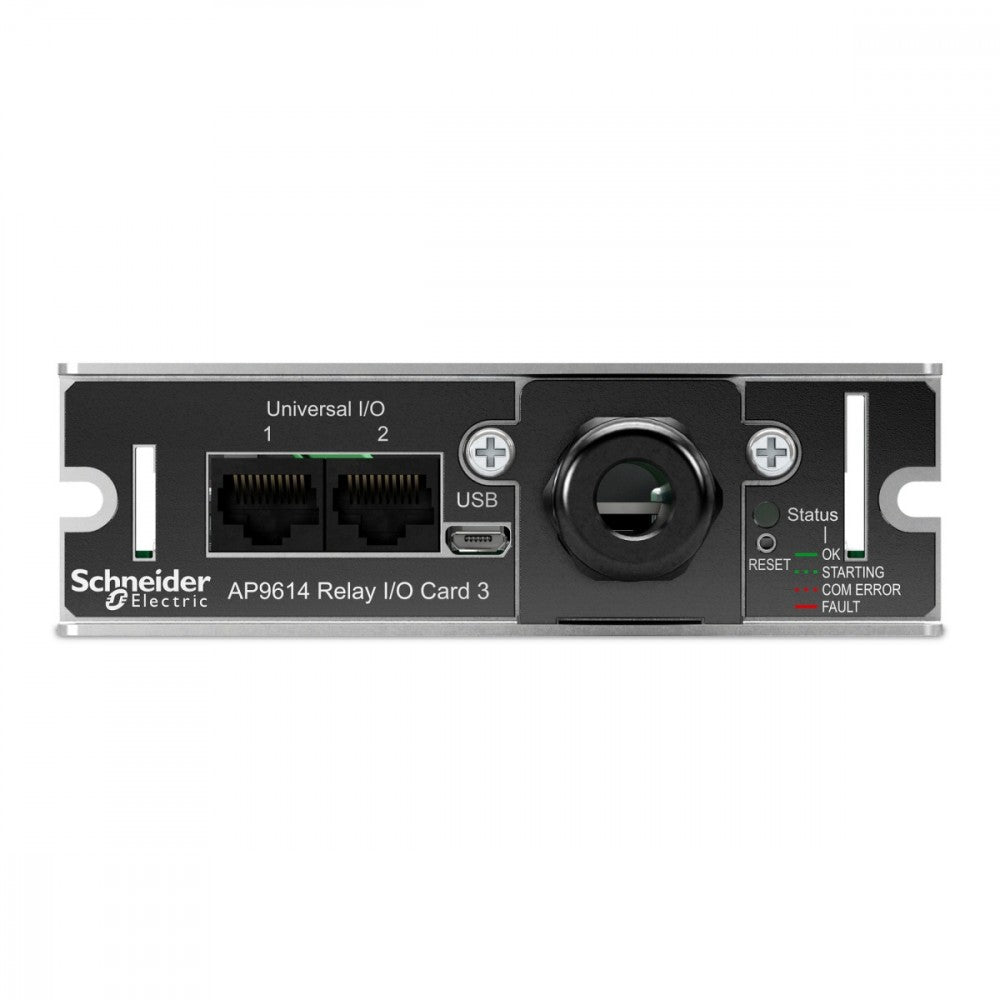

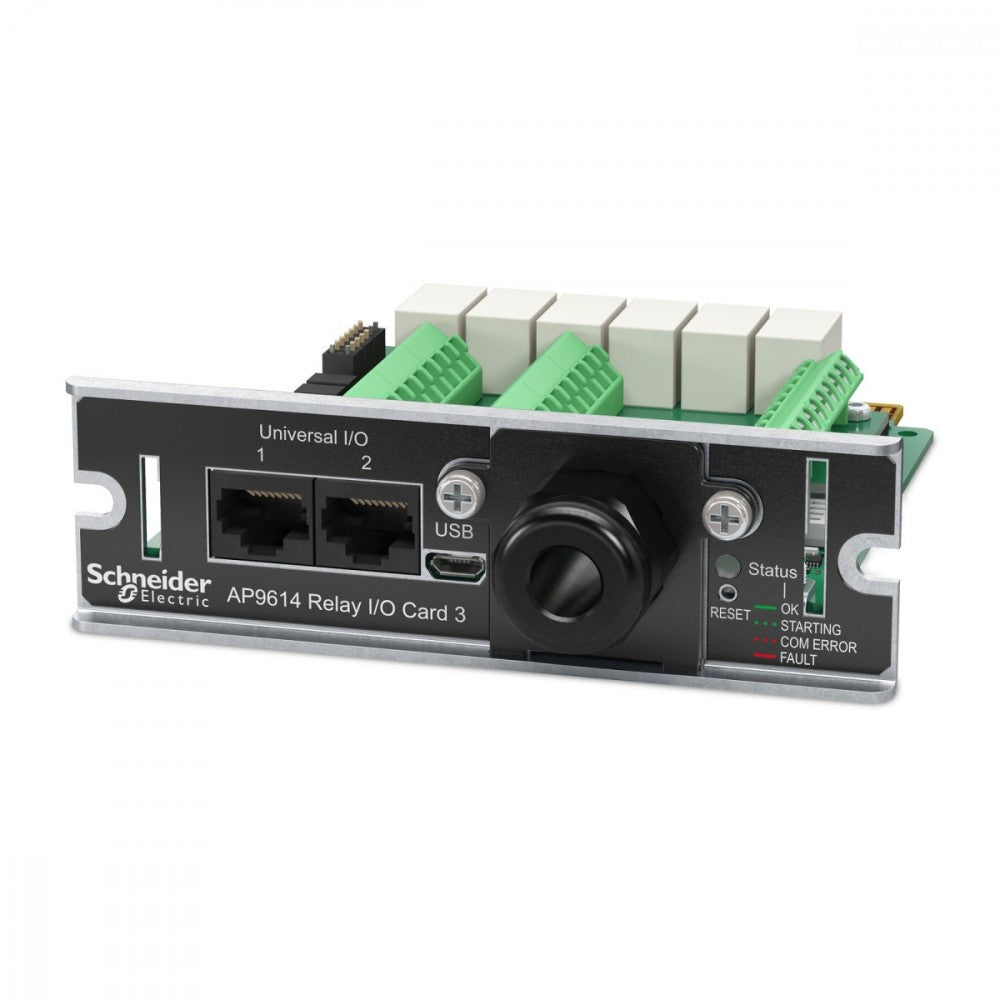

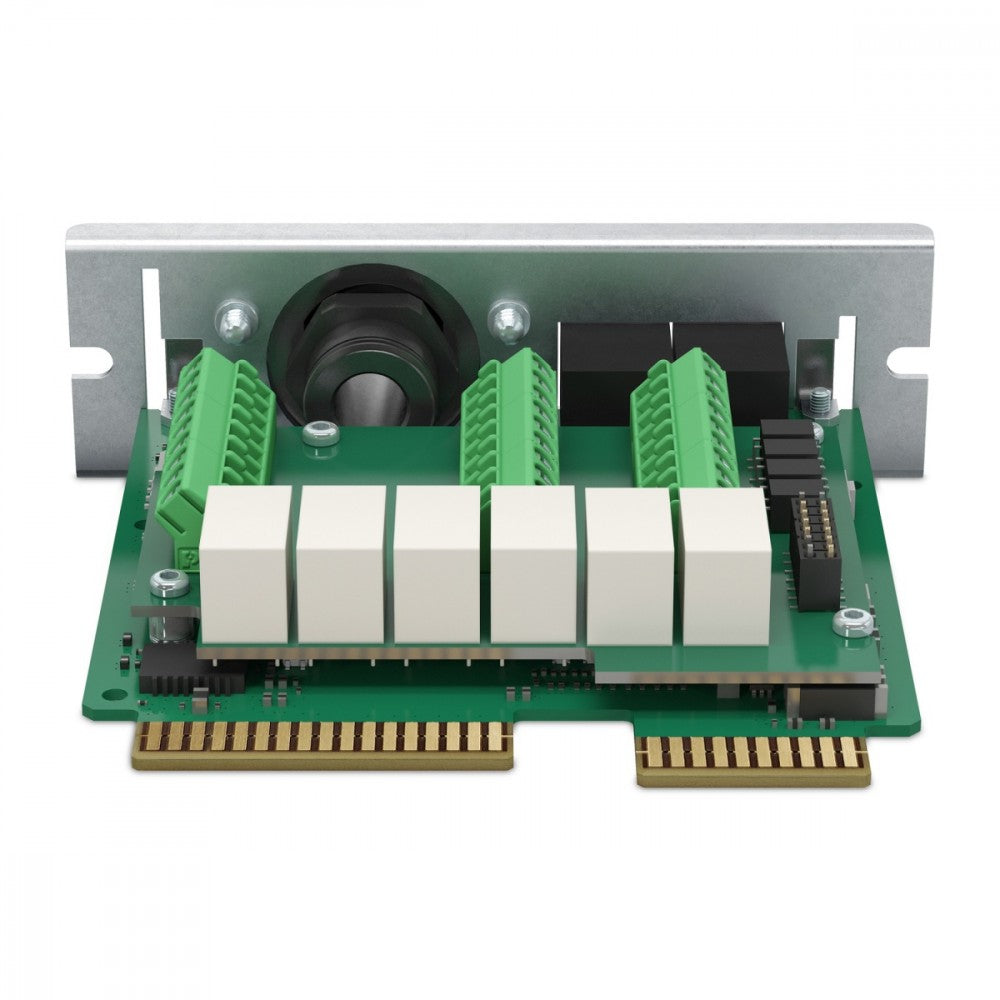

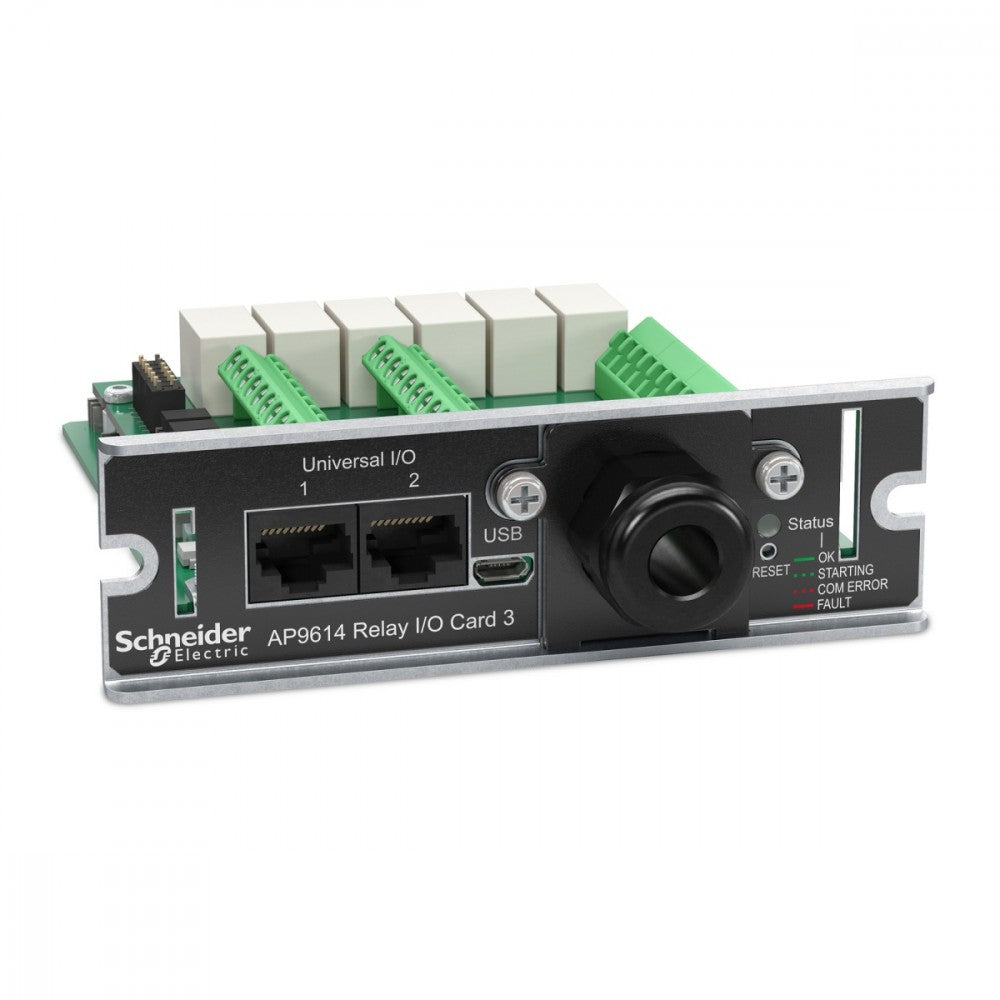

APC AP9614 APC Dry Contact I/O SmartSlot Card
Specifications
| Description | The Dry Contact I/O card connects peripheral devices, such as push buttons, door sensors, alarm panels or float switches, to the UPS. It provides 6 configurable output relays and 4 input contacts The universal I/O ports support optional environmental sensors and the Dry Contact I/O accessory Monitor connected devices via a dynamic web-based user interface Configure actions in response to status changes or UPS events via a dynamic web-based user interface For UPS units with a SmartSlot slot rated at 160 kVA or below The Dry Contact I/O card provides 6 configurable output relays and 4 input contacts for monitoring external triggers and initiating actions on external devices. 2 universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O accessory. The Dry Contact I/O accessory provides 2 additional dry contact input and output interfaces. Connect the supplied micro-USB cable to the card and a computer to use the dynamic web-based user interface. Configure UPS settings and the behaviour of the output relay, input contact and environmental sensor based on UPS status changes or events. |
|---|---|
| Color | Black |
| Color | Green |
| Dimensions | 3,8 x 12,1 x 12,8 cm |
| Weight | 200 |
| Accessories included | User Manual USB Cable |
| Other features | Rated voltage: 24 V Ambient operating temperature: 0-40 °C Operating altitude (in meters above sea level): 0 - 3000 m Ambient storage temperature: -1565 °C |
