Description

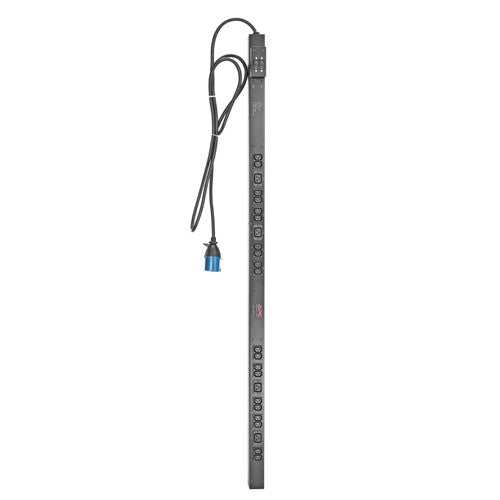

APC AP7553 RACK PDU BASIC ZERO U 32A 20xC13/4xC19
Specifications
| Description | APC Basic Rack PDU, Input: 200V, 208V, 230V, Input Connections: IEC 309 32A 2P + E, Cord Length: 10 feet (ft.) (3.05 meters), Output: 230V, Output Connections: IEC 320 C13, IEC 320 C19 |
|---|---|
| Color | Black |
| Dimensions | Net weight: 5.57 Kg The maximum height: 1619.00 mm The maximum width: 56.00 mm Maximum depth: 44.00 mm Package weight: 6.48 KG Height in transport packaging: 2134.00 mm Width in the transport packaging: 152.00 mm Delivery height: 127.00 mm |
| Certificates | CE, VDE |
| Technical specifications | At the exit: Output voltage: 230V Maximum total power consumption: 32A Output sockets: (20) IEC 320 C13, (4) IEC 320 C19 At the entrance: Nominal input voltage: 200V, 208V, 230V Frequency at input: 47 - 63 Hz Input jack type: IEC 309 32A 2P + E Power cord length: 3.05 meters Number of power cables: 1 Maximum input current: 32A Loading level: 7360 VA Environmental parameters: Operating environment: 0 - 45 ° C Relative humidity during operation: 0 - 95% Height m.p. during work: 0-3000 meters Temperature (storage): -25 - 65 ° C Relative humidity (storage): 0 - 95% Height m.p. (storage): 0-15000 meters |
| Included | User manual Clamps for mounting in industrial cabinets Assembly kit without tools |
