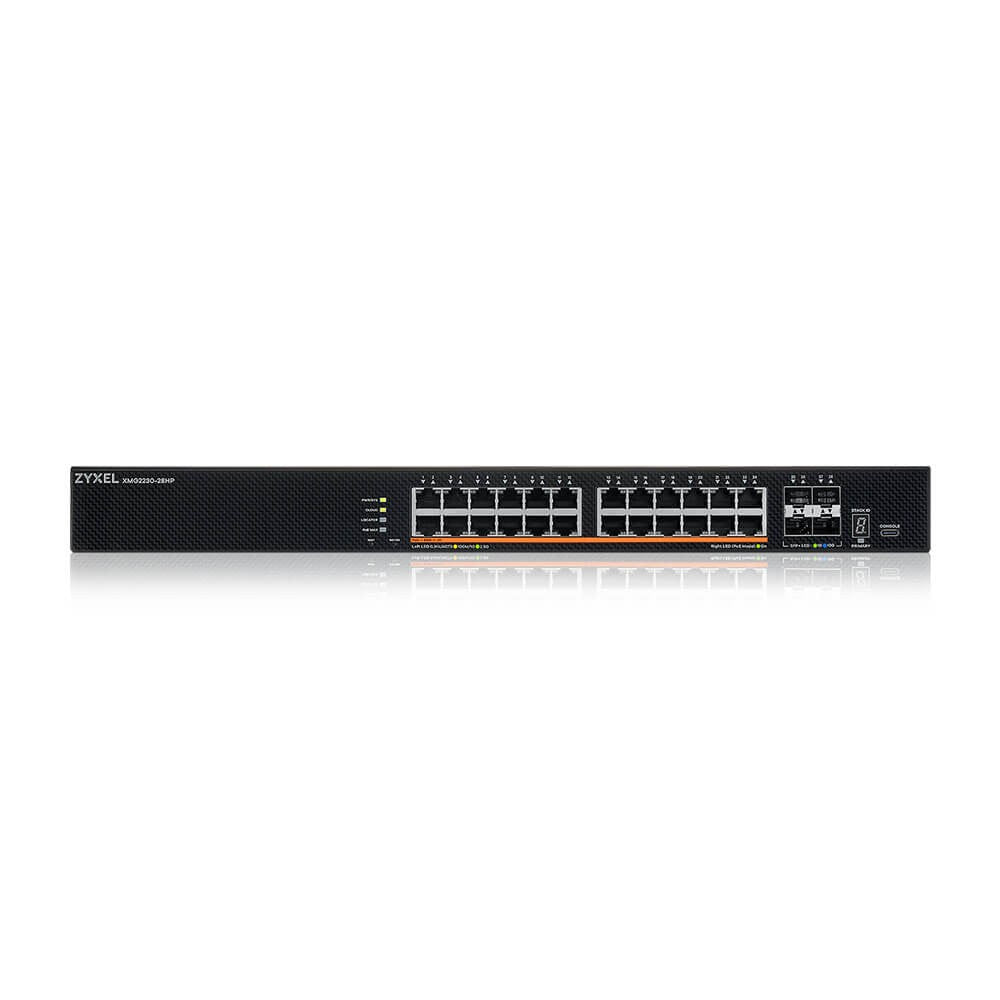

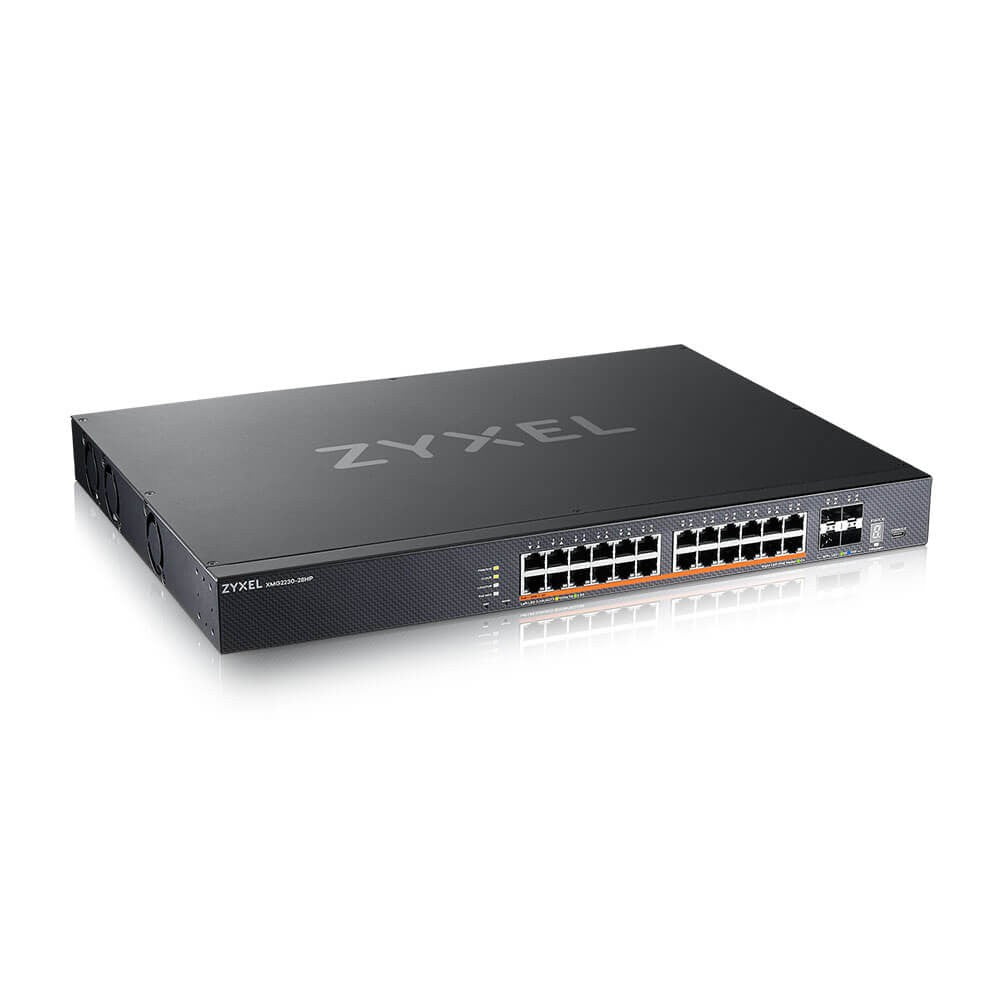

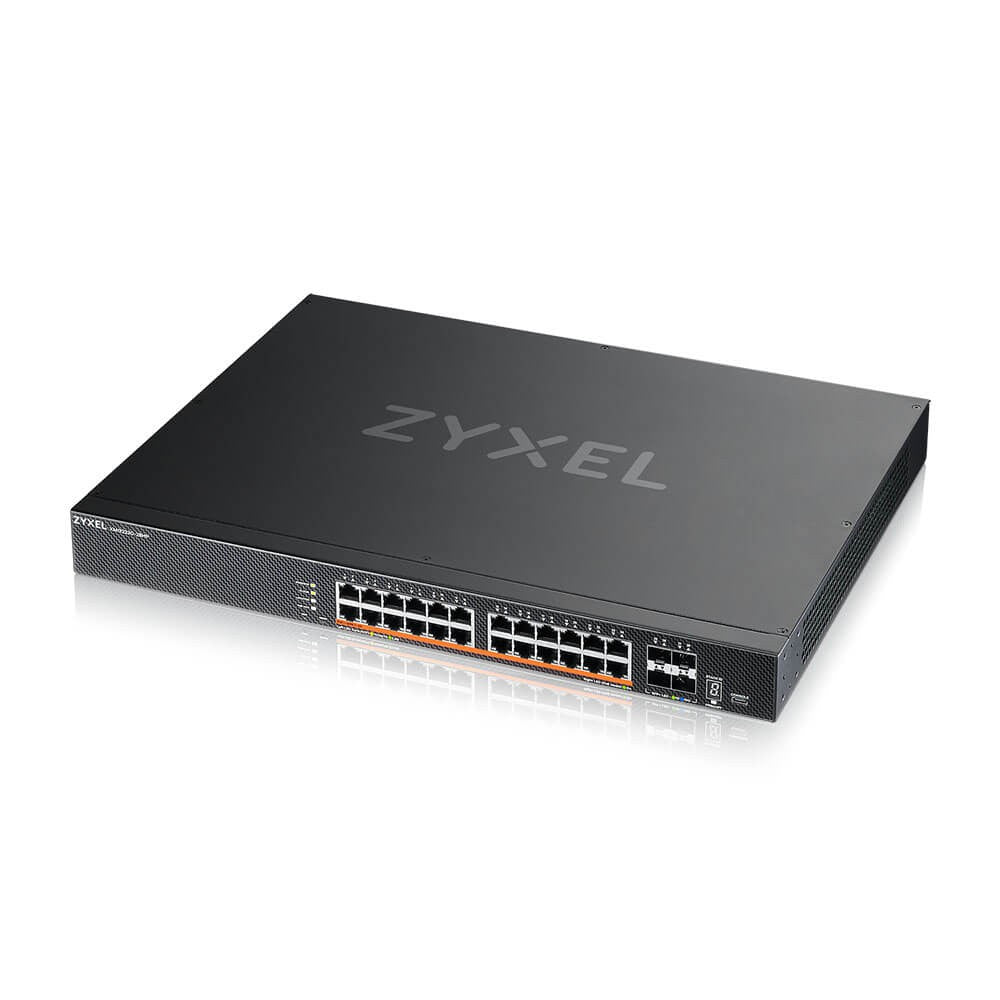

Zyxel Switch XMG2230-28HP-ZZ0101F
Specifications

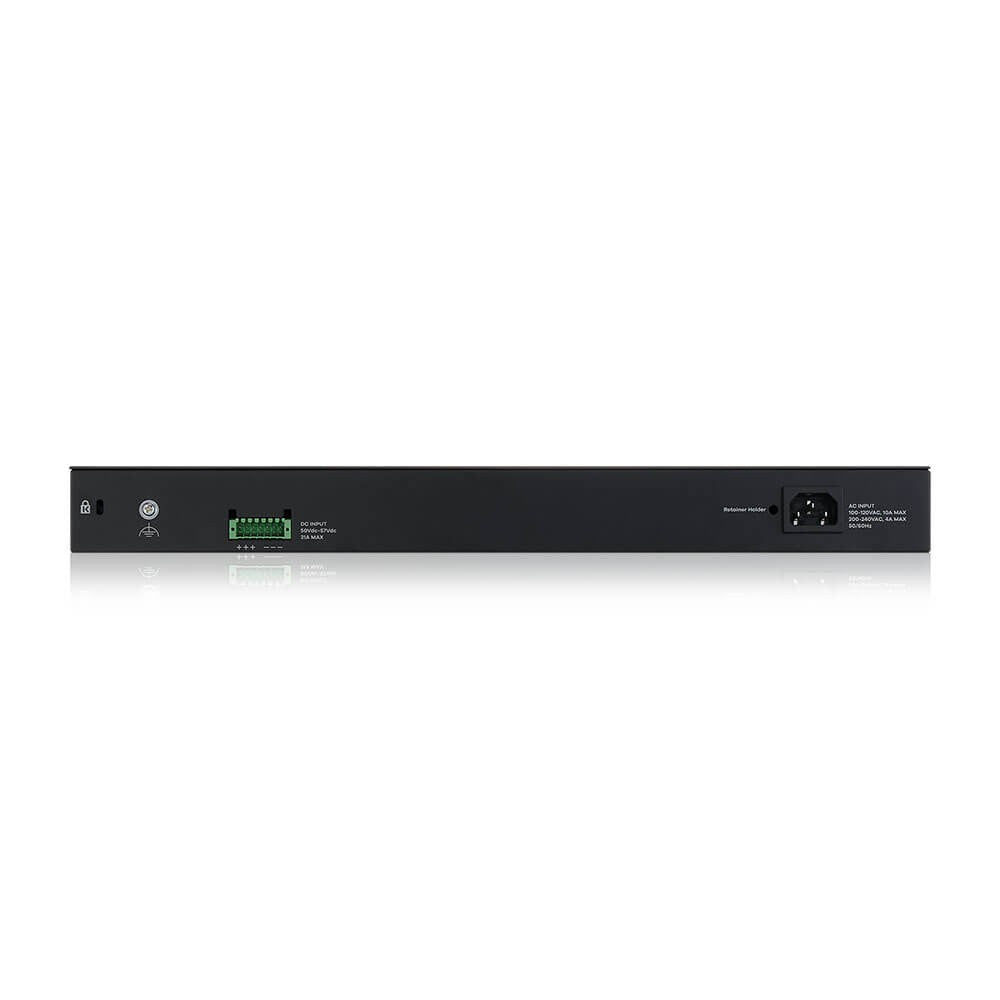

| Description | Flexible Multi-Gig port configuration for diversified deployments The XMG2230-28HP offers PoE-capable 2.5G Multi-Gig ports. Both models include four 10G SFP+ fiber uplinks for high-speed connectivity. The 52-port model's port mix enables efficient bandwidth allocation based on device needs, balancing cost and performance for scalable, future-proof networks. Dual power for always-on connectivity The XMG2230 Series is designed with superior network resiliency in mind, featuring dual power sources: an internal AC input as the primary source and an optional DC input for connection to an external DC power system. This active-standby power redundancy enables automatic switchover to backup power if the main AC source fails. The dual power design helps prevent unexpected outages and ensures stable, 24/7 connectivity. High-power, adaptive PoE for modern business devices The XMG2230-28HP supports PoE++ on all ports. The series provides adaptive PoE power budget with either internal AC power 700W or external DC power system 1440W. It is built for higher capacity, improved efficiency, and reliable operation in demanding environments such as high-performance WiFi, video conferencing, IP surveillance, thin/zero clients, smart building, IoT, and AV applications. Segment your network more effectively for security Designed for SME networks, this series of switches supports full L2 feature sets such as VLAN, ACL, port aggregation, and mirroring, along with advanced security to keep your business protected. It also provides essential L3 access features for converged voice, video, and data. With support for static routing, the switches ensure efficient traffic flows across your network, while the built-in DHCP server simplifies device onboarding and reduces IT overhead. Click. Tap. Done. Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required. Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere. Powerful, effortless and scalable connectivity. With Nebula, you can manage your entire network - wireless, switching, security and LTE/5G through a single centralized cloud platform. Deploy and configure devices quickly and remotely, without the need for extra hardware controllers or software. Whether you're managing one site or many, Nebula delivers real-time monitoring, instant alerts and complete network visibility - anytime, anywhere. Scale confidently, simplify operations and stay secure - all through one intuitive platform. Dedicated networked AV mode The Networked AV mode in standalone mode simplifies deployment with an intuitive setup wizard and AI-driven auto-configuration. A visual dashboard highlights key AV settings like IGMP, while a simplified menu streamlines management. With high performance plus built-in Dante and AES67 profile support, the XMG2230 ensures smooth, reliable AVoIP streaming for professional AV environments. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L2+ |
| Network architecture | GigabitEthernet |
| 10/100/1000/2500 Mbps ports | 24 |
| Number of 10Gb ports | 4 |
| Number of PoE ports (PoE & PoE+) | 24 |
| Number of SFP+ ports | 4 |
| Console port | No |
| Forwarding mode | Store-and-forward |
| Throughput | 200 |
| Forwarding rate | 148.8 |
| Packet buffer | 2 |
| MAC address table size | 32000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 12 |
| Stackability | No |
| Number of VLAN groups | 4000 |
| VLAN | 802.1Q static VLANs/dynamic VLANs: 4K/4K Port-based VLAN VLAN isolation Vendor ID based VLAN Protocol-based VLAN IP subnet-based VLAN MAC-based VLAN Private VLAN Voice VLAN Independent VLAN Learning (IVL) VLAN Translation VLAN trunking VLAN mapping IEEE 802.1AD VLAN stacking (QinQ) VLAN ingress filtering LACP algorithm of source/destination IP or MAC GVRP L2PT |
| Supported protocols and standards | IEEE 802.3z 1000BASE-X IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3an 10GBASE-T Ethernet IEEE 802.3bz 2.5GBASE-T/5GBASE-T IEEE 802.3ae 10Gbit/s Ethernet over fiber IEEE 802.3af PoE IEEE 802.3at PoE plus IEEE 802.3bt (60W) PoE over 4 pair IEEE 802.3az EEE IEEE 802.3x flow control IEEE 802.1AB LLDP/LLDP-MED IEEE 802.1Q VLAN tagging IEEE 802.1p Class of Service (CoS) prioritization IEEE 802.1X port authentication |
| QoS | No. of hardware queues per port (on-premise/Nebula cloud): 8/6 Storm control and event log: Broadcast, multicast, unknown unicast (DLF) Port-based rate limiting (ingress/ egress) Rate limiting per IP/TCP/UDP per port Policy-based rate limiting 802.1p Class of Service (SPQ, WFQ, WRR, hybrid-SPQ combination capable) DiffServ (DSCP) Multicast/Unknown Unicast (DLF) |
| Security | Port security Layer 2 MAC filtering Layer 3 IP filtering Layer 4 TCP/UDP socket filtering Static MAC forwarding Multiple RADIUS servers Multiple TACACS+ servers 802.1x VLAN and 802.1p assignment by RADIUS Login authentication by RADIUS Login authentication by TACACS+ TACACS+ accounting RADIUS accounting Authorization on RADIUS Compound authentication Authorization on TACACS+ SSH v2 SSL MAC freeze IP source guard (IPv4/IPv6) DHCP snooping DHCP Server Guard ARP inspection ARP freeze Anti-ARP scan Static IP-MAC-Port binding: 128 Policy-based security filtering Port isolation MAC search Guest VLAN ACL packet filtering IPv4 (on-premise/ Nebula cloud): 256/128 ACL packet filtering IPv6: 128 CPU protection Interface related trap enable/disable (by port) MAC-based authentication per VLAN BPDU transparency PPPoE relay agent/option82 WoL/WoL Relay |
| Management, monitoring, configuration | SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) ICMP echo/echo reply Syslog Display port utilization Support NebulaFlex Pro for hybrid mode Standalone management by Web interface Cloud management by Nebula Control Center Auto configuration recovery (only for cloud mode) Networked AV mode by Web Interface Zyxel iStacking Management through Console, Telnet, SNMP Remote firmware upgrade by FTP/Web/TFTP Configuration saving and retrieving Multiple logins supported Configure clone Custom default Configuration Multilevel CLI CLI (Cisco-like) DHCP relay per VLAN DHCP client IPv4/IPv6 DHCP client option 60 DHCP option 82 Daylight saving DHCP relay MAC proxy NTP Support IPv4/IPv6: 3 Port mirroring Policy-based mirroring Mirror CPU VLAN-based mirroring USB-C console port Scheduled PoE PoE default consumption mode Auto PD Recovery Continuous PoE LLDP power via MDI sFlow LED ECO mode to turn-off port LED DHCP Server |
| L2 features | L2 multicast: 1K IGMP snooping (v1, v2, v3) IGMP snooping fast leave IGMP snooping immediate leave Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling IGMP filtering IGMP proxy mode & snooping mode selection Multicast load sharing over trunking port Static mulitcast MVR support MLD snooping (MLD v1/v2) |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 842.3 |
| Mean time between failures (MTBF) | 554612.62 |
| Environment requirements | Operating temperature: -20°C to 50°C/-4°F to 122°F Operating humidity: 5% to 95% (non-condensing) Storage temperature: -40°C to 70°C/-40°F to 158°F Storage humidity: 5% to 95% (non-condensing) |
| Certificates | Safety: LVD BSMI Safety EMC: FCC Part 15 (Class A) CE EMC (Class A) BSMI EMC RoHS |
| Accessories included | Power cord Rack mounting kit |
| Power supply | 100-240V AC, 50/60Hz 50-57V DC |
| Dimensions | 441 x 330 x 44 mm |
| Weight | 4.53 |
