X-SENSE SD19 Photoelectric Smoke Detector

X-SENSE SD19 Photoelectric Smoke Detector

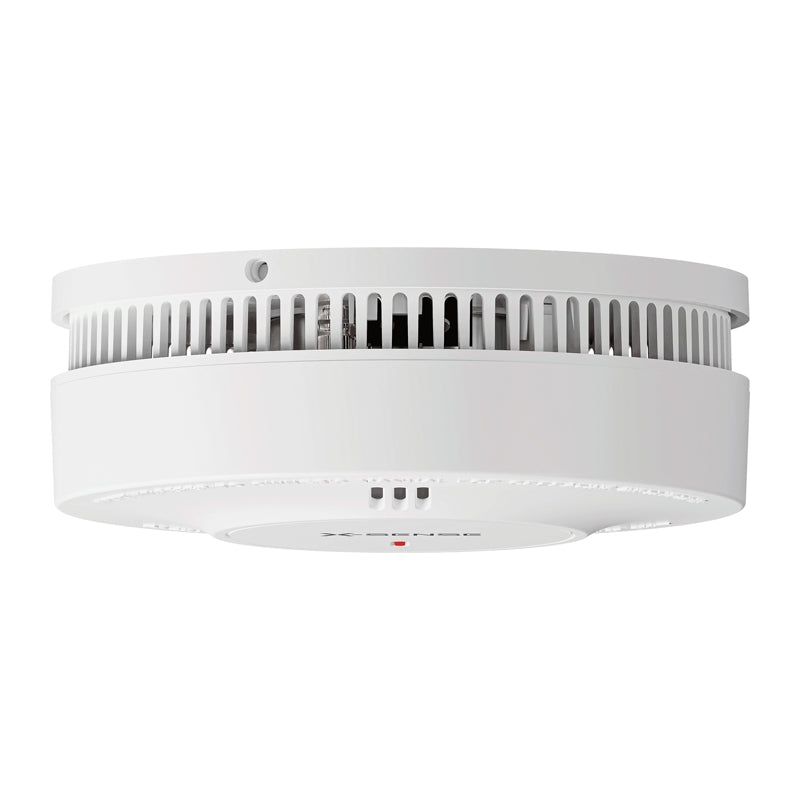

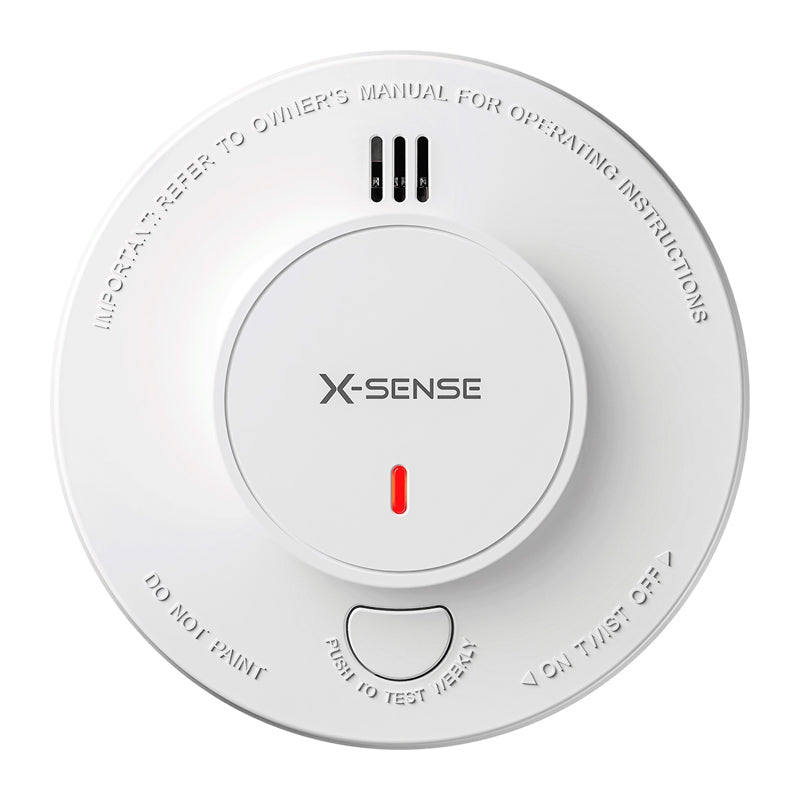

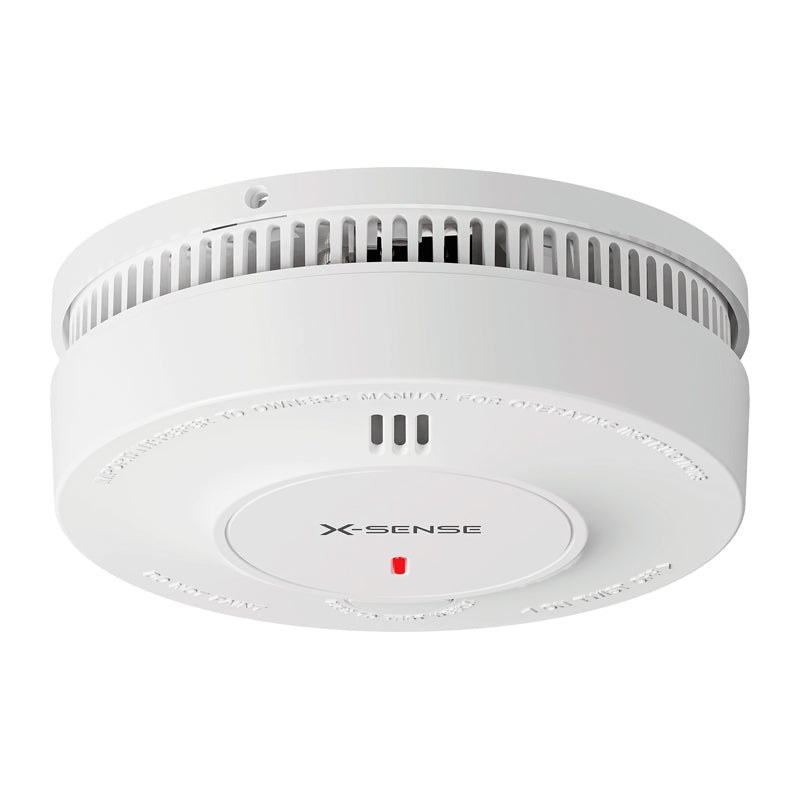

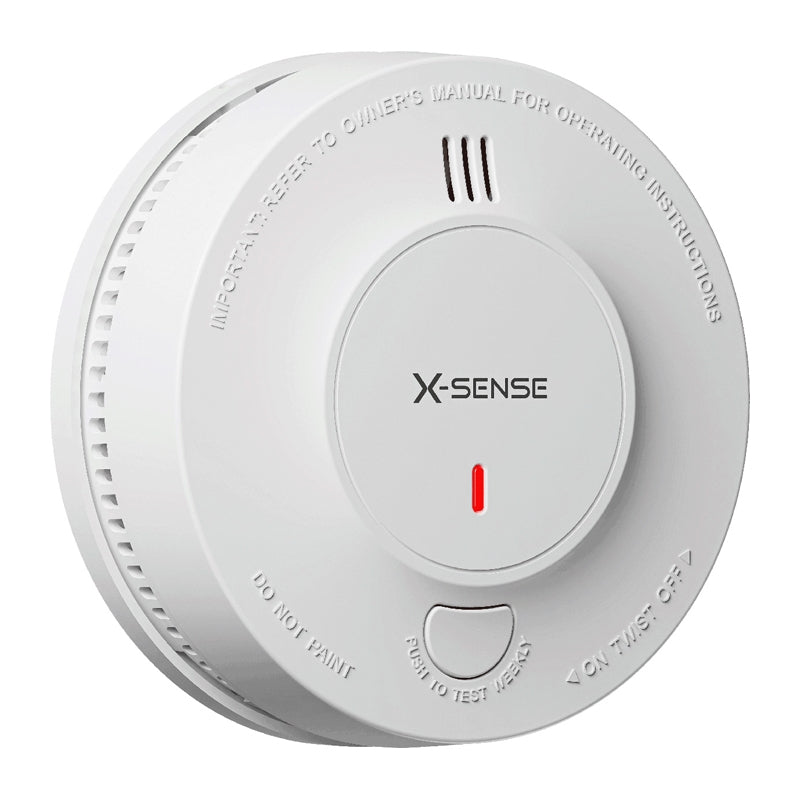

Ensure safety in your home with the X-SENSE SD19, which uses a photoelectric sensor to effectively detect smoke and warn of fire hazards. The device is equipped with a non-replaceable CR123A lithium battery with a lifespan of up to 10 years—you don’t have to worry about power. An alarm with a volume of ≥85 dB effectively alerts you to a detected hazard, while an LED indicates the device’s operating status in real time. The compact design, measuring 122 × 122 × 45 mm, allows the detector to blend discreetly into any interior and can be easily mounted on either the ceiling or a wall.

Effective smoke detection and a clear alarm

The SD19 model uses a photoelectric sensor that effectively reacts to the presence of smoke and helps detect a hazard in the room more quickly. When the alarm is activated, the red LED flashes once per second, and the device emits short, high-volume audible signals. With a sound intensity of approximately 85 dB (at a distance of 3 meters), the signal is clearly audible even in larger rooms. The detector complies with the EN 14604:2005 + AC:2008 safety standard.

10 years of operation without battery replacement

The built-in lithium battery ensures up to 10 years of operation in standby mode, reducing the need for maintenance and providing greater convenience in everyday use. The sensor monitors the power status and, in the event of a low battery, alerts you with an audible signal and a red LED. Additionally, the device features a malfunction detection function, allowing you to quickly respond to any potential issues.

Mute function and convenient operation

The sensor is equipped with a Test/Silence button that allows you to quickly verify the alarm’s proper operation or temporarily mute the device for approximately 9 minutes. This feature is particularly useful in situations where the alarm is triggered accidentally, such as by steam or smoke while cooking.

Easy installation

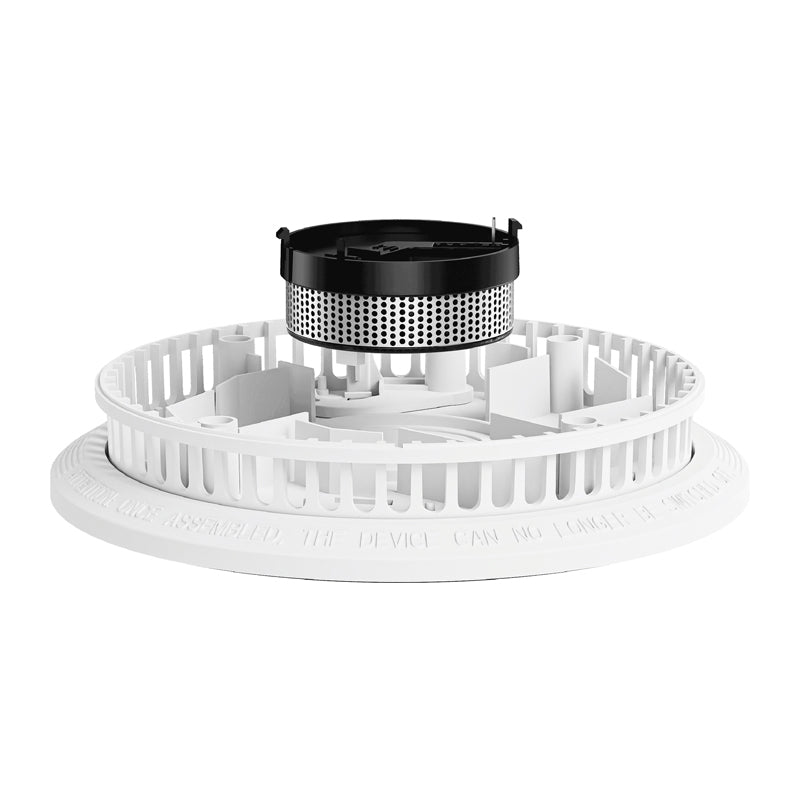

The X-SENSE SD19 can be mounted on the ceiling or wall using the included mounting bracket and installation hardware. Its light weight (only 171 g) and compact dimensions (122 × 122 × 45 mm) make installation easy and ensure the detector remains virtually unnoticeable in everyday use.

Included

• Smoke detector
• Mounting bracket
• Screws x2
• Mounting plugs x2
• User manual
