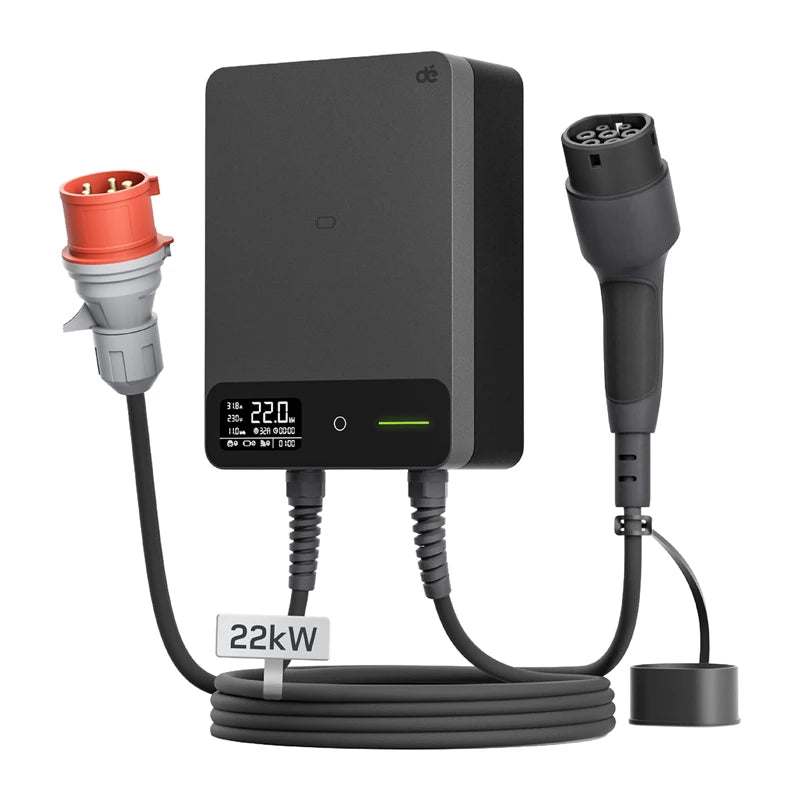

DEPOW Wallbox Electric Vehicle Charger
The DEPOW 22 kW Wallbox electric vehicle charger with a 7-meter cable is designed for charging electric vehicles equipped with a Type 2 connector. The device offers a maximum charging power of 22 kW, supports both single-phase and three-phase installations, and allows for a wide range of current adjustment from 6 to 32 A via the app. Wi-Fi and Bluetooth connectivity, an LCD display, and a charging scheduling feature allow you to conveniently control the wallbox’s operation and tailor it to your daily driving habits.
Parameter Adjustment and Charging Scheduling
The current adjustment range from 6 to 32 A allows you to tailor charging to the capacity of your electrical installation and your current needs. You can set the appropriate value using the app, which also lets you remotely start and stop charging and monitor the charging process in real time. A charging history and a daily schedule are also available, allowing you to plan the wallbox’s operation for specific times.
Safety Features and Temperature Control
The wallbox is equipped with a Type B RCD (AC 30 mA + DC 6 mA) and a range of safety features that monitor the device’s operation during charging. Among other things, the system protects against overloads, overvoltage and undervoltage, ground fault current, and short circuits, and additionally monitors grounding and temperature. LED indicators signal power, standby mode, charging, and errors, allowing the user to quickly check the device’s current status.
For garages and outdoor use
The wallbox housing has an IP54 protection rating, while the declared protection rating is IP55 when a Type 2 connector is attached. The device is designed to operate at temperatures ranging from -25°C to 55°C and can be used both indoors and in appropriately prepared outdoor locations. The control housing, measuring approximately 297 × 214 × 105 mm, allows for convenient wall mounting, and the 7-meter cable provides flexibility when connecting the car.
| Manufacturer | DEPOW |
|---|---|
| Model | deWB22B07A_DL |
| Maximum Power | 22 kW |
| Cable Length | 7 m |
| Voltage | 400 V AC |
| Frequency | 50 Hz |
| Operation | 1-phase / 3-phase installation |
| Current Adjustment Range | 6–32 A |
| Connector | Type 2 |
| Connectivity | Wi-Fi / Bluetooth |
| Control | app |
| Display | LCD |
| App features | remote start/stop, real-time monitoring, current adjustment, charging schedule, charging history |
| Enclosure protection rating | IP54 |
| Protection rating when connected via Type 2 | IP55 |
| Operating temperature | –25°C to 55°C |
| Storage temperature | –40°C to 80°C |
| Ambient humidity | 5–95% RH, non-condensing |
| Control module dimensions | 297 × 214 × 105 mm |
| Standby power consumption | less than 5 W |
| Total harmonic distortion (THD) | ≤5% |
| RCD | Type B, AC 30 mA + DC 6 mA |
| Protections | overload, overvoltage, undervoltage, ground fault, short circuit, grounding, and temperature monitoring |
| LED Indicators | Power, Standby, Charging, Error |
| Intended Use | Indoors / Outdoors |
