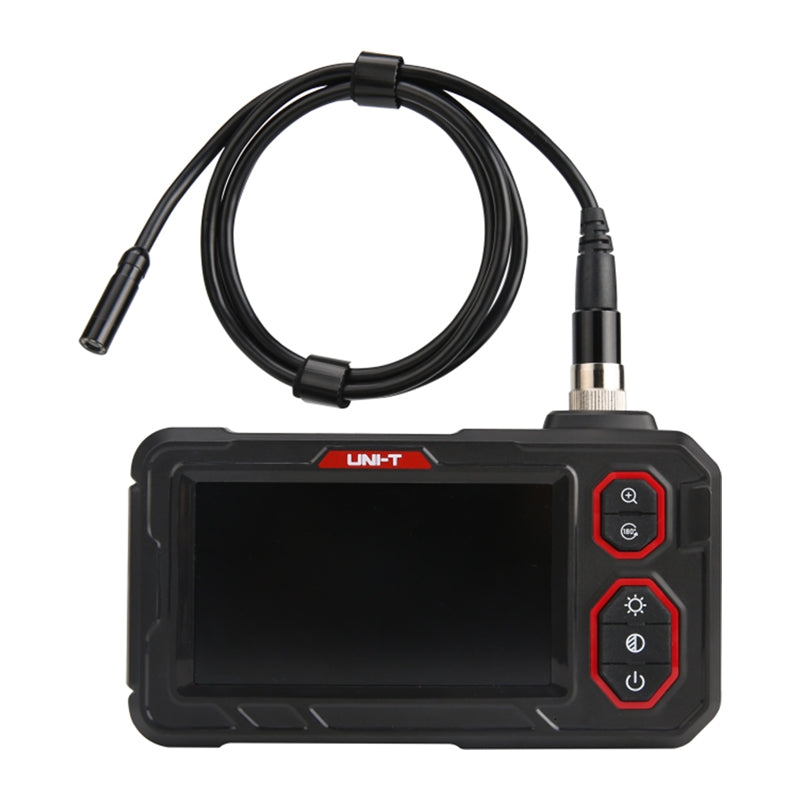

Uni-T UT667-5m Borescope
The Uni-T UT667 borescope with a 5-meter cable is designed for inspecting hard-to-reach areas without the need to disassemble components. It is ideal for industrial, automotive, and installation service applications where a quick view of the interior of machines or pipes is essential. Equipped with a 4.3" screen, it provides a clear image, and features such as image rotation and zoom facilitate the analysis of details during operation.
Image Quality and Ease of Use
The 8 mm diameter camera with LED lighting allows for work in dimly lit spaces, and brightness adjustment lets you tailor visibility to the conditions. The 5 m cable provides a good balance between reach and control over the camera, which works well for standard inspections. The IP67 waterproof probe and rugged construction increase the device’s durability during daily use.
Included
- UT667-5m borescope
- USB-C cable
- Hook, side mirror, magnet
- Mounting clamps
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT667-5m |
| Type | Industrial borescope |
| Screen | 4.3" IPS LCD |
| Screen resolution | 1280 × 720 px |
| System language | English |
| Features | Screen rotation, black-and-white images, color conversion, zoom-in, zoom-out |
| Cable material | Replaceable cable with aviation connector |
| Cable length | 5 m |
| Lens diameter | 8 mm |
| Light sensor | CMOS |
| Field of view | 70° |
| Depth of field | 20 ~ 100 mm |
| LED light adjustment | 4 levels |
| Number of LEDs | 8 |
| Camera resolution | 300K |
| Camera protection rating | IP67 |
| Battery | 3.7V / 2000mAh |
| Operating time | 5 h |
| Lens temperature | 0°C ~ 80°C |
| Device operating temperature | 0°C ~ 45°C |
| Operating humidity | <90% RH non-condensing |
| Certifications | CE, RoHS |
