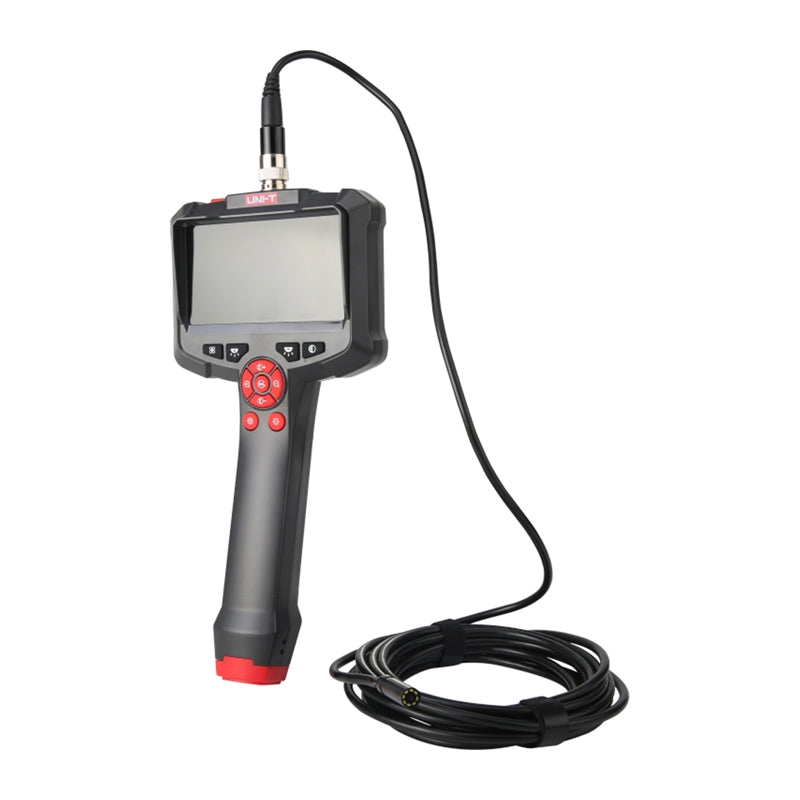

Uni-T UT665P-5m Borescope
The Uni-T UT665P-5m is a handheld industrial borescope designed for use in complex and hard-to-reach areas where direct visual access is not possible. The device is equipped with a 5-meter flexible cable that can be bent into the desired shape, facilitating the inspection of machine interiors, installations, and confined spaces. Its compact design, 4.3" screen, and comfortable handle with a non-slip, shock-resistant housing make this model well-suited for daily service and technical work.
Clear image and convenient inspection control
The UT665P-5m features a 1280 x 720 px screen, which facilitates observation of the inspected area. The 8 mm diameter camera with a CMOS sensor provides a 70° field of view and a depth of field of 20–100 mm, allowing for convenient inspections in various conditions. Image rotation, contrast adjustment, black-and-white mode, color conversion, zoom, and screen brightness adjustment are also available, making it easier to adapt the image to a specific task.
Durable construction and readiness for operation in harsh conditions
The device is equipped with 8 LEDs with 4-step brightness adjustment, which improves visibility when working in dark spaces. The camera meets the IP67 standard, and the 3.7 V / 2000 mAh battery provides up to 6 hours of operation, increasing convenience during longer inspections. A replaceable cable with an aviation connector, an operating temperature range of 0°C to 45°C, and a lens temperature of up to 80°C make this borescope well-suited for demanding industrial applications.
Included in the set
- UT665P-5m borescope
- USB-C cable
- Hook, side mirror, magnet
- Mounting clamps
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT665P-5m |
| Type | Handheld industrial borescope |
| Screen size | 4.3" |
| System language | English |
| Screen resolution | 1280 x 720 px |
| Features | Screen rotation, contrast adjustment, black-and-white images, color conversion, zoom in/zoom out, screen brightness adjustment |
| Cable material | Replaceable cable with aviation connector |
| Cable length | 5 m |
| Lens diameter | 8 mm |
| Light sensor | CMOS |
| Field of view | 70° |
| Depth of field | 20 ~ 100 mm |
| LED light adjustment | 4 levels |
| Number of LEDs | 8 |
| Camera resolution | 300K |
| Camera protection rating | IP67 |
| Battery | 3.7V / 2000mAh |
| Operating time | 6h |
| Lens temperature | 0°C ~ 80°C |
| Device operating temperature | 0°C ~ 45°C |
| Operating humidity | <90% RH non-condensing |
| Certifications | CE, RoHS |
Producer: Uni-Trend Technology (china) Co., Ltd. (CN)
Address: Industrial North 1st Road, Songshan Lake Park, Dongguan City, 6, 523808, Dongguan City
Email: info@uni-trend.com
EU Responsible Person: UNI-TREND TECHNOLOGY EU GMBH
Address: Affinger Strasse, 12, 86167, Augsburg
Email: info@amz-lab.de
