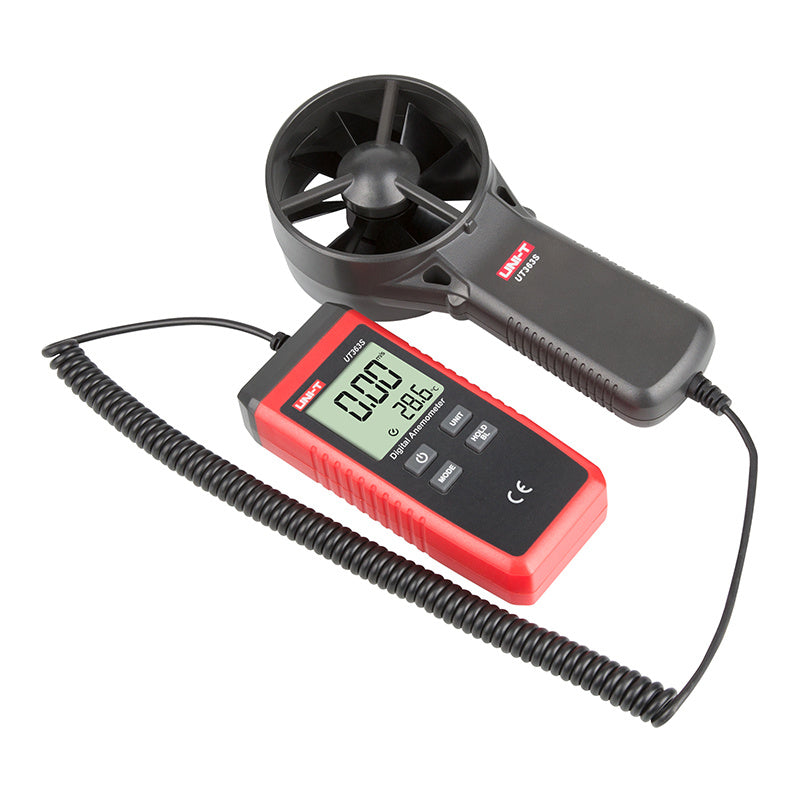

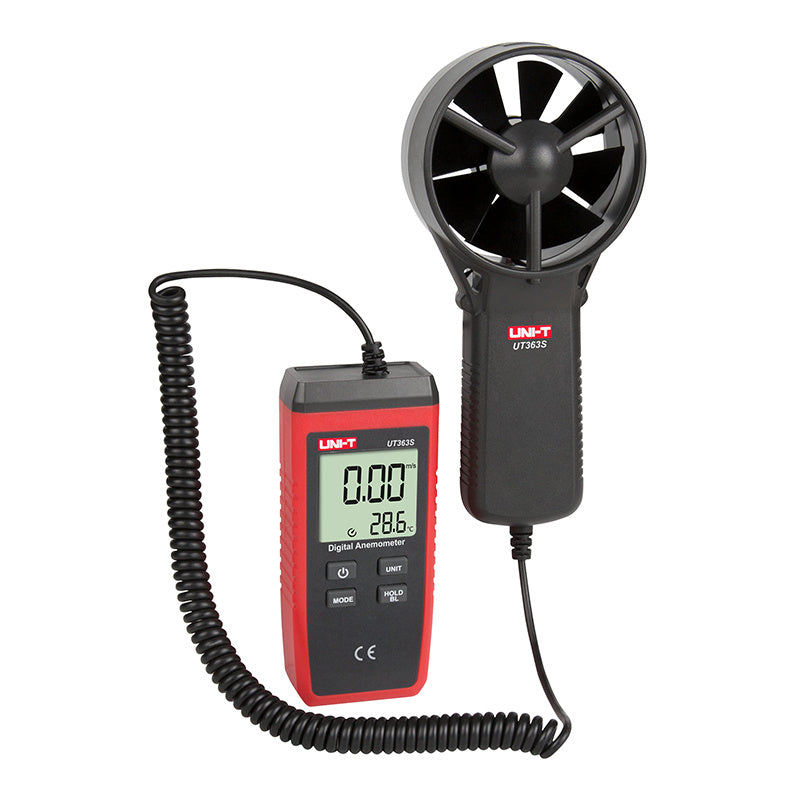

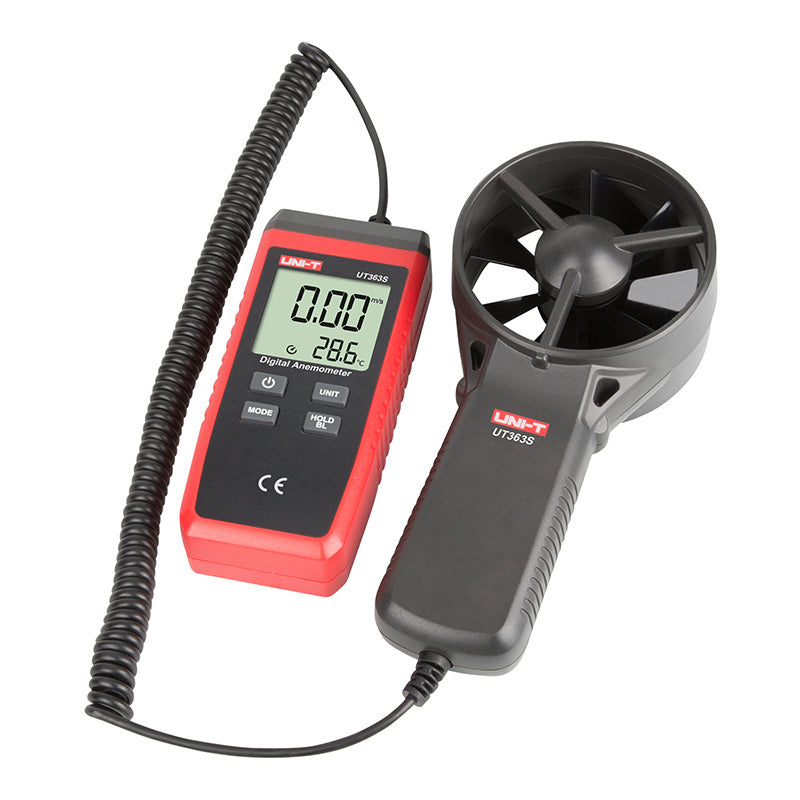

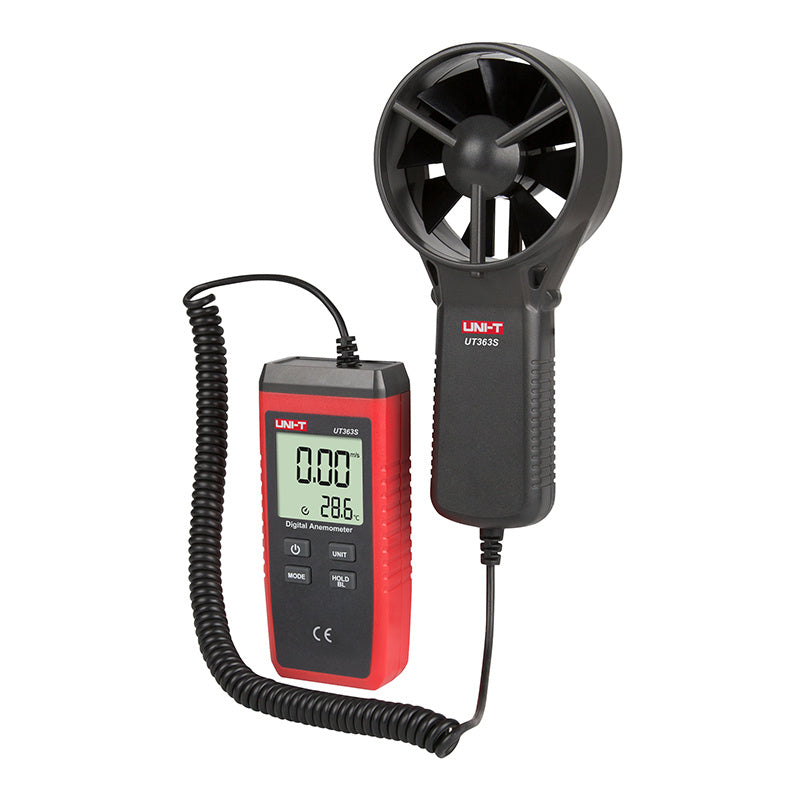

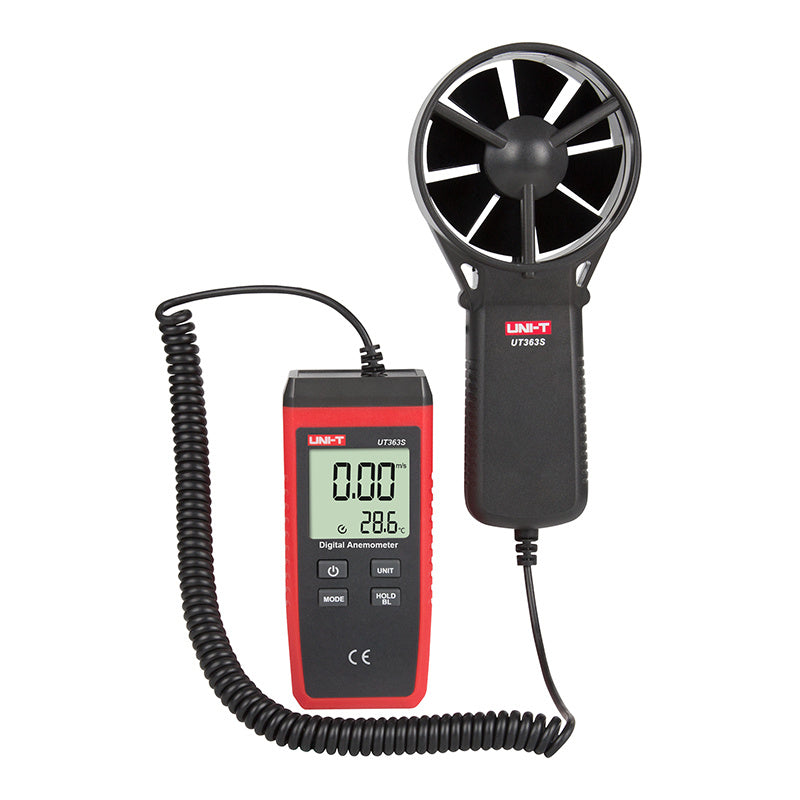

UNI-T UT363S anemometer
UNI-T UT363S is an advanced digital anemometer with a separate sensor on a cable, which is distinguished by high precision measurement and convenient operation. Thanks to its refined design, it is possible to measure wind speed and temperature even in hard-to-reach places - such as ventilation ducts, machine housings or fan outlets. The device was designed for industrial and professional applications,among others. in power generation, mining, metallurgy, chemical industry, ventilation, sports and production of cooling equipment.
Wide measurement range and various units
The UT363S can measure wind speed in units such as m/s, km/h, ft/min, knots, mph. Temperature is measured from -10°C to 50°C (or 14°F to 122°F), with a resolution of 0.1°C/0.2°F and an accuracy of ±2°C. In addition, the device displays the wind strength level on a 12-point scale (consistent with Beaufort) for easy data interpretation.
Functions to facilitate measurement and data analysis
The meter is equipped with data hold functions (Data Hold), LCD backlighting, MAX/MIN/AVG modes and automatic shutdown after a period of inactivity. The device automatically selects the measurement range (Auto Range), and an overload indicator (OL) and low battery protect the user from reading errors. Measurements are taken every 0.5 seconds, providing quick response and accurate insight into environmental conditions.
Rugged construction and ergonomic design
The UT363S is drop-proof from a height of 1m, making it resistant to typical damage in field and industrial conditions. Powered by three AAA (R03) batteries, the meter weighs 365 g and has compact dimensions of 120 × 53 × 43 mm. The large, easy-to-read screen (35 × 32 mm) makes it easy to work in any lighting conditions.
| Manufacturer | UNI-T |
|---|---|
| Model | UT363S |
| Wind speed measurement range | 0.4-30 m/s ±(5%+0.5m/s), 1.4-108 km/h ±(5%+1.5km/h), 78-5905 ft/min ±(5%+100ft/min), 0.7-58 knots ±(5%+1 knot), 0.8-67 mph ±(5%+1mph) |
| Wind speed measurement resolution | 0-99: 0,01; 100-999: 0,1; ≥1000: 1 |
| Temperature measurement range | -10°C to 50°C / 14°F to 122°F |
| Wind speed measurement resolution | 0.1°C / 0.2°F |
| Accuracy of wind speed measurement | ±2°C / ±4°F |
| Wind strength scale | 0-12 (accuracy ±1) |
| Sampling time | 0,5 s |
| MAX / MIN / Average (AVG) | Yes |
| LCD backlight | Yes |
| Data storage (Data Hold) | Yes |
| Automatic shutdown | Yes |
| Overload indicator (OL) | Yes |
| Low battery indicator | Yes |
| Automatic range selection | Yes |
| Drop resistance from 1 m | Yes |
| Measuring units | m/s, km/h, ft/min, knots, mph, °C/°F |
| Power supply | 3x 1.5V battery (R03/AAA), included |
| Display | 35 × 32 mm |
| Weight | 365 g |
| Dimensions | 120 × 53 × 43 mm |
| Operating temperature | 0℃~40℃ |
