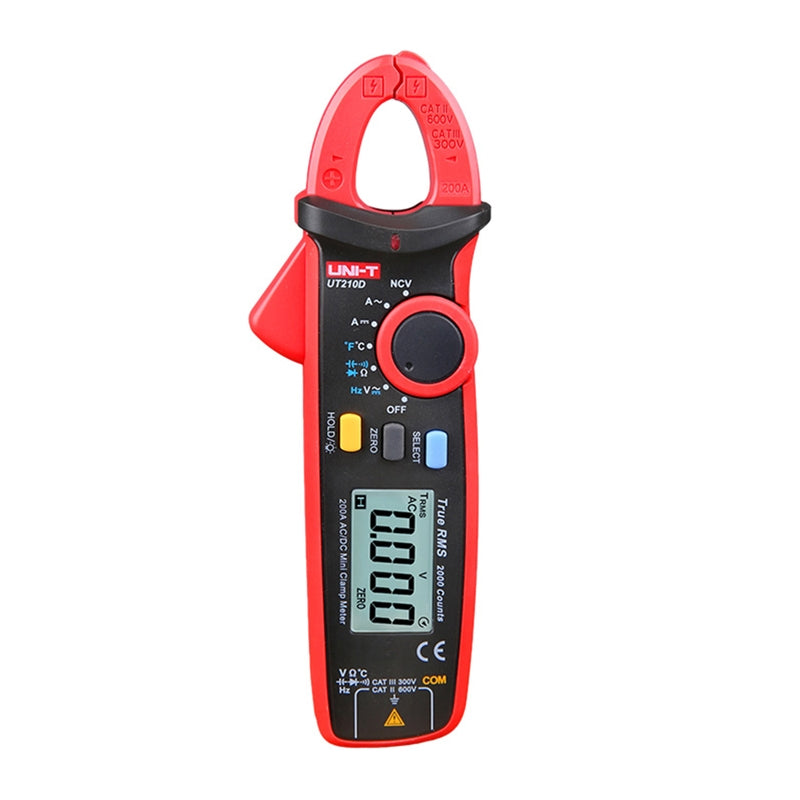

Uni-T UT210D Mini Digital Clamp Meter
The Uni-T UT210D Mini Digital Clamp Meter is a compact tool designed for use in hard-to-reach areas. Thanks to its small size and lightweight design, it is ideal for servicing equipment, home installations, and electrical work requiring mobility.
Features that make work easier
The UT210D model allows for precise measurement of AC and DC current up to 200A and voltage up to 600V, while the additional frequency measurement function significantly expands its potential in professional applications. User comfort and speed of operation are ensured by smart solutions such as automatic range switching and features like Data Hold, diode test, and continuity check.
Lightweight design and ease of use
The compact housing and 17 mm jaw opening allow for work in tight spaces. Its light weight makes daily use easier.
Included
- Clamp meter
- Batteries x2
- Test leads
- Temperature probe
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT210D |
| Type | Mini clamp meter |
| AC current | 200A ±(2.5%+8) |
| DC current | 200A ±(2%+3) |
| AC voltage | 600V ±(1%+3) |
| DC voltage | 600V ±(0.7%+3) |
| Resistance | 20MΩ ±(1%+2) |
| Frequency | 60kHz ±(0.1%+4) |
| Capacitance | 20mF ±(4%+5) |
| Temperature | -40°C ~ 1000°C ±(1%+3) |
| Maximum reading | 2000 |
| Functions | Circuit continuity buzzer, diode test, automatic range switching, Data Hold, backlight, auto power off |
| Jaw opening | 17 mm |
| Power supply | 2x 1.5V battery (R03) |
| Display | 39.3 x 26.5 mm |
| Dimensions | 175 x 60 x 33.5 mm |
| Weight | 170 g |
| Certifications | CE, UKCA, cETLus |
