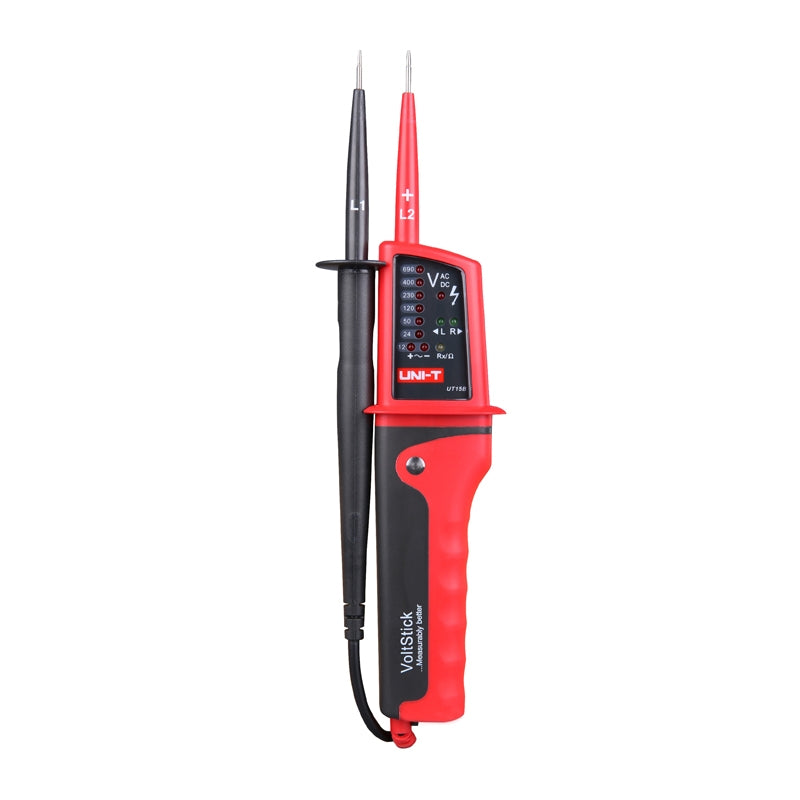

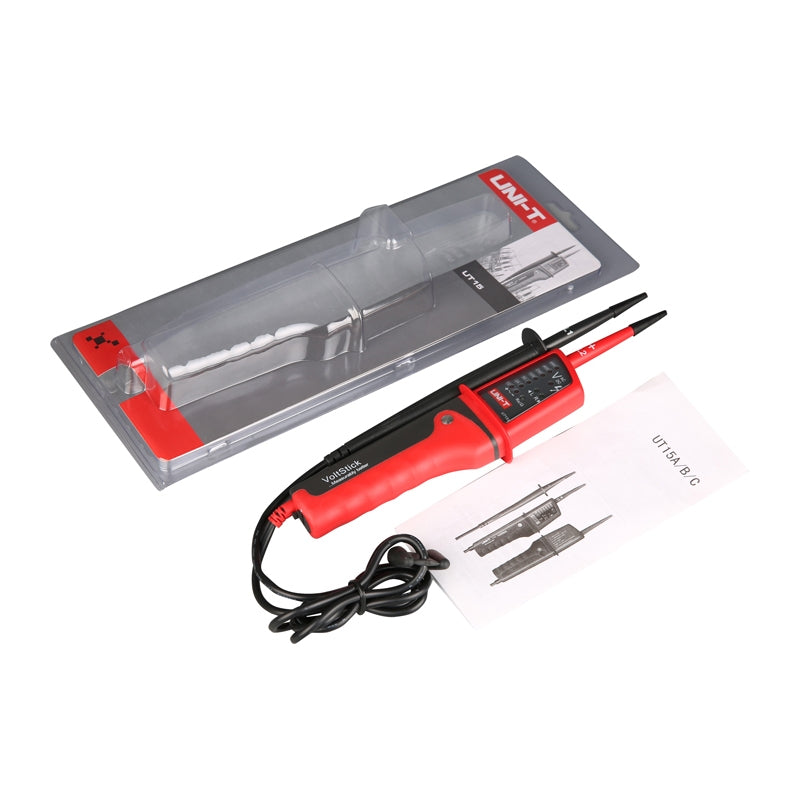

Uni-T UT15B Voltage and Continuity Tester
The Uni-T UT15B is a rugged voltage and continuity tester designed for quick measurements in demanding working conditions. The device uses easy-to-read LED indicators to measure AC/DC voltage in the ranges of 12 V, 24 V, 50 V, 120 V, 230 V, 400 V, and 690 V, allowing you to conveniently assess the condition of an installation without unnecessary complications. Automatic range switching speeds up the work, and the rugged design with IP65 protection rating ensures reliable performance in daily use.
More measurement capabilities in a single device
The tester offers features that facilitate the diagnosis of electrical installations and allow for faster fault detection. The UT15B model enables phase rotation testing in the 0–690 V range at 50–60 Hz, voltage detection with a single L2 probe in the 0–690 V range at 50–400 Hz, and circuit continuity testing in the 0–100 kΩ range with an audible signal and LED. Positive and negative polarity detection is also available, which enhances control during measurements and facilitates work on various types of installations.
Practical design for everyday use
A practical addition to the device’s capabilities is a built-in flashlight, which improves working comfort in dimly lit areas. The tester also features a battery indicator activated by shorting the leads, allowing you to quickly check the device’s readiness for operation. The UT15B model does not have a digital LCD display, so all essential information is conveyed via simple and easy-to-read LED indicators.
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT15B |
| Product Type | Voltage and Continuity Tester |
| AC/DC LED Voltage Indicator | Yes |
| 12 V Range | 0~12V |
| 24 V Range | 17V ± 2V |
| 50 V Range | 35V ± 5V |
| 120 V Range | 80V ± 15V |
| 230 V range | 165V ± 20V |
| 400 V range | 300V ± 30V |
| 690 V range | 510V ± 40V |
| Phase rotation test | Yes |
| Phase rotation test range | 0V~690V, 50Hz~60Hz |
| Single-probe voltage detection L2 | Yes |
| Single-probe voltage detection range | 0V~690V, 50Hz~400Hz |
| Circuit continuity test | Yes |
| Continuity test range | 0~100kΩ |
| Continuity test indication | Audible signal + LED |
| Polarity detection | Yes |
| Type of polarity detection | Positive and negative |
| Protection class | IP65 |
| Range switching | Automatic |
| Flashlight | Yes |
| Battery indicator | Yes |
| LCD display | No |
| Power supply | 2x 1.5V batteries (R03) |
| Weight | 210 g |
| Dimensions | 275 mm × 51 mm × 30 mm |
| Color | Red and gray |
