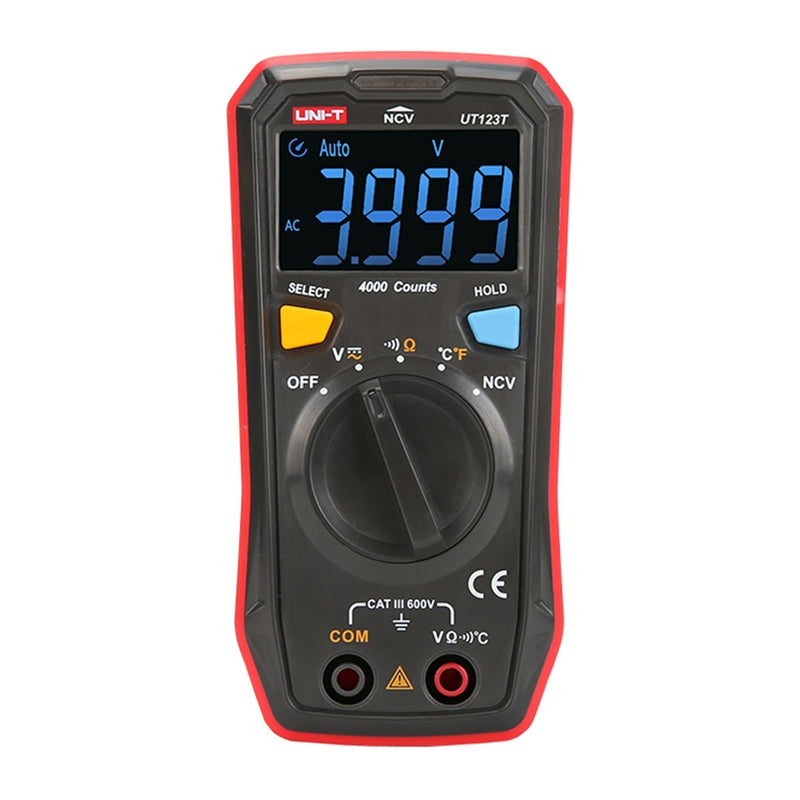

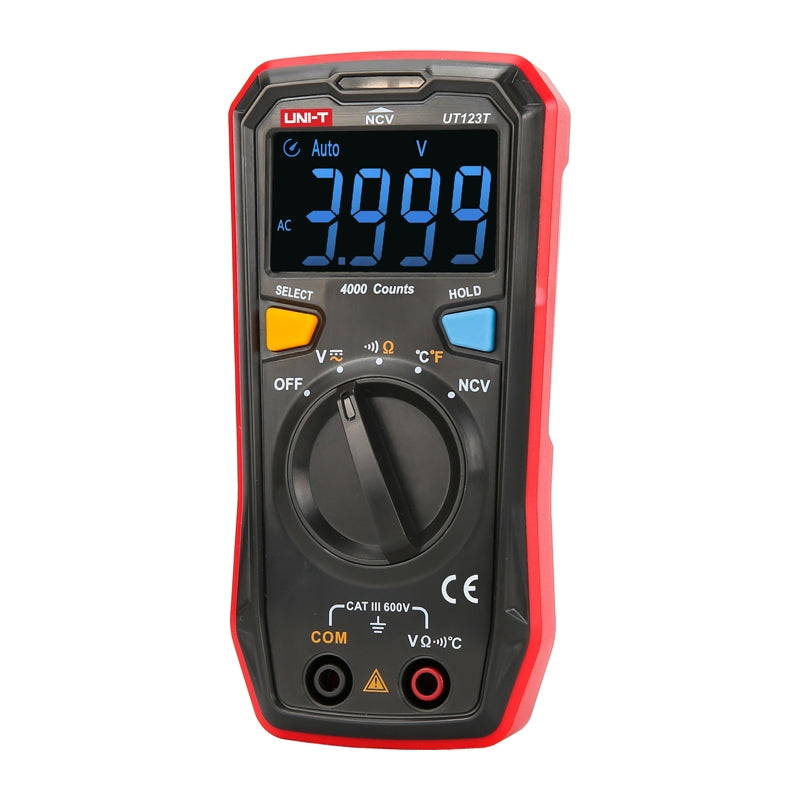

Uni-T UT123T Home Multimeter
The Uni-T UT123T is a compact pocket multimeter designed for home use and everyday electrical measurements. Its small housing fits comfortably in the hand, and the EBTN display provides clear readings from a wide viewing angle, making it easy to use even in low light. The device measures DC and AC voltage up to 600 V, resistance up to 20 MΩ, and temperature from -40°C to 300°C, making it suitable for many basic applications.
Clear readings and practical features
The UT123T model offers automatic range switching, continuity testing, and a Data Hold function, which translates to more convenient and faster operation. An additional advantage is non-contact voltage detection (NCV) and audible and visual indicators for NCV, continuity, and battery status. The device also features an alarm for voltages exceeding 600 V, which enhances safety during use.
Convenient operation in a compact design
The multimeter is equipped with a display with a maximum reading of 4000, automatic shut-off after approximately 15 minutes, and a low battery indicator at ≤ 2.7 V. Powered by two R03 batteries, weighing 130 g, and measuring 130 × 65 × 28 mm, the device is convenient to store and use daily at home. The set also includes a thermocouple, allowing you to use the temperature measurement function right away.
Included
- Home multimeter
- Batteries x2
- Thermocouple
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT123T |
| Type | Pocket multimeter for home use |
| DC Voltage | 4V / 40V / 400V / 600V ±(0.5%+2) |
| AC voltage | 4V / 40V / 400V / 600V ±(1.0%+3) |
| Resistance | 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 20MΩ ±(0.8%+2) |
| Temperature | -40°C~300°C (-40°F~572°F) ±4°C |
| Maximum display reading | 4000 |
| Range switching | Automatic |
| Functions | NCV, continuity test, audible and visual alarms, Data Hold, auto power off, low battery indicator, overvoltage alarm >600V |
| Auto power off | After approximately 15 minutes |
| Low battery indicator | ≤ 2.7V |
| Operating temperature | 0°C~40°C |
| Safety | CAT III 600V |
| Power supply | 1.5V battery (R03) x2 |
| Display dimensions | 44 mm x 26 mm |
| Weight | 130 g |
| Dimensions | 130 mm x 65 mm x 28 mm |
| Color | Red and gray |
| Certifications | CE, UKCA |
