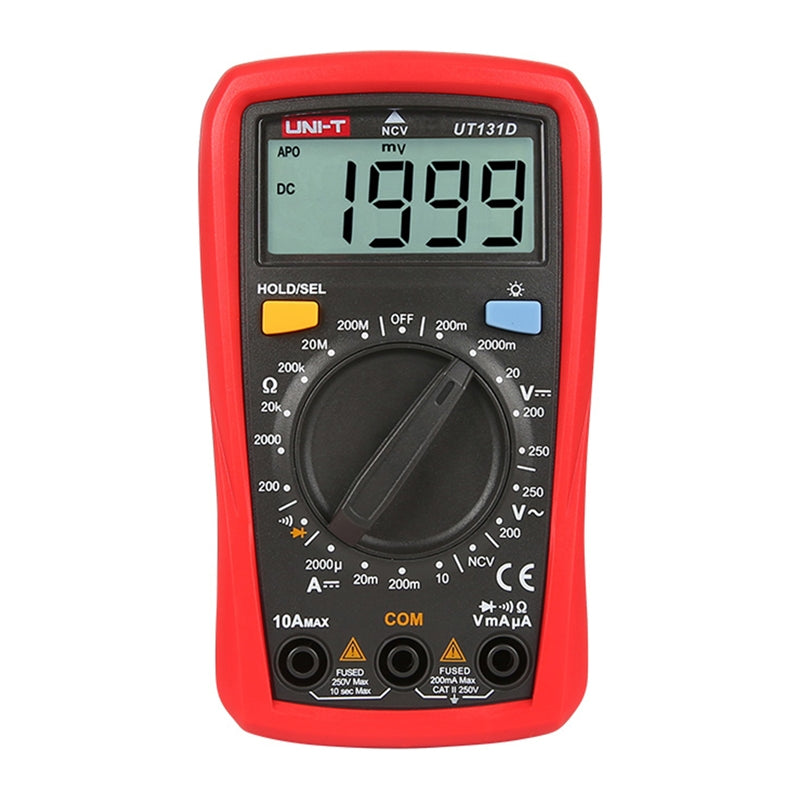

Uni-T Palm Size UT131D Digital Multimeter
The Uni-T UT131D is a compact digital multimeter from the UT131 series, designed for convenient measurement of basic electrical parameters. The new generation of this series features a clear LCD screen, an ergonomic design with a protective cover, and a practical storage compartment for test leads. An additional advantage is its resistance to drops from heights of up to 2 meters, which increases the device’s durability in everyday use.
Greater convenience thanks to the NCV function
The UT131D model allows for the measurement of DC voltage up to 250 V, AC voltage up to 250 V, DC current up to 10 A, and resistance up to 200 MΩ. It stands out thanks to the NCV non-contact voltage detection function, which makes it easier to quickly check installations and allows for more efficient assessment of voltage presence without direct contact. Manual range switching gives the user greater control over the measurement process.
Basic functions in a practical housing
The device offers a diode test, continuity test, Data Hold function, auto-off, and LCD backlight. A maximum reading of 2000 and a loud buzzer improve ease of use and the speed of reading results. The UT131D model is rated for CAT II 250V environments, making it well-suited for basic electrical measurements.
Included
- Digital multimeter
- Test leads
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT131D |
| Type | Pocket digital multimeter |
| DC voltage | 200mV / 2000mV / 20V / 200V / 250V ±(0.5%+2) |
| AC voltage | 200V / 250V ±(1.2%+3) |
| DC Current | 200 µA / 200 mA / 10 A ±(1.0%+2) |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ ±(0.8%+2) |
| NCV | Yes |
| Maximum reading | 2000 |
| Range switching | Manual |
| Functions | Diode test, continuity test, Data Hold, auto power off, LCD backlight |
| Safety | CAT II 250V |
| Drop test | 2 m |
| Power supply | 2x 1.5V battery (R03) |
| Weight | 206 g |
| Dimensions | 134 mm x 77 mm x 47 mm |
| Display dimensions | 66 mm x 51 mm |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
