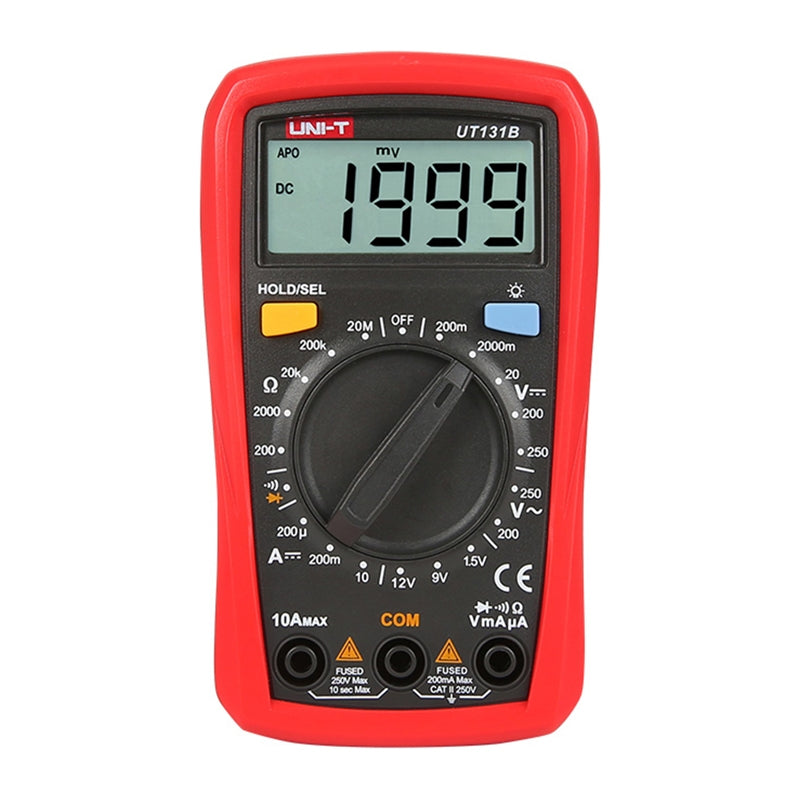

Uni-T Palm Size UT131B Digital Multimeter
The Uni-T UT131B is a compact digital multimeter from the UT131 series, designed for convenient measurement of basic electrical parameters. This series features a modern design, a clear LCD screen, and an ergonomic protective cover with a practical storage space for test leads. Resistance to drops from heights of up to 2 meters increases the device’s durability and facilitates its daily use.
Wide measurement range and automatic operation
The UT131B model allows for the measurement of DC voltage up to 250 V, AC voltage up to 250 V, DC current up to 10 A, and resistance up to 20 MΩ. What sets it apart from other models is its ability to test 1.5 V, 9 V, and 12 V batteries, making it particularly practical for quickly checking cells and batteries used in everyday devices. Manual range switching allows the user to maintain greater control over the measurement process.
Convenience in daily use
The device offers a diode test, continuity test, Data Hold function, auto-off, and LCD backlight. A maximum reading of 2000 and a loud buzzer improve the readability of results and ease of use. The model is rated for CAT II 250V environments, making it well-suited for basic measurement tasks.
Included
- Digital multimeter
- Test leads
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT131B |
| Type | Pocket digital multimeter |
| DC voltage | 200mV / 2000mV / 20V / 200V / 250V ±(0.5%+2) |
| AC voltage | 200V / 250V ±(1.2%+3) |
| DC current | 200µA / 200mA / 10A ±(1.0%+2) |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ ±(0.8%+2) |
| Battery test | 1.5V / 9V / 12V ±(1.0%+2) |
| Maximum reading | 2000 |
| Range selection | Manual |
| Functions | Diode test, continuity test, Data Hold, auto power off, LCD backlight |
| Safety | CAT II 250V |
| Drop test | 2 m |
| Power supply | 2x 1.5V battery (R03) |
| Weight | 206 g |
| Dimensions | 134 mm x 77 mm x 47 mm |
| Display dimensions | 66 mm x 51 mm |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
