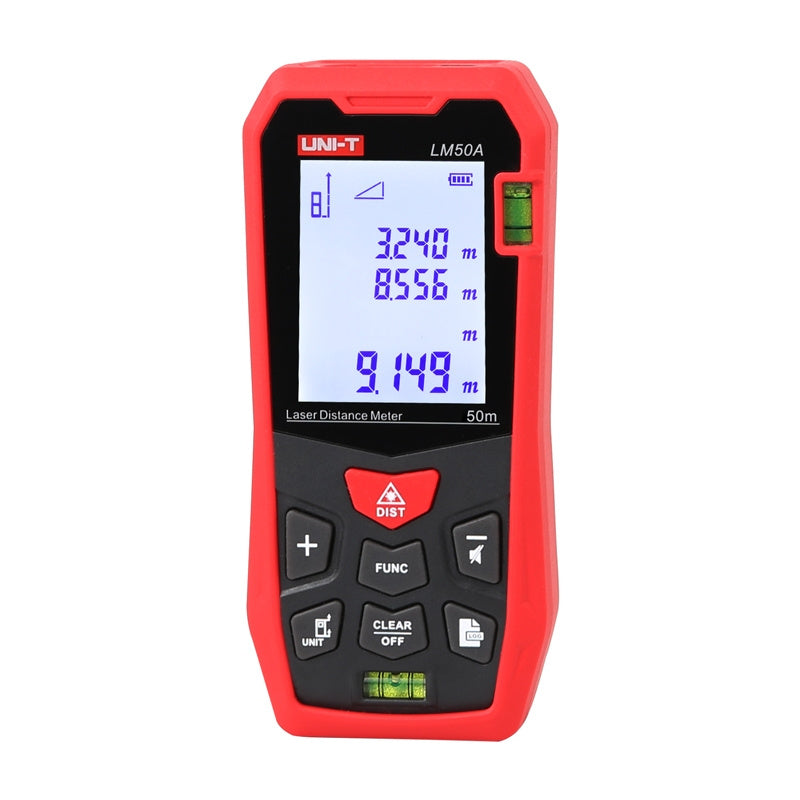

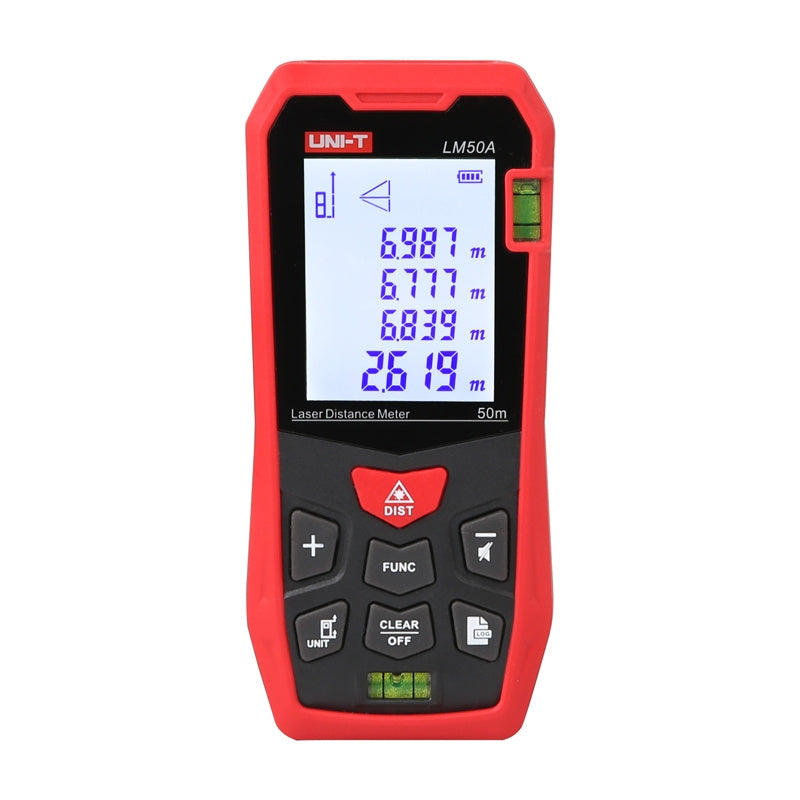

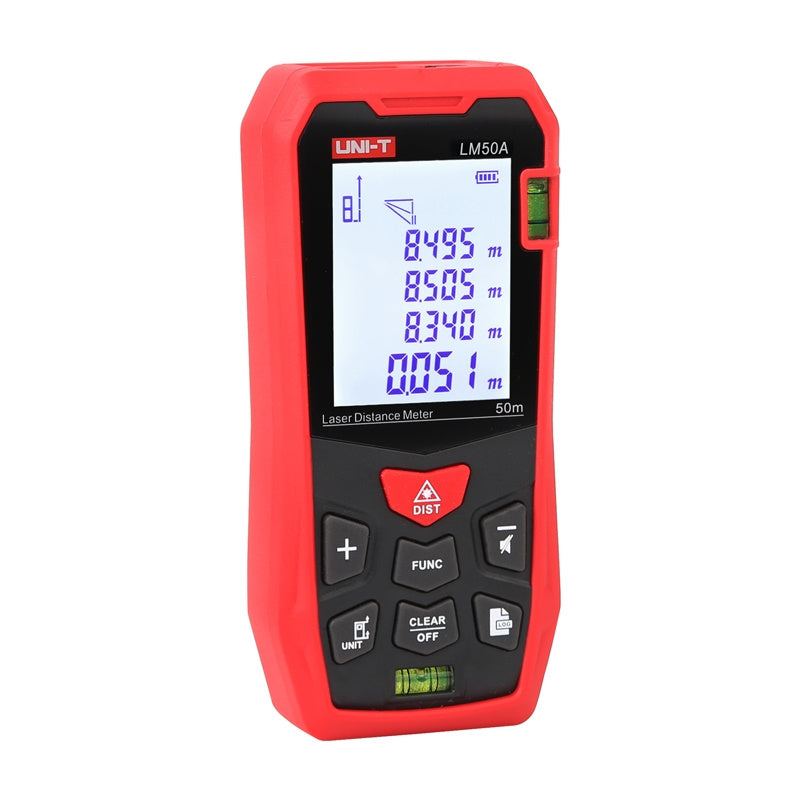

UNI-T LM50A laser rangefinder
The UNI-T LM50A is a laser rangefinder designed for accurate distance measurements in construction, interior design, engineering and technical supervision. With a range of up to 50 meters and a measurement accuracy of up to 1 mm, it guarantees reliable results even in demanding conditions. Its intuitive operation and ergonomic housing make it an ideal tool for both professionals and individual users.
Functions that make every measurement easier
The LM50A supports not only single and continuous measurements, but also calculation functions such as determining area, volume, indirect measurement (Pythagoras function), as well as adding and subtracting results. The device allows you to select a reference point (front or back of the device) and work in metric and imperial units (m/ft/in), adding to its versatility.
Readability and convenience in all conditions
A large, 2-inch LCD display with backlighting provides excellent readability of results, while built-in spirit levels (horizontal and vertical) help align the device and increase measurement precision. A 99 measurement result storage function allows quick access to measurement history without the need to take notes. Automatic shutdown of the laser and instrument saves energy.
Compact, field-ready
The rangefinder is powered by two AAA (1.5V) batteries, and its compact size and light weight make it easy to use on a daily basis. The rugged design makes the LM50A fit well in the hand and withstand intensive use. A practical case is included for easy transportation and to protect the device from damage.
Included
- UNI-T LM50A laser rangefinder
- Transport case
- User manual (English)
| Manufacturer | UNI-T |
|---|---|
| Manufacturer code | LM50A |
| Certifications | CE, UKCA, RoHS |
| Measurement range | up to 50 m |
| Accuracy | ±(2 mm + 0.00005 × D) |
| Smallest display unit | 0,001 m |
| Units of measurement | Meters (m), feet (ft), inches (in) |
| Measurement reference point | front / back of the device |
| Laser type | 630-670 nm, <1 mW, class 2 |
| Display type | LCD, 2.0 inches |
| Measurement functions: | Single and continuous measurement, minimum / maximum value, area and volume calculation, Pythagoras function, addition and subtraction, auto-calibration, levels (horizontal and vertical) |
| Memory of measurements | 99 groups |
| Auto-off | Laser - after 30 s, device - after 3 minutes |
| Working temperature | 0°C ~ 40°C |
| Storage temperature | -20°C ~ 60°C |
| Power supply | 2 × 1.5 V AAA battery (LR03) |
| Color | red-gray |
| Dimensions | 122 × 52 × 29.5 mm |
