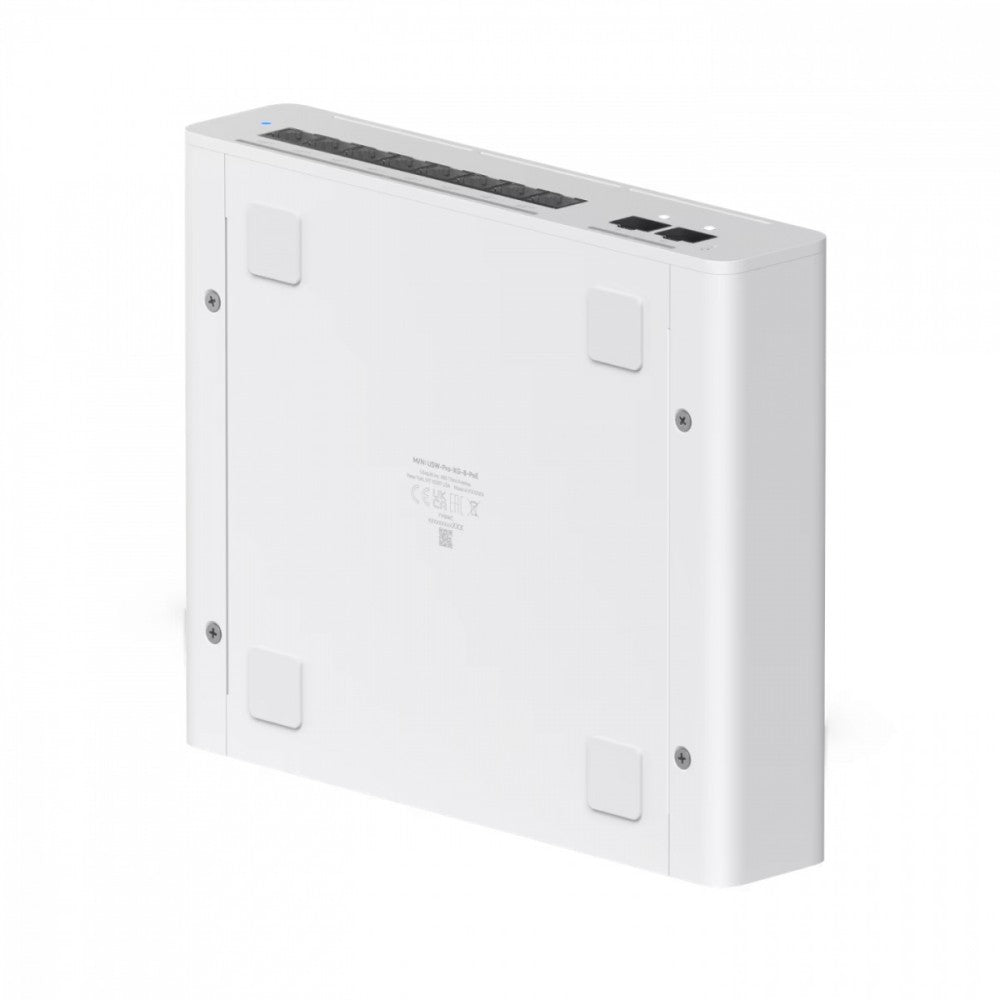

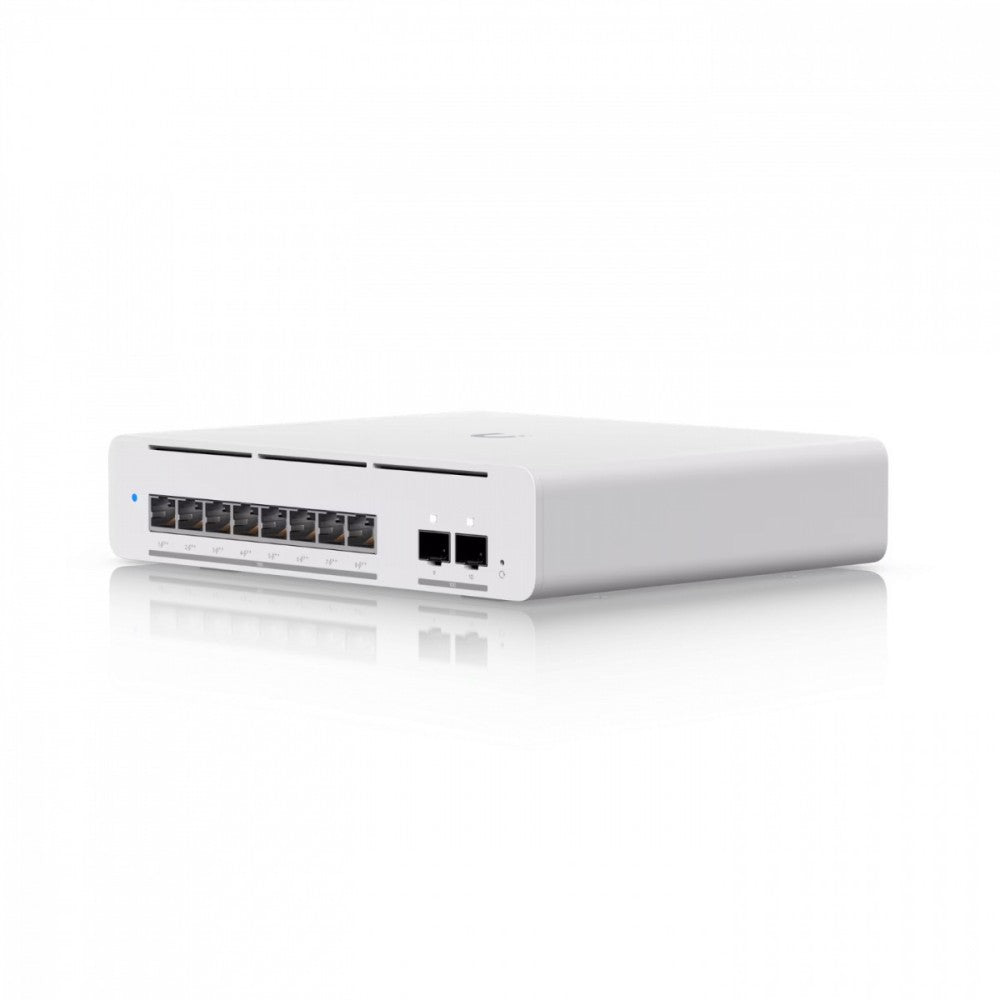

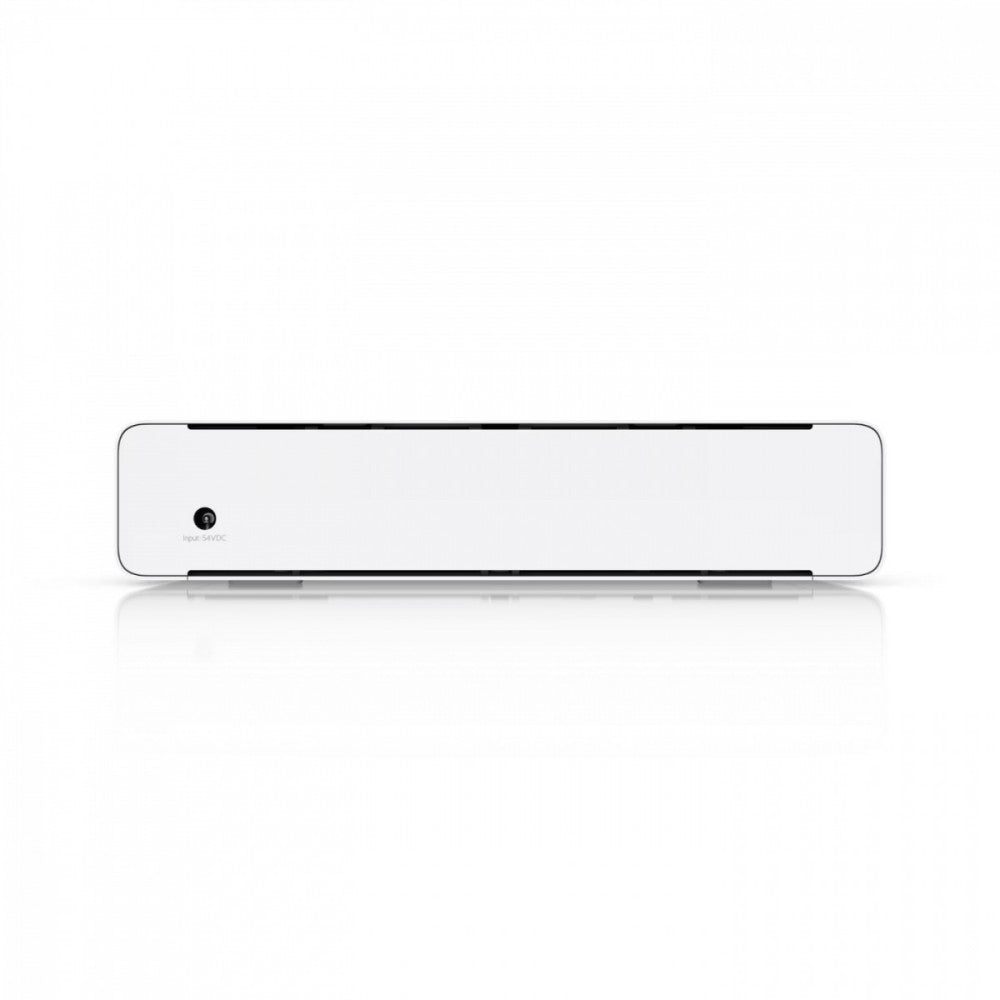

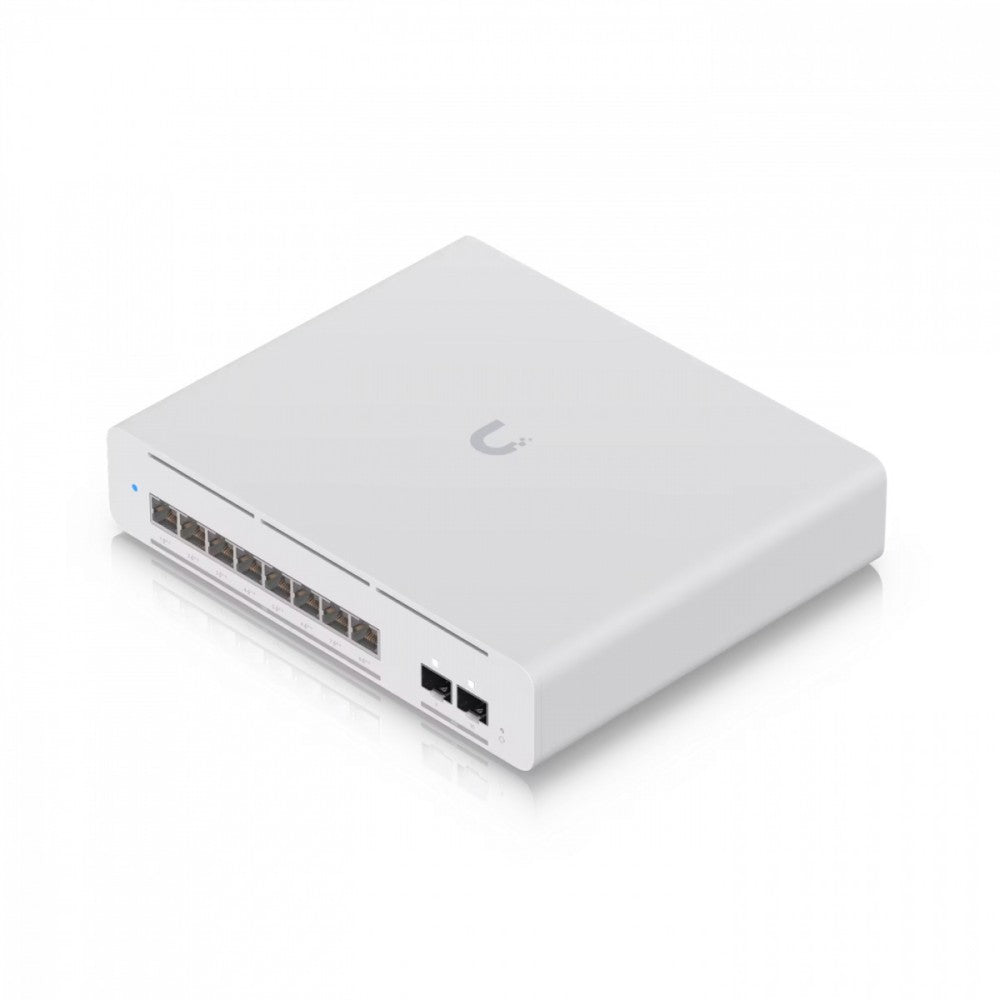

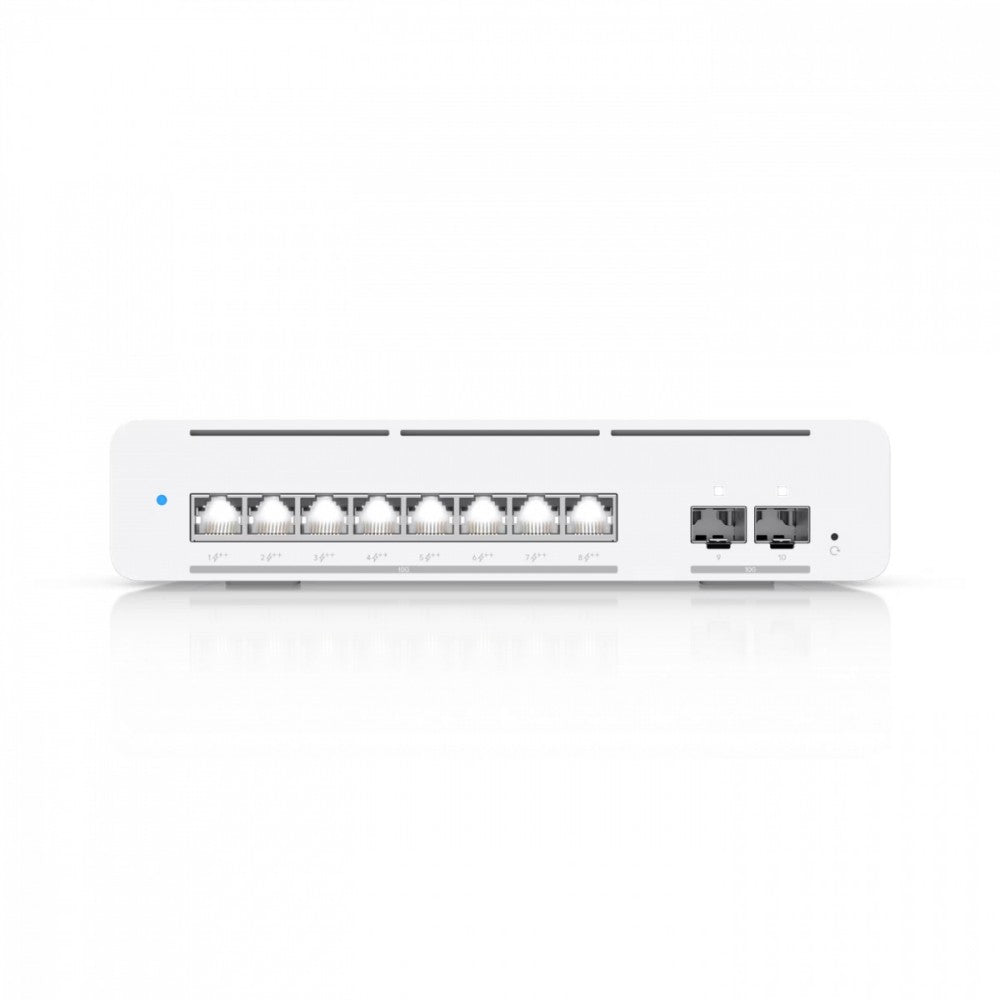

UBIQUITI Switch UniFi Pro XG 8 PoE
Specifications
| Description | Pro XG 8 PoE Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports. |
|---|---|
| Switch class | Managed |
| Application | Home and small office |
| Switch layer | L3 |
| Network architecture | GigabitEthernet |
| Number of 10Gb ports | 10 |
| Number of PoE++ ports | 8 |
| Number of SFP+ ports | 2 |
| Console port | No |
| Throughput | 200 |
| Forwarding rate | 149 |
| Packet buffer | 2 |
| MAC address table size | 32000 |
| Support for Jumbo frames | Yes |
| Stackability | No |
| Number of VLAN groups | 1000 |
| Management, monitoring, configuration | UniFi Network: Version 9.0.114 and later |
| L2 features | LACP Port Aggregation STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override |
| L3 features | DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) |
| Chassis type | Desktop |
| Fan | No |
| Power supply | External |
| Power consumption | 210 |
| Environment requirements | Ambient Operating Temperature: -5 to 45° C (23 to 113° F) Ambient Operating Humidity: 10 to 90% noncondensing |
| Certificates | CE FCC IC Anatel: 04322-25-08356 |
| Power supply | AC/DC 210W 50-57V DC |
| Dimensions | 210.4 x 173.8 x 43.7 mm |
| Weight | 1.6 |
