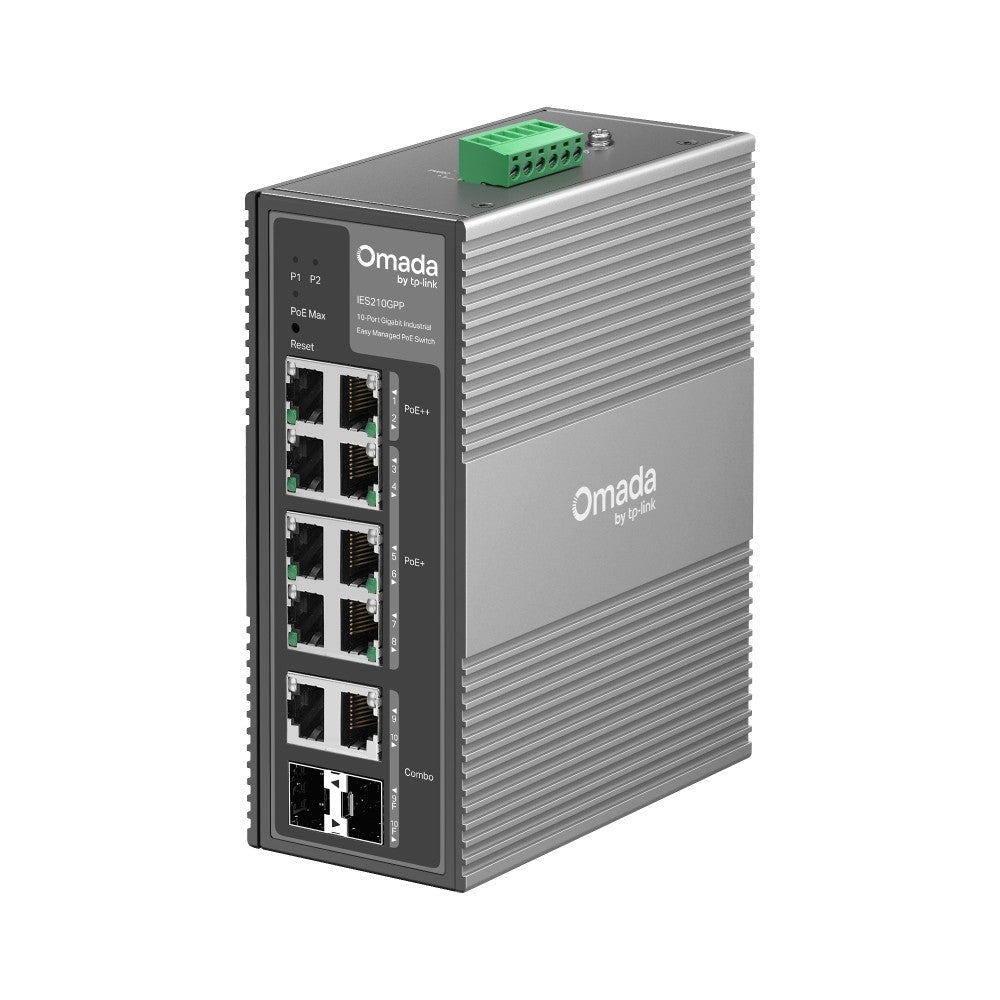

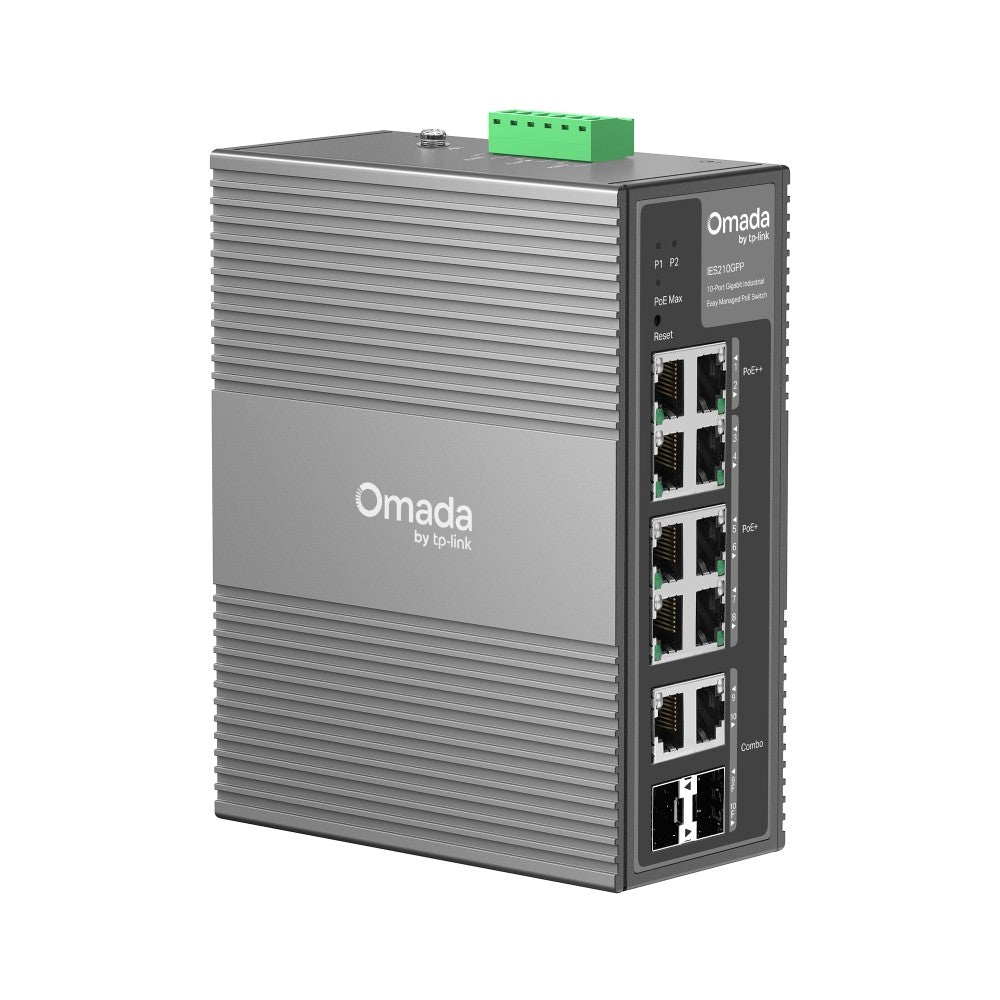

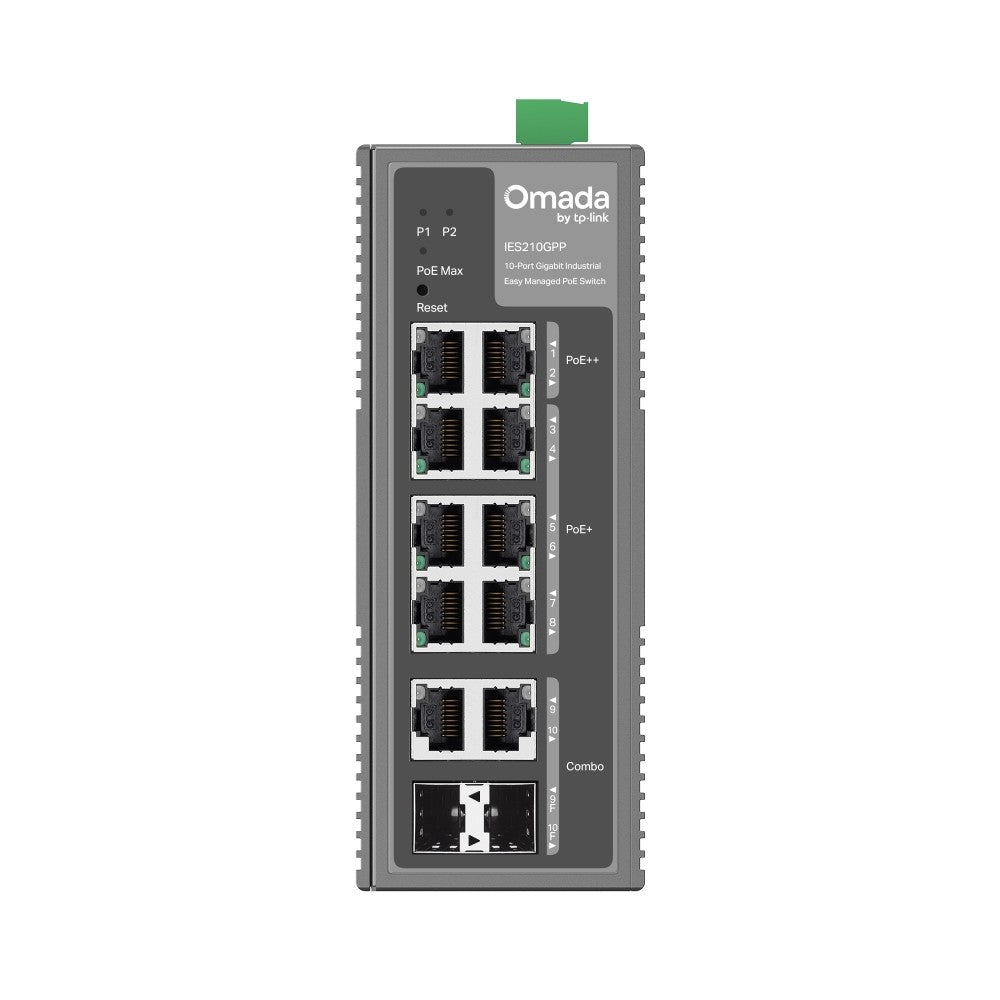

TP-LINK Switch IES210GPP
Specifications
| Description | IES210GPP Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++ 8 x Gigabit RJ45 Ports (2 x PoE++, 6 x PoE+) 2 x Gigabit Combo RJ45/SFP Slots 240W Power Budget with up to 60W for Each PoE++ Port Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input Abundant Features: Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP Centralized Cloud Management via the Web or Omada App Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design |
|---|---|
| Switch class | Managed |
| Application | Home and small office |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | 6 |
| 10/100/1000/2500 Mbps ports | None |
| Number of 10Gb ports | None |
| Number of ports 25Gb | None |
| Number of PoE ports (PoE & PoE+) | None |
| Number of PoE+ ports | None |
| Number of PoE++ ports | 2 |
| Number of COMBO ports | 2 |
| Number of SFP ports | None |
| Number of SFP+ ports | None |
| Number of SFP56 ports | None |
| Number of QSFP+ ports | None |
| Console port | No |
| Forwarding mode | Store-and-forward |
| Throughput | 20 |
| Forwarding rate | 14.88 |
| Memory buffer | 4 |
| MAC address table size | 8000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 15 |
| Stackability | No |
| VLAN | MTU VLAN Port-Based VLAN 802.1Q Tag VLAN Max 32 VLAN Groups 4K VID |
| QoS | 802.1p DSCP Priority 8 Priority Queues Priority Schedule Mode WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port-Based Rate Limit Storm Control Multiple Control Modes (kbps/pps) Broadcast/Multicast/Unknown-Unicast Control |
| Management, monitoring, configuration | Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller. Centralized Management: Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Management Features: Web-based GUI DHCP Client Cable Diagnostics Digital Diagnostic Monitoring (DDM) Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Unified Configuration |
| Fan | No |
| Environment requirements | Operating Temperature: -40~75°C Storage Temperature: -40~85°C Operating Humidity: 5%~95% non-condensing Storage Humidity: 5%~95% non-condensing |
| Certificates | FCC, CE, RoHS |

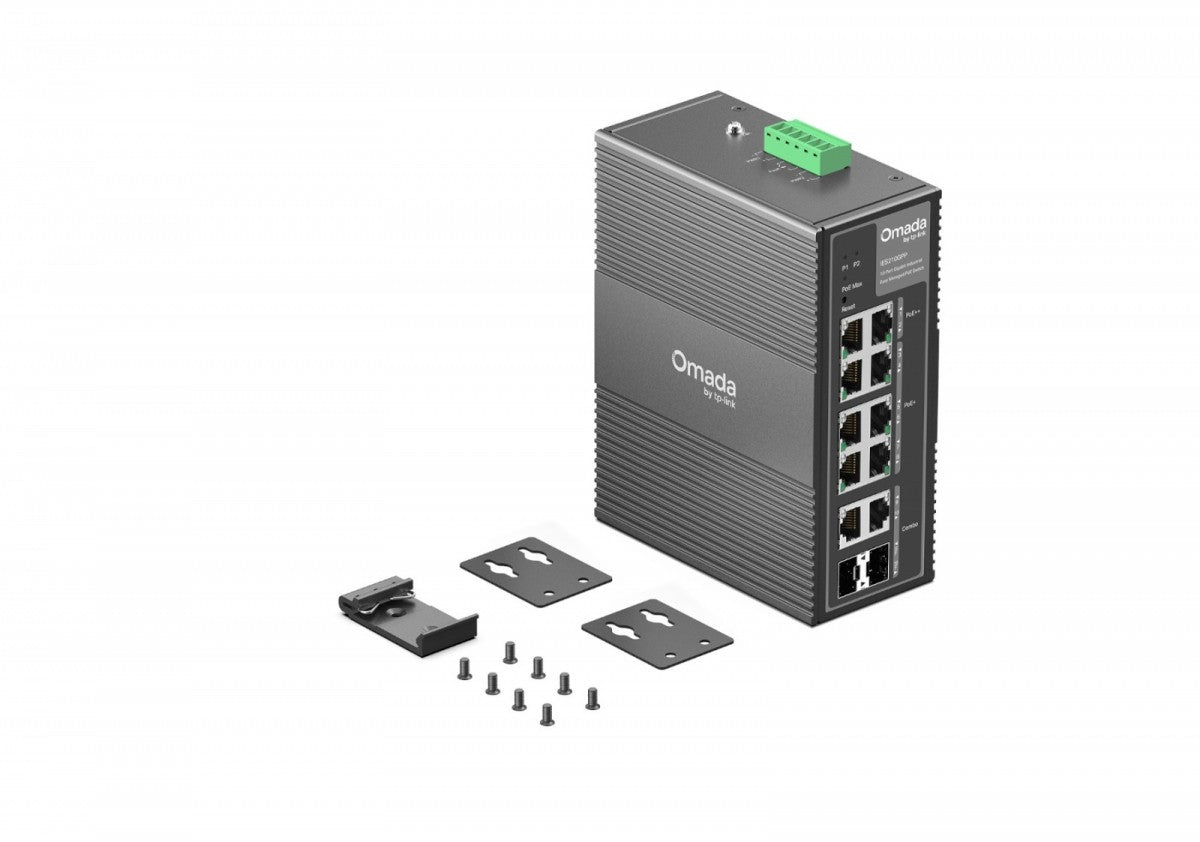

| Accessories included | IES210GPP DIN-Rail Mounting Bracket Wall-Mounting Plates Installation Guide |

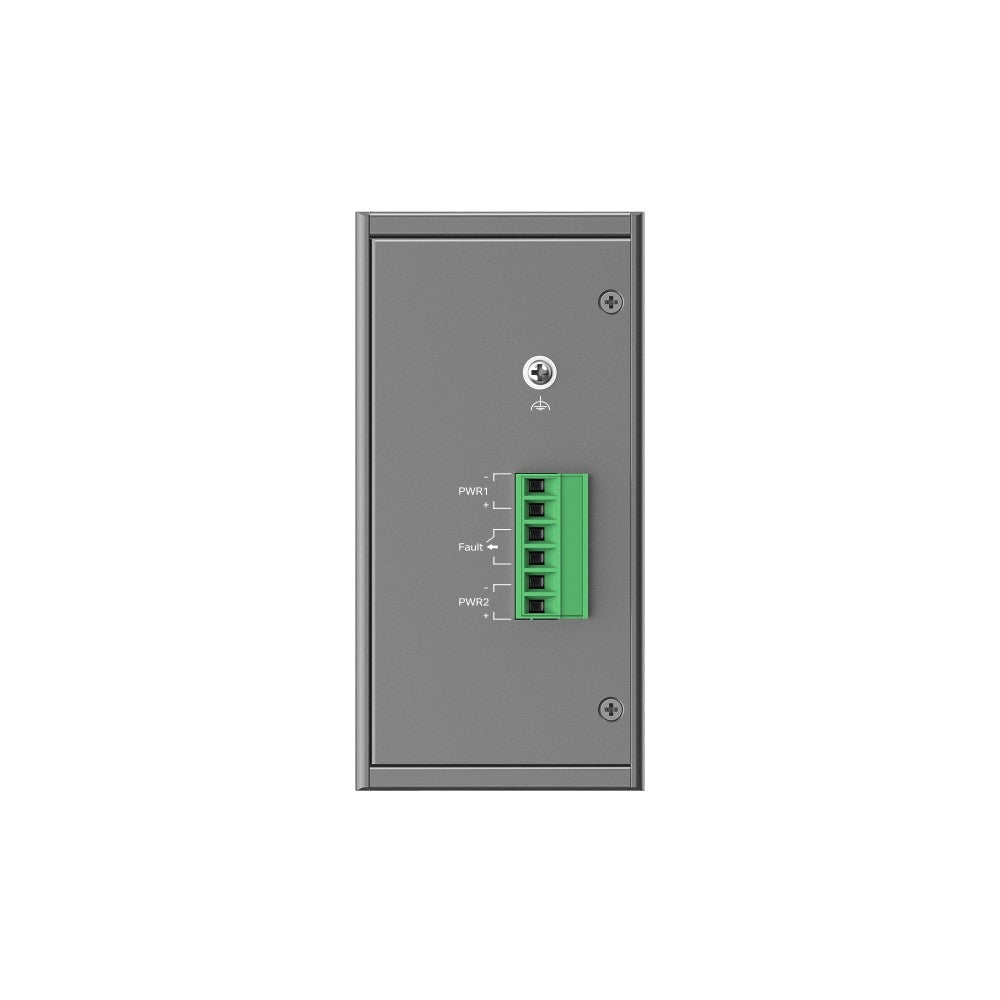

| Power supply | 12-57V 1+1 Redundant DC Power Input |
| Dimensions | 155 x 120 x 60 mm |
| Other features | PoE Ports (RJ45): Standard: 802.3af/at/bt compliant PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port PoE Budget: 60W (Input: 12V / 7.2A - 21V / 3.7A)) 120W (Input: 21V / 6.7A - 46V / 3.1A) 240W (Input: 46V / 5.7A - 57V / 4.4A) |
