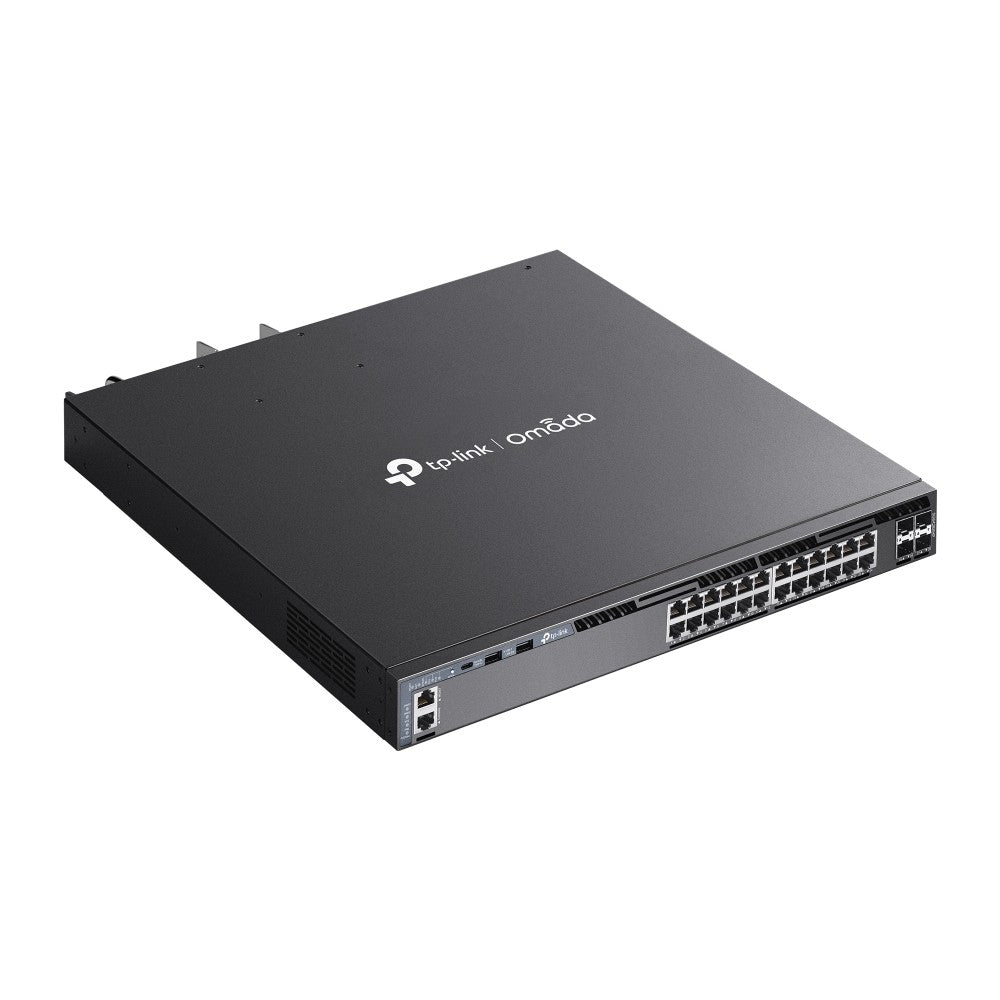

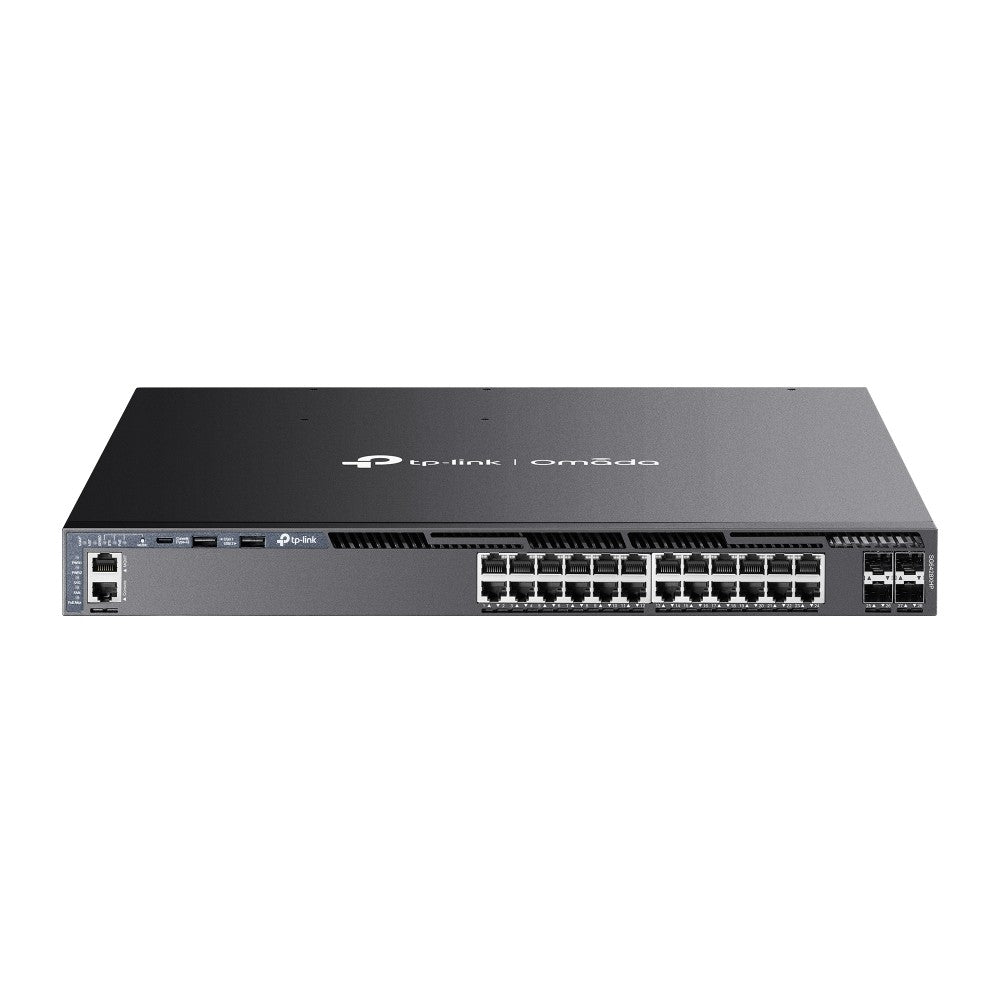

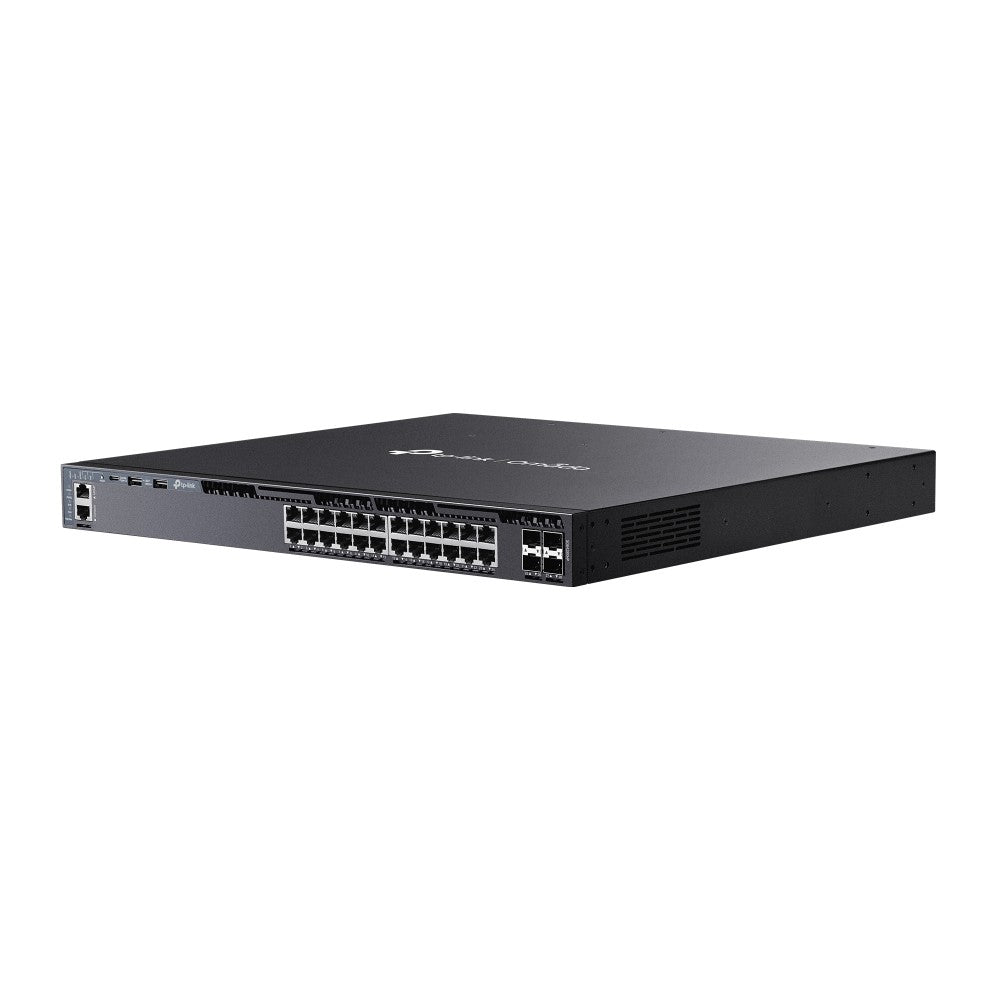

TP-Link SG6428XHP
Specifications
| Description | Omada L3 Stackable Managed Switch, 24 Gigabit PoE+ Ports, 4 10G SFP+ Slots 24 Gigabit RJ45 PoE+ Ports 4 10Gb/s SFP+ Slots PoE Power Supply with a Total Power of Up to 720W* Physical Stacking for Redundancy and Better Performance L3 Features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay Security Strategies: ACL, Port Security, DoS Protection, 802.1X Increased Availability with Dual Power Supplies**, VRRP, and ERPS Centralized Cloud Management via the Omada SDN Controller Autonomous Management via Web Interface, CLI, SNMP, and RMON *Total available PoE power depends on the power supply modules used. **The switch ships with one PSM500-AC power module. If you wish to use a second power supply slot, you must purchase an additional power supply separately. Product Application The Omada SG6428XHP is a managed Layer 3 PoE+ switch that offers L3 routing, high-speed 10 Gbps wire speed, stacking, and redundant power supply to meet the needs of the convergence layer. It offers an impressive total PoE power output of up to 720 W*, 24 Gigabit RJ45 PoE+ ports, 4 SFP+ slots, and physical stacking. Centralized management, high security, and extensive management features make this switch ideal for SMB, enterprise, and ISP applications. IEEE 802.3at/af PoE Support The 24 IEEE 802.3at/af PoE ports provide up to 720W of combined power for 802.3at and 802.3af devices*, each capable of delivering up to 30W of power. Easily install wireless access points, surveillance cameras, IP phones, and other PoE-enabled devices without the hassle and expense of additional power cabling. Perpetual PoE ensures uninterrupted power delivery to devices, even during switch reboots. Furthermore, the switch retains PoE power settings after reboot thanks to its fast PoE functionality. High-speed connections and efficient stacking 24 Gigabit RJ45 ports and four 10 Gbps SFP+ slots provide up to 128 Gbps of switching capacity per unit. Physical stacking of up to 8 units strengthens the network structure with its efficiency and built-in redundancy. Extensive Layer 3 Capabilities The switch is equipped with multiple Layer 3 routing protocols to support network scalability. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. The PIM-DM multicast routing protocol ensures efficient routing for multicast groups. High Availability Hot-swappable, redundant power supplies with VRRP are an ideal choice for a reliable network architecture**. ERPS supports rapid protection and recovery in a ring topology. Advanced Security Features Network protection against a wide range of threats is provided by ACLs (IPv4 and IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell (SSH). Omada SDN The Omada system offers centralized cloud management and numerous management features, such as Zero-Touch Provisioning (ZTP). The Omada software-defined network infrastructure (SDN) platform integrates network devices, including access points, switches, and gateways, providing completely centralized cloud management from a single interface. In addition to centralized management via the Omada app, the SG6428XHP switch can also be easily managed via a web configuration page or command line interface (CLI). Both methods protect traffic using SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON enable polling of the switch to obtain valuable information and send traps for unexpected events. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | 24 |
| 10/100/1000/2500 Mbps ports | None |
| Number of 10Gb ports | None |
| Number of ports 25Gb | None |
| Number of PoE ports (PoE & PoE+) | None |
| Number of PoE+ ports | None |
| Number of COMBO ports | None |
| Number of SFP ports | None |
| Number of SFP+ ports | 4 |
| Number of SFP56 ports | None |
| Number of QSFP+ ports | None |
| Console port | Yes |
| Throughput | 128 |
| Forwarding rate | 95.2 |
| Packet buffer | 3 |
| MAC address table size | 32000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 9 |
| Stackability | Yes |
| Maximum number of units per stack | 8 |
| Number of VLAN groups | 4000 |
| VLAN | Max. 4K VLAN groups (802.1q VLAN) 802.1Q VLAN tagging MAC VLAN entries: 200 Multicast VLAN Management VLAN VPN VLAN (QinQ): Max. 256 entries GVRP Protocol VLAN: Protocol template 16, Protocol VLAN 12 VPN VLAN Voice VLAN Private VLAN |
| QoS | Class of Service: 8 Priority Queues Port Priority IEEE 802.1p Priority DSCP Priority Minimum Queue Bandwidth Scheduling Mode (SP, WRR, SP+WRR) Bandwidth Control: Rate Limiting Storm Control Voice VLAN User-Defined OUI Smoother Performance Flow Performance: QoS Remark (802.1P Remark, DSCP Remark) |
| Security | Port Isolation CPU Defense ARP Inspection (Dynamic ARP Inspection) DoS Attack Protection IP-MAC-Port Binding 1024 Entries DHCP Snooping ARP Inspection IPv4 Source Address Protection IPv6-MAC Port Binding 1024 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Address Protection DHCP Filter Port Protection via Static/Dynamic Configuration Up to 64 MAC Addresses per Port Storm Control Broadcast/Multicast/Unknown Unicast Control Mode: Kbps/Rate 802.1X Port-Based Authentication MAC Address-Based Authentication VLAN Assignment MAB Guest VLAN Authentication and Authorization via Radius AAA (including TACACS+) Secure web management via HTTPS with SSLv3/TLS 1.2 encryption Secure CLI management with SSHv2 encryption IP/Port/MAC-based access control |
| Management, monitoring, configuration | Graphical User Interface (GUI) Command Line Interface (CLI) via console port, Telnet SNMP v1/v2c/v3 Trap/Inform RMON (Groups 1, 2, 3, 9) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Usage Monitoring Cable Diagnostics Password Recovery SNTP System Logs EEE |
| L2 features | Link Aggregation Spanning Tree Protocol Port- and VLAN-based loopback detection 802.3x flow control Support for 2048 IGMP groups ERPS Mirroring RSPAN MAC address table PIM-DM (IPv4) Multicast IGMP snooping MLD snooping L2 multicast table Fast Leave Multicast VLAN Registration (MVR) Static IP multicast Multicast filtering |
| L3 features | IP Interfaces: IPv4: Maximum 256, IPv6: Maximum 256 Static Routing Maximum 1024, IPv6: Maximum 512 Host Route Table: Maximum 6100 entries RIP: Version v1/v2, Maximum 8190 OSPF: Version v2/v3; v2: Maximum 8190, v3: Maximum 4097 VRRP: Version v2/v3, Maximum 64 groups ECMP: 256 entries, Maximum 32 ECMP Nexthops per destination Static ARP: 512 static entries Dynamic ARP: 7680 dynamic entries Proxy ARP DHCP Server: Maximum 64 IP pools Maximum 1000 manual binding entries DHCP Relay: Interface Relay VLAN Relay |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | External |
| Environment requirements | Permissible operating temperature: -5°C to 45°C at an altitude of 2000 meters -5°C to 40°C at an altitude of 3000 meters Permissible storage temperature: -40°C to 70°C Permissible air humidity: 1090%, non-condensing Permissible storage humidity: 590%, non-condensing |

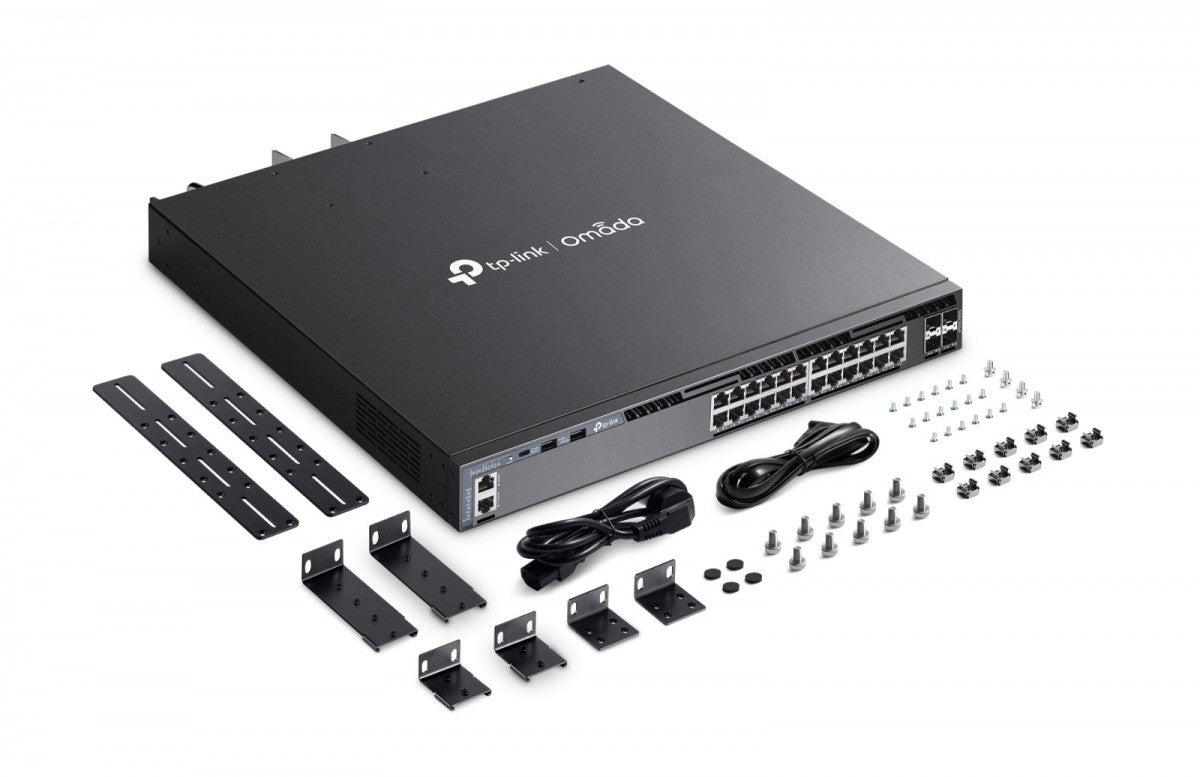

| Accessories included | SG6428XHP Power cord RJ45 console cable Quick installation guide Rack mounting kit Rubber feet |

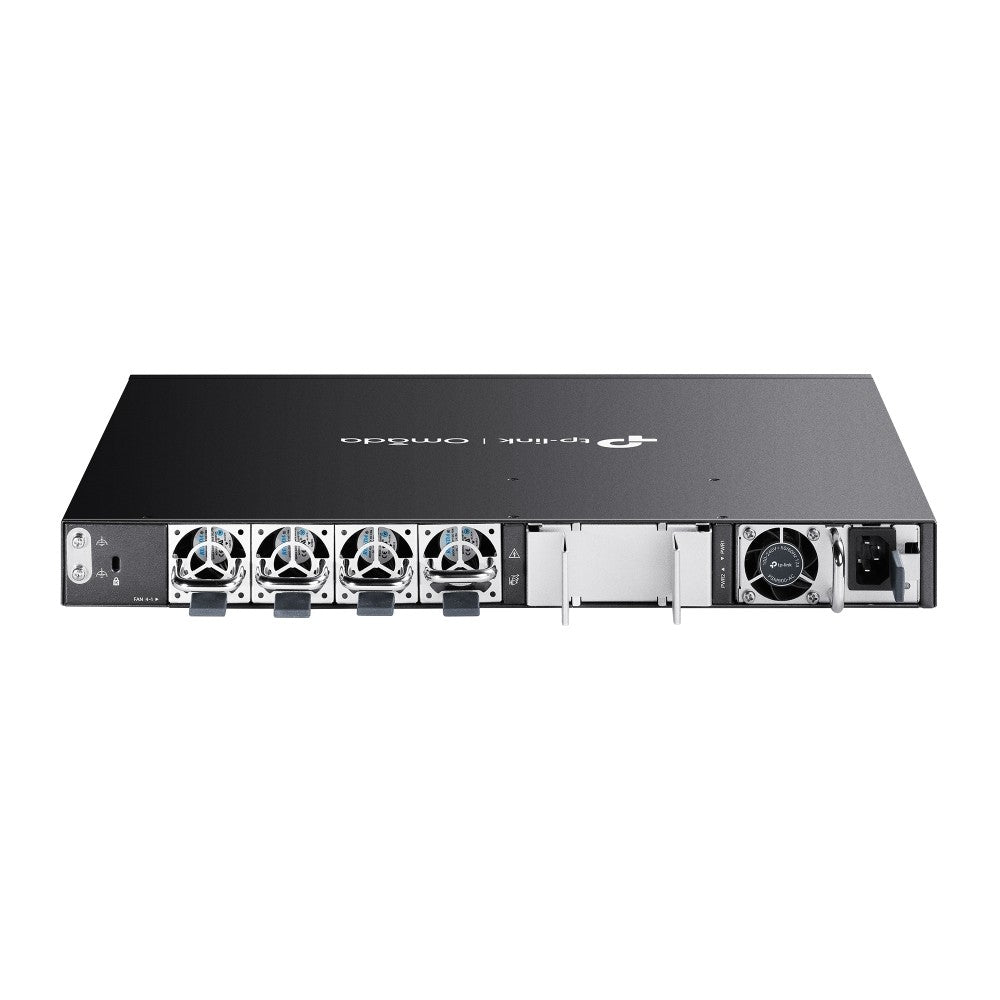

| Power supply | Two hot-swappable power module slots** (100-240 VAC, 50/60 Hz) **This unit ships with one PSM500-AC power module. A second redundant power supply must be purchased separately. Maximum power consumption: 42.9 W (110 V/60 Hz) (Without connected PoE devices) 916.6 W (110 V/60 Hz) (With connected 720 W PoE devices and two PSM500-AC power supplies) |
| Dimensions | 440 × 420 × 44 mm |
