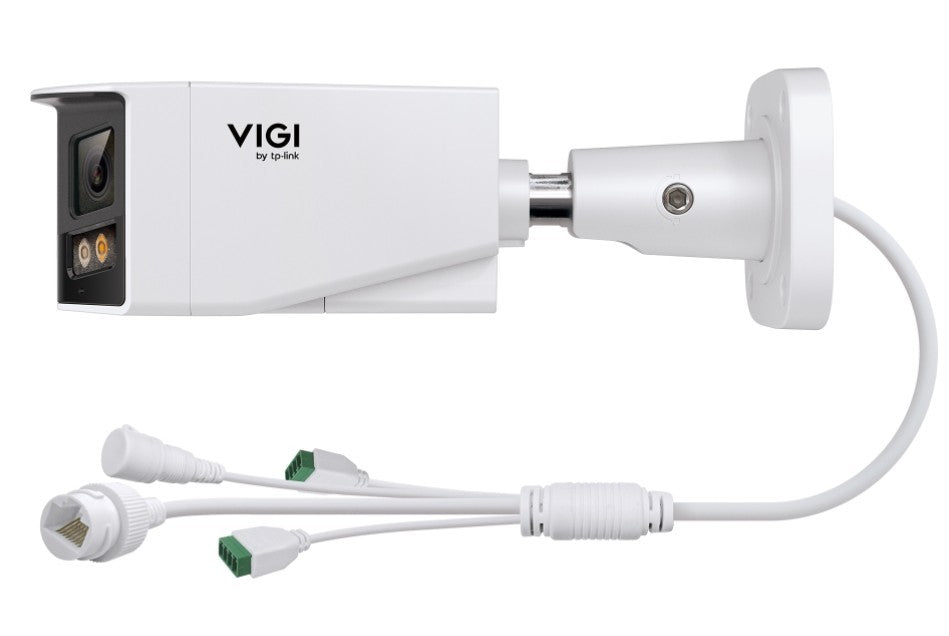

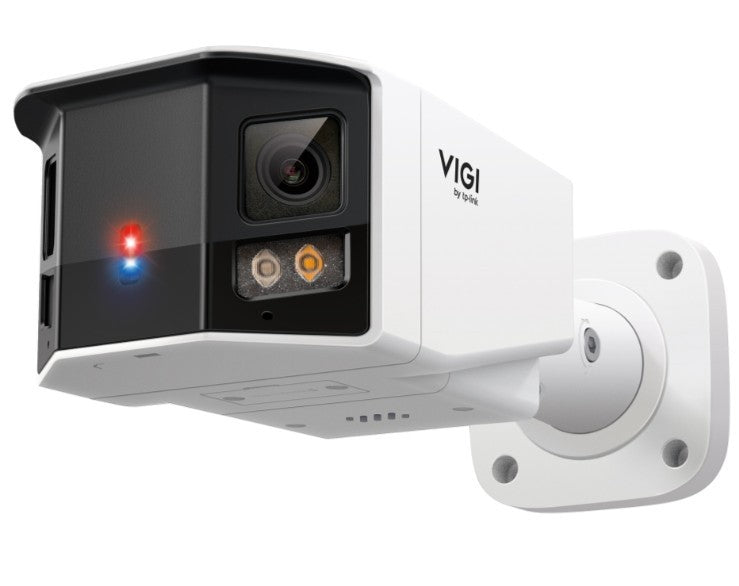

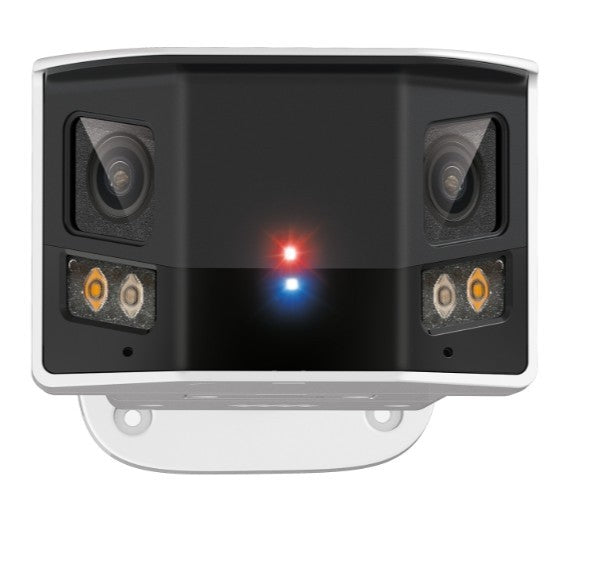

TP-LINK Camera InSight S385DPS
Specifications
| Description | InSight S385DPS VIGI panoramic outdoor bullet-style network camera, ColorPro, 8MP 8MP resolution Panoramic view from two lenses ColorPro night vision in very low-light conditions Audible alarm and red-and-blue warning lights People and vehicle analytics People and vehicle classification Smart detection Intelligent video correction technology Audio and alarm interface available IP67 protection rating IK10 impact resistance rating H.265+ compression technology |
|---|---|
| type | Fixed bullet type camera |
| Resolution | 5456 x 1520 |
| Frames per second | 25 |
| Sensor | Dual 1/1.79 Progressive Scan CMOS sensors |
| Lens | Type: Fixed focal length lenses Focal length: 5 mm Aperture: Dual F1.0 lenses Lens mount: M16 |
| Viewing angle, vertical | 51 |
| Viewing angle, horizontal | 180 |
| Visual angle diagonal | 180 |
| Microphone | built-in |
| Microphone | Yes |
| Speakers built-in | Yes |
| Two-way transmission | Yes |
| Night mode | Yes |
| Motion detection | Yes |
| Min. illuminance | 0.0005 |
| Security | Transmission security: Password protection, HTTPS encryption, IP filter, Digest authentication, 802.1X authentication |
| Management, monitoring, configuration | Smart Events Intrusion Detection Line Crossing Detection Zone Entry Detection Zone Exit Detection Loitering Detection People Detection Vehicle Detection Unexpected Sound Detection Scene Change Detection Basic Events Motion Detection (supported by People and Vehicle Classification for more accurate alerts) Camera Tamper Detection Exception (Invalid Login) Device Alarm Input Alarm Connection Video Recording to Memory Card Upload to FTP Server Device Alarm Output Push Notifications Upload to Alarm Server Active Defense - Audio Alarm Active Defense - Light Alarm Email Alarm |
| Network protocols | Supported protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| Audio compression | G.711a |
| Video compression | H.265 |
| Video compression | H.264+ |
| Video compression | H.265+ |
| Video compression | H.264 |
| Memory card reader | Yes |
| Memory standard | SDHC |
| Memory standard | SD |
| Memory standard | SDXC |
| Wireless communication | No |
| Connectors | RJ-45 |
| Protection class | IP67 |
| Impact protection | IK10 |
| Power supply | 12V DC +/- 5%, Max. 18W, 5.5 mm Coaxial Power Plug PoE: 802.3at, Class 4, Max. 21W |
| Environment requirements | Operating Temperature: -30°C to 60°C Storage Temperature: -40°C to 60°C Humidity: 95% or less (non-condensing) Storage Humidity: 95% or less (non-condensing) |
| Accessories included | Quick Installation Guide Cable Sealing Elements Mounting Accessories |
| Color | White |
| Dimensions | 266 × 116 × 90 mm |
| Weight | 1.12 |
| Certificates | CE, NTRA, VCCI, KC, BSMI, FCC, ONVIF |
