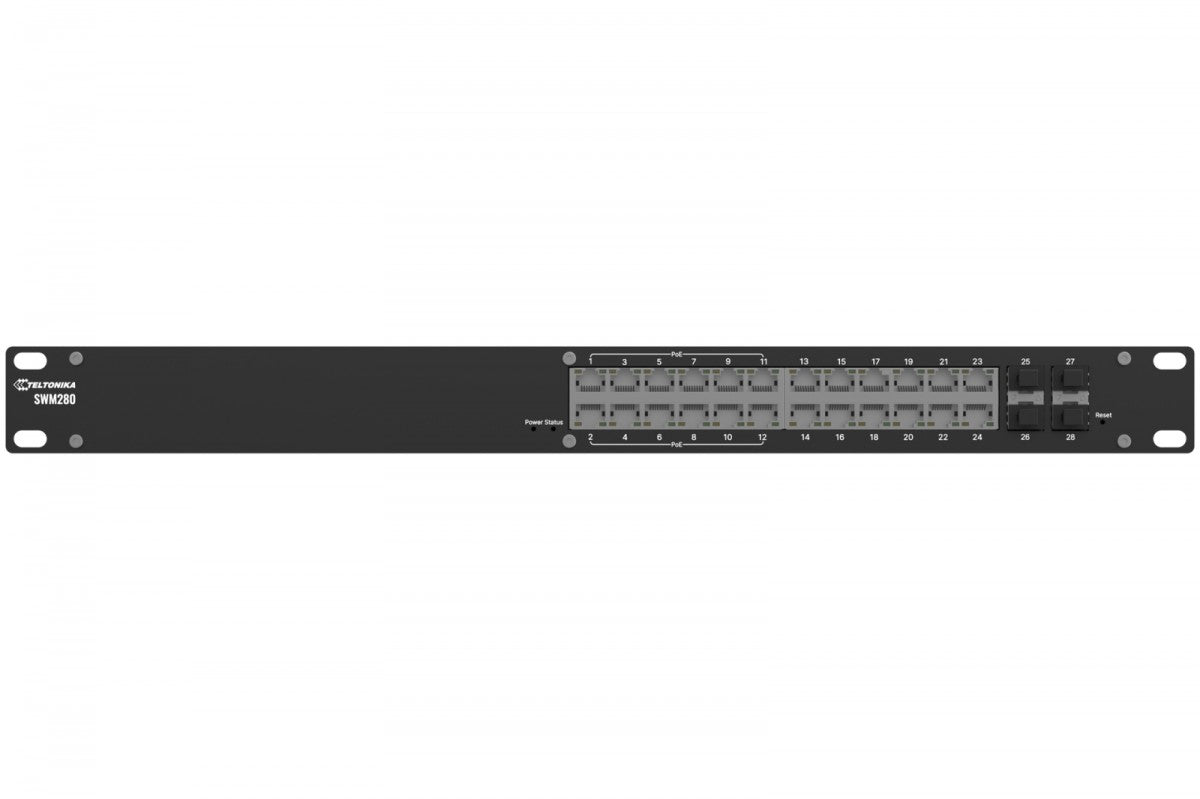

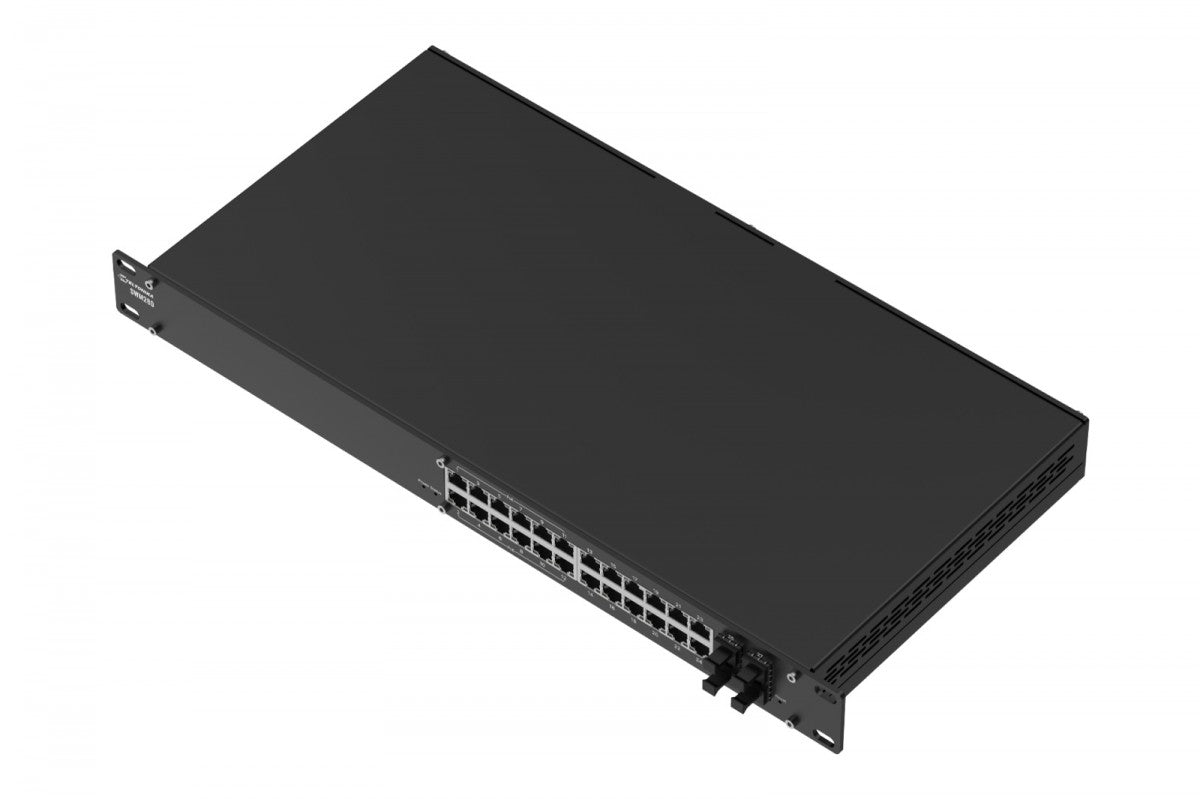

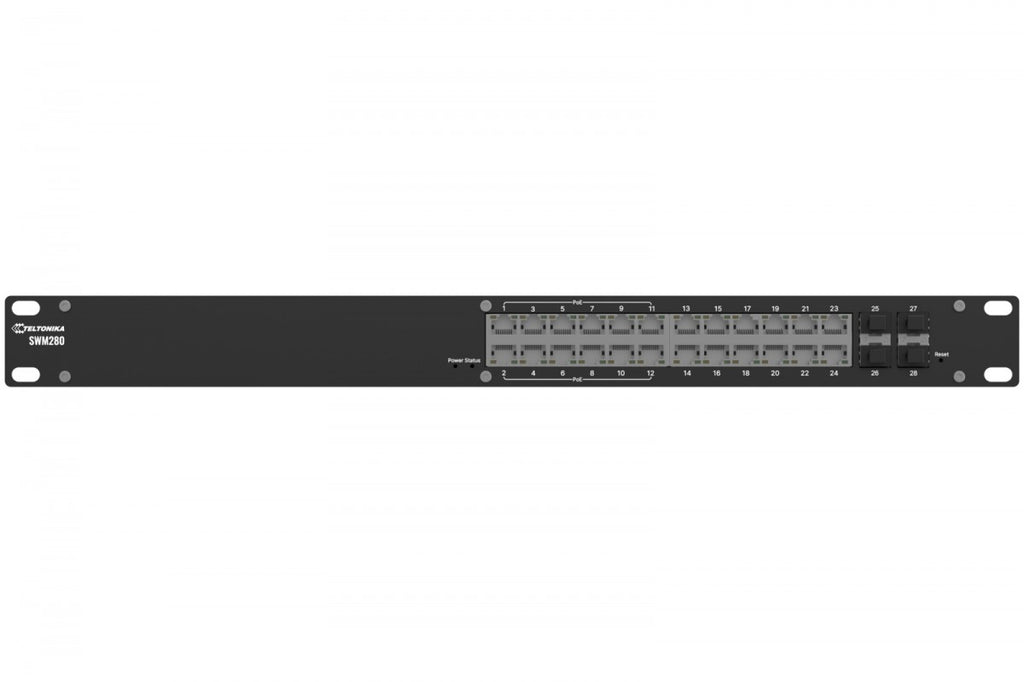

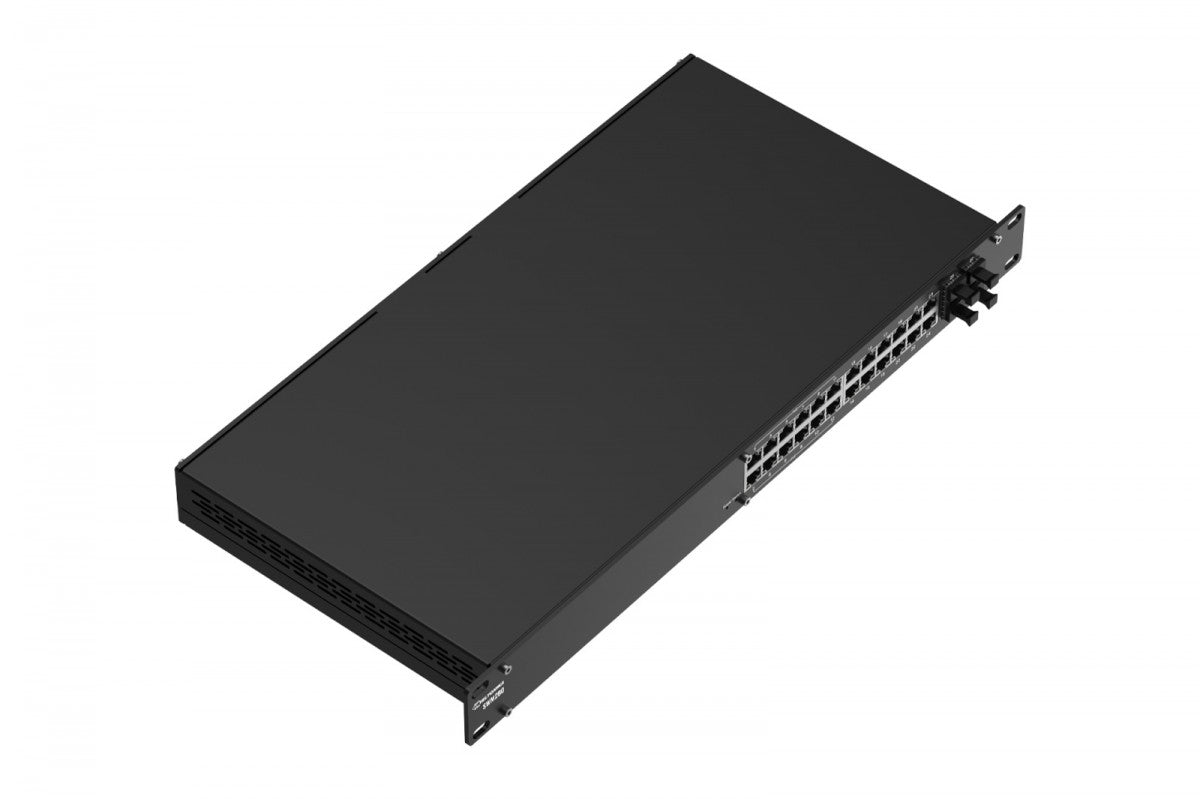

TELTONIKA Switch SWM280000200
Specifications
| Description | SWM280 SWM280 PoE+ managed switch The SWM280 is a powerful L2 managed switch with L3 features for advanced network control. Designed for high-performance connectivity, this 24-port switch combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP ports. The PoE+ supply up to 30 W per port and a total power budget of 300 W. The SWM280 supports PROFINET & other industrial protocols, enabling flexibility over management and power supply. PoE+ Deliver power and data through 12 PoE+ ports with up to 30W per port. L2+ Advanced routing protocols & VLAN segmentation. Cloud-enabled Shipped with 2 years of RMS Management. Protocols Profinet, MRP, and EtherNet/IP for mixed industrial environments. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L2+ |
| Network architecture | GigabitEthernet |
| Number of 10/100/1000 Mbps ports | 24 |
| Number of PoE+ ports | 12 |
| Number of SFP ports | 4 |
| Console port | No |
| Throughput | 56 |
| Forwarding rate | 83.33 |
| Packet buffer | 512 |
| MAC address table size | 8000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 10 |
| Stackability | No |
| VLAN | Port VLAN separation |
| Supported protocols and standards | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3az IEEE 802.3ad IEEE 802.1p IEEE 802.1x IEEE 802.1Q VLAN IEEE 802.3af IEEE 802.3at |
| QoS | QOS: Port priority, DSCP priority, 802.1p priority, TOS Scheduling method: SP/WFQ/WRR Bandwidth control: Rate limiting, storm control Traffic Shaper: Port-based shaping |
| Security | Authentication: PAM - preshared key, Radius & TACACS+, IP & login attempts block VLAN: Port VLAN separation 802.1x: Port-based network access control client and server MAC filtering support: Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected |
| Management, monitoring, configuration | WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) |
| L2 features | Loop protection Forwarding table VLAN STP/RSTP |
| L3 features | Static IPv4 routing Static IPv6 routing DHCPv6 client Static IPv6 address |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 300 |
| Environment requirements | Operating temperature: 0 °C to 50 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30 |
| Accessories included | SWM280 L2+ managed switch QSG (Quick Start Guide) |
| Power supply | Input voltage range: 100-240 VAC, 50/60 Hz Power consumption: Idle: 7.5 W / Max: 325 W / PoE Max: 300 W |
| Dimensions | 483 x 44 x 234 mm |
| Weight | 1842 |
