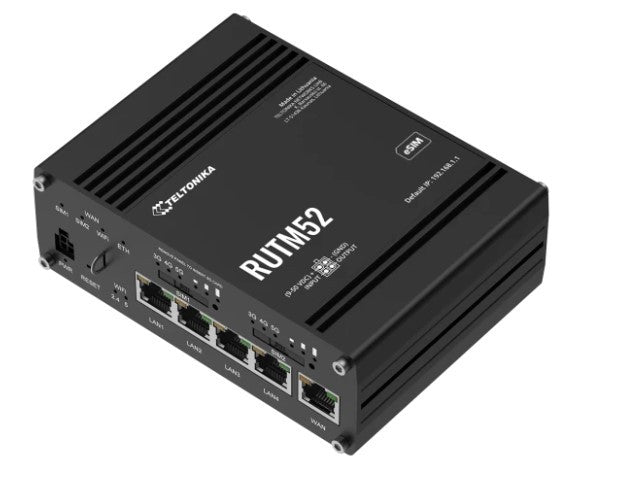

TELTONIKA RUTM52 Dual 5G Router
Specifications
| Model | RUTM52 |
|---|---|
| Description | The RUTM52 is a future-proof 5G router designed for mission-critical applications, featuring dual 5G modems, multi-WAN capability, and failover to 4G LTE Cat 20. With dual SIM card slots, eSIM support, and compatibility with 5G SA and NSA architectures, it ensures fast and uninterrupted connections today and in the future. Load balancing, Wi-Fi 5, and five Gigabit Ethernet ports enhance performance, while RutOS, with its industrial protocols and a variety of VPNs, makes it versatile for complex configurations. Compatible with RMS, the RUTM52 is ideal for secure and efficient remote management. |
| Type | v |
| Data transmission | LTE |
| LTE network | 2100 MHz |
| LTE network | 2300 MHz |
| LTE network | 2500 MHz |
| LTE network | 700 MHz |
| LTE network | 800 MHz |
| LTE network | 1800 MHz |
| LTE network | 850 MHz |
| LTE network | 900 MHz |
| LTE network | 1500 MHz |
| LTE network | 2600 MHz |
| LTE network | 3400 MHz |
| LTE network | 3600 MHz |
| Aero2 support | No |
| Standards | 802.11v |
| Standards | 802.11k |
| Standards | 802.11s |
| Standards | 802.11r |
| Standards | 802.11n |
| Standards | 802.11ac |
| Standards | 802.11b |
| Standards | 802.11g |
| Standards | IPv4 |
| Standards | IPv6 |
| Operating frequency | Not applicable |
| Operating frequency | 6 GHz |

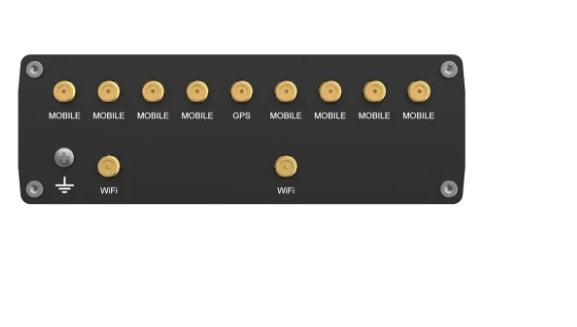

| Number of antennas | 8-connectors |
| Antenna | Detachable external |
| Security | Authentication Pre-shared key Digital certificates X.509 certificates TACACS+ User authentication for internal and external RADIUS servers IP blocking and login attempts Time-based login blocking Built-in random password generator Firewall Pre-built firewall rules that can be activated via the WebUI Unlimited firewall configuration via CLI DMZ (demilitarized zone) NAT (network address translation) NAT-T Attack prevention DDOS attack protection (SYN flood prevention) SSH attack prevention HTTP/HTTPS attack protection Port scan protection (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN Port-based and tag-based VLAN separation Control Mobile data quotas Mobile data limits Customizable period and start time Warning thresholds Phone number management Web filter Blacklist to block unwanted websites Whitelist to specify only allowed websites Access control Flexible access control to SSH, web interface, CLI, and Telnet SSL certificate generation Let's Encrypt support |
| Management, monitoring, configuration | WEB UI Access: HTTP/HTTPS Features: Device Status, Configuration, Firmware (FW) Update, CLI Access, Diagnostic Tools, Multiple Event Log Server Support, Software Update Notifications, Event Log, System Log, Internet Connection Status FOTA (Firmware Over-The-Air) Firmware Update from Server Automatic Notifications SSH SSH Protocol Support (v1, v2) SMS SMS Status SMS Configuration Sending/Receiving SMS Messages via HTTP POST/GET Voice Calls (Call) Features: Device Restart, Status, Mobile Data On/Off, Output On/Off, Answer/Disconnect Calls Using a Timer, Wi-Fi On/Off Email Service Status Notifications via Email TR-069 Supports the following systems: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem MQTT Support: MQTT Broker, MQTT Publisher SNMP (Simple Network Management Protocol) SNMP Support (v1, v2, v3) SNMP Trap Brute force attack protection JSON-RPC API management via HTTP/HTTPS RMS (Remote Management System) Remote management via Teltonika RMS |
| Card reader | None |
| Memory standard | Not applicable |
| I/O ports | 5 x 10/100/1000 Mbit/s |
| I/O ports | 2 x SIM card slot |
| SIM card | Mini |
| Power supply | Connector 4-pin industrial DC power jack Input voltage range 9-50 VDC Reverse polarity protection Surge protection >51 VDC, max. 10 s PoE (Power over Ethernet - passive) Power supply via LAN port Not compatible with IEEE802.3af, 802.3at, and 802.3bt Mode B Voltage range: 9-50 VDC Power consumption Idle: |
| Software | RutOS (OpenWrt-based Linux operating system) |
| Environment requirements | Operating temperature: -40°C to 75°C Operating humidity: 10% to 90%, non-condensing Protection class: IP30 |
| Color | Black |
| Weight | 560 |
| Dimensions | 132 x 44.2 x 95.1 mm |
