TELTONIKA Router RUTC41000000
Specifications
| Model | RUTC41 |
|---|---|
| Description | RUTC41 4G EDGE ROUTER Bring powerful on-site computing to your industrial deployments with the RUTC41 edge router. This high-performance yet compact and versatile device combines 4G Cat 4 connectivity with advanced processing power and dual-band Wi-Fi 6. Built-in Docker support allows you to run containerized applications directly on the router. Equipped with 1 GB RAM, a dual-core 1.3 GHz CPU, and industrial-grade RutOS features, the RUTC41 delivers secure networking, cloud integration, and real-time data logger in one rugged device. 4G Cat 4 Enable smarter edge computing over 4G. ENHANCED PROCESSING Dual-core CPU, 1 GB RAM, and 8 GB flash memory. DOCKER SUPPORT Run Docker containers directly on the router to deploy custom solutions. Wi-Fi 6 Dual-band multi-user MIMO for superior wireless performance. |
| Type | GSM 3G/4G |
| Type | xDSL |
| Data transmission | GPRS |
| Data transmission | LTE |
| Data transmission | UMTS |
| Max download speed | 150 |
| Max upload speed | 50 |
| Aero2 support | No |
| Standards | 802.3u |
| Standards | 802.11s |
| Standards | 802.11v |
| Standards | 802.11k |
| Standards | 802.3 |
| Standards | 802.11r |
| Standards | 802.3az |
| Standards | 802.11n |
| Standards | 802.11b |
| Standards | 802.11g |
| Standards | 802.11ac |
| Standards | 802.11ax |
| Standards | 802.11e |
| Operating frequency | 2,4 GHz |
| Operating frequency | 5 GHz |
| Number of antennas | Five connectors |
| Antenna | Detachable external |
| Management, monitoring, configuration | WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) SMS: SMS status, SMS configuration Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off Email: Receive email message status alerts of various services TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT: MQTT Broker, MQTT publisher SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection JSON-RPC: Management API over HTTP/HTTPS RMS: Teltonika Remote Management System (RMS) |
| Security | Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) 802.1x: Port-based network access control client and server support Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag-based VLAN separation Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number WEB filter: Block list for blocking out unwanted websites, allow list for specifying allowed sites only Access control: Flexible access control of SSH, Web interface, CLI and Telnet Certificate Manager: Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates |
| Card reader | None |
| Memory standard | Not applicable |

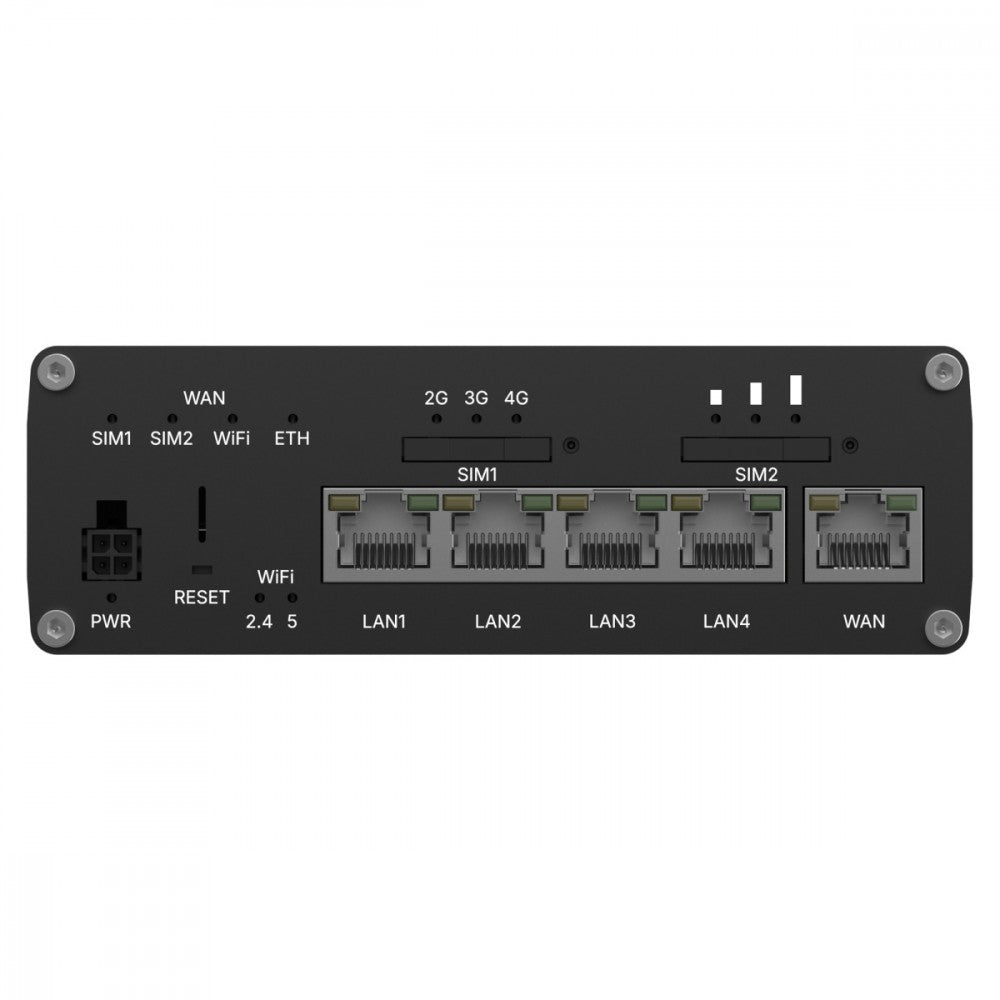

| I/O ports | 4 x 10/100/1000 Mbit/s PoE |
| I/O ports | 1 x WAN (RJ-45) |

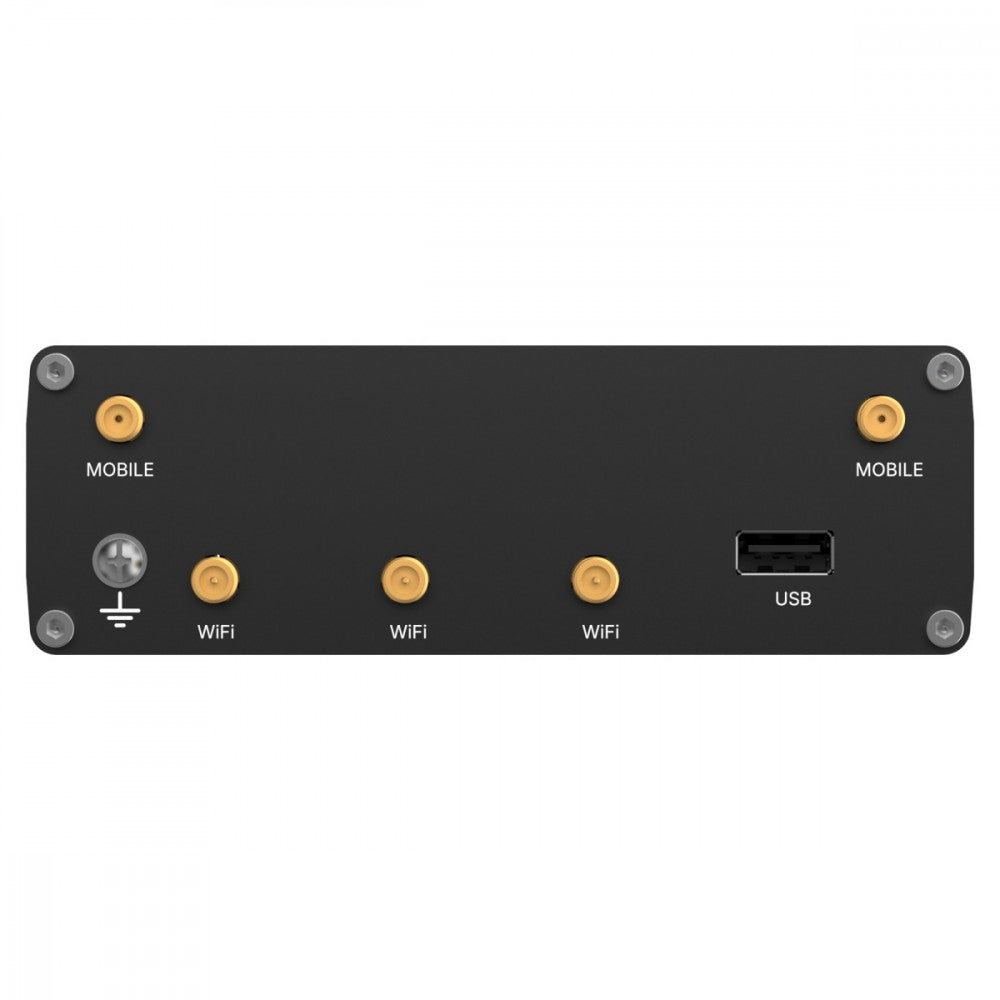

| I/O ports | 1 x USB 2.0 Type A |
| I/O ports | 2 x SIM card slot |
| SIM card | eSIM |
| SIM card | Mini |
| Power supply | Input voltage range: 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC |
| Environment requirements | Operating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30 |
| Accessories included | RUTC41 Router 24 W PSU 2 x Mobile antennas (swivel, SMA male) 3 x Wi-Fi antennas (magnetic mount, RP-SMA male) Ethernet cable (1.5 m) SIM Adapter kit QSG (Quick Start Guide) |
| Color | Black |
| Weight | 480 |
| Dimensions | 130.4 x 42.6 x 104 mm |
| Other features | Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/ 5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Mbps |
