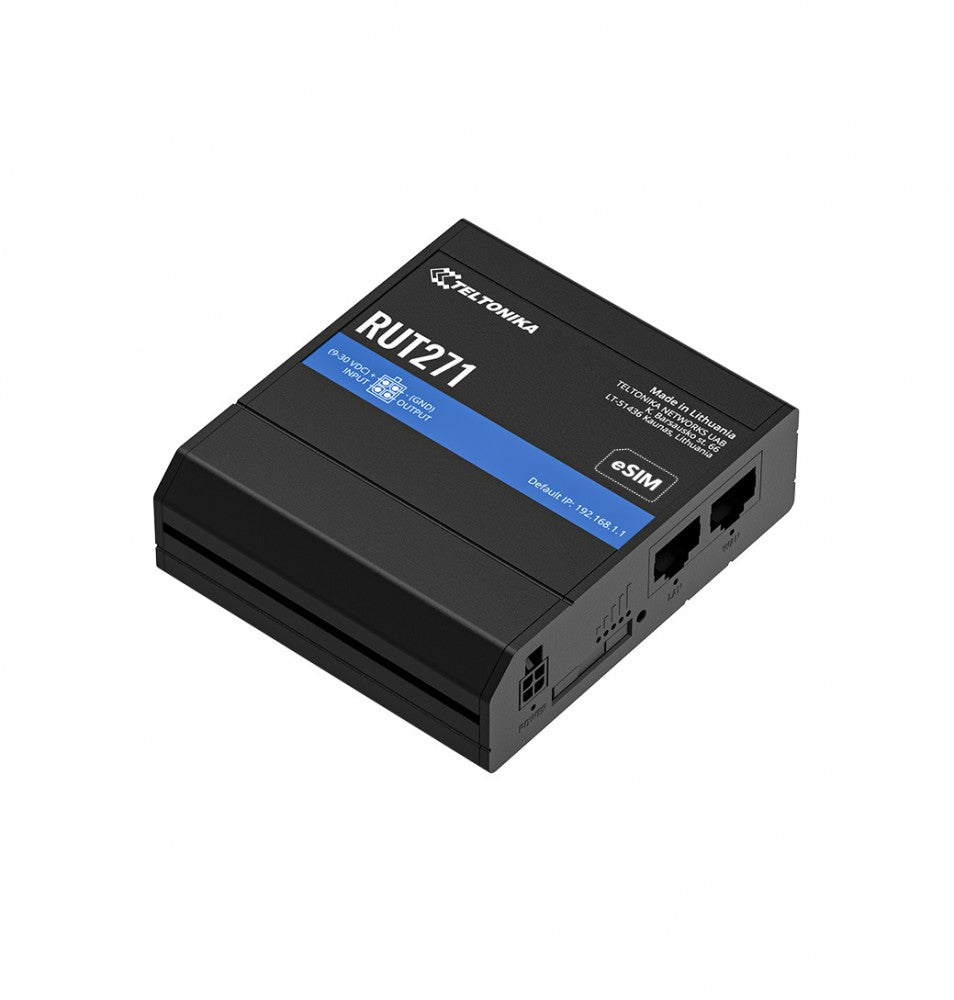

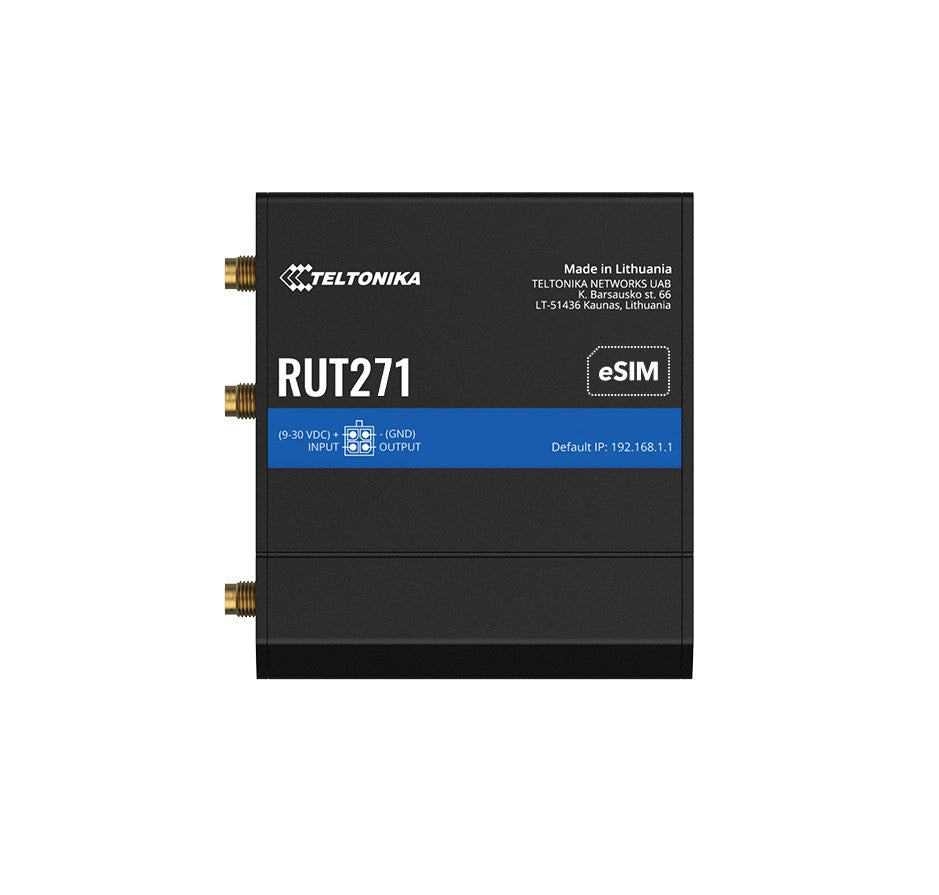

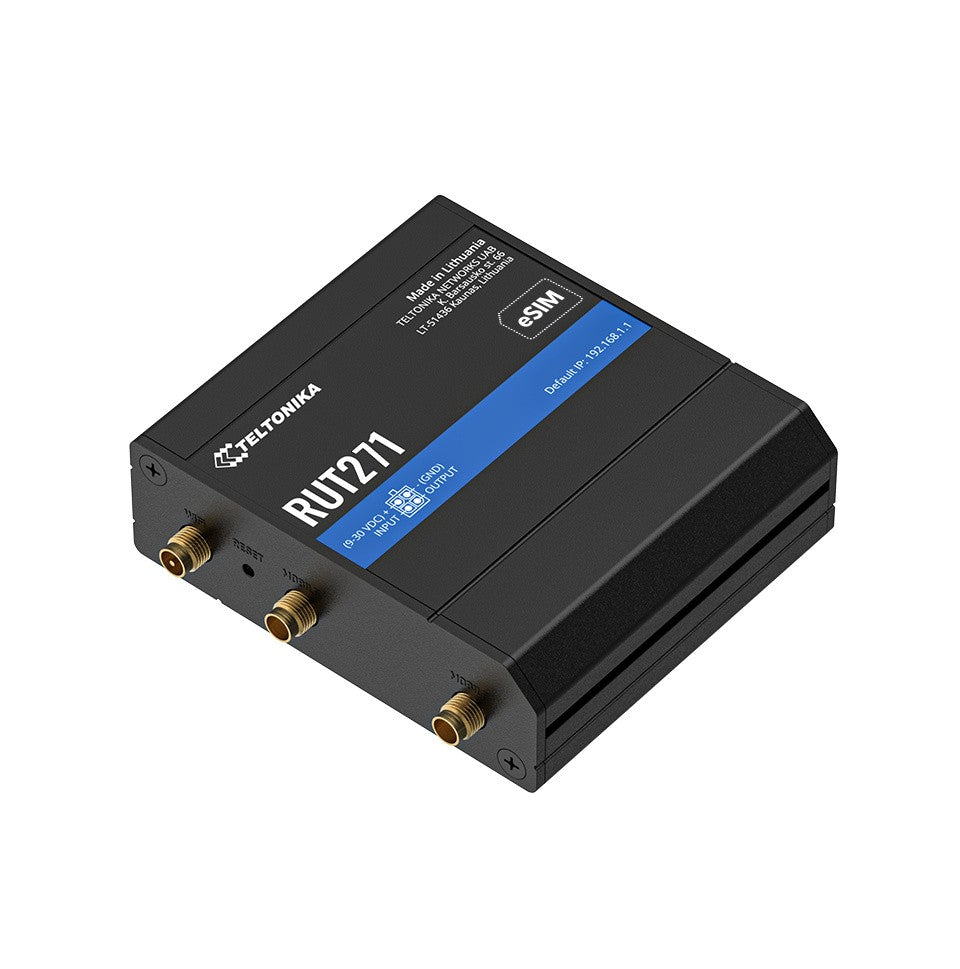

TELTONIKA Router RUT271000000
Specifications
| Model | RUT271 |
|---|---|
| Description | RUT271 REDCAP 5G ROUTER The RUT271 is a Redcap 5G router, bridging the gap between 4G and full-capacity 5G. Supporting SA architecture, this 5G router can wirelessly support up to 50 end devices and features the low latency of 5G - at affordable pricing. The RUT271 supports Wi-Fi and is backward compatible with 4G LTE Cat 4. This industrial-grade RedCap 5G router is also equipped with WAN failover, two 10/100 RJ45 ports, a compact and durable design, and numerous other brilliant features for expert professional deployment. REDCAP 5G Low latency, high capacity, affordable pricing. FUTURE-PROOFING Backward compatible with 4G LTE Cat 4. WI-FI Wireless access point with Hotspot functionality. WAN FAILOVER Automatic switching to available backup connection. |
| Type | GSM 3G/4G |
| Type | v |
| Data transmission | 5G |
| Data transmission | LTE |
| LTE network | 900 MHz |
| LTE network | 3500 MHz |
| LTE network | 800 MHz |
| LTE network | 1800 MHz |
| LTE network | 2600 MHz |
| LTE network | 850 MHz |
| LTE network | 2100 MHz |
| LTE network | 700 MHz |
| LTE network | 2500 MHz |
| LTE network | 1900 MHz |
| LTE network | 2300 MHz |
| LTE network | 1700 MHz |
| LTE network | 2000 MHz |
| LTE network | 600 MHz |
| LTE network | 3700 MHz |
| 5G network | 4500 MHz |
| 5G network | 1700 MHz |
| 5G network | 700 MHz |
| 5G network | 800 MHz |
| 5G network | 850 MHz |
| 5G network | 900 MHz |
| 5G network | 1800 MHz |
| 5G network | 2100 MHz |
| 5G network | 2300 MHz |
| 5G network | 2600 MHz |
| 5G network | 2500 MHz |
| 5G network | 3500 MHz |
| 5G network | 3700 MHz |
| 5G network | 1900 MHz |
| 5G network | 600 MHz |
| 5G network | 2000 MHz |
| Max download speed | 223 |
| Max upload speed | 123 |
| Aero2 support | No |
| Standards | 802.11b |
| Standards | 802.11n |
| Standards | 802.11s |
| Standards | 802.11w |
| Standards | 802.11v |
| Standards | 802.11k |
| Standards | 802.3 |
| Standards | 802.1x |
| Standards | 802.11r |
| Standards | 802.3az |
| Standards | 802.11e |
| Standards | 802.11g |
| Standards | 802.3u |
| Antenna | Detachable external |
| Security | Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag-based VLAN separation Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number WEB filter: Block list for blocking out unwanted websites, allow list for specifying allowed sites only Access control: Flexible access control of SSH, Web interface, CLI and Telnet Certificate Manager: Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates 802.1x: Port-based network access control server |
| Special functions | WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) SMS: SMS status, SMS configuration Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off Email: Receive email message status alerts of various services TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT: MQTT Broker, MQTT publisher SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection JSON-RPC: Management API over HTTP/HTTPS RMS: Teltonika Remote Management System (RMS) |
| Card reader | None |
| Memory standard | Not applicable |
| I/O ports | 1 x 10/100 Mbit/s PoE |
| I/O ports | 1 x 10/100 Mbit/s WAN |
| I/O ports | 1 x SIM card slot |
| SIM card | Mini |
| SIM card | eSIM |
| Power supply | Connector: 4-pin industrial DC power socket Input voltage range: 9 - 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC Power consumption: Idle: |
| Certificates | CE UKCA FCC IC (ISED) RCM CB WEEE |
| Environment requirements | Operating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30 |
| Accessories included | Router RUT271 9 W PSU 2 x Mobile 5G antennas (swivel, SMA male) WiFi antenna (swivel, RP-SMA male) Ethernet cable (1.5 m) SIM Adapter kit QSG (Quick Start Guide) |
| Color | Black |
| Weight | 130 |
| Dimensions | 83 x 25 x 74 mm |
| Other features | Mobile module: 5G Sub-6Ghz SA 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4 - LTE 195 Mbps DL, 105 Mbps UL |
