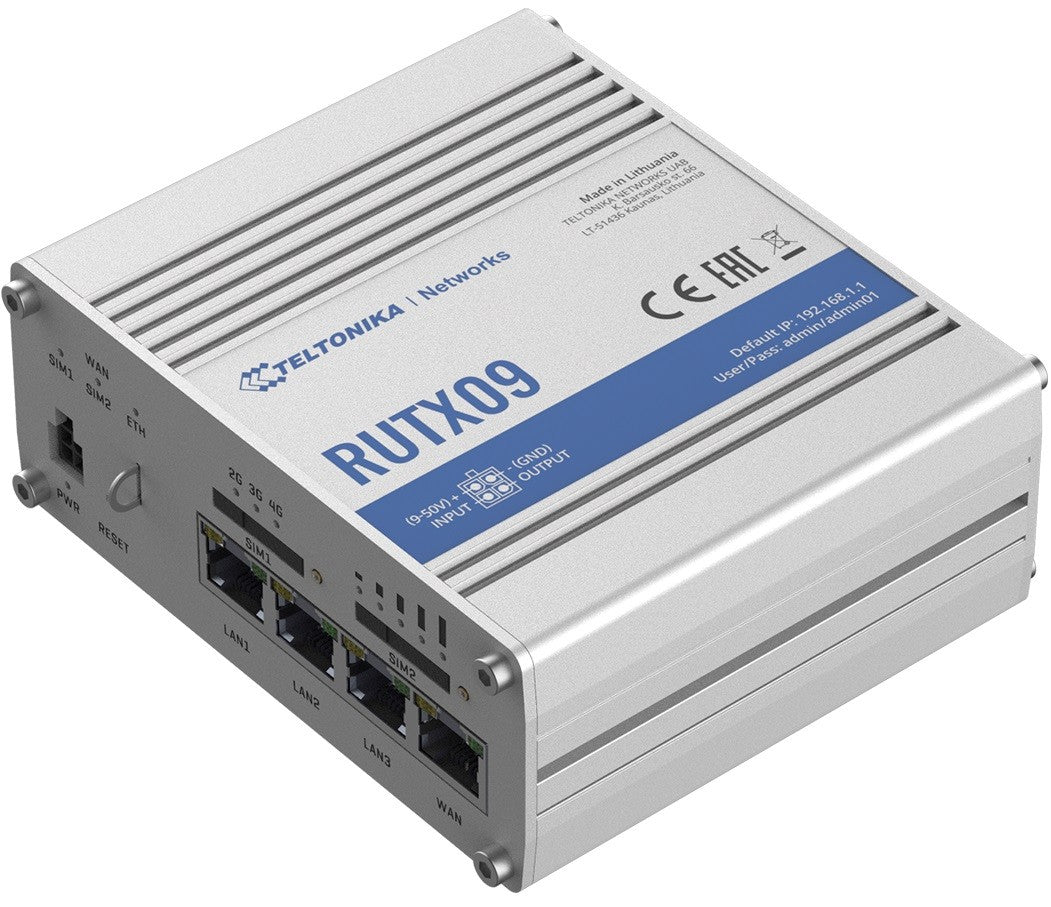

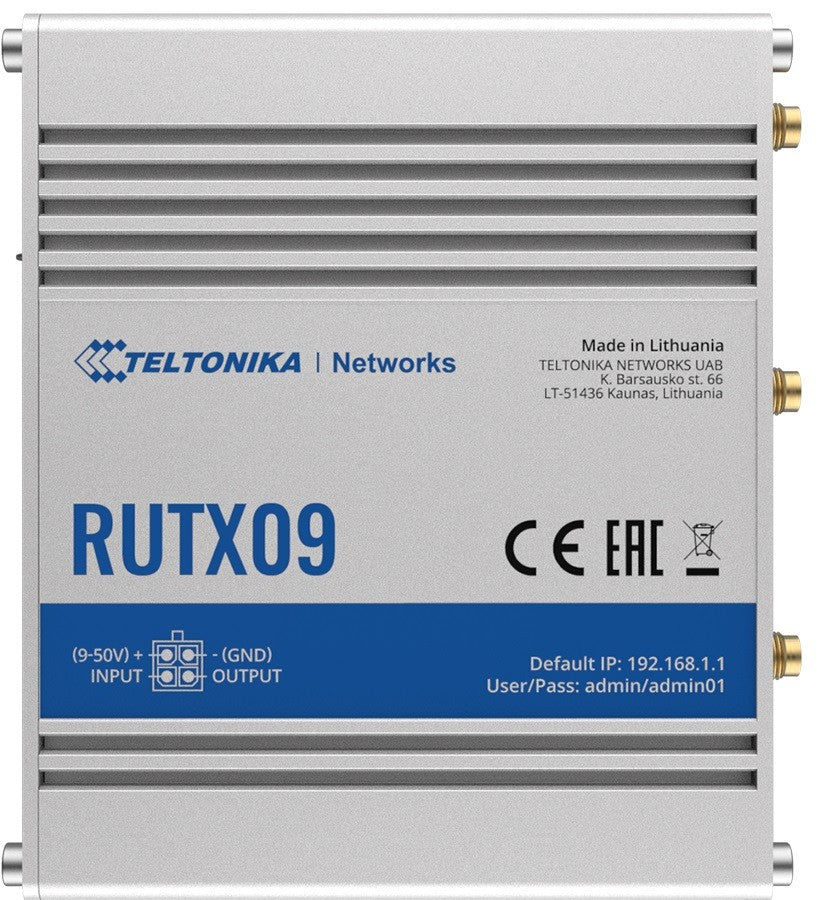

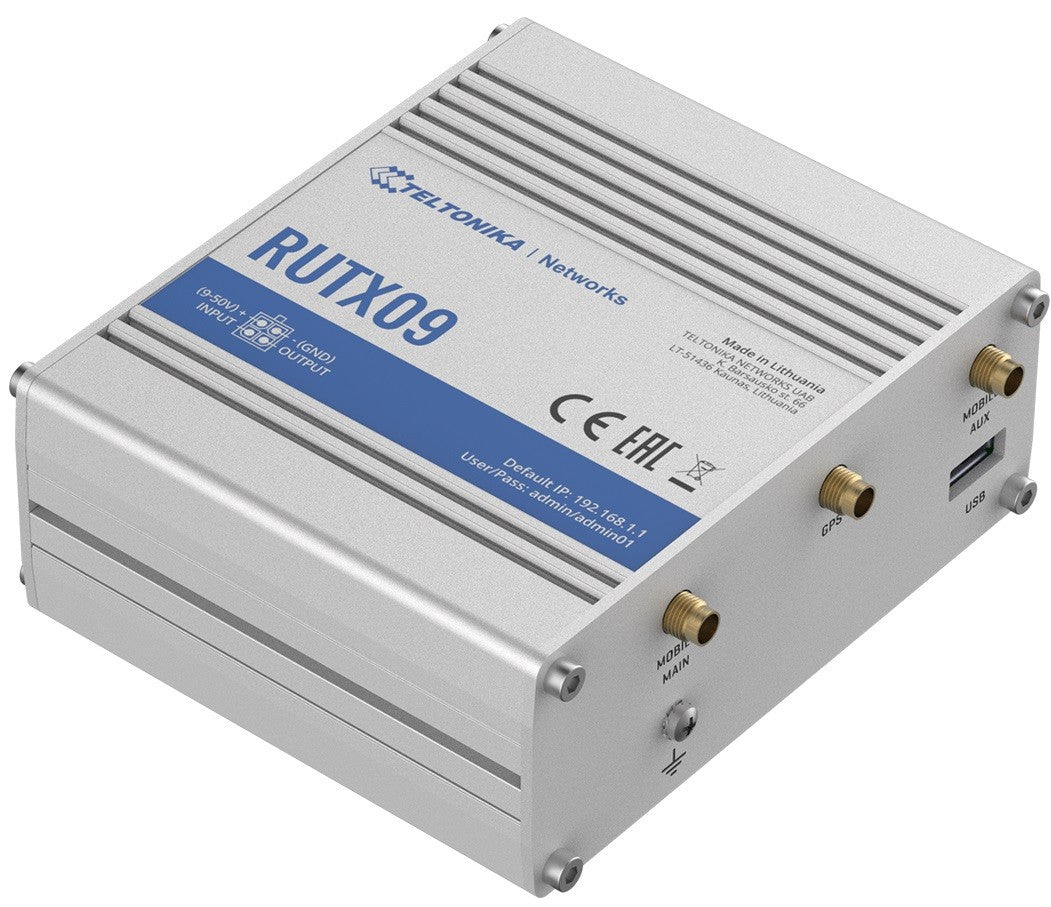

TELTONIKA Router LTE RUTX09 (Cat 6), 4xGbE, GNSS
Specifications
| Model | RUTX09 |
|---|---|
| Description | RUTX09 router RUTX09 is a LTE-A Cat 6 mobile IoT router with dual SIM slots, carrier aggregation and 4 Gigabit Ethernet interfaces. RUX09 can achieve speeds of up to 300 Mbps and is suitable as a primary, backup Internet source in solutions that require a reliable Internet connection and high data throughput. The RutOS operating system based on Open WRT provides support for many applications and security functions: firewall, VPN, Ipsec, SNMP, content filtering and many others. This product is compatible with our Remote Control System (RMS) for convenient monitoring, maintenance and data collection. |
| Type | GSM 3G/4G |
| Data transmission | LTE |
| UMTS network | 2100 MHz |
| UMTS network | 1800 MHz |
| UMTS network | 900 MHz |
| UMTS network | 850 MHz |
| LTE network | 2600 MHz |
| LTE network | 850 MHz |
| LTE network | 900 MHz |
| LTE network | 2300 MHz |
| LTE network | 700 MHz |
| LTE network | 800 MHz |
| LTE network | 1500 MHz |
| LTE network | 1800 MHz |
| LTE network | 2100 MHz |
| LTE network | 2500 MHz |
| Aero2 support | No |
| Standards | 802.3 |
| Standards | 802.3az |
| Standards | 802.3u |
| Antenna | Detachable external |
| Management, monitoring, configuration | Cellular features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits Network protocols: SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet Network: Failover (Network backup), VLAN, QoS, Load Balancing Management and monitoring: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Moble operator GNSS: NMEA forwarding, AVL, Geofencing Services: DDNS, VRRP, Wake On Lan (WOL), WEB lter, UPNP, Network shares (Samba), Trac Logging Administration: Multi user, Conguration proles, Diagnostics, logs, Conguration backup |
| Security | Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag based VLAN separation Mobile quota control: Custom data limits for both SIM cards WEB filter: Blacklist for blocking unwanted out websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| Card reader | None |
| I/O ports | 1 x USB 2.0 |
| I/O ports | 2 x SIM card slot |
| I/O ports | 4 x 10/100/1000 Mbit/s |
| SIM card | Mini |
| Power supply | 4pin power socket, 9-50 VDC |
| Software | RutOS (OpenWrt based Linux OS) |
| Environment requirements | Operating temperature: -40 C to 75 C Humidity during operation: 10% to 90% non-condensing |
| Accessories included | RUTX09 router 18W power supply 2 x LTE antenna (swivel, SMA male) GNSS antenna (adhesive, SMA male, 3 m cable) SIM Adapter kit Ethernet cable (1.5 m) Brief user manual RMS leaflet |
| Color | Aluminium |
| Weight | 455 |
| Dimensions | 115 x 44 x 95 mm |
| Other features | Network support: 4G/LTE (Cat 6), 3G CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz Memory: 256 MBytes Flash, 256 MBytes RAM GNSS support: GPS, GLONASS, BeiDou, Galileo, QZSS Status LED: 3 x WAN type, 2 x connection type, 5 x signal strength, 8 x Ethernet, power |
