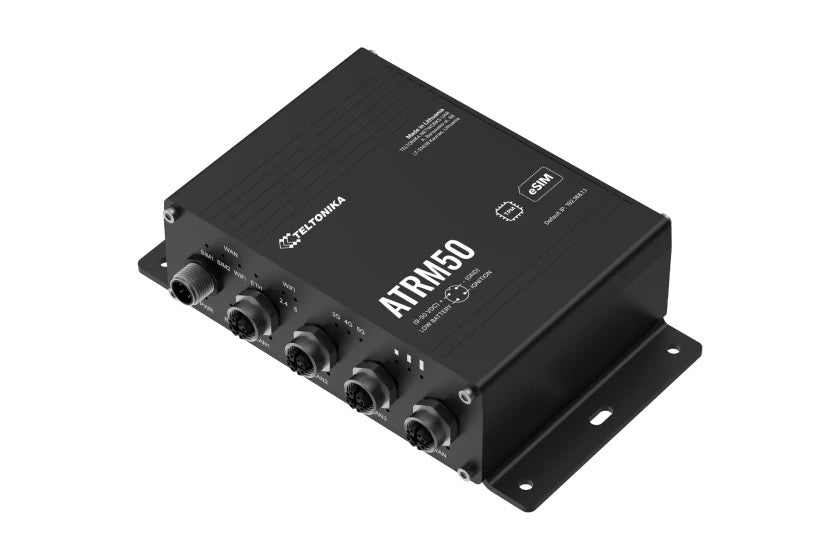

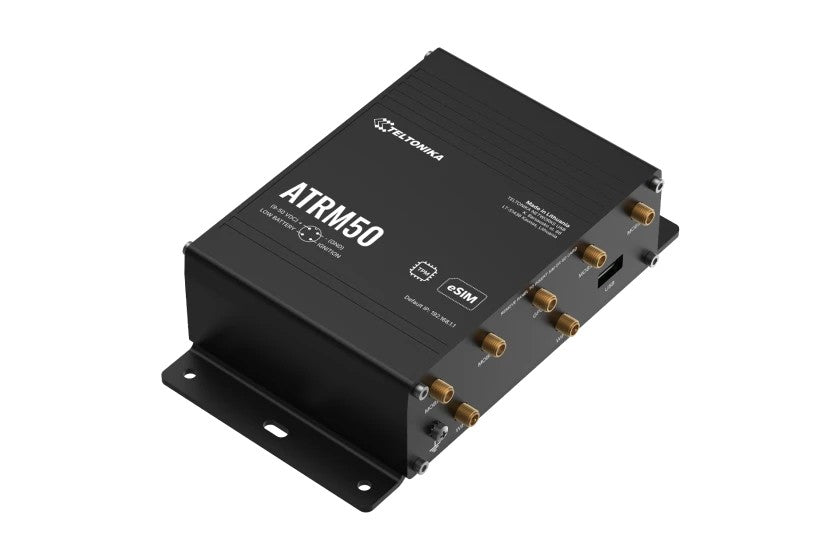

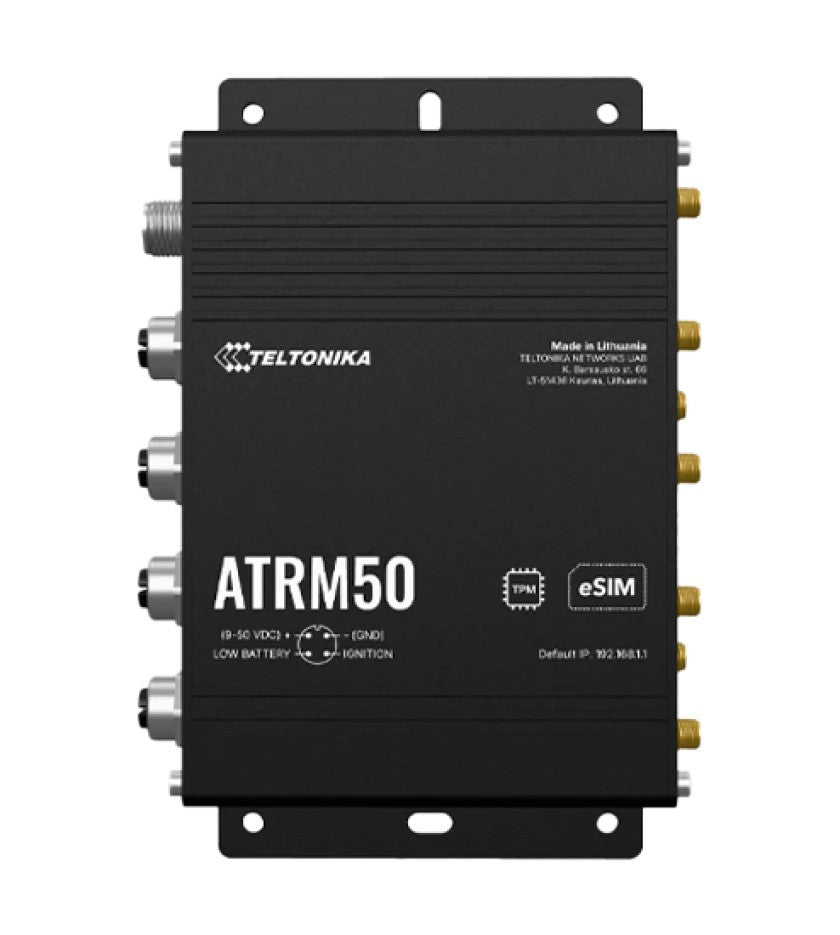

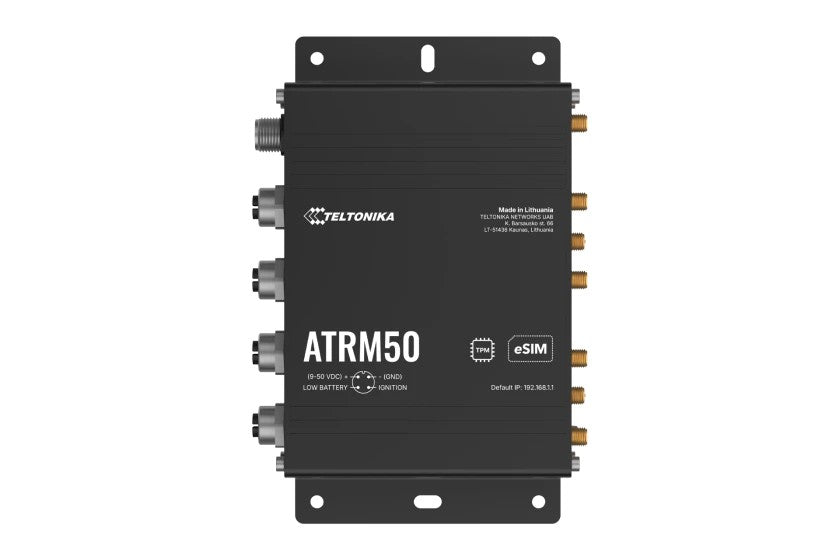

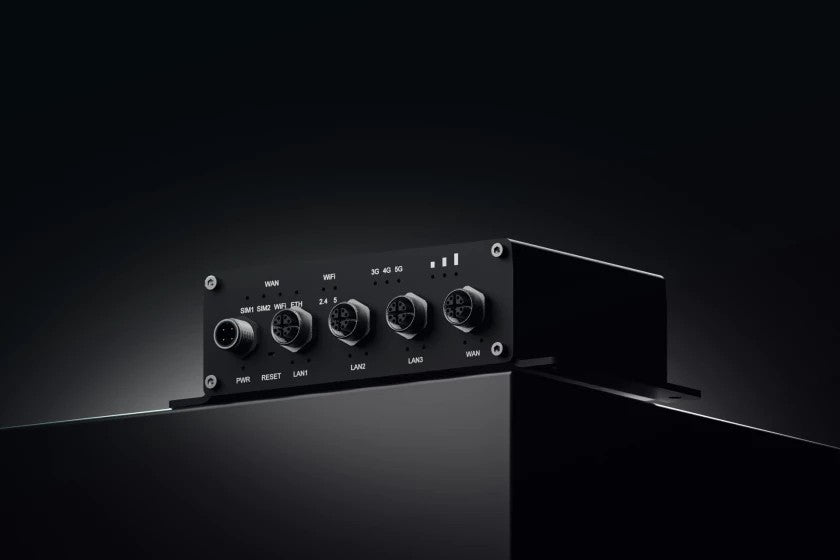

TELTONIKA Router ATRM50
Specifications
| Model | ATRM50 |
|---|---|
| Description | ATRM50 - Rugged 5G Router for Transportation The ATRM50 is a durable 5G router designed for transportation applications, featuring 4 Gigabit Ethernet M12 ports and an M12 power input, ensuring robust and secure connections. It delivers ultra-high cellular data speeds of up to 3.4 Gb/s and supports dual SIM cards with eSIM technology for seamless failover. Certified to EN 45545-2 and EN 50155 standards, the ATRM50 is engineered to meet the stringent safety and reliability requirements of railway systems while also performing exceptionally in other demanding transport environments. The router comes equipped with GNSS, an integrated mounting bracket, and RMS compatibility, enabling efficient on-site and remote management. |
| Type | xDSL |
| Network architecture | GigabitEthernet |

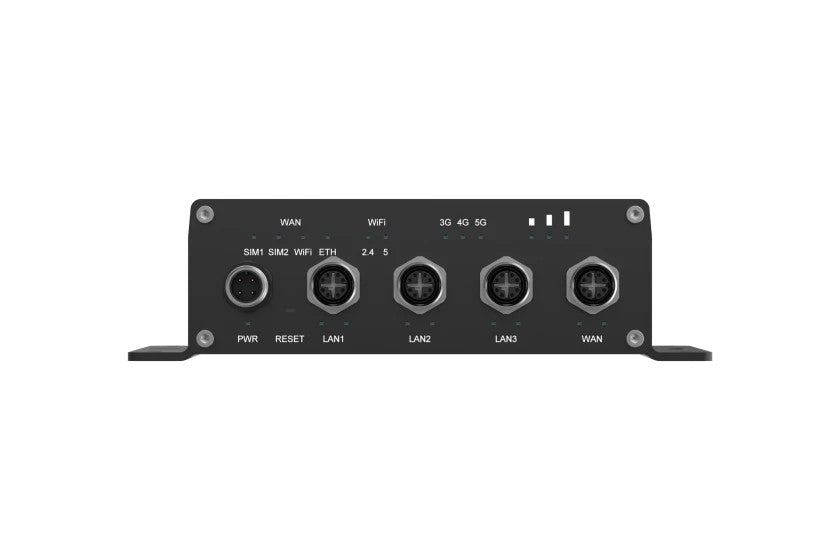

| I/O ports | 1 x 10/100/1000Base-T RJ-45 port (WAN) |
| I/O ports | 3 x 10/100/1000 Mbit/s |
| Standards | 802.11ac |
| Standards | 802.11b |
| Standards | 802.11g |
| Standards | 802.11n |
| Standards | 802.11r |
| Standards | 802.11s |
| Standards | 802.11v |
| Standards | 802.11k |
| Operating frequency | 6 GHz |
| Number of antennas | 7 |

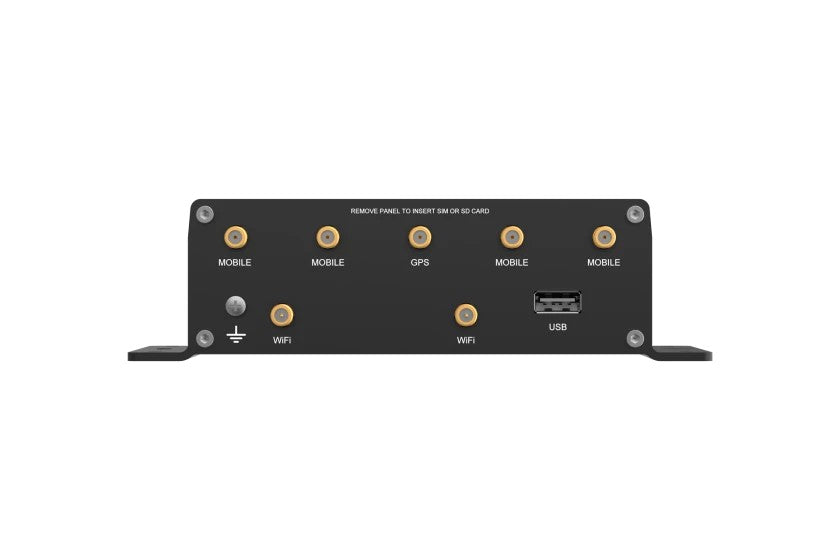

| Antenna | Detachable external |
| Security | EN IEC 62311:2020 EN IEC 62368-1:2020+A11:2020 AS/NZS 2772.2:2016+A1:2018 |
| Management, monitoring, configuration | Real-time monitoring Wireless signal charts Traffic usage history |
| Power supply | M12 A connector, 4-pin, male Input voltage range: 950 V DC, reverse polarity protection, surge protection (70 V), overvoltage protection >69 V DC, max. 10 s Power consumption: idle |
| Environment requirements | Operating temperature: -40°C to 75°C Operating humidity: 10% to 90% (non-condensing) Protection rating: IP30 |
| Certificates | CE UKCA RCM R-NZ CB EAC UCRF WEEE |
| Color | Black |
| Weight | 550 |
| Dimensions | 167 x 46.2 x 112.4 mm |
