SJCAM M60 2CH Dash Cam
The SJCAM M60 2CH is a two-channel dash cam that continuously monitors the area around the vehicle. The front camera records in 4K resolution (3840 × 2160 at 30 fps), and also offers 2K (up to 60 fps) and Full HD options. The rear module allows for simultaneous recording from both sides in 1080p at 30 fps. Both cameras support HDR technology, ensuring high-quality footage even in challenging lighting conditions.
Advanced Optics and Data Recording
The front module is equipped with a 1/1.8" CMOS sensor, a 170° field of view, and an f/1.8 aperture, while the rear module features a 1/2.8" CMOS sensor, a 160° lens, and an f/1.8 aperture. Footage is saved in MP4 (H.264) format on microSD cards with a capacity of up to 256 GB. The modules are connected via a Type-C to Type-C cable, and the device is powered through a Type-C port (5 V / 2.4 A).
Collision Detection and Parking Protection
The device ensures safety both while driving and when parked. The collision detection system emits an audible alert in the event of an impact, and the built-in G-Sensor protects recordings from being overwritten. The advanced parking mode offers automatic event detection and time-lapse recording, ensuring the vehicle is protected while parked.
Precise Location Tracking and Fast Wi-Fi Connectivity
The built-in GPS and BEIDOU positioning system records detailed route data with an accuracy of up to 1 meter. The dashcam also features a dual-band Wi-Fi module (2.4 GHz and 5 GHz, supporting 802.11a/b/g/n/ac standards), enabling wireless connectivity and efficient file transfer.
Ergonomic Design and Convenient Controls

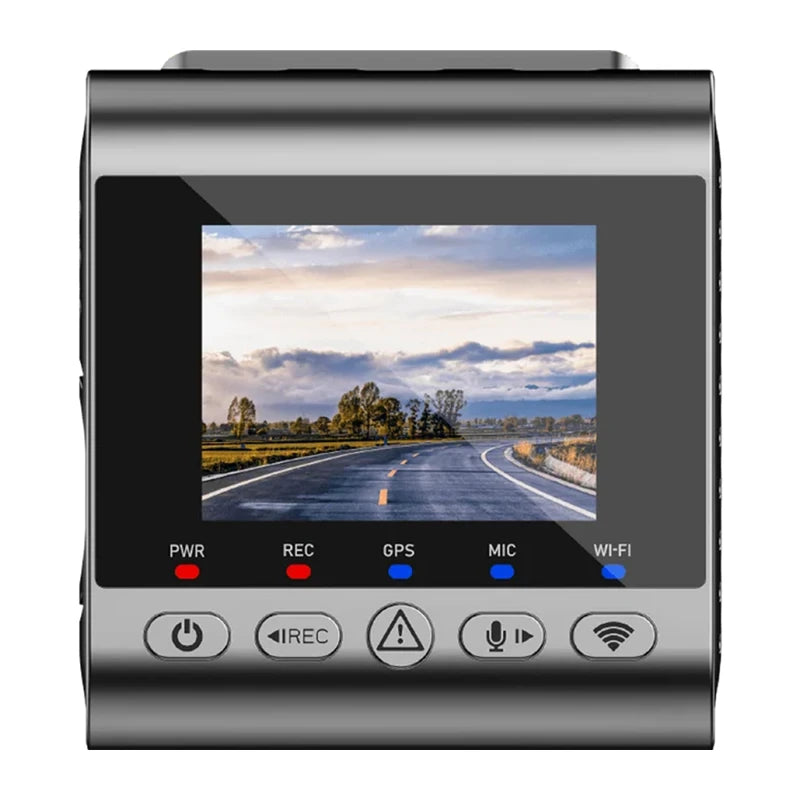

The device features a 2-inch TFT screen (320 × 240 px), a microphone, a speaker, and LED indicators showing the status of the power, Wi-Fi, GPS, and microphone. The entire unit is housed in a compact design—the front camera weighs 120 g (75.7 × 41.75 × 64 mm), and the rear camera weighs only 44 g (73.5 × 35.7 × 29 mm), ensuring the dashcam does not obstruct the driver’s view.
Included in the set
- Front camera
- Rear camera
- USB Type-C data cable
- Connection cable for the interior camera (3.5 m)
- Cable prying/routing tool (spatula)
- Car charger
- Electrostatic stickers (2 pcs.)
- Double-sided tape for the front camera mount (2 pcs.)
- Rear camera connection cable (6 m)
- Cable clips/holders (6 pcs.)
- User manual
- Cleaning cloth
- Logo stickers (SJCAM)
- Memory card reader
| Manufacturer | SJCAM |
|---|---|
| Model | M60 (2CH) |
| Number of channels | 2 |
| Front camera resolution: 4K | 3840 × 2160 at 30 fps |
| Front camera resolution (2K) | 2560 × 1440 at 60/30 fps |
| Front and rear camera resolution (1080p) | 1920 × 1080 30 fps |
| Front camera sensor | 1/1.8" CMOS |
| Rear camera sensor | 1/2.8" CMOS |
| Front camera field of view | 170° |
| Rear camera field of view | 160° |
| Front camera aperture | F/1.8 |
| Rear camera aperture | F/1.8 |
| Screen | 2.0" TFT |
| Screen resolution | 320 × 240 |
| Video format | MP4 |
| Video encoding | H.264 |
| HDR | Yes, front and rear cameras |
| Parking mode | Automatic event detection, time-lapse recording |
| G-Sensor | Yes |
| Positioning system | GPS, BEIDOU |
| Wi-Fi 2.4 GHz | 802.11b/g/n |
| Wi-Fi 5 GHz | 802.11a/b/g/n/ac |
| Microphone | Yes |
| Speaker | Yes |
| LED indicators | Power, recording, Wi-Fi, microphone, GPS |
| Rear camera connection | Type-C to Type-C |
| Supported memory cards | microSD up to 256 GB |
| Power supply | Type-C 5 V / 2.4 A |
| Front camera weight | 120 g |
| Rear camera weight | 44 g |
| Front camera dimensions | 75.7 × 41.75 × 64 mm |
| Rear camera dimensions | 73.5 × 35.7 × 29 mm |
Producer: SHENZHEN ZHENCHENG TECHNOLOGY CO., LTD. (CN)
Address: Shangxue Industrial Area, Bantian Street, BD C, NO. 2 3/F, 518129, Shenzhen
Email: support@sjcam.com
EU Responsible Person: TOP PLUS SOLUTION LTD.
Address: AVENUE DE GENERAL, 14, 91460, Mande
Email: topplusolutionltd@hotmail.com
