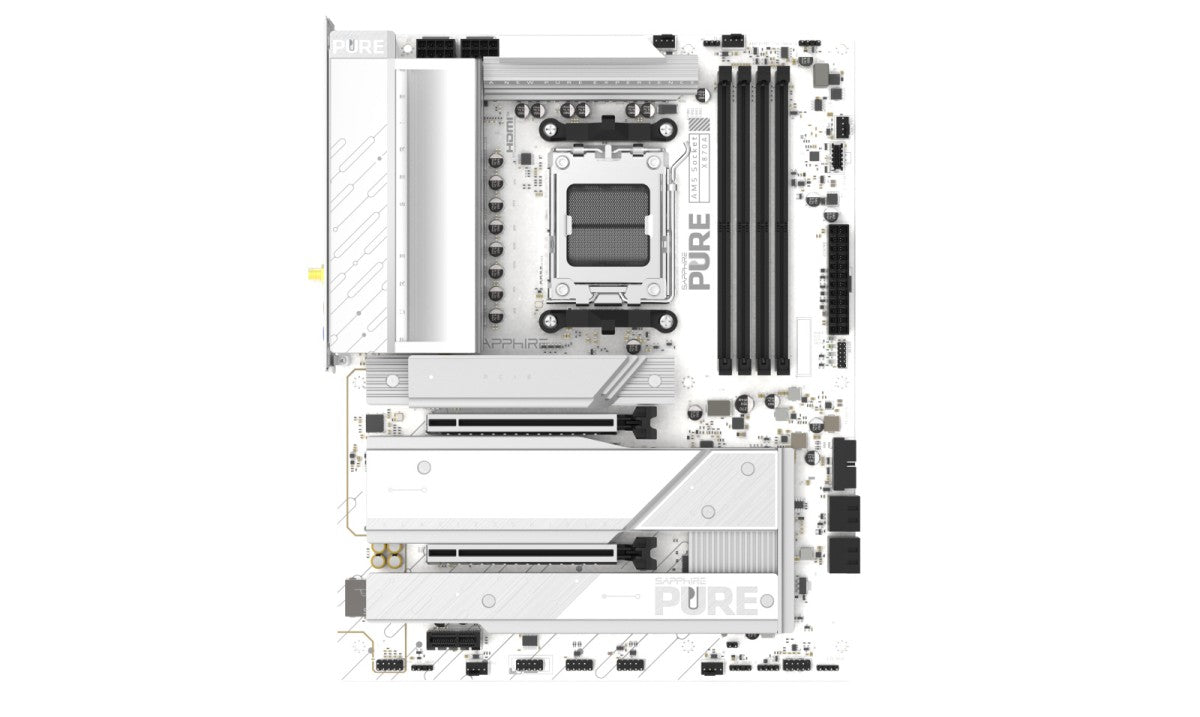

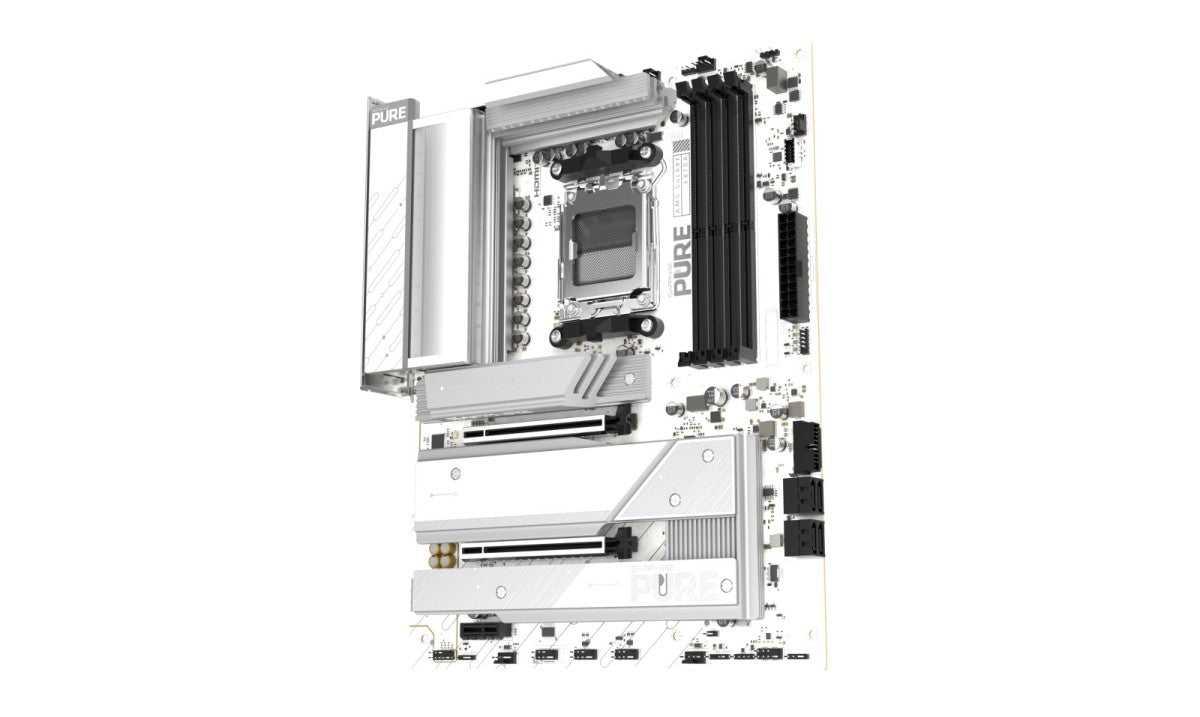

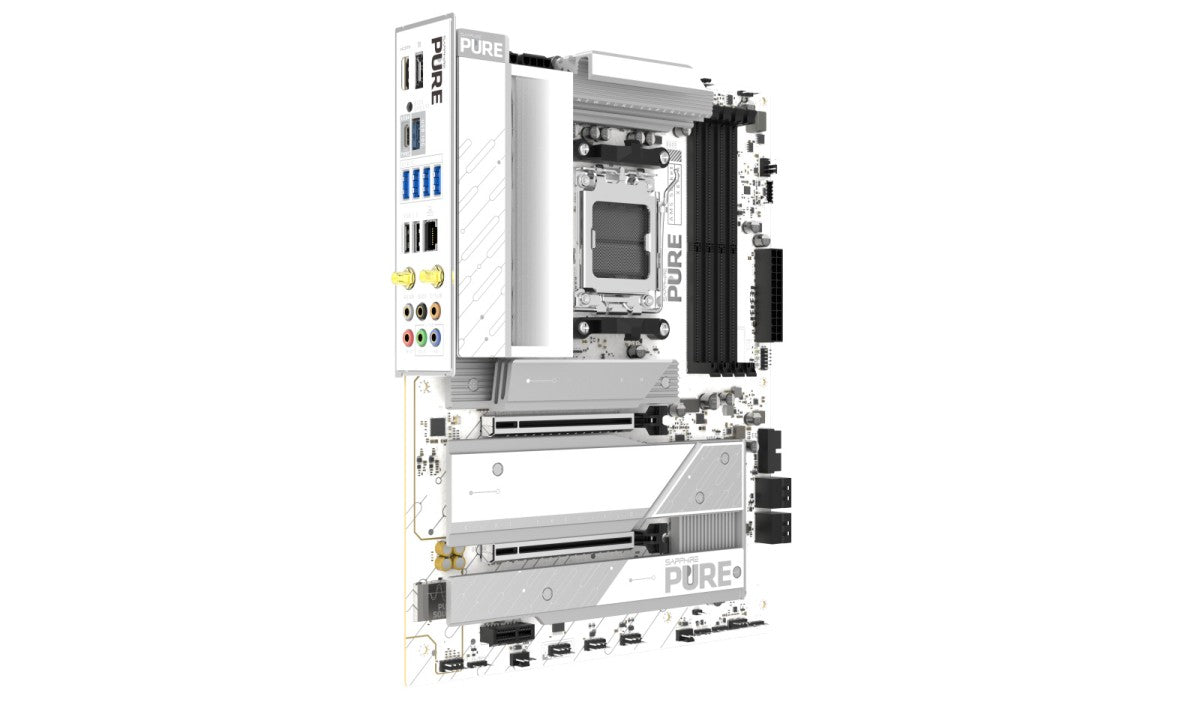

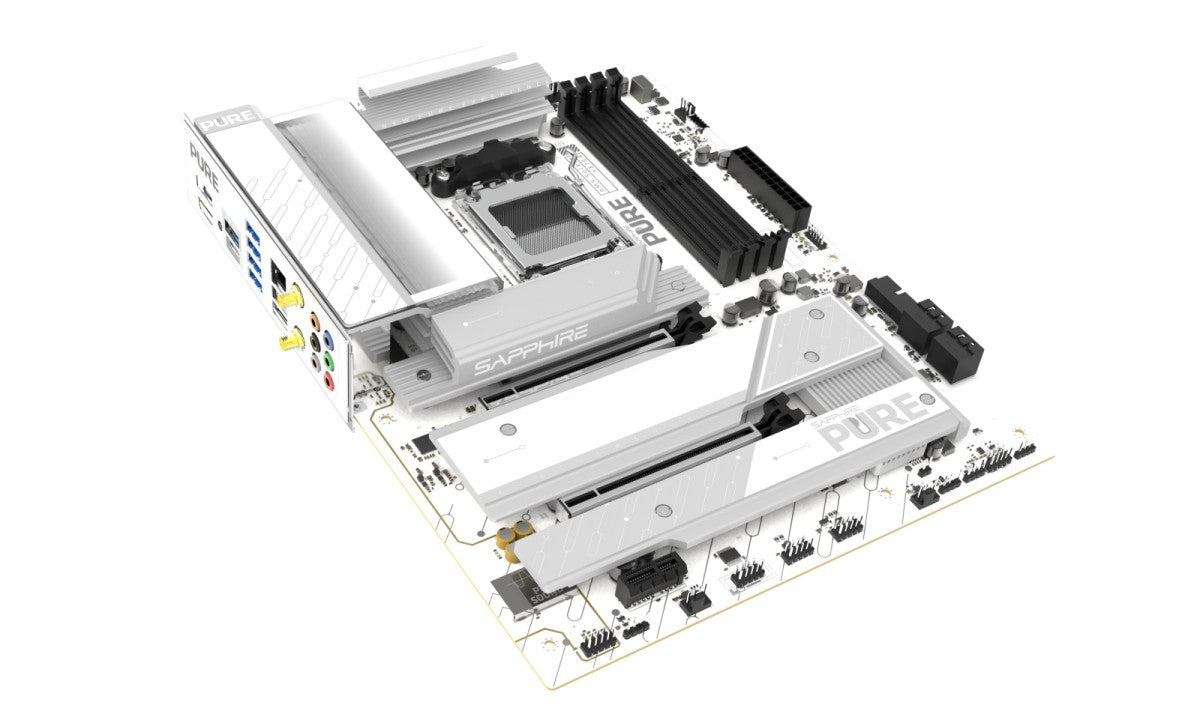

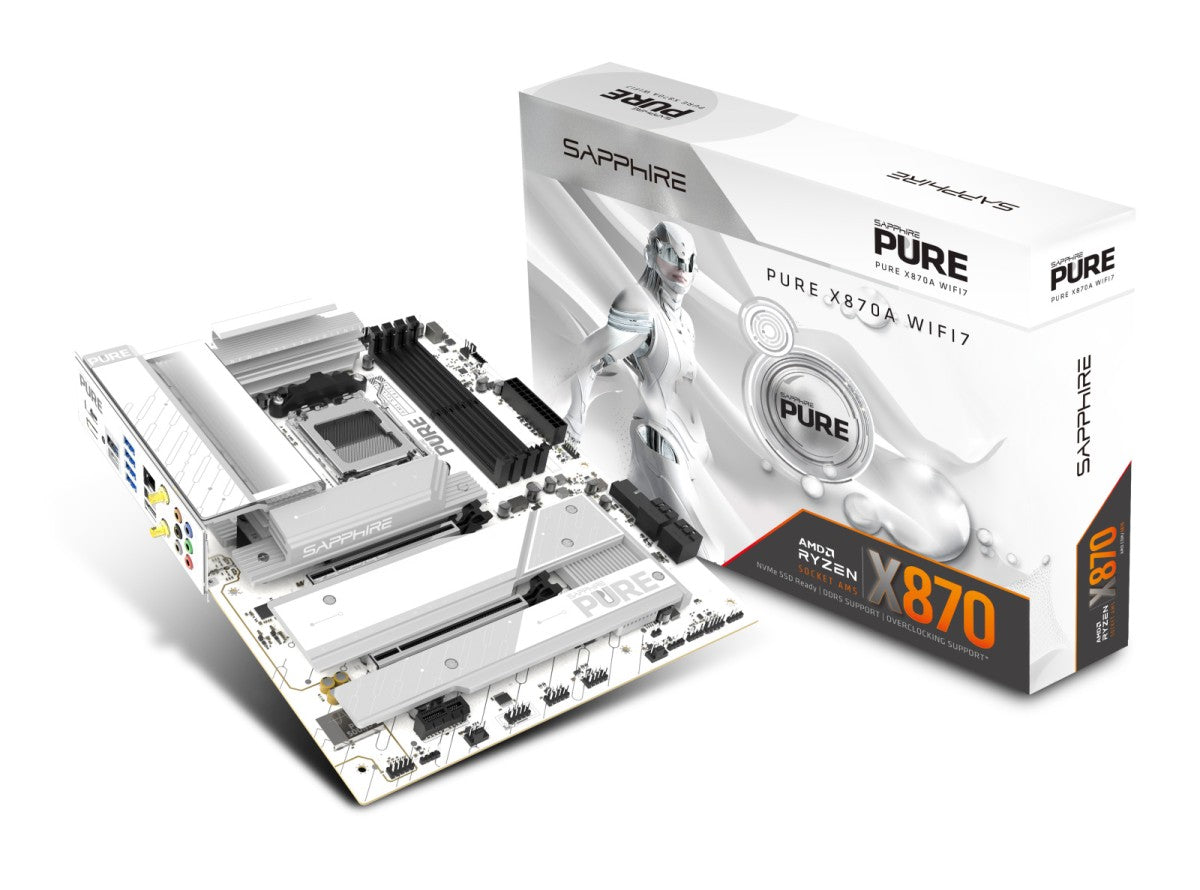

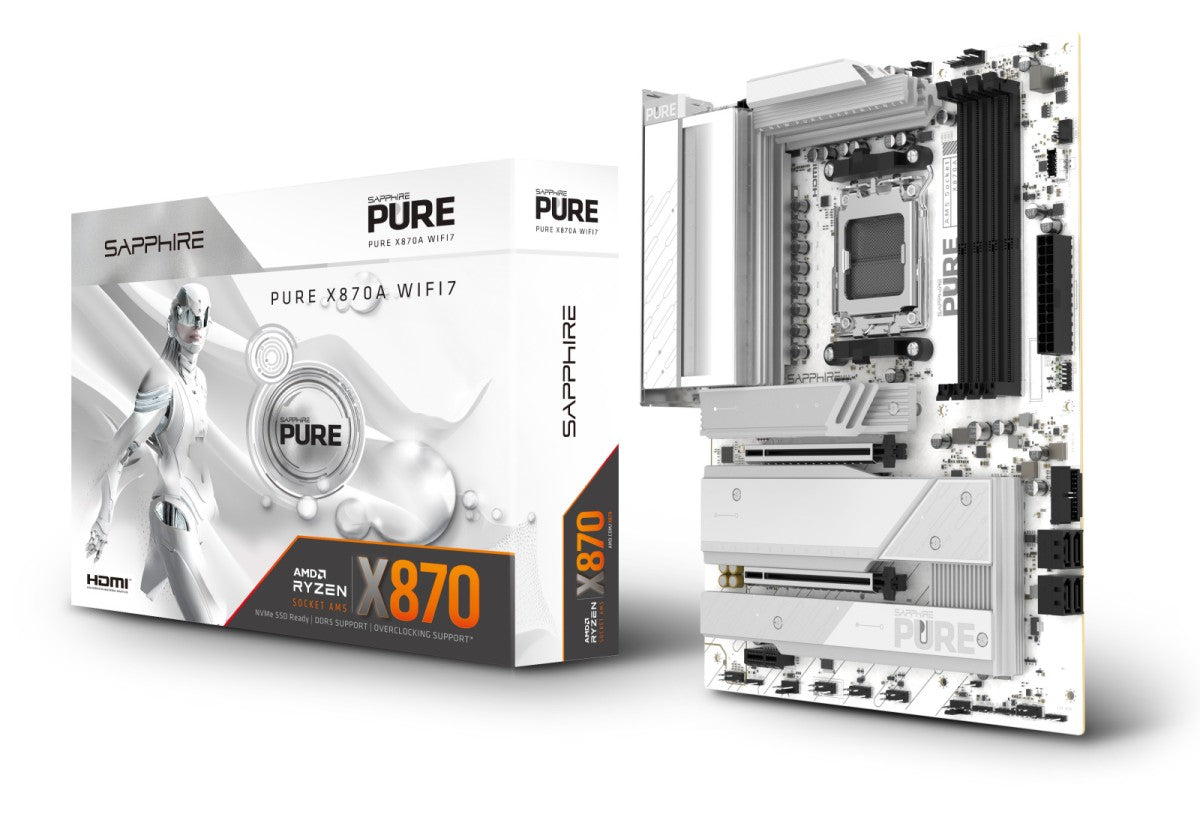

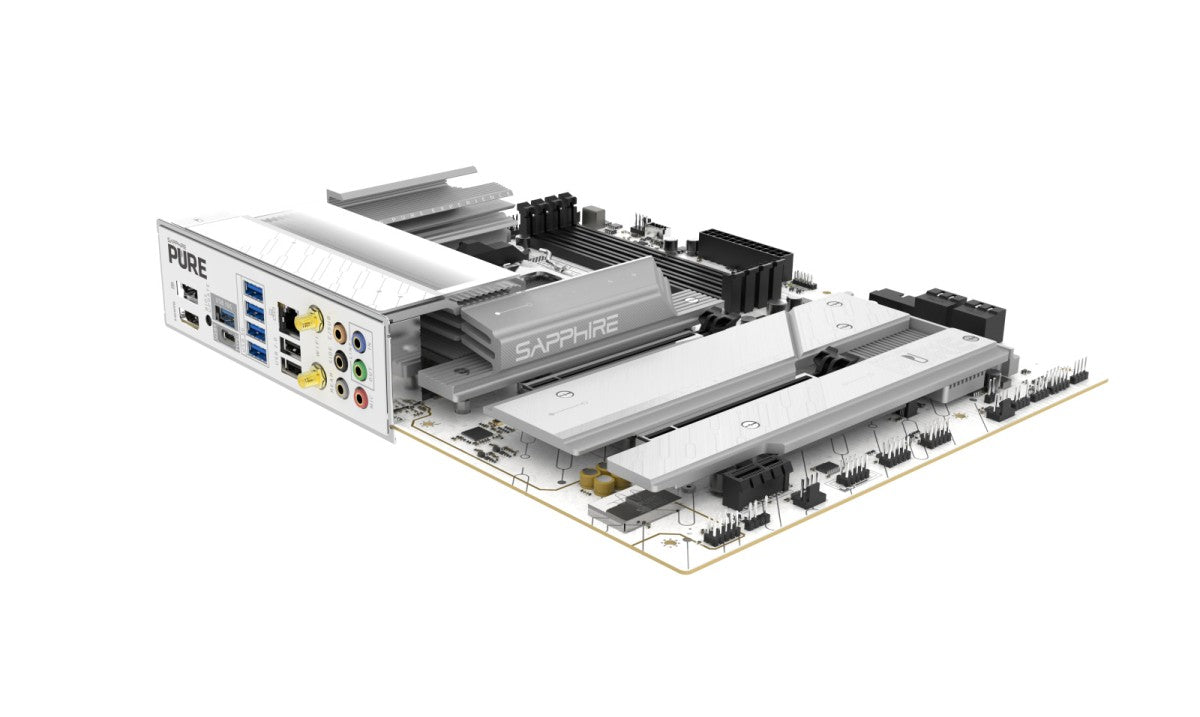

Sapphire Technology Motherboard PURE X870A WIFI7 AM5 4DDR5 mATX
Specifications
| Description | PURE X870A WIFI 7 AMD AM5 CPU SUPPORT SAPPHIRE CORE BIOS 16+2+1 Phase CPU Power, 55A Per Phase, Robust VRM, M.2 and PCH Cooling Dual Channel, 8400 MHz Memory OC WIFI 7 Support PCI Express 5.0 x16 PCIe 5.0 M.2 Support Debug LED |
|---|---|
| Model | 52122-02-40G |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen 3 |
| Processor family | AMD Ryzen 5 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 8400 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Expansion slots | 2 x M.2 |
| Expansion slots | 1 x PCIe 3.0 x 1 |
| Max. number of SATA devices | 4 |
| Detailed data on disk/drive interfaces | PCI-E Expansion Slots 1x PCIe 5.0 x16 1x PCIe 4.0 x4 in 16x slot 1x PCIe 3.0 x1 in 1x slot Storage 1x PCIe 5.0 M.2 2x PCIe 4.0 M.2 4x SATA |
| Sound card | Realtek ALC897 HD Audio, 7.1 Channe |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | Realtek RTL8126 5 Gigabit Ethernet M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support |
| USB ports at back panel | 8 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 2 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |
| External connectors | 1 x Side Speaker |
| External connectors | 1 x Rear Speaker |
| External connectors | 1 x Central Speaker / Subwoofer |
| External connectors | 1 x USB4 Type-C |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x MIC |
| External connectors | 1 x Line In |
| External connectors | 2 x SMA |
| External connectors | 1 x DisplayPort |
| External connectors | 2 x USB 2.0 |
| External connectors | 4 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x USB 3.2 Gen 2 Type-A |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x Line Out |
| External connectors | 1 x HDMI |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x USB 3.2 Gen 2 Type-C |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Special functions | Debug LED DRAM: Yellow CPU: Red GPU: White Boot: Green |
| BIOS | SAPPHIRE CORE BIOS |
| Form factor | micro ATX |
| Dimensions | 305 x 245 mm |
| Supported operating systems | Windows 11 |
| Supported operating systems | Windows 10 |
