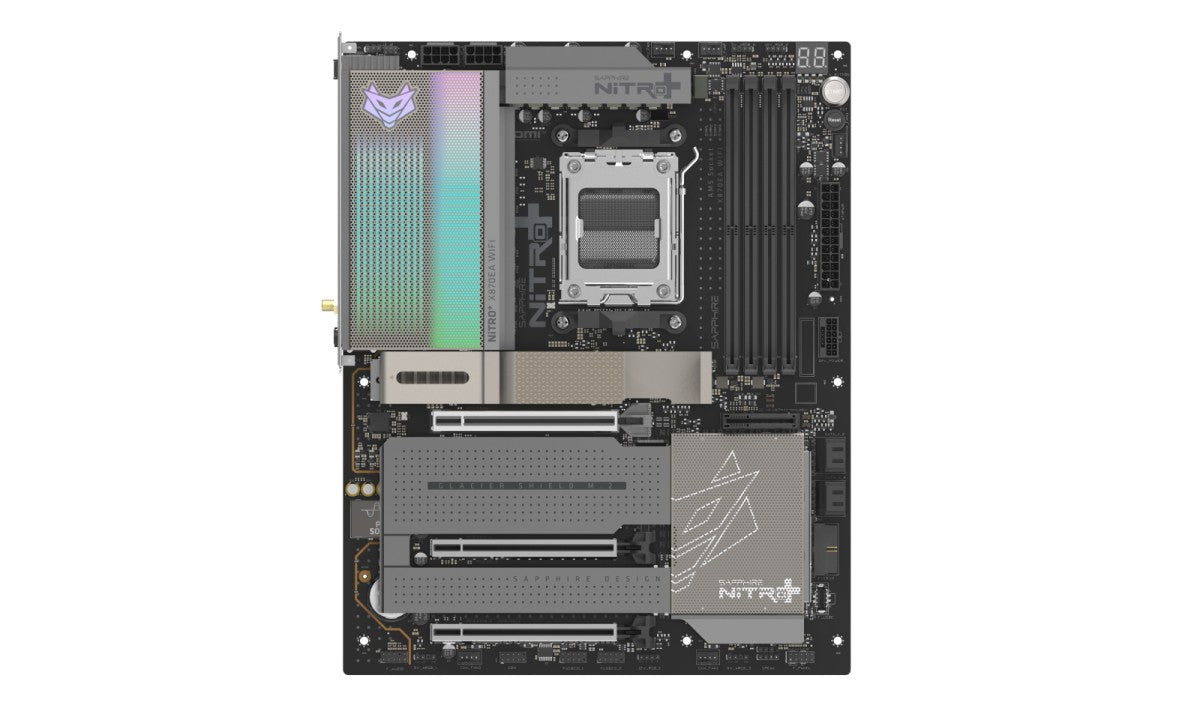

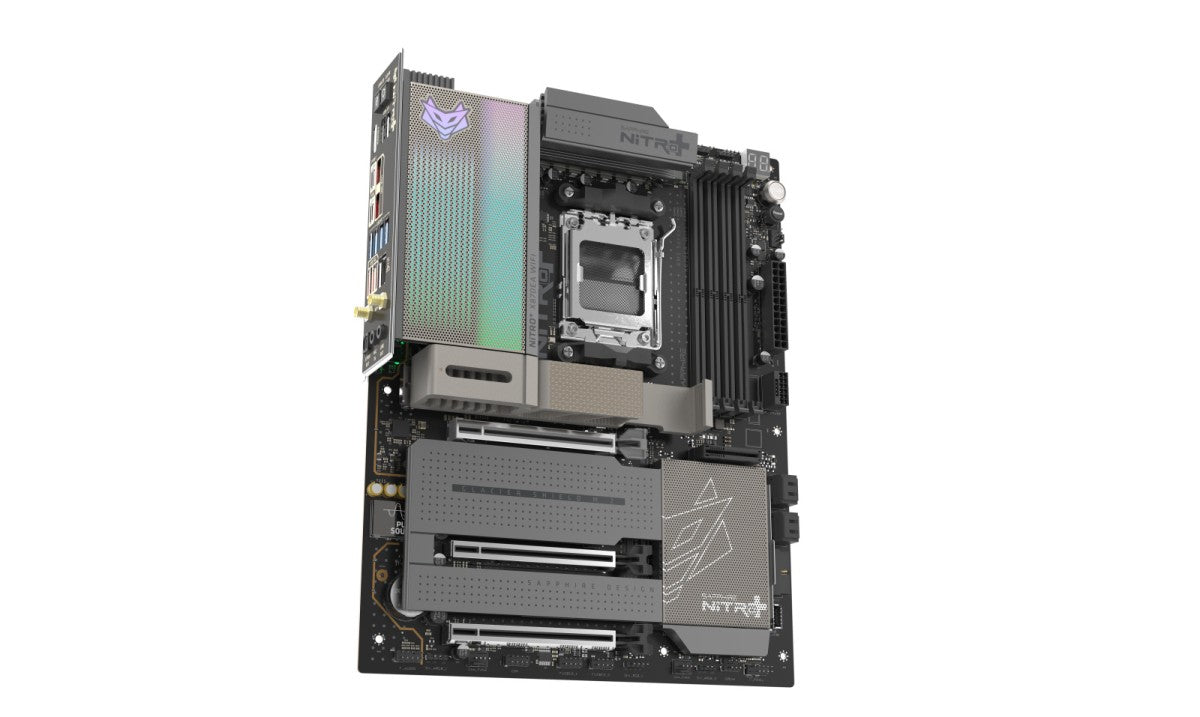

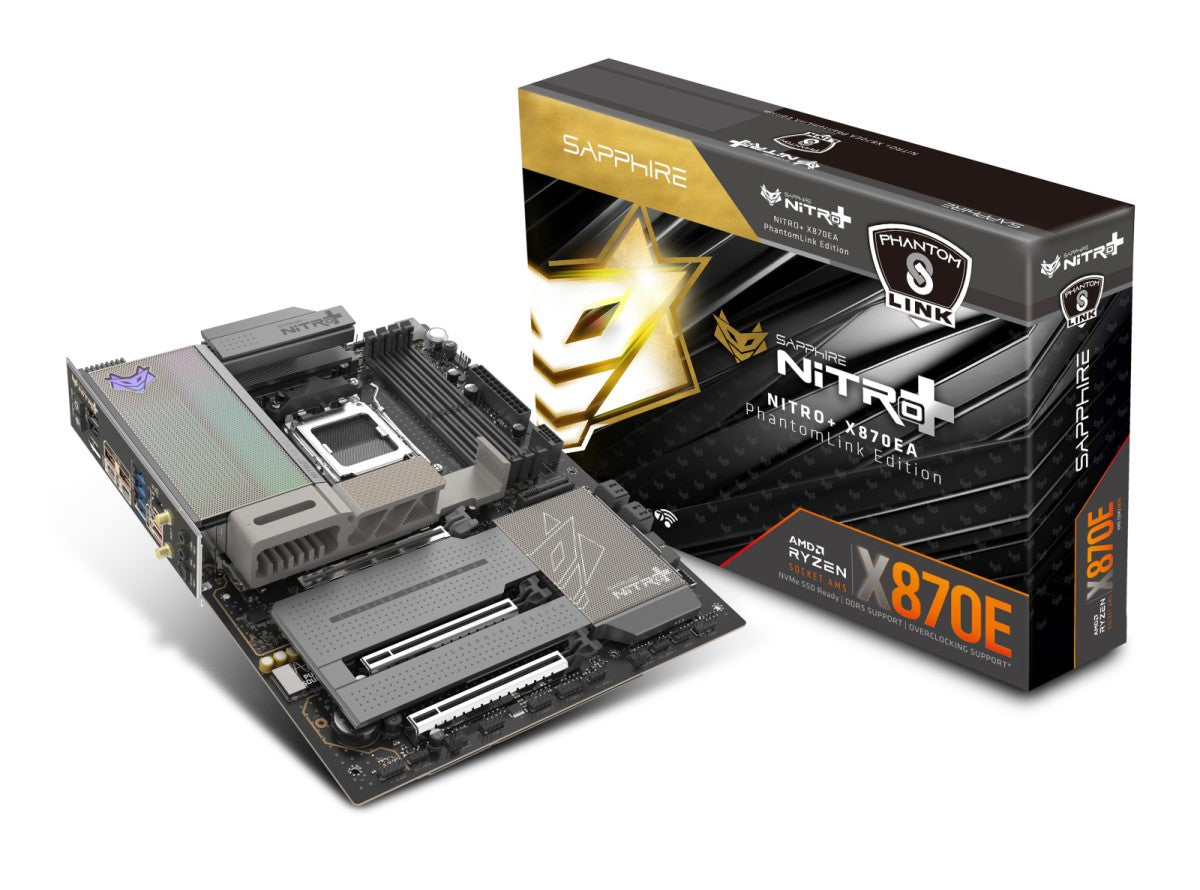

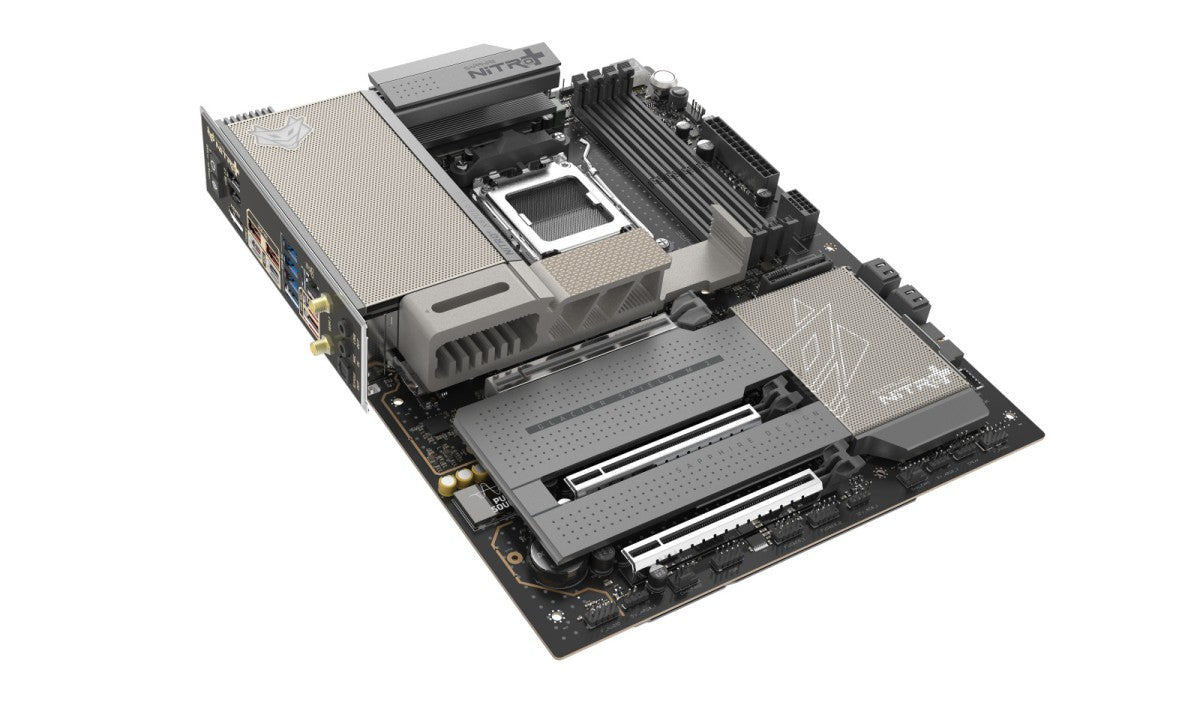

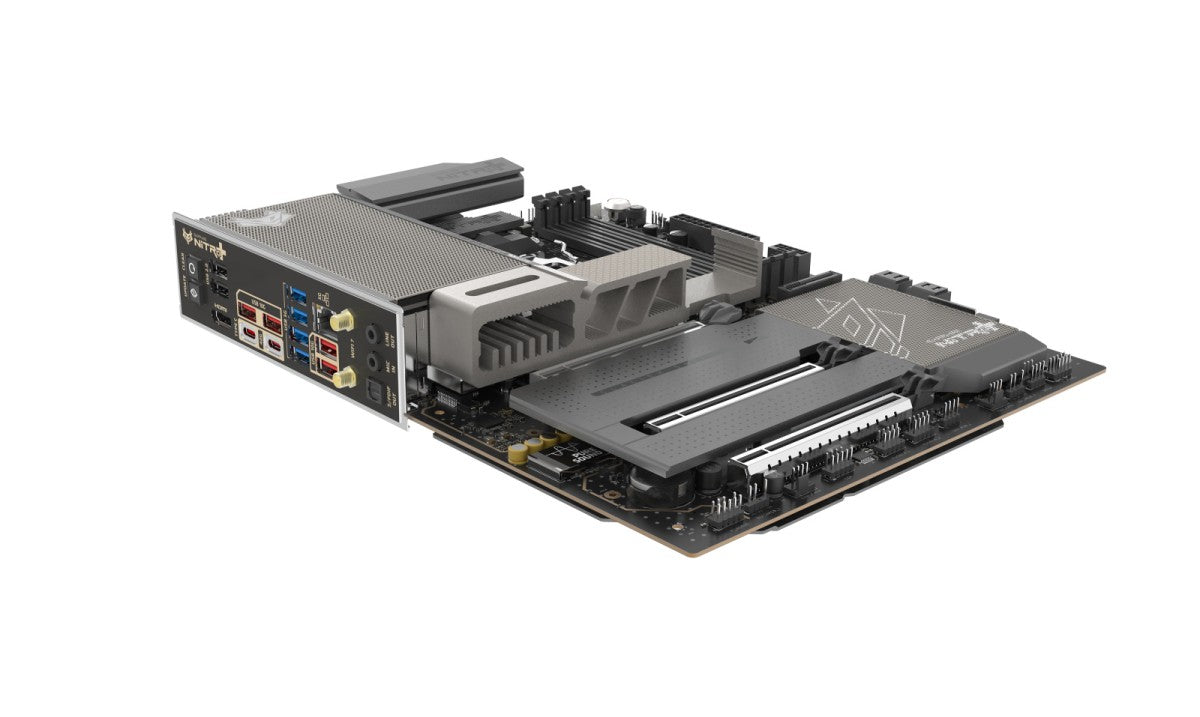

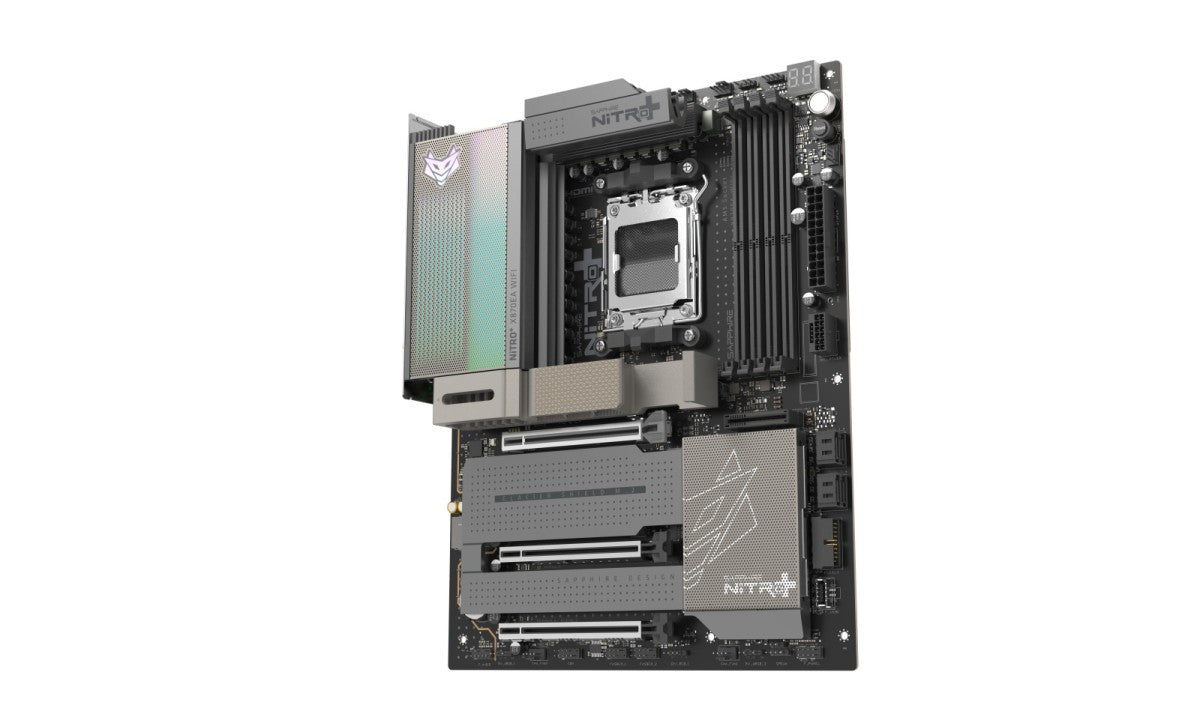

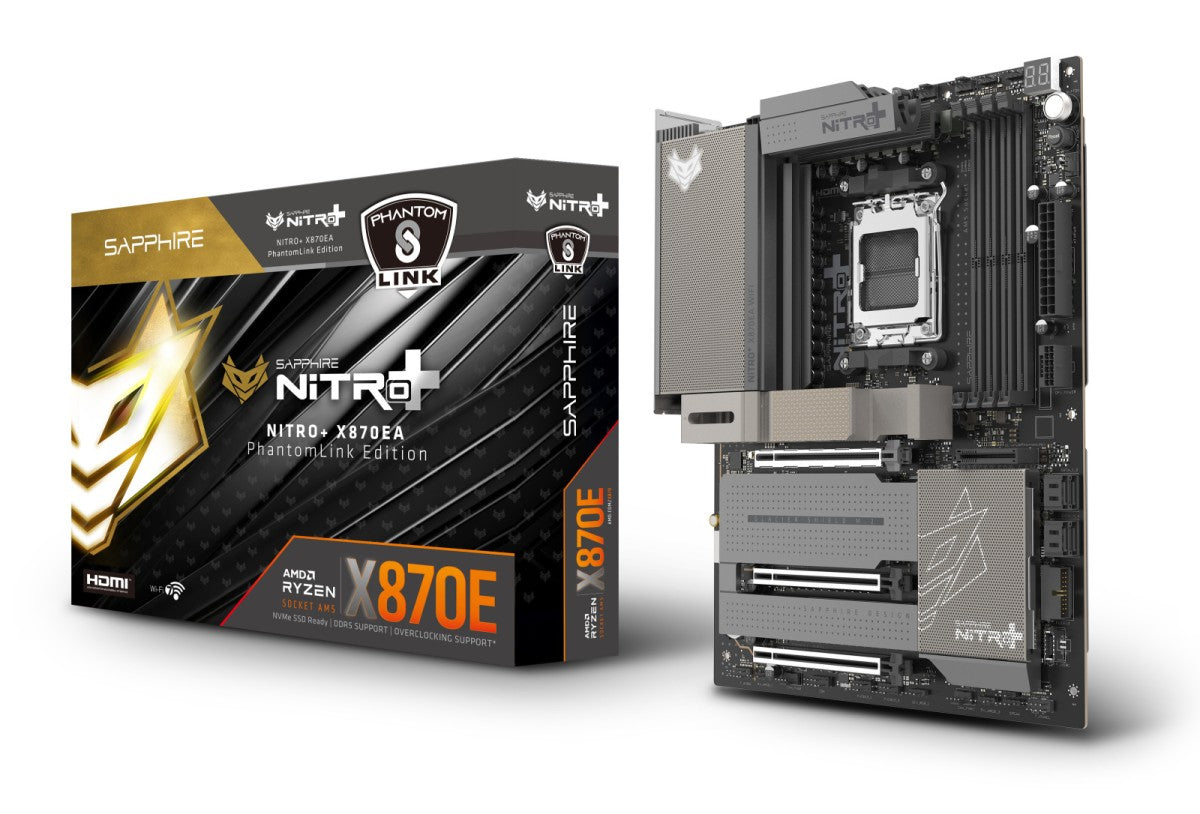

Sapphire Technology Motherboard NITRO+ X870EA WIFI7 AM5 4DDR5 mATX
Specifications
| Description | NITRO+ X870EA PhantomLink Edition 16+2+1 Phase Power Design, 90A Per Phase Support Phantomlink(GC-HPWR) graphics power slot Front USB Type C 20Gbps with 30W power delivery SAPPHIRE CORE BIOS Dual Channel, 8400 MHz Memory OC WIFI 7 320 MHz Support PCI-Express 5.0 x16 4x M.2 SSD support with 2 x Gen 5 and 2 x Gen 4 LED Debug Diagnostic Screen |
|---|---|
| Model | 52122-01-40G |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 9 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 8400 MHz |
| Max memory size | 256 |
| Expansion slots | 2 x PCIe 4.0 x 4 |
| Expansion slots | 4 x M.2 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | PCI-E Expansion Slots 1x PCIe 5.0 x16, 2x PCIe 4.0 x4 in 16x slot Storage 2x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA |
| Sound card | Realtek ALC897 HD Audio, 5.1 Channel with S/PDIF |
| Network interface | Bluetooth |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Realtek RTL8126 5 Gbps Ethernet M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support |
| USB ports at back panel | 12 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 7 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 1 x RJ-45 |
| External connectors | 4 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 2 x USB4 Type-C |
| External connectors | 4 x USB 3.2 Gen 2 Type-A |
| External connectors | 2 x SMA |
| External connectors | 2 x USB 2.0 |
| External connectors | 1 x HDMI |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| Special functions | Debug LED DRAM: Yellow CPU: Red GPU: White Boot: Green Debug Diagnostic Screen LED Debug Diagnostic Screen |
| BIOS | SAPPHIRE CORE BIOS |
| Form factor | micro ATX |
| Dimensions | 305 x 244 mm |
| Supported operating systems | Windows 11 |
| Supported operating systems | Windows 10 |
