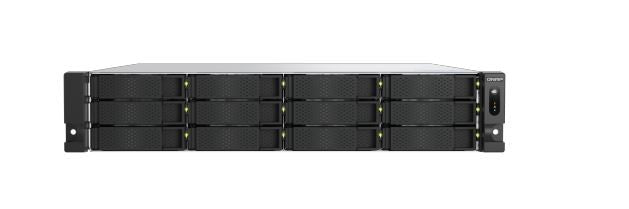

QNAP Server NAS TS-h1277AXU-RP-R5-16G 2U 12-bay 3.5 SATA AMD
Specifications
| Description | Powered by AMD Ryzen 7000 series processors based on AMD's cutting-edge socket AM5 platform, the TS-h1277AXU-RP's ZFS-based storage and backup solution delivers excellent performance and enterprise-level capabilities. With a revolutionary multi-core CPU, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-high bandwidth, and reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications. |
|---|---|
| Processor | AMD Ryzen 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz |
| Built-in RAM memory | 16 |
| Max memory size | 128 |
| Memory type | DDR5 |
| Number of memory slots used | 1 |
| Number of available memory slots | 3 |
| Total number of memory slots | 4 |
| Built-in flash memory | 5 |
| Number of HDDs installed | 0 |
| Max. number of disks | 12 |
| Disk type | HDD |
| Disk type | SSD |
| Form factor (width) | 3,5'' (LFF) |
| Form factor (width) | 2,5'' (SFF) |
| HDD interface | SATA III - 6 Gb/s |
| HDD interface | SATA II - 3 Gb/s |
| Hot-swapping support | Yes |
| RAID | Yes |
| RAID levels | 1 |
| RAID levels | 10 (1+0) |
| RAID levels | 5 |
| RAID levels | 6 |
| RAID levels | JBOD |
| RAID levels | 0 |
| Network architecture | GigabitEthernet |
| Network interface | 2 x 10/100/1000/2500 Mbit/s |
| Network interface | 2 x 10Gbit/s 10GBase-T |
| I/O connectors | 2 x USB 3.1 |
| I/O connectors | 4 x RJ-45 LAN |
| Number of fans | 3 |
| Fan | 6 cm |
| Housing | Rack 2U |
| Expansion slots | 2 x PCIe 4.0 x 4 |
| Expansion slots | 1 x PCIe 4.0 x 8 |
| Power supply | 550W(x2), 100-240V |
| Weight | 13 |
| Dimensions | 88.6 × 432 × 511.2 mm |
