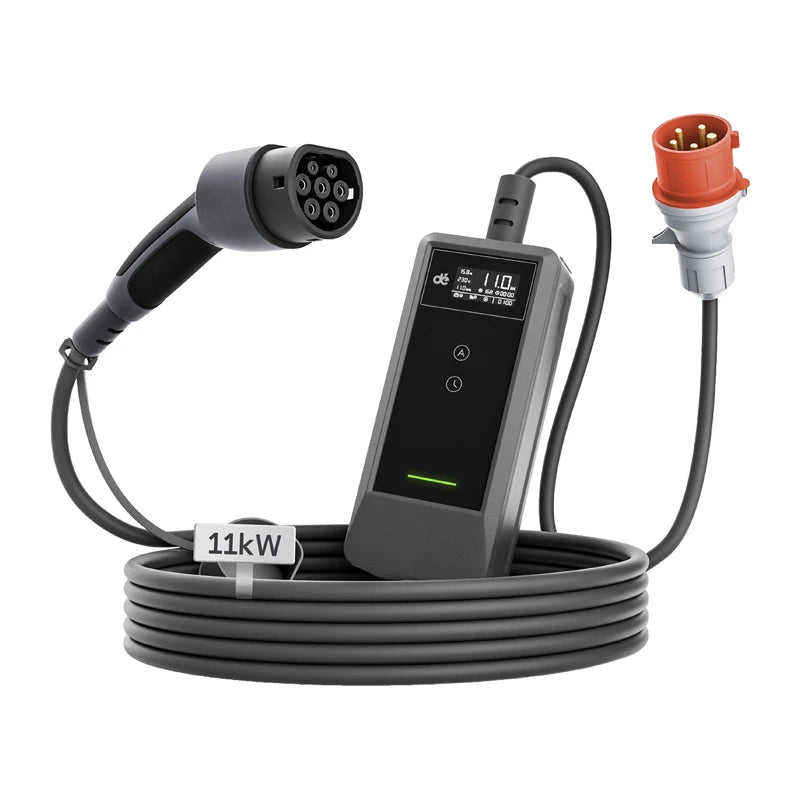

DEPOW Portable EV Charger
The DEPOW 11 kW portable EV charger is a three-phase device operating at 400 V, designed for charging electric vehicles equipped with a Type 2 connector. The model operates in Mode 2 and allows for current adjustment in the range of 6 A, 8 A, 10 A, 13 A, and 16 A, enabling charging parameters to be tailored to the capabilities of the electrical installation. The charger is equipped with a 20-meter cable, an LCD display, LED indicators, and a scheduled charging function. It can be used both indoors and outdoors, allowing you to use it in a garage, on a driveway, or while traveling.
Current Adjustment and Easy-to-Read Operation Monitoring
The ability to set the current to one of five levels allows you to adjust the charging method to the available power source. The LCD display makes it easy to monitor the device’s parameters and current operating status without the need for additional accessories. This is complemented by LEDs that indicate power, standby mode, charging, and errors, so the most important information is visible directly on the control box.
Scheduled Charging and a Long Cable
The scheduled charging feature allows you to set the device to start operating at a convenient time, which can be useful, for example, when charging your car overnight. The Plug & Play design simplifies daily operation and allows you to quickly get the device ready for use. The 20-meter cable provides greater freedom in positioning the car relative to the power source, which is particularly practical in a driveway or a larger garage.
Comprehensive charging safeguards
DEPOW is equipped with a 30 mA Type A RCD for AC current and a 6 mA safeguard for DC current, as well as protection against overload, overvoltage, undervoltage, ground fault, and short circuits. The device also monitors the grounding and temperature of the control box, reducing the risk of operation under abnormal conditions. Additionally, a relay welding detection function has been implemented to identify malfunctions in this component.
Suitable for indoor and outdoor use
The control box has an IP66 rating, while the Type 2 plug meets IP55 requirements, which increases their resistance to dust and water. The charger can operate at temperatures ranging from -25°C to 50°C and at humidity levels from 5% to 95% RH without condensation. The storage temperature range is from -40°C to 80°C, while power consumption in standby mode does not exceed 5 W.
| Manufacturer | DEPOW |
|---|---|
| Model | deM2D11B20A_DL |
| Maximum power | 11 kW |
| Power supply | three-phase |
| Voltage | 400 V AC |
| Frequency | 50 Hz |
| Connector | Type 2 |
| Cable Length | 20 m |
| Current Rating | 6 A / 8 A / 10 A / 13 A / 16 A |
| Application | Indoor and outdoor |
| Control box dimensions | 220 × 95 × 57 mm |
| Control box protection rating | IP66 |
| Type 2 plug protection rating | IP55 |
| Operating temperature | from -25°C to 50°C |
| Storage temperature | from -40°C to 80°C |
| Operating humidity | 5–95% RH, non-condensing |
| Total harmonic distortion (THD) | ≤5% |
| Power consumption in standby mode | <5 W |
| RCD | Type A 30 mA AC + 6 mA DC |
| Protection | overcurrent, overvoltage, undervoltage, leakage current, short circuit, and improper grounding |
| Additional protection | control cabinet temperature monitoring and detection of relay contact sticking |
| Display | LCD |
| LED indicators | power, standby, charging, error |
| Scheduled charging function | yes |
