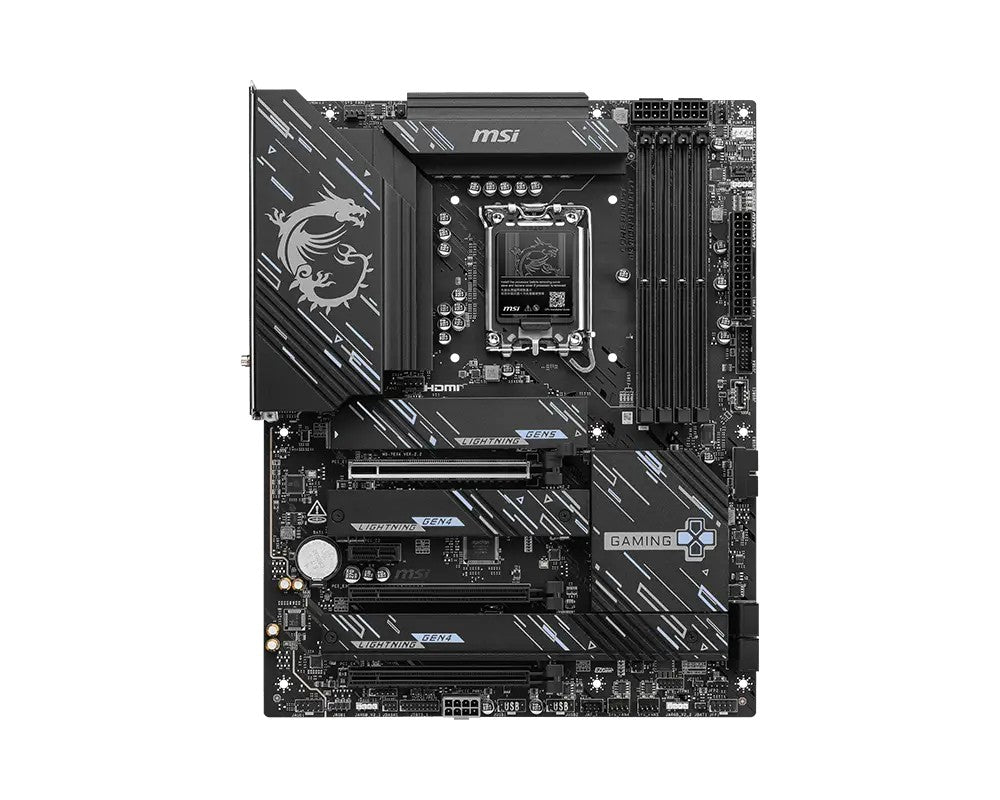

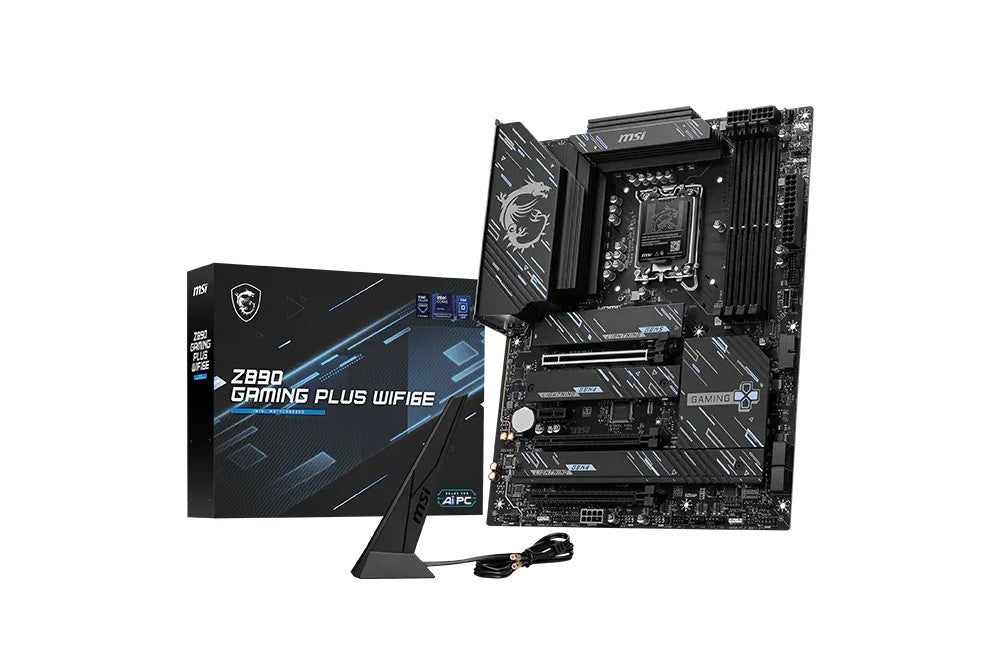

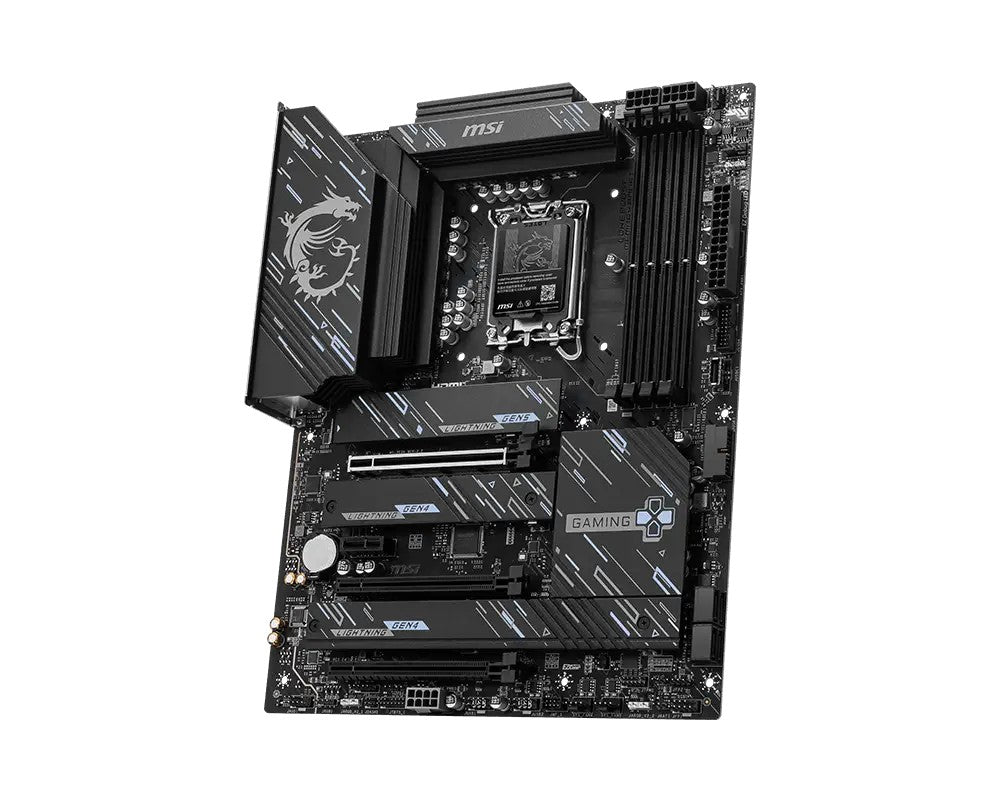

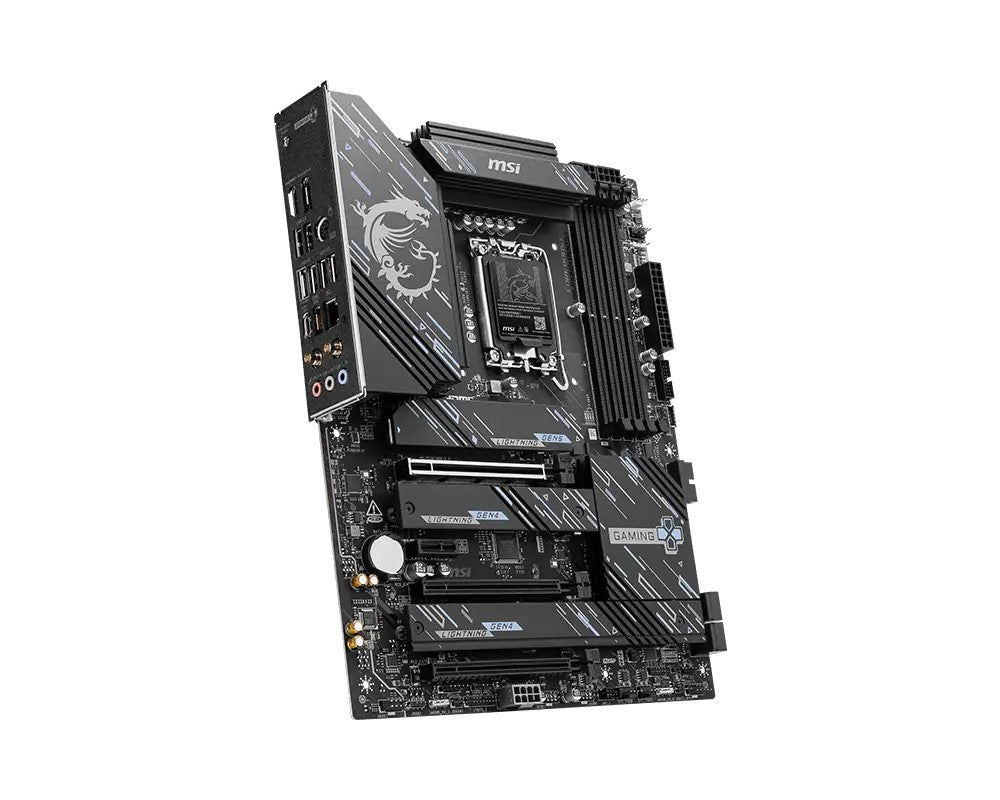

MSI Motherboard Z890 GAMING PLUS WIFI6E s1851 4DDR5 ATX
Specifications
| Description | Z890 GAMING PLUS WIFI6E Support Intel(R) Core(TM) Ultra Processors (Series 2) for LGA 1851 socket Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC) Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience EZ DIY: EZ M.2 Shield Frozr II, EZ PCIe Clip II and EZ Antenna Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 High-Speed Connectivity: Intel(R) Killer(TM) 5G LAN, Wi-Fi 6E Solution & USB 10Gbps Type-C port - a solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience |
|---|---|
| Model | Z890 GAMING PLUS WIFI6E |
| CPU socket | LGA1851 |
| Processor family | Intel Core Ultra |
| Integrated CPU | No |
| Chipset manufacturer | Intel |
| Chipset type | INTEL Z890 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 9200 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe x 1 |
| Expansion slots | 3 x PCIe x 16 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | 4 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G |
| Graphics | 1 x HDMI(TM) - Support HDMI(TM) 2.1, maximum resolution of 4K 60Hz 1 x DisplayPort - Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
| Sound card | Realtek(R) ALC897 Codec 7.1-Channel High Definition Audio |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | Bluetooth |
| Network interface | LAN: Intel Killer E5000 5Gbps LAN WIRELESS LAN & BLUETOOTH: Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| USB ports at back panel | 8 |
| USB ports on motherboard | 9 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 2 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

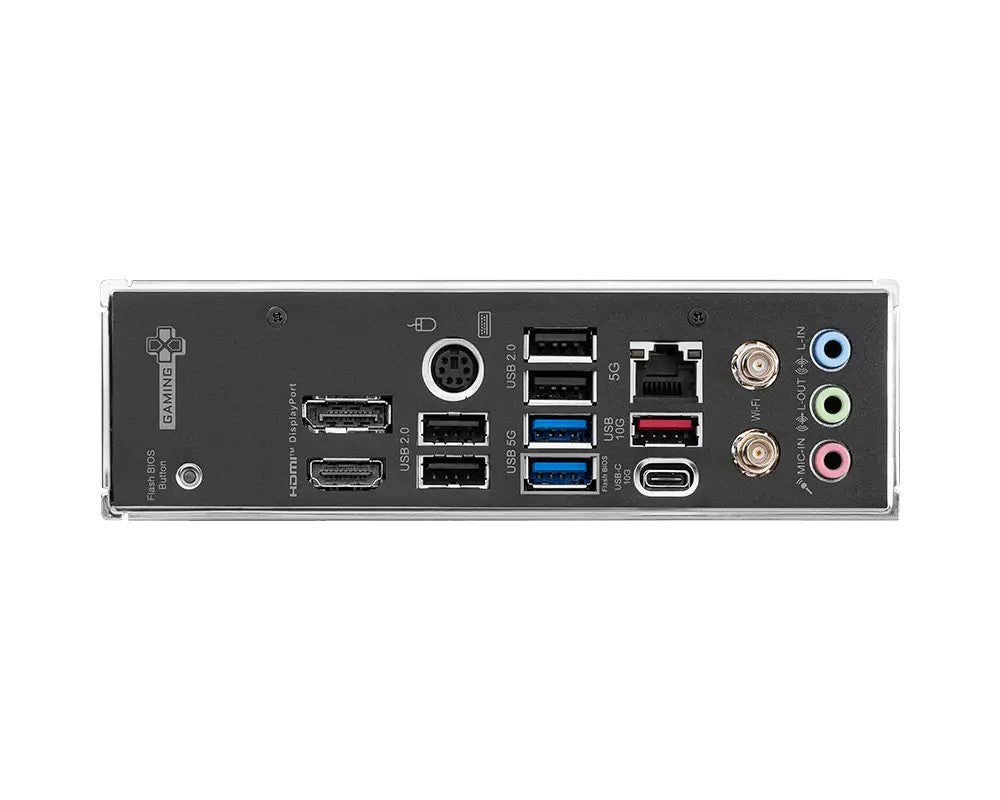

| External connectors | 1 x USB 3.2 Gen 2 Type-A |
| External connectors | 1 x HDMI |
| External connectors | 2 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x USB 3.2 Gen 2 Type-C |
| External connectors | 1 x PS/2 Keyboard/MouseCombo |
| External connectors | 4 x USB 2.0 |
| External connectors | 1 x Line Out |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x MIC |
| External connectors | 1 x Line In |
| External connectors | 2 x SMA |
| External connectors | 1 x DisplayPort |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x EZ Conn-header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 2 x System panel header |
| Onboard connectors | 4 x EZ Debug LED |
| Onboard connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| Onboard connectors | 1 x 8-pin PCIe |
| Onboard connectors | 4 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x Tuning Controller connector |
| Onboard connectors | 4 x M.2 |
| Onboard connectors | 5 x 4pin Chassis fan |
| Onboard connectors | 1 x Front panel audio header |
| Form factor | ATX |
| Dimensions | 243.84 x 304.8 mm |
| Supported operating systems | Windows 11 |
