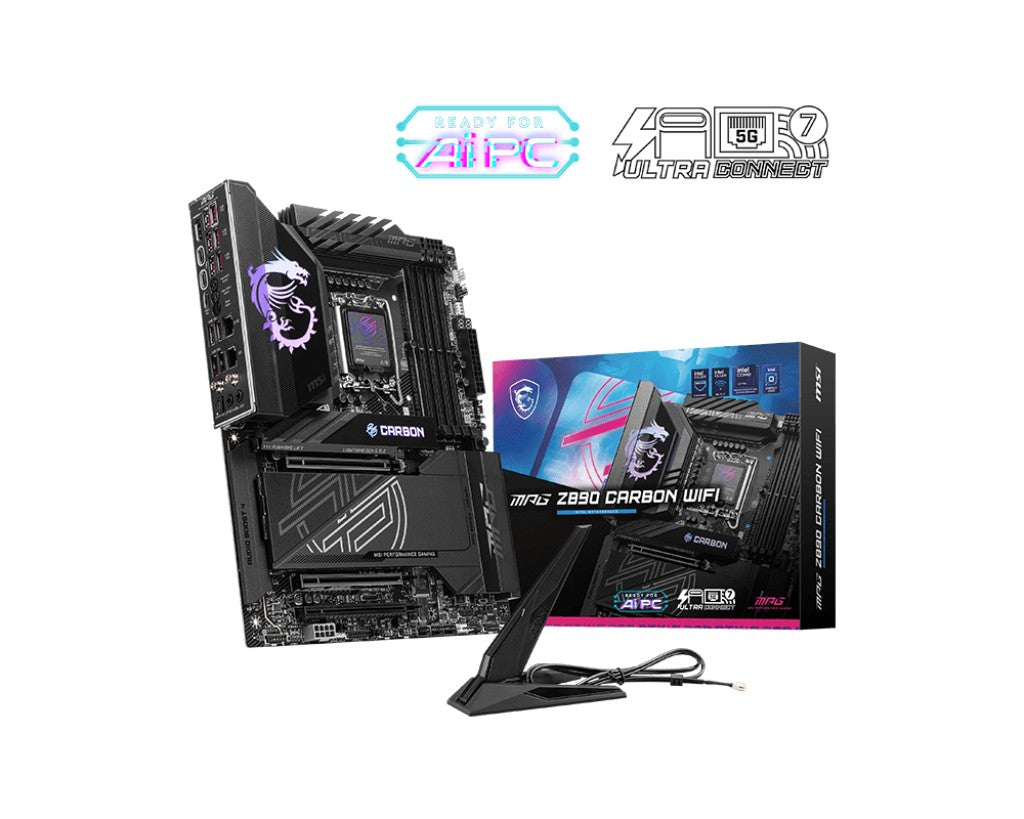

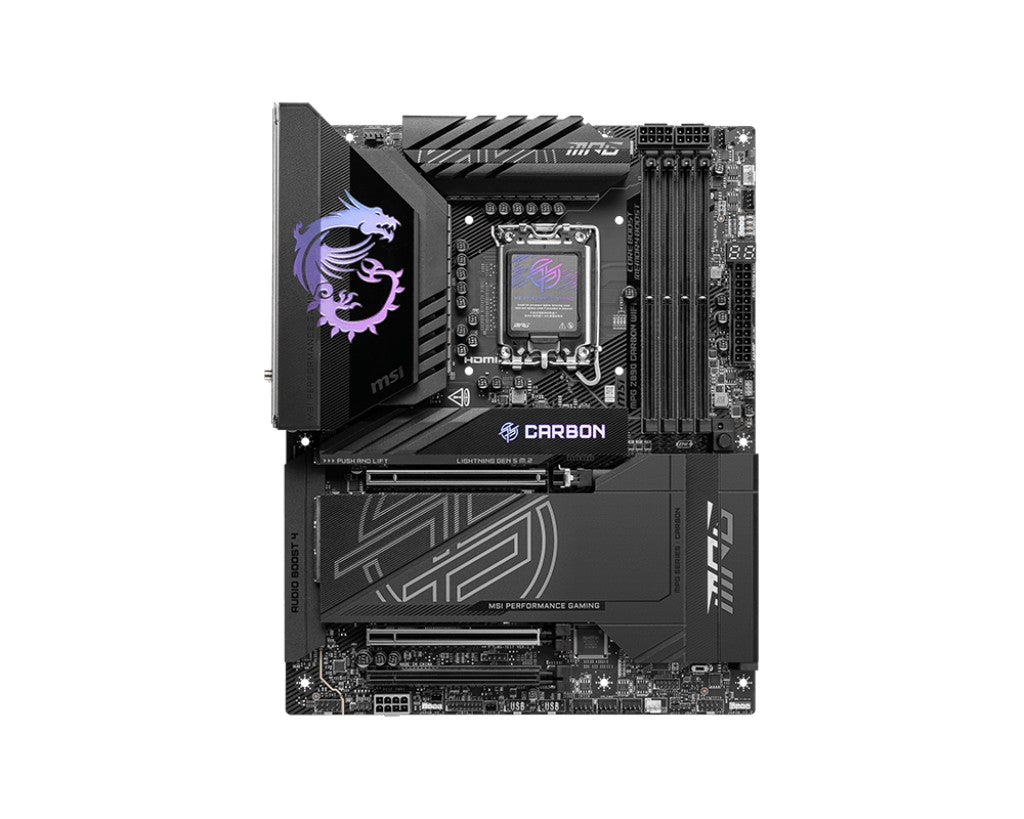

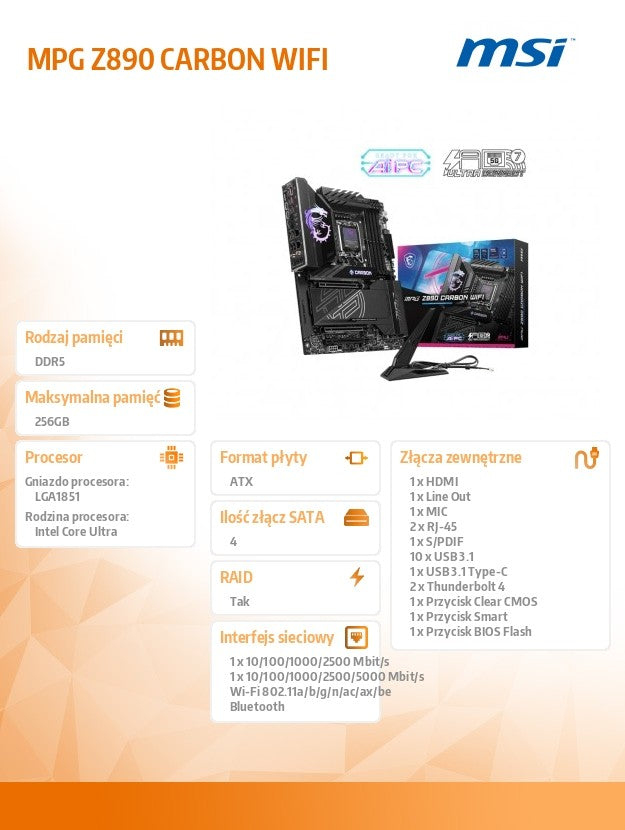

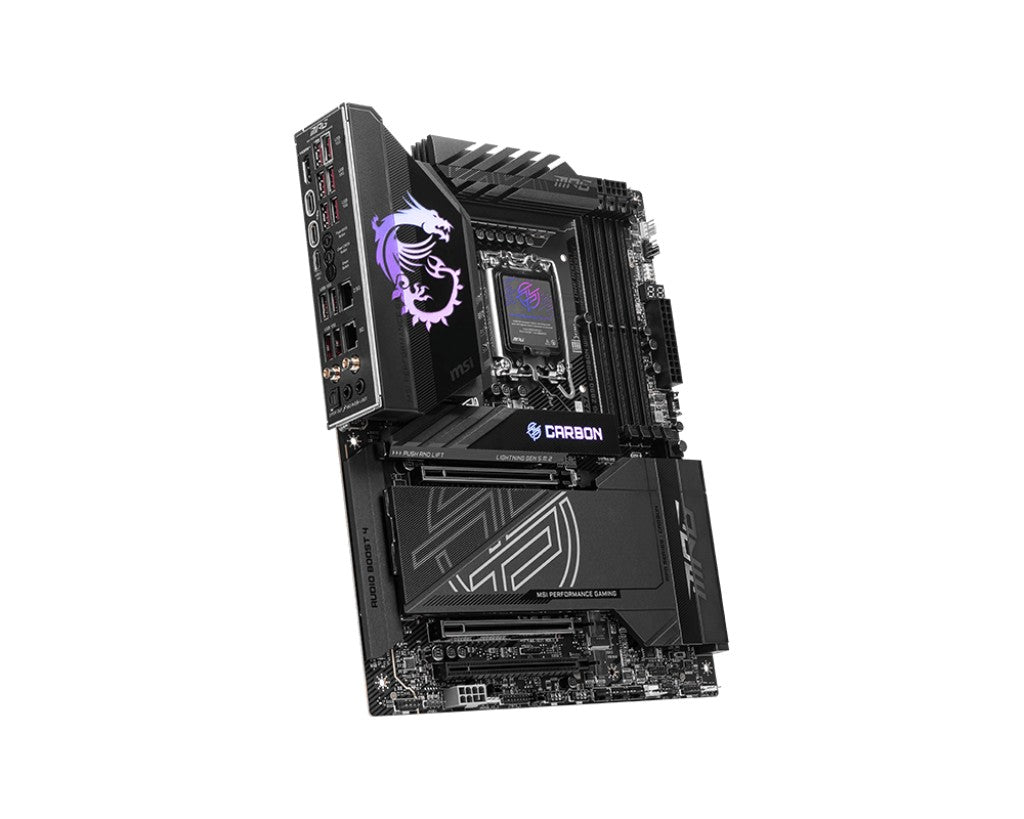

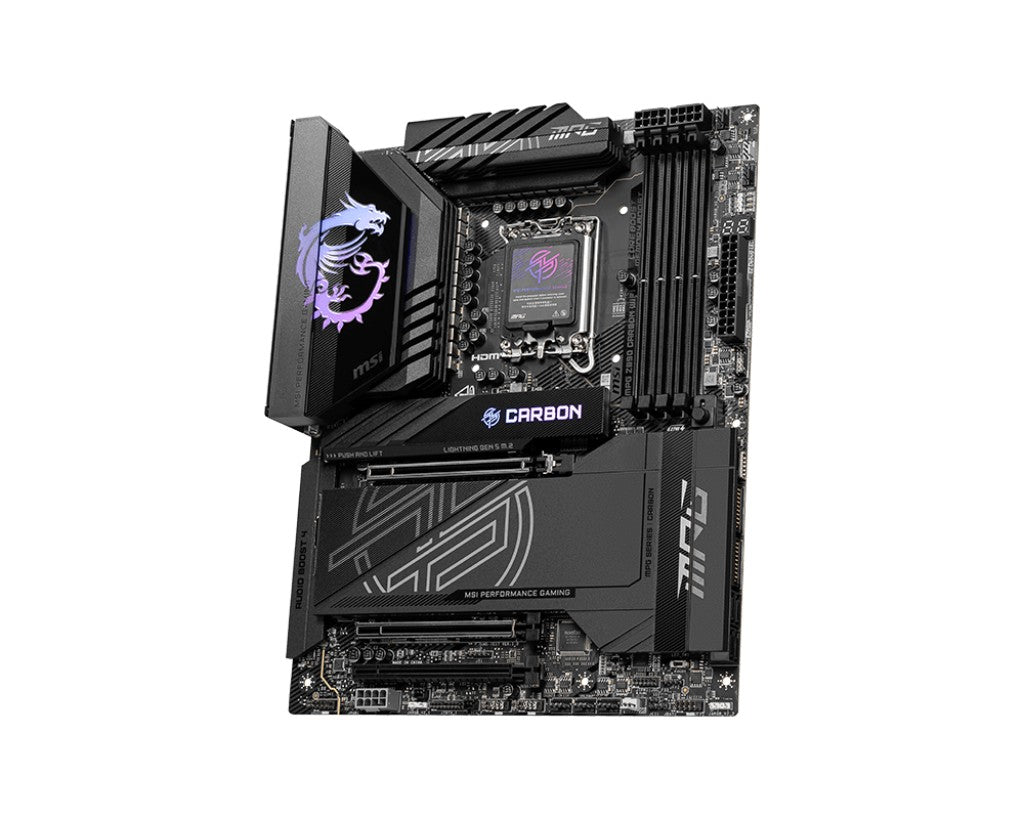

MSI Motherboard MPG Z890 CARBON WIFI s1 851 4DDR5 HDMI/DP ATX
Specifications
| Description | MPG Z890 CARBON WIFI The MPG Z890 CARBON WIFI features a carbon-black color scheme and a stylish pattern on the Mystic Light RGB lighting to showcase a distinctive identity. It is equally powerful under the hood, with Killer 5G LAN and Wi-Fi 7, Thunderbolt 4, additional PCIe power, and seamless EZ DIY designs. This motherboard is undoubtedly one of the best Z890 ATX motherboards for Intel Core Ultra processors. Supports Intel Core Ultra processors (Series 2) for the LGA 1851 socket Supports DDR5 memory, up to 9200+ MT/s (OC) Ultra Performance: Direct 20+1+1+1 phase power design, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB with 2 oz thickened copper and server-grade material Frozr Guard: Enlarged heatsink with heat pipe, 7 W/mK MOSFET thermal pads, additional thermal pads for chokes, and M.2 Shield Frozr are designed for high system performance and uninterrupted gaming EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II, and EZ Antenna Lightning-Fast Gaming Experience: PCIe 5.0 slot and Lightning Gen 5 M.2 Ultra Connect: Thunderbolt 4 and Intel Killer 5G LAN + 2.5G LAN with the latest Wi-Fi 7 solution for professional and multimedia applications, delivering secure, stable, and high-speed networking and data transfer Audio Boost 4: Treat your ears to studio-grade sound quality for the most immersive gaming experience |
|---|---|
| Model | MPG Z890 CARBON WIFI |
| CPU socket | LGA1851 |
| Processor family | Intel Core Ultra |
| Integrated CPU | No |
| Chipset manufacturer | Intel |
| Chipset type | INTEL Z890 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 9200 MHz |
| Max memory size | 256 |
| Expansion slots | 3 x PCIe x 16 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Expansion slots | 1 x PCIe 5.0 x 8 |
| Expansion slots | 5 x M.2 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Sound card | Realtek ALC1220P Codec 7.1-Channel USB High Defination Audio Supports S/PDIF output |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Bluetooth |
| USB ports at back panel | 13 |
| USB ports on motherboard | 9 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 4 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 14 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

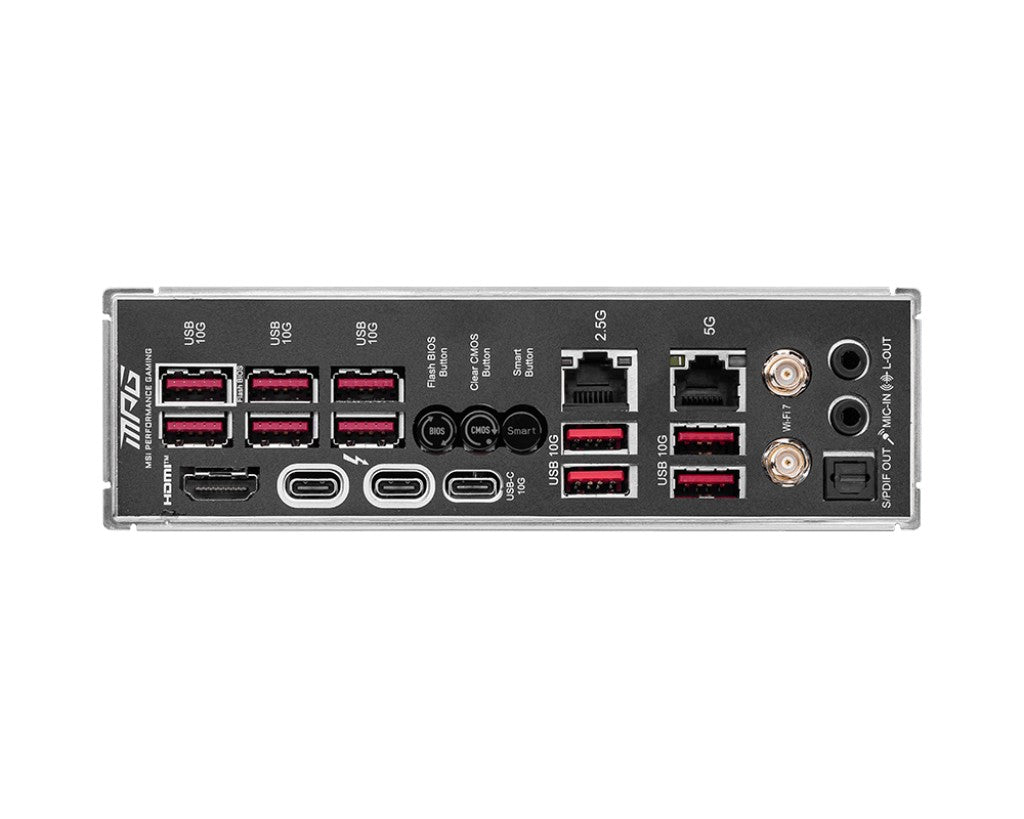

| External connectors | 1 x Line Out |
| External connectors | 1 x S/PDIF |
| External connectors | 2 x RJ-45 |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 1 x MIC |
| External connectors | 1 x HDMI |
| External connectors | 10 x USB 3.1 |
| External connectors | 1 x USB 3.1 Type-C |
| External connectors | 2 x Thunderbolt 4 |
| External connectors | 1 x Smart Button |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 4 x USB 3.0 |
| Onboard connectors | 5 x 4pin Chassis fan |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 1 x Thermal sensor connector |
| Onboard connectors | 2 x System panel header |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 1 x EZ Conn-header |
| Onboard connectors | 1 x Front Type-C Quick Charge Connector |
| Onboard connectors | 1 x Water Flow connector |
| Form factor | ATX |
| Dimensions | 24,38 x 30,48 cm |
| Supported operating systems | Windows 11 |
