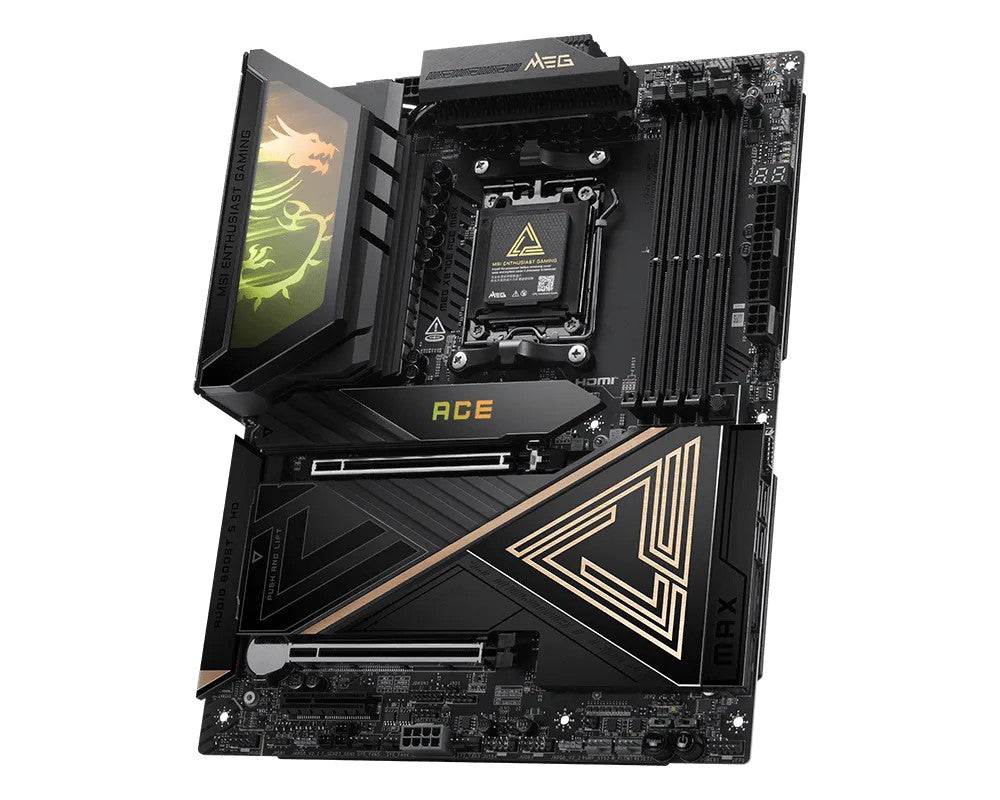

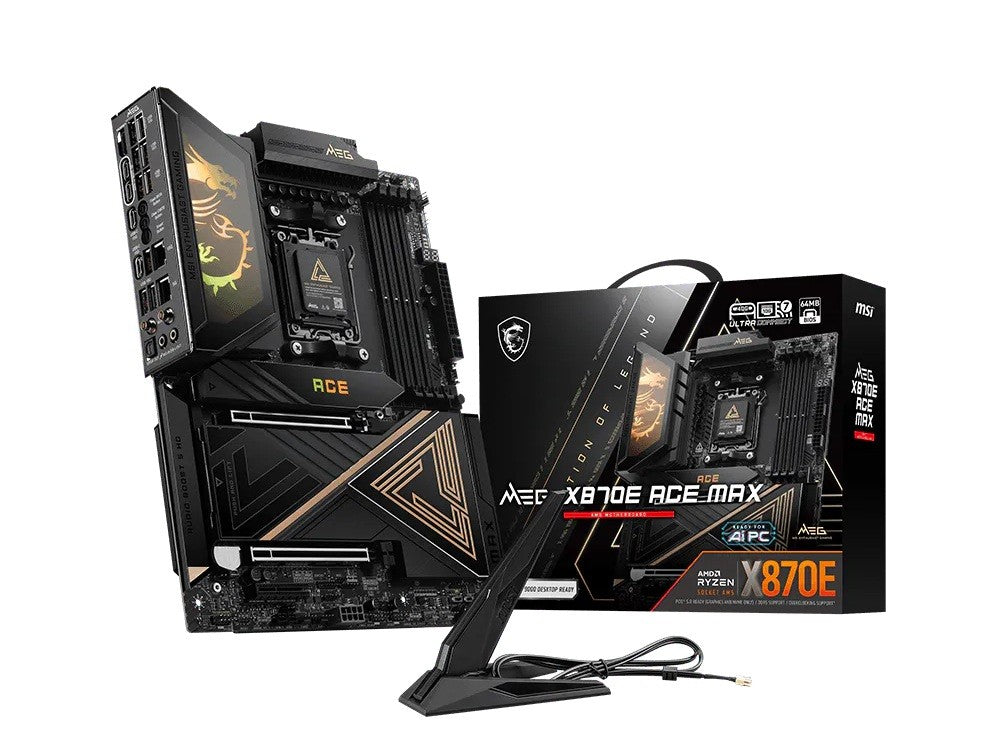

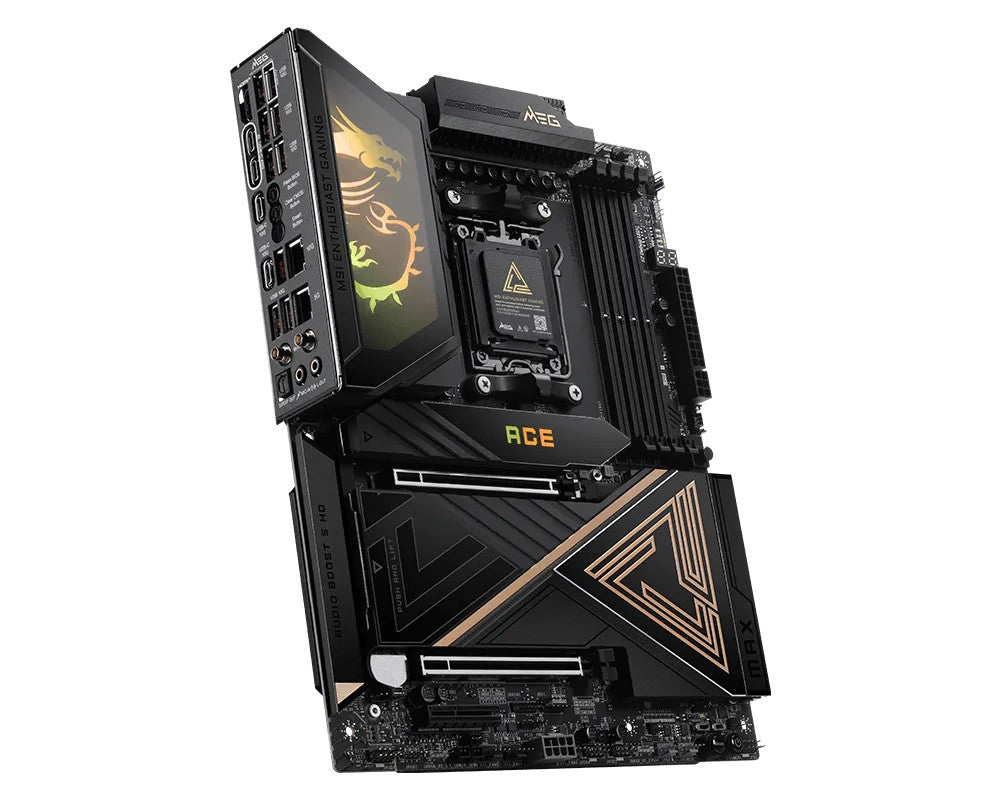

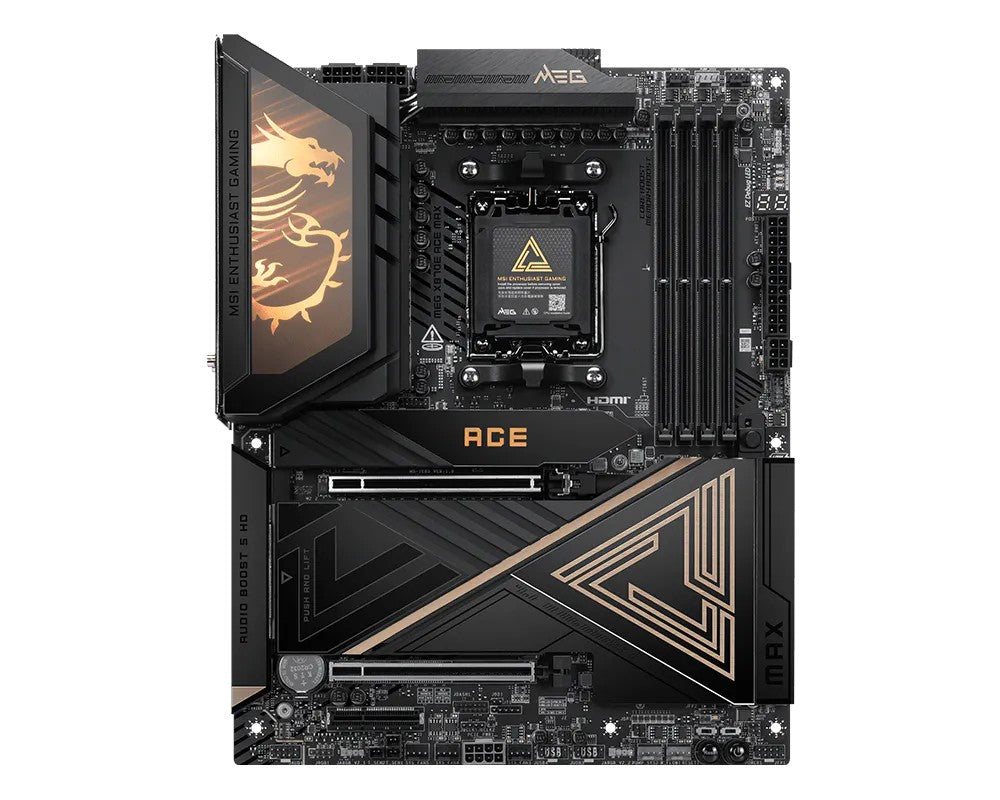

MSI Motherboard MEG X870E ACE MAX AM5 4DDR5 ATX
Specifications
| Description | MEG X870E ACE MAX Supports AMD Ryzen(TM) 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 9000+ MT/s (OC) Ultra Performance: 18+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material. Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature. EZ DIY: 64MB BIOS ROM, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna and EZ Conn-Design. Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission. Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 5x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery. Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience. |
|---|---|
| Model | MEG X870E ACE MAX |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 9000 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe x 4 |
| Expansion slots | 2 x PCIe x 16 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G |
| Graphics | 1 x HDMI - Support HDMI(TM) 2.1 FRL, maximum resolution of 8K 60Hz 2 x Type-C DisplayPort - USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz |
| Sound card | Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Network interface | Bluetooth |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10Gbit/s 10GBase-T |
| Network interface | LAN: 1 x Marvell AQC113CS 10Gbps LAN 1 x Realtek 8126 5Gbps LAN WIRELESS LAN & BLUETOOTH: Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
| USB ports at back panel | 13 |
| USB ports on motherboard | 9 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 4 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 11 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

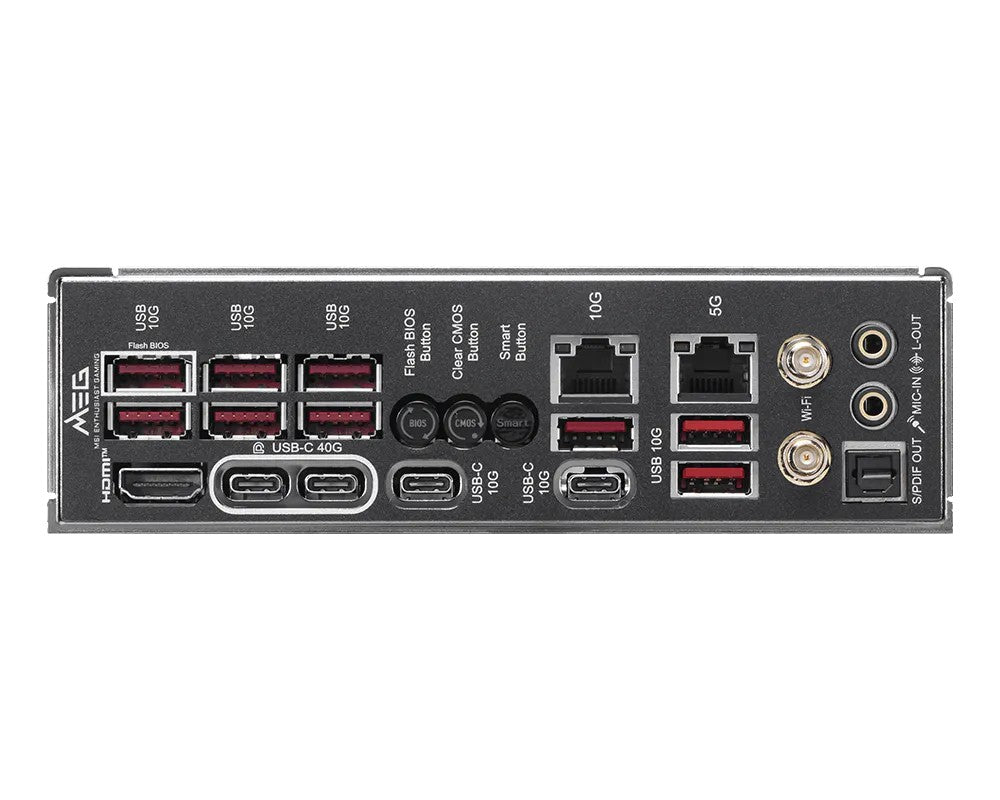

| External connectors | 1 x MIC |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 1 x S/PDIF |
| External connectors | 2 x SMA |
| External connectors | 1 x Line Out |
| External connectors | 1 x Smart Button |
| External connectors | 9 x USB 3.2 Gen 2 Type-A |
| External connectors | 2 x USB 3.2 Gen 2 Type-C |
| External connectors | 2 x RJ-45 |
| External connectors | 1 x USB4 Type-C |
| External connectors | 1 x HDMI |
| Onboard connectors | 4 x EZ Debug LED |
| Onboard connectors | 5 x M.2 |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 1 x EZ Memory Detection LED |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 1 x Tuning Controller connector |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 2 x temperature sensor |
| Onboard connectors | 1 x V-Check |
| Onboard connectors | 1 x EZ Conn-header |
| Onboard connectors | 4 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 1 x Water Flow connector |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 5 x 4pin Chassis fan |
| Onboard connectors | 2 x 4pin case fan liquid cooling |
| Onboard connectors | 1 x 8-pin PCIe |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| Onboard connectors | 1 x Front Type-C Quick Charge Connector |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 2 x Direct OC Jumper |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 2 x System panel header |
| Onboard connectors | 1 x Front panel audio header |
| Form factor | ATX |
| Dimensions | 243.84 x 304.8 mm |
| Supported operating systems | Windows 11 |
