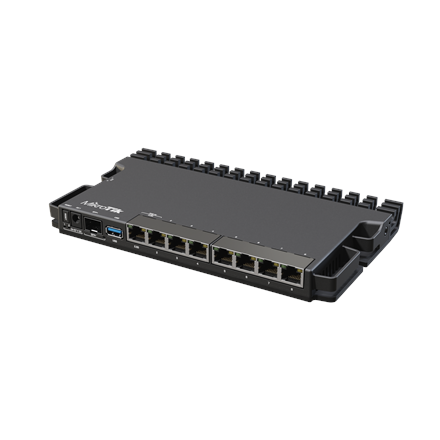

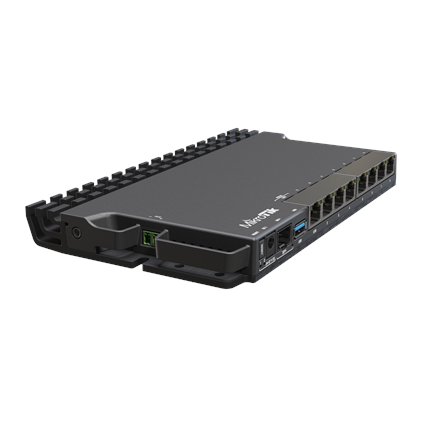

MikroTik MikroTik Wired Ethernet Router RB5009UG+S+IN, Quad core 1.4 GHz CPU, 1xSFP+, 7xGigabit LAN, 1x2.5G LAN, 1xUSB, Can be powered in 3 different ways, CPU temperature monitor, Mounts FOUR of these Routers in a Single 1U Rackmount Space, RouterOS L5 M

MikroTik MikroTik Wired Ethernet Router RB5009UG+S+IN, Quad core 1.4 GHz CPU, 1xSFP+, 7xGigabit LAN, 1x2.5G LAN, 1xUSB, Can be powered in 3 different ways, CPU temperature monitor, Mounts FOUR of these Routers in a Single 1U Rackmount Space, RouterOS L5 M

Producer product name: RB5009UG+S+IN, Producer product family: Wired Ethernet Router, Ethernet LAN (RJ-45) ports: 7, USB ports quantity: 1, Other features: Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity. , Ethernet LAN data rates: 10/100/1000, Wi-Fi band: No Wi-Fi, Mesh Support: No, Mobile Broadband: No mobile broadband, MU-MiMO: No, Warranty: 12, Producer: MikroTik

Key Features

Package features

• Packing quantity: 20
• Embeeded battery: No
• WEEE tax: Yes
• WEE classification: CL109:6:2017-04-01
• Tare weight (kg): 0.35
• Gross depth (mm): 310
• Gross width (mm): 130
• Gross height (mm): 48
• Volume (m3): 0.0019344
• Paper/Pasteboard: 315
• Plastic (No PET): 35
• Gross depth master carton: 510
• Gross width master carton: 275
• Gross height master carton: 340
• Net weight master carton: 16.08
• Tare weight master carton: 0.811
• Palette Qty: 720

Technical details

• Gross weight: 0.804
• Net weight: 0.454
• Software type: RouterOS (v7 only)
• Other features: Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
• Warranty: 12
• Producer: MikroTik

Other

• Producer product name: RB5009UG+S+IN
• Producer product family: Wired Ethernet Router

Processor

• Processor model: 88F7040

Storage

• Total storage capacity: 1

Networking

• PoE in: 802.3af/at
• CPU frequency: 350-1400 (auto) MHz

Power

• Power consumption (max): 20
• Voltage: (PoE in input Voltage) 24-57

Operational conditions

• Operating temperature (T-T): -40°C to 60°C

Ports & interfaces

• SFP+ ports quantity: 1

Other features

• Ethernet LAN (RJ-45) ports: 7
• USB ports quantity: 1
• USB version: USB 3.0 type A
• Wi-Fi: No

Management features

• Reset button: Yes

Performance

• Ethernet LAN data rates: 10/100/1000
• Processor frequency: 1400
• Processor cores: 4
• Internal memory: 1000
• Memory type: NAND

Wireless LAN features

• Wi-Fi band: No Wi-Fi

Features

• Mesh Support: No
• Mobile Broadband: No mobile broadband
• MU-MiMO: No

Antenna

• Antennas quantity: No antenna

Certificates

• Certification: CE, EAC, ROHS

Hard drive

• Storage capacity: 1000

Packaging content

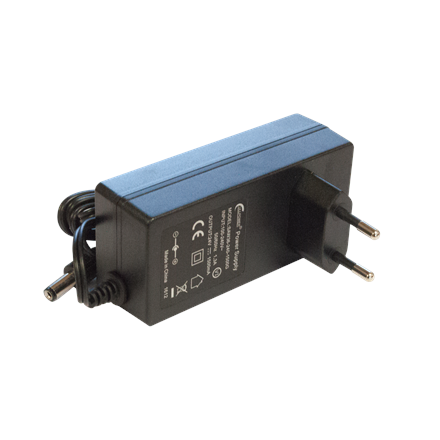

• AC adapter included: Yes (24V 1.5A power adapter)
