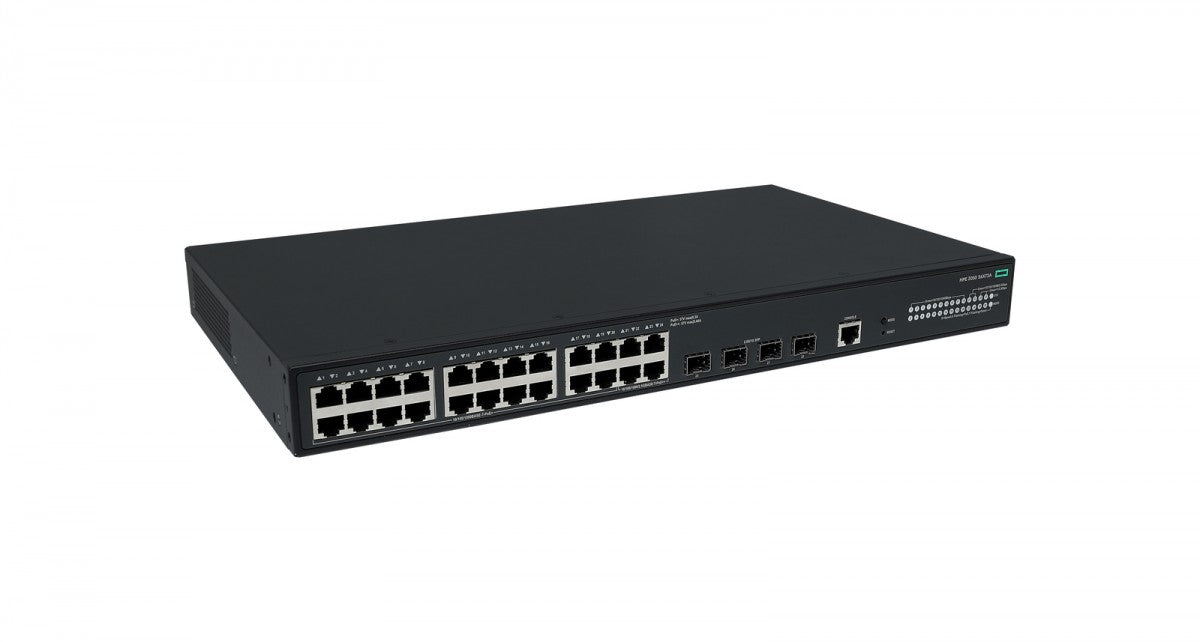

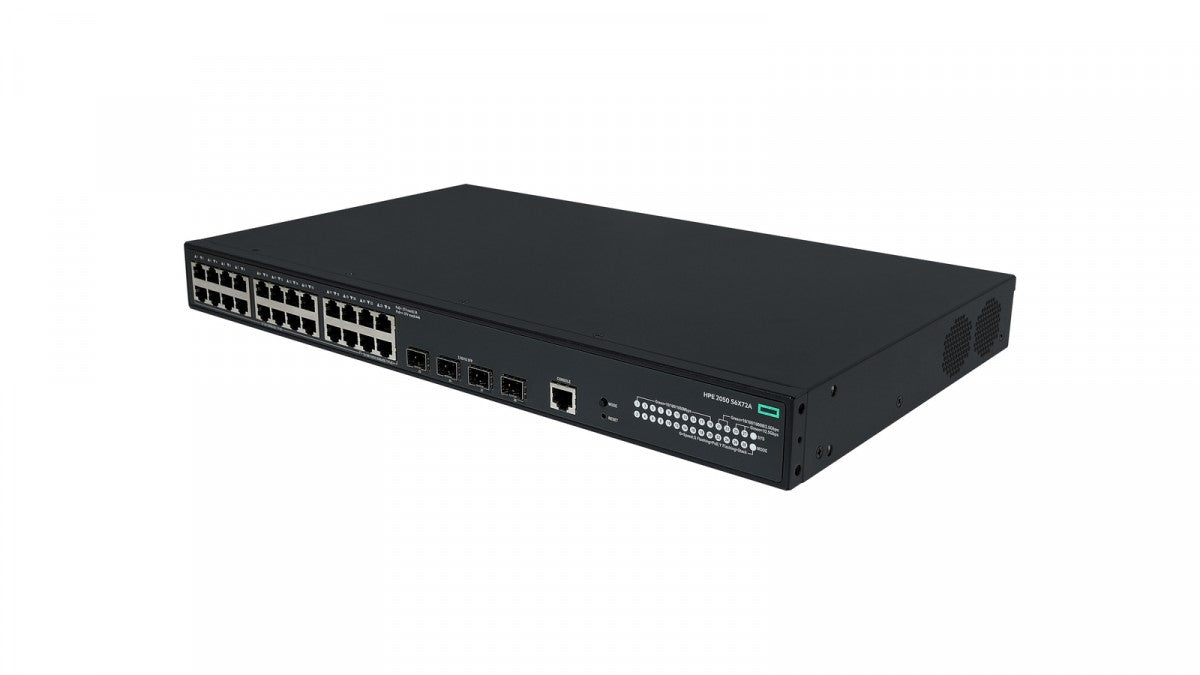

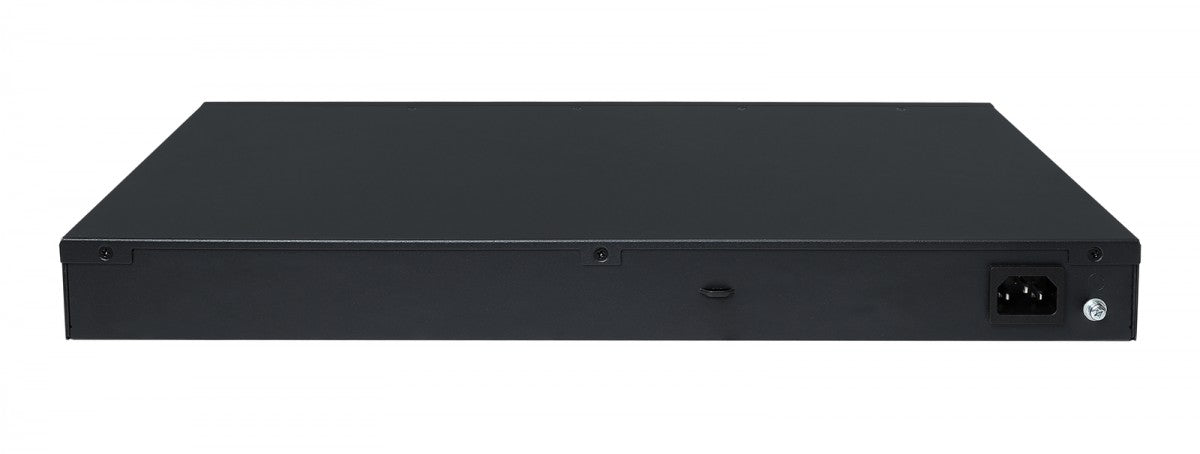

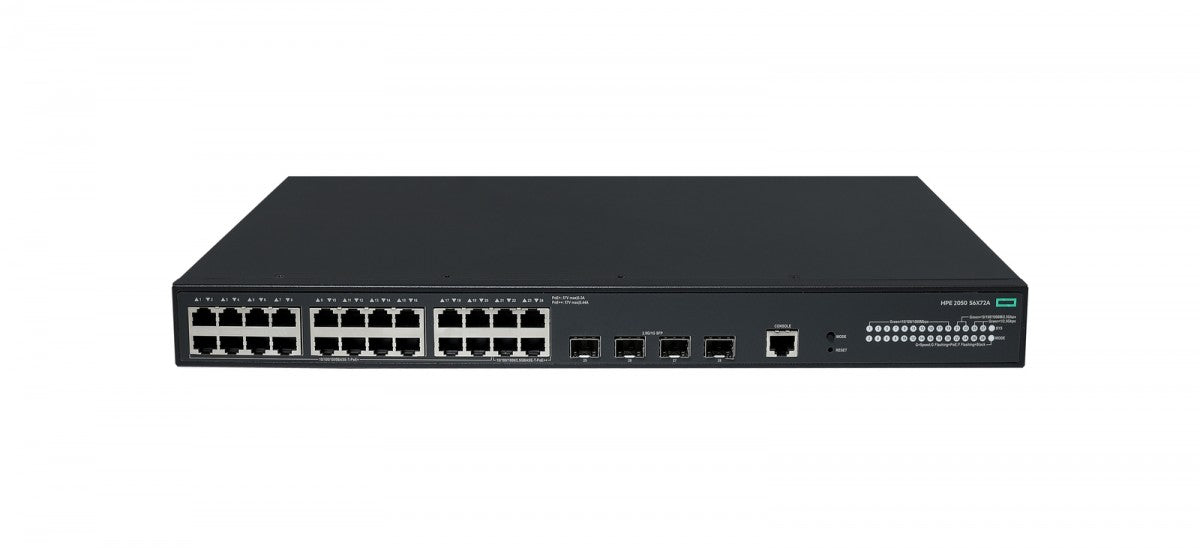

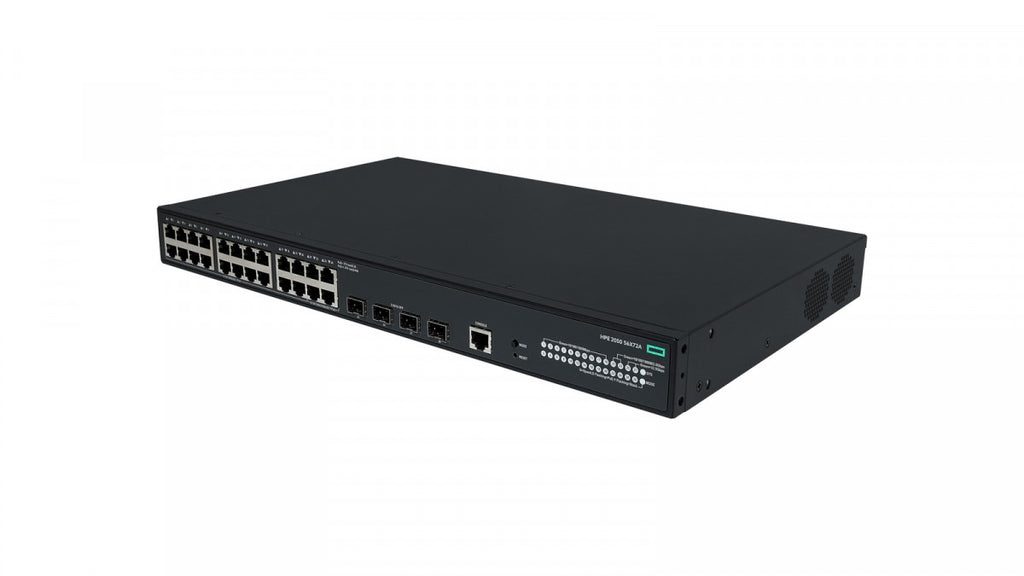

Hewlett Packard Enterprise Switch NW CW 2050 24G PoE+ 4F 420W S6X72A
Specifications
| Description | The HPE Networking CW 2050 Switch Series is a next-generation Layer 2 access switch designed for branch offices and small and medium-sized businesses. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L2+ |
| Switch layer | L3 |
| Switch layer | L2 |
| Switch layer | L4 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | 20 |
| 10/100/1000/2500 Mbps ports | None |
| Number of ports 1G/2.5G/5G/10G | None |
| Number of 10Gb ports | None |
| Number of ports 25Gb | None |
| Number of 100Gb ports | None |
| Number of PoE ports (PoE & PoE+) | None |
| Number of PoE+ ports | 20 |
| Number of PoE++ ports | 4 |
| Number of COMBO ports | None |
| Number of SFP ports | 4 |
| Number of SFP+ ports | None |
| SFP28 ports | None |
| Number of SFP56 ports | None |
| Number of QSFP ports | None |
| Number of QSFP+ ports | None |
| Number of QSFP28 ports | None |
| Console port | No |
| Throughput | 80 |
| Forwarding rate | 59.52 |
| Packet buffer | 0.5 |
| MAC address table size | 16000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 9 |
| Stackability | Yes |
| Maximum number of units per stack | 2 |
| VLAN | Guest VLAN Provides a browser-based environment for authenticated clients, similar to IEEE 802.1X. Private VLAN (PVLAN) Increases network security by enabling virtual organization of devices regardless of their physical location and improves performance by reducing traffic congestion. Super VLAN Allows multiple sub-VLANs to share a single IP subnet (subnet address/default gateway), reducing IP address depletion and broadcast traffic. |
| Chassis type | Rack |
| Fan | No |
| Power supply | External |
| Power consumption | 23 |
| Environment requirements | Operating temperature: -5°C to 45°C Operating relative humidity: 5% to 95%, non-condensing |
| Certificates | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance |
| Dimensions | 440 x 260 x 44 mm |
| Weight | 3.6 |
