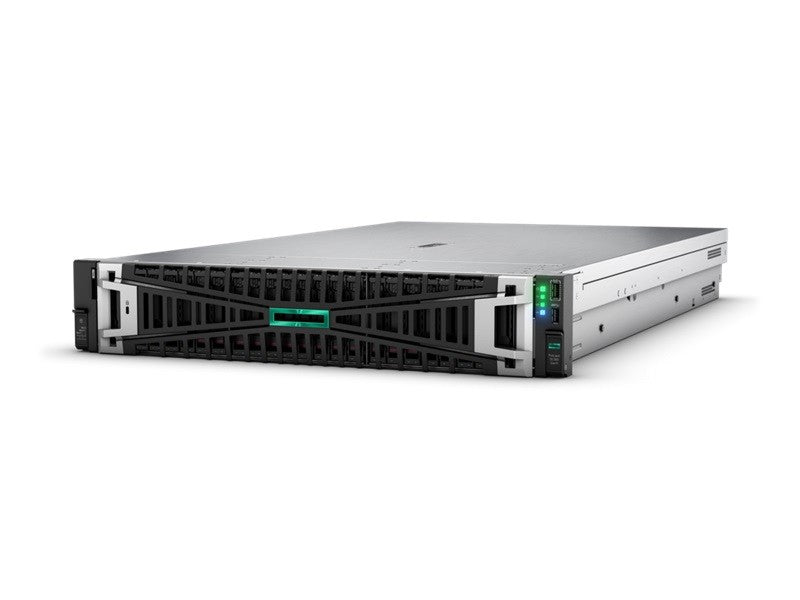

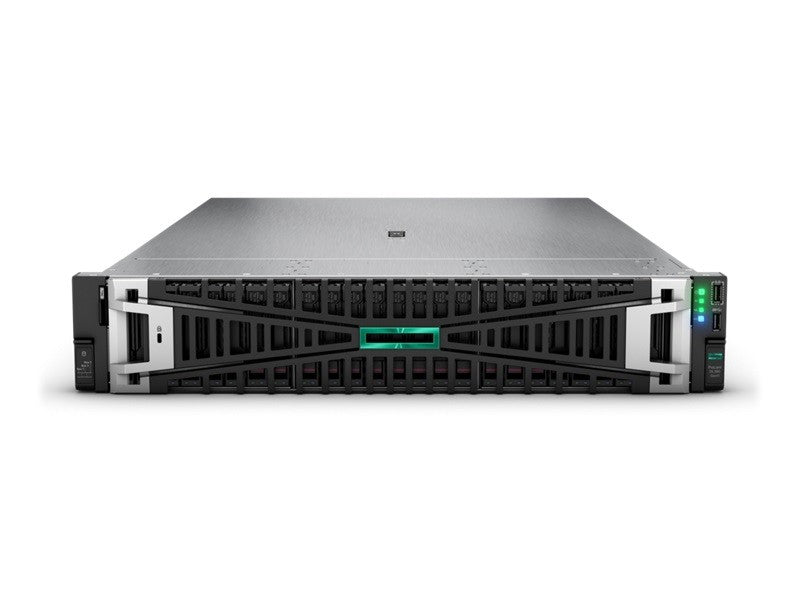

Hewlett Packard Enterprise Server DL380 Gen11 4510 2x32GB 2x8TB LFF MR416i-p NC BCM5719 2x1000W RPS EMEA P71675-425
Specifications
| Model | HPE ProLiant DL380 Gen11 |
|---|---|
| Chipset type | Intel C741 |
| Number of CPUs installed | 1 |
| Max supported number of processors | 2 |
| CPU series | Intel Xeon |
| CPU model | 4510 |
| CPU frequency | 2.4 |
| Number of cores | 12C |
| CPU - other information | Intel Xeon Silver 4510 |
| RAM memory installed | 64 |
| Max memory size | 8 |
| Memory type | DDR5 |
| Kind of memory | Registered |
| Memory frequency | 5600 MHz |
| Number of memory slots used | 2 |
| Number of available memory slots | 30 |
| Total number of memory slots | 32 |
| Network interface | 4 x 10/100/1000 Mbit/s |
| Disk controller | Card |
| RAID levels | 6 |
| RAID levels | 0 |
| RAID levels | 1 |
| RAID levels | 10 (1+0) |
| RAID levels | 5 |
| RAID levels | 60 (6+0) |
| RAID levels | 50 (5+0) |
| Controller memory | 8 GB |
| Controller - other information | HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller |
| Form factor (width) | 3,5'' (LFF) |
| Hot-swapping support | Yes |
| Hard drive cage interfaces | SAS |
| Hard drive cage interfaces | SATA |
| Max. number of disks in current configuration | 12 |
| Number of HDDs installed | 2 |
| Total capacity of all disks installed | 16 |
| Type of installed disc | HDD |
| Disk interface | SATA |
| Rotational Speed | 7200 RPM |
| Optical disk drive | None |
| Internal backup device support | Yes |
| Expansion slots | 2 x PCIe 5.0 x 8 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| I/O connectors | 4 x USB 3.0 |
| I/O connectors | 1 x USB 2.0 |
| I/O connectors | 1 x USB Service |
| I/O connectors | 1 x RJ-45 (iLO Remote Management Network) |
| I/O connectors | 1 x 15-pin D-Sub |
| Number of power supplies installed | 2 |
| Max. number of power supplies | 2 |
| Power supply output current | 1000 |
| PSU efficiency | 96 |
| Hot-plug power supply support | Yes |
| Number of fans | 1 |
| Hot-plug fans support | Yes |
| Housing | Rack 2U |
| Height | 8.75 |
| Width | 44.8 |
| Depth | 72.7 |
| Weight | 33 |
| Tower to rack conversion support | No |
| Color | Not applicable |
