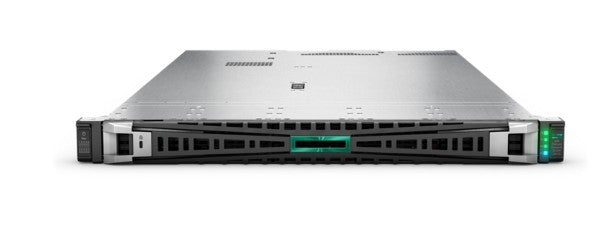

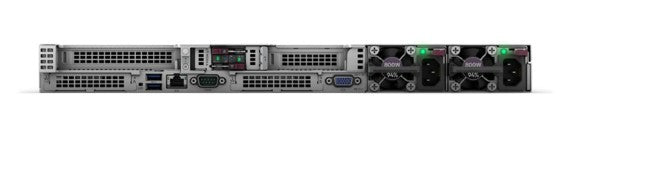

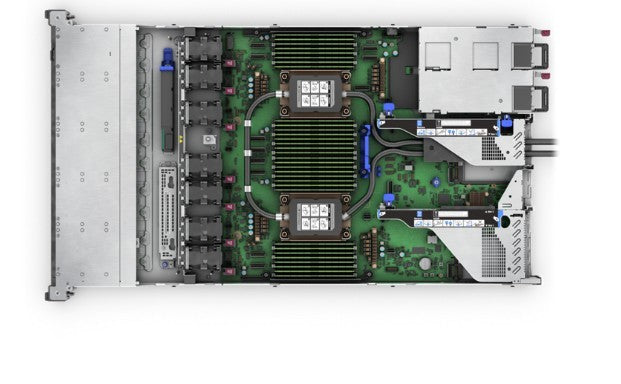

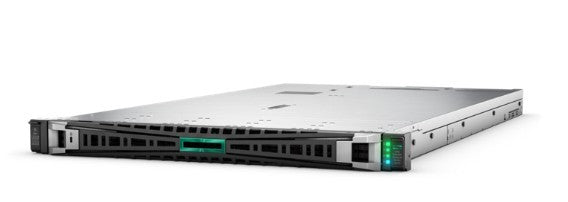

Hewlett Packard Enterprise Server DL360 G12 6505P 8SFF P89233-425
Specifications
| Description | HPE ProLiant Compute DL360 Gen12 Are you looking for a compact, rack-optimized, dual-socket server that supports workloads in a hybrid cloud environment? The HPE ProLiant Compute DL360 Gen12 is a compact, 1U, dual-socket (2P) server that delivers exceptional compute performance, scalable high memory density, and fast data transfers to support the most demanding applications. Featuring Intel Xeon 6 processors with up to 144 cores, support for up to 8 TB of memory, and up to 20 EDSFF E3.S NVMe drives, the HPE ProLiant Compute DL360 Gen12 is the ideal hybrid cloud platform for enterprise-class applications and workloads. The server also offers significant scalability thanks to a hybrid front-mounted drive bay that supports not only SFF and E3.S media but also an operating system boot device (OS Boot) and optional dual front-mount OCP NICs. The HPE ProLiant Compute DL360 Gen12 is designed with the future in mind, offering a new level of security, optimized performance and efficiency, and automated productivity powered by AI-based solutions. |
|---|---|
| Model | HPE ProLiant DL360 Gen11 |
| Number of CPUs installed | 1 |
| Max supported number of processors | 2 |
| CPU series | Intel Xeon |
| CPU model | 6505P |
| CPU frequency | 2.2 |
| Number of cores | 12C |
| CPU - other information | Intel Xeon 6505P |
| RAM memory installed | 64 |
| Max memory size | 8 |
| Memory type | DDR5 |
| Kind of memory | Registered |
| Kind of memory | ECC |
| Memory frequency | 6400 MHz |
| Number of memory slots used | 2 |
| Number of available memory slots | 30 |
| Total number of memory slots | 32 |
| RAM - other information | 64 GB (2x32 GB, 6400 MT/s) |
| Network interface | 2 x 10Gbit/s 10GBase-T |
| Network card - other information | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE |
| Disk controller | Card |
| RAID levels | 60 (6+0) |
| RAID levels | 50 (5+0) |
| RAID levels | 6 |
| RAID levels | 10 (1+0) |
| RAID levels | 5 |
| RAID levels | 0 |
| RAID levels | 1 |
| Controller memory | 4 GB |
| Controller - other information | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Form factor (width) | 2,5'' (SFF) |
| Hot-swapping support | Yes |
| Hard drive cage interfaces | NVMe |
| Hard drive cage interfaces | SAS |
| Max. number of disks in current configuration | 8 |
| Number of HDDs installed | 2 |
| Total capacity of all disks installed | 960 |
| Type of installed disc | SSD |
| Disk interface | SATA |
| Optical disk drive | None |
| Internal backup device support | Yes |
| I/O connectors | 1 x USB Service |
| I/O connectors | 1 x RJ-45 (iLO Remote Management Network) |
| I/O connectors | 1 x 15-pin D-Sub |
| I/O connectors | 4 x USB 3.2 Type-A Gen 1 |
| Number of power supplies installed | 2 |
| Max. number of power supplies | 2 |
| Power supply output current | 1000 |
| PSU efficiency | 96 |
| Hot-plug power supply support | Yes |
| Number of fans | 5 |
| Hot-plug fans support | No |
| Housing | Rack 1U |
| Height | 42.9 |
| Width | 434.6 |
| Depth | 753.1 |
| Weight | 19.94 |
| Tower to rack conversion support | No |
| Warranty | Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
| Accessories included | HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit |
| Color | Not applicable |
