Beschreibung

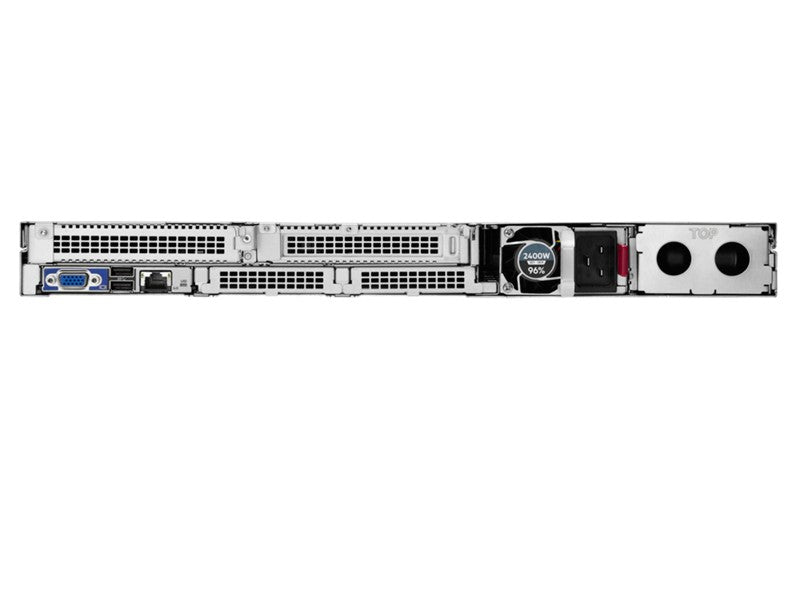

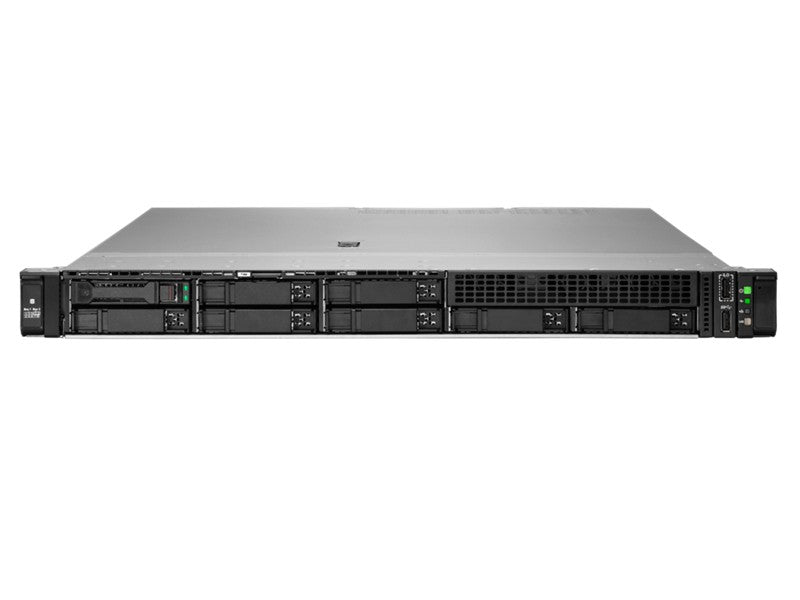

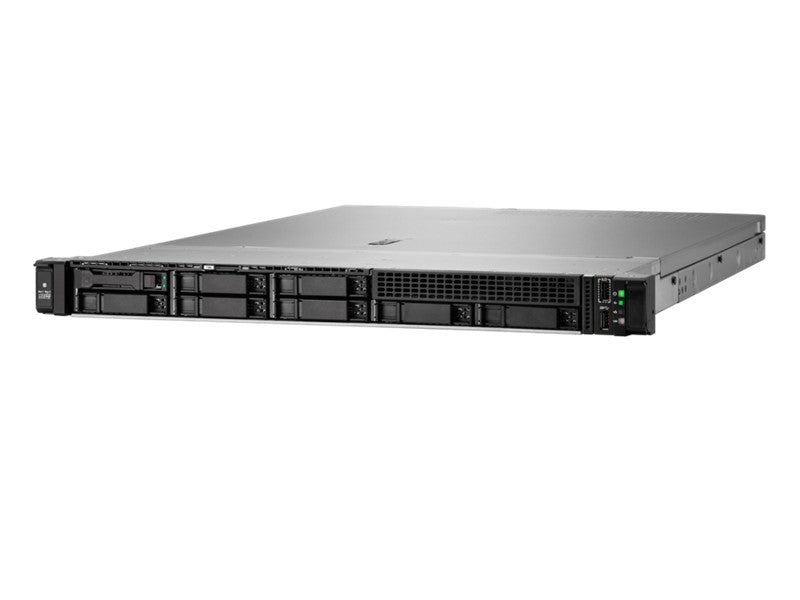

Hewlett Packard Enterprise Server DL320 G12 6505P 8SFF P87783-425
Specifications
| Description | HPE ProLiant Compute DL320 Gen12 6505P 12c 1x64GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS EU Server |
|---|---|
| Model | HPE ProLiant Compute DL320 Gen12 |
| Number of CPUs installed | 1 |
| Max supported number of processors | 1 |
| CPU series | Intel Xeon |
| CPU model | 6505P |
| CPU frequency | 2.2 |
| Number of cores | 12C |
| CPU - other information | Intel Xeon 6505P (12 core, 2.2 GHz, 150W) |
| RAM memory installed | 64 |
| Max memory size | 4 |
| Memory type | DDR5 |
| Kind of memory | ECC |
| Kind of memory | Registered |
| Memory frequency | 6400 MHz |
| Number of memory slots used | 1 |
| Number of available memory slots | 15 |
| Total number of memory slots | 16 |
| RAM - other information | 64 GB (1x64 GB, 6400 MT/s) |
| Network interface | 4 x 10/100/1000 Mbit/s |
| Network card - other information | Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE |
| Disk controller | Hardware |
| RAID levels | 0 |
| RAID levels | 50 (5+0) |
| RAID levels | 60 (6+0) |
| RAID levels | 1 |
| RAID levels | 5 |
| RAID levels | 6 |
| RAID levels | 10 (1+0) |
| Controller memory | 4 GB |
| Controller - other information | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Battery backup | No |
| Form factor (width) | 2,5'' (SFF) |
| Hot-swapping support | Yes |
| Hard drive cage interfaces | SATA |
| Hard drive cage interfaces | NVMe |
| Hard drive cage interfaces | SAS |
| Max. number of disks in current configuration | 8 |
| Number of HDDs installed | 2 |
| Total capacity of all disks installed | 960 |
| Type of installed disc | SSD |
| Form factor of installed disc (width) | 2,5'' (SFF) |
| HDD interface | SATA III - 6 Gb/s |
| Other disk parameters | 2 x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Optical disk drive | None |
| Internal backup device support | Yes |
| Expansion slots | 2 x PCIe 5.0 x16 |
| I/O connectors | 1 x RJ-45 (iLO Remote Management Network) |
| I/O connectors | 1 x USB 3.2 Type-C Gen 1 (Service) |
| I/O connectors | 4 x USB 3.2 Type-A Gen 1 |
| I/O connectors | 4 x RJ-45 LAN |
| I/O connectors | 1 x 15-pin D-Sub |
| Number of power supplies installed | 2 |
| Max. number of power supplies | 2 |
| Power supply output current | 1000 |
| PSU efficiency | 96 |
| Hot-plug power supply support | Yes |
| Number of fans | 7 |
| Housing | Rack 1U |
| Height | 4.28 |
| Width | 43.46 |
| Depth | 60.75 |
| Weight | 17.25 |
| Tower to rack conversion support | No |
| Warranty | Server warranty includes 3-year parts, 3-year labor, 3-year on-site support with next business day response |
| Accessories included | HPE Easy Install Rail 1 Kit |
| Color | Black |
